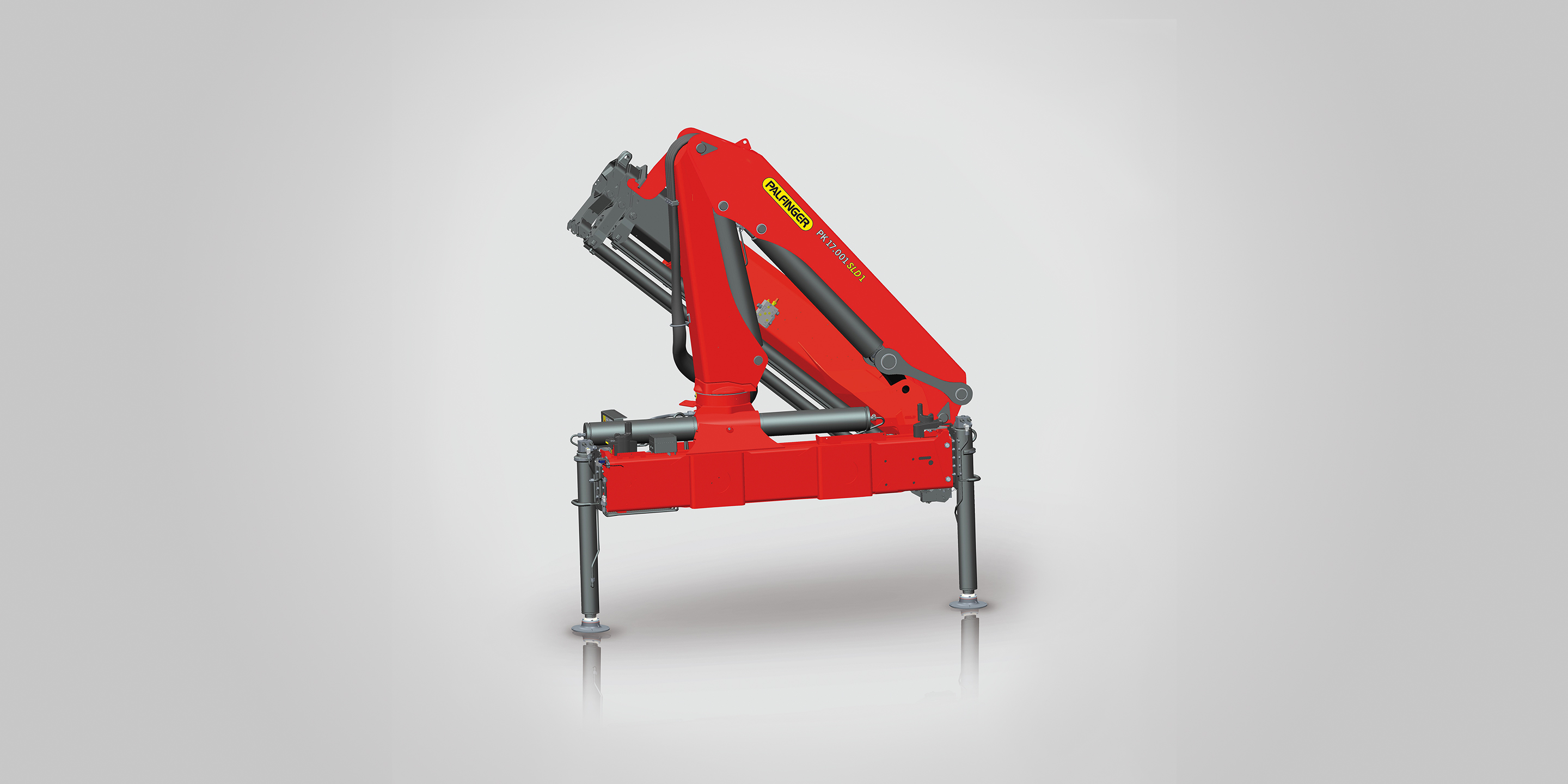

Knuckle Boom Crane
PK 17.001 SLD 1
Knuckle Boom Crane
Key Specs
Imperial
Metric
- Max Lifting Moment
- 16.8 mt 121,548 ft_lbs
- Max Lifting Capacity
- 6,200 kg 13700 lb
- Max Hydraulic Outreach
- 14.8 m 48' 7''
The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. The robust PK 17.001 SLD 1 offers user-friendly handling and flexible, economical performance in varied construction tasks. Its intelligent, lightweight design and optional remote control ensure convenient, adaptable operation.
Technical Specifications
Technical data U.S. Units
- Max. lifting moment
- 121,548 ft_lbs
- Max. lifting capacity
- 13700 lb
- Max. hydraulic outreach
- 48' 7''
- Max. manual outreach
- 62' 4"
- Slewing angle
- 420°
- Slewing torque
- 14,460 ft_lbs

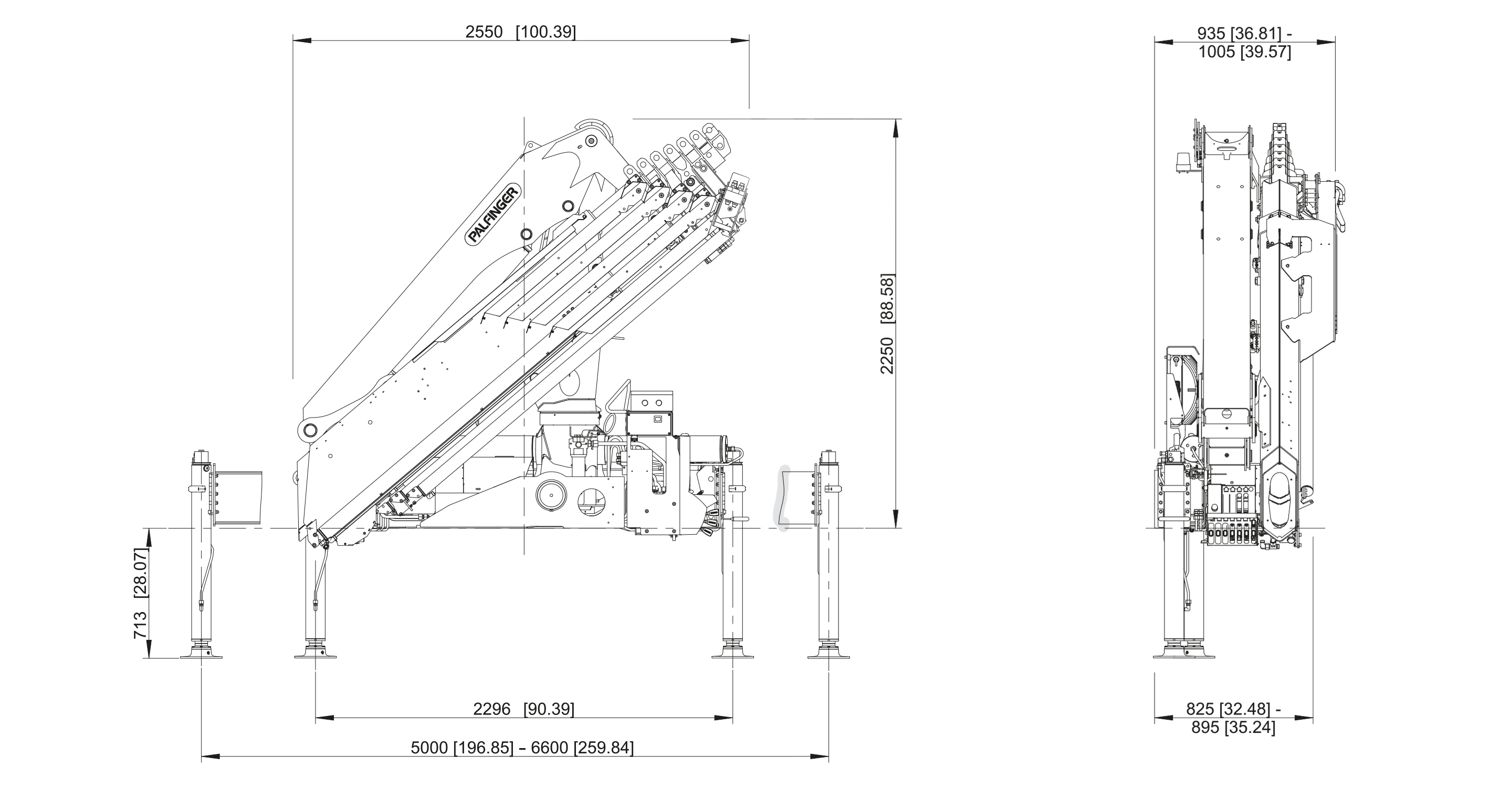

- Stabilizer spread (std)
- 16' 5''
- Fitting space required (std)
- 2' 8''
- Width folded
- 8' 4''
- Max. operating pressure
- 4,785 psi
- Pump capacity
- 10.6 - 15.9 gpm
- Dead weight (std)
- 3,680 lbs
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Technical Data Metric
- Max. lifting moment
- 16.8 mt
- Max. lifting capacity
- 6,200 kg
- Max. hydraulic outreach
- 14.8 m
- Max. manual outreach
- 19 m
- Slewing angle
- 420°
- Slewing torque
- 2 mt
- Stabilizer spread (std)
- 5.0 m
- Max. operating pressure
- 330 bar
- Pump capacity
- 40 - 60 l/min
- Dead weight (std)
- 1,670 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities U.S. Units
|
Crane Weight (lbs) |
Lifting moment (ft_lbs) |
Pressure (psi) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
Pump capacity (gpm) |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Outreach |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 3,680 lbs | 121,548 ft_lbs | 4,785 psi | 88.58 inch | 98.43 inch | 32.48 inch | 10.6 - 15.9 | 420 | 14460 | |
| A | 4,025 lbs | 117,931 ft_lbs | 4,785 psi | 88.58 inch | 98.43 inch | 32.48 inch | 41' | 10.6 - 15.9 | 420 | 14460 |
| AV1 | ||||||||||
| AV-2 | ||||||||||
| B | 4,320 lbs | 115,037 ft_lbs | 4,785 psi | 88.58 inch | 98.43 inch | 32.48 inch | 49' | 10.6 - 15.9 | 420 | 14460 |
| BV-1 | ||||||||||
| BV-2 | ||||||||||
| C | 4,575 lbs | 112,866 ft_lbs | 4,785 psi | 88.58 inch | 98.43 inch | 35.24 inch | 56' | 10.6 - 15.9 | 420 | 14460 |
| CV-1 | ||||||||||
| CV-2 | ||||||||||
| D | 4,795 lbs | 110,696 ft_lbs | 4,785 psi | 88.58 inch | 98.43 inch | 35.24 inch | 62' | 10.6 - 15.9 | 420 | 14460 |
| DV-1 | ||||||||||
| DV2 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities Metric
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 2,250 mm | 1,670 kg | 2,500 mm | 825 mm | 16.8 mt | 6.1 m | 33 Mpa | 40-60 | 420 | 2.0 |
| A | 2,250 mm | 1,825 kg | 2,500 mm | 825 mm | 16.3 mt | 8.2 m | 33 bar | 40-60 | 420 | 2.0 |
| AV1 | 40-60 | |||||||||
| AV-2 | 40-60 | |||||||||
| B | 2,250 mm | 1,960 kg | 2,500 mm | 825 mm | 15.9 mt | 10.4 m | 33 bar | 40-60 | 420 | 2.0 |
| BV-1 | 40-60 | |||||||||
| BV-2 | 40-60 | |||||||||
| C | 2,250 mm | 2,075 kg | 2,500 mm | 895 mm | 15.6 mt | 12.6 m | 33 bar | 40-60 | 420 | 2.0 |
| CV-1 | 40-60 | |||||||||
| CV-2 | 40-60 | |||||||||
| D | 2,250 mm | 2,175 kg | 2,500 mm | 895 mm | 15.3 mt | 14.8 m | 33 bar | 40-60 | 420 | 2.0 |
| DV-1 | 40-60 | |||||||||
| DV2 | 40-60 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
SINGLE LINK PLUS – Extended Reach
Single Link Plus reverse linkage system allowis the knuckle boom to tilt upward by up to 15° beyond the horizontal line. This expanded movement range simplifies work in tight spaces, through windows or doorways, and around obstacles. It also enables compact folding on the truck bed while improving precision, control, and efficiency during complex lifting tasks.
Optional Features
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
