Knuckle Boom

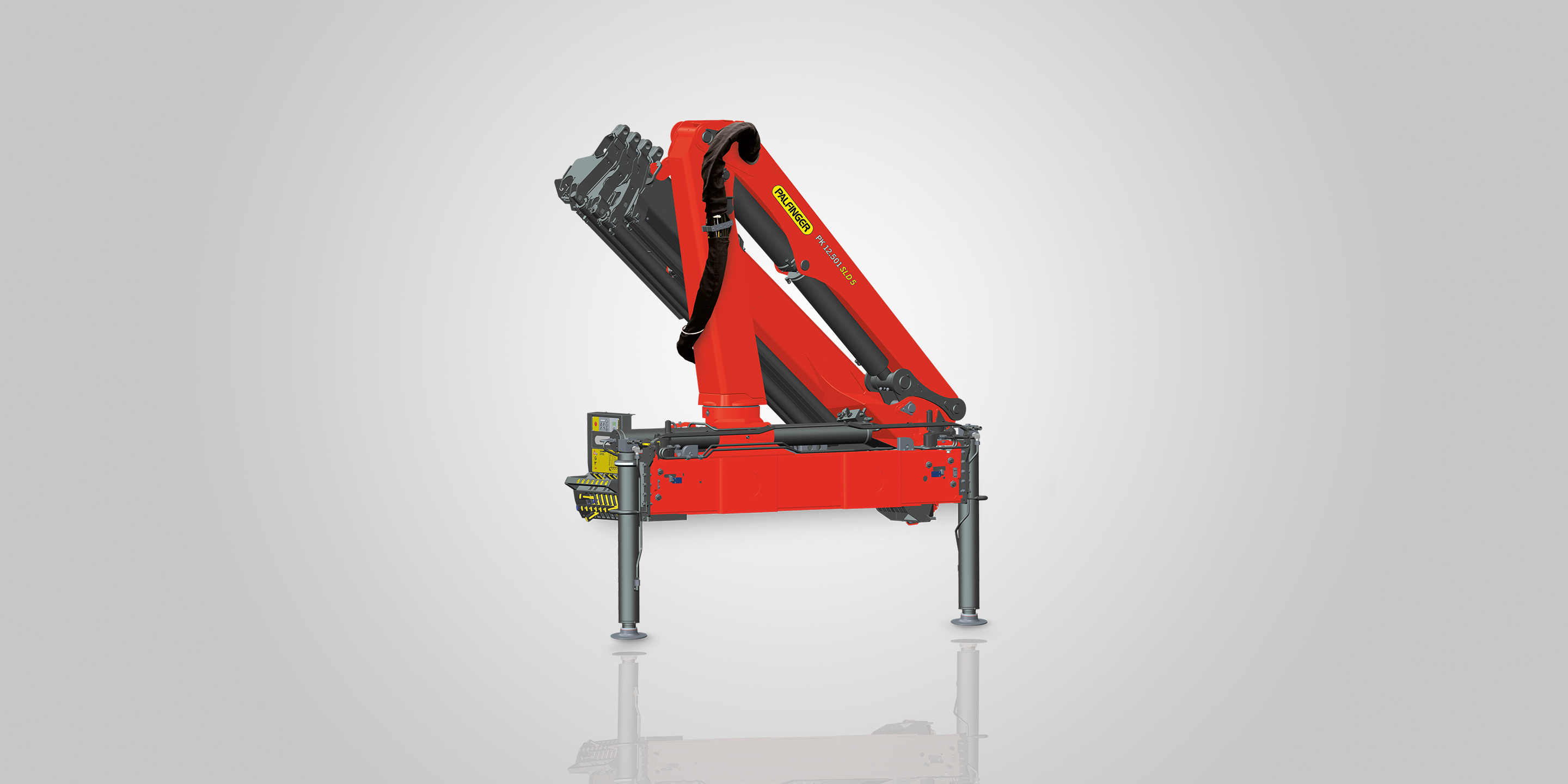

PK 12.501 SLD 5
Knuckle Boom Crane
Key Specs
Imperial
Metric
- Max Lifting Moment
- 11.4 mt 82,160 ft_lbs
- Max Lifting Capacity
- 5,700 kg 12570 lb
- Max Hydraulic Outreach
- 12 m 39' 6''
The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. The PK 12.501 SLD 5 offers reliable strength and efficiency, whatever the task. A-HPLS provides extra lifting force when required, making this versatile mid-range model ideal for heavier or more precise construction jobs.
Technical data U.S. Units
- Max. lifting moment
- 82,160 ft_lbs
- Max. lifting capacity
- 12570 lb
- Max. hydraulic outreach
- 39' 6''
- Max. manual outreach
- 53'
- Slewing angle
- 400°
- Slewing torque
- 9,370 ft_lbs
- Stabilizer spread (std)
- 16'
- Fitting space required (std)
- 2' 4''
- Width folded
- 232
- Max. operating pressure
- 360 psi
- Pump capacity
- 11.9 - 15.9 gpm
- Dead weight (std)
- 2,580 lbs
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Technical Data Metric
- Max. lifting moment
- 11.4 mt
- Max. lifting capacity
- 5,700 kg
- Max. hydraulic outreach
- 12 m
- Max. manual outreach
- 15.9 m
- Slewing angle
- 400°
- Slewing torque
- 1.3 mt
- Stabilizer spread (std)
- 3.3 m
- Fitting space required (std)
- 0.72 m
- Max. operating pressure
- 360 bar
- Pump capacity
- 45 - 60 l/min
- Dead weight (std)
- 1,170 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities U.S. Units
|
Crane Weight (lbs) |
Lifting moment (ft_lbs) |
Pressure (psi) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
Pump capacity (gpm) |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Outreach |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 2,580 lbs | 82,479 ft_lbs | 5,220 psi | 83.07 inch | 94.49 inch | 27.56 inch | 11.9 - 15.9 | 400 | 9370 | |
| A | 2,820 lbs | 79,585 ft_lbs | 5,220 psi | 83.07 inch | 94.49 inch | 27.56 inch | 40' | 11.9 - 15.9 | 400 | 9370 |
| B | 3,040 lbs | 76,691 ft_lbs | 5,220 psi | 83.07 inch | 94.49 inch | 27.56 inch | 46' | 11.9 - 15.9 | 400 | 9370 |
| C | 3,260 lbs | 75,244 ft_lbs | 5,220 psi | 83.07 inch | 94.49 inch | 27.56 inch | 53' | 11.9 - 15.9 | 400 | 9370 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities Metric
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 2,110 mm | 1,170 kg | 2,400 mm | 720 mm | 11.4 mt | 5.8 m | 36 Mpa | 45-60 | 400 | 1.3 |
| A | 2,110 mm | 1,280 kg | 2,400 mm | 720 mm | 11.1 mt | 7.8 m | 36 Mpa | 45-60 | 400 | 1.3 |
| B | 2,110 mm | 1,380 kg | 2,400 mm | 720 mm | 10.8 mt | 9.9 m | 36 Mpa | 45-60 | 400 | 1.3 |
| C | 2,110 mm | 1,480 kg | 2,400 mm | 720 mm | 10.5 mt | 12 m | 36 Mpa | 45-60 | 400 | 1.3 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
HPLS – On-demand extra power
High Power Lifting System (HPLS) increases lifting capacity by up to 15% when required by automatically boosting hydraulic pressure. Lifting speed is reduced at the same time to maintain control and precision. This allows heavier loads to be handled safely, improves lift-to-weight performance, and reduces stress on the crane structure—helping extend service life and protect long-term value.
Load Sensing Valves – Precise Control
Load sensing control valves allow multiple crane functions to be operated smoothly at the same time without interfering with each other. Precise oil flow control improves accuracy during delicate lifting tasks while reducing energy loss. Faster cycle times, smoother movements, and high efficiency increase productivity and provide consistent, reliable crane operation in demanding applications.
PALTRONIC – Smart Crane Control
PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
Optional Features
HPSC – Smart Stability, More Reach
High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
