Knuckle Boom
PK 11.001 SLD 3

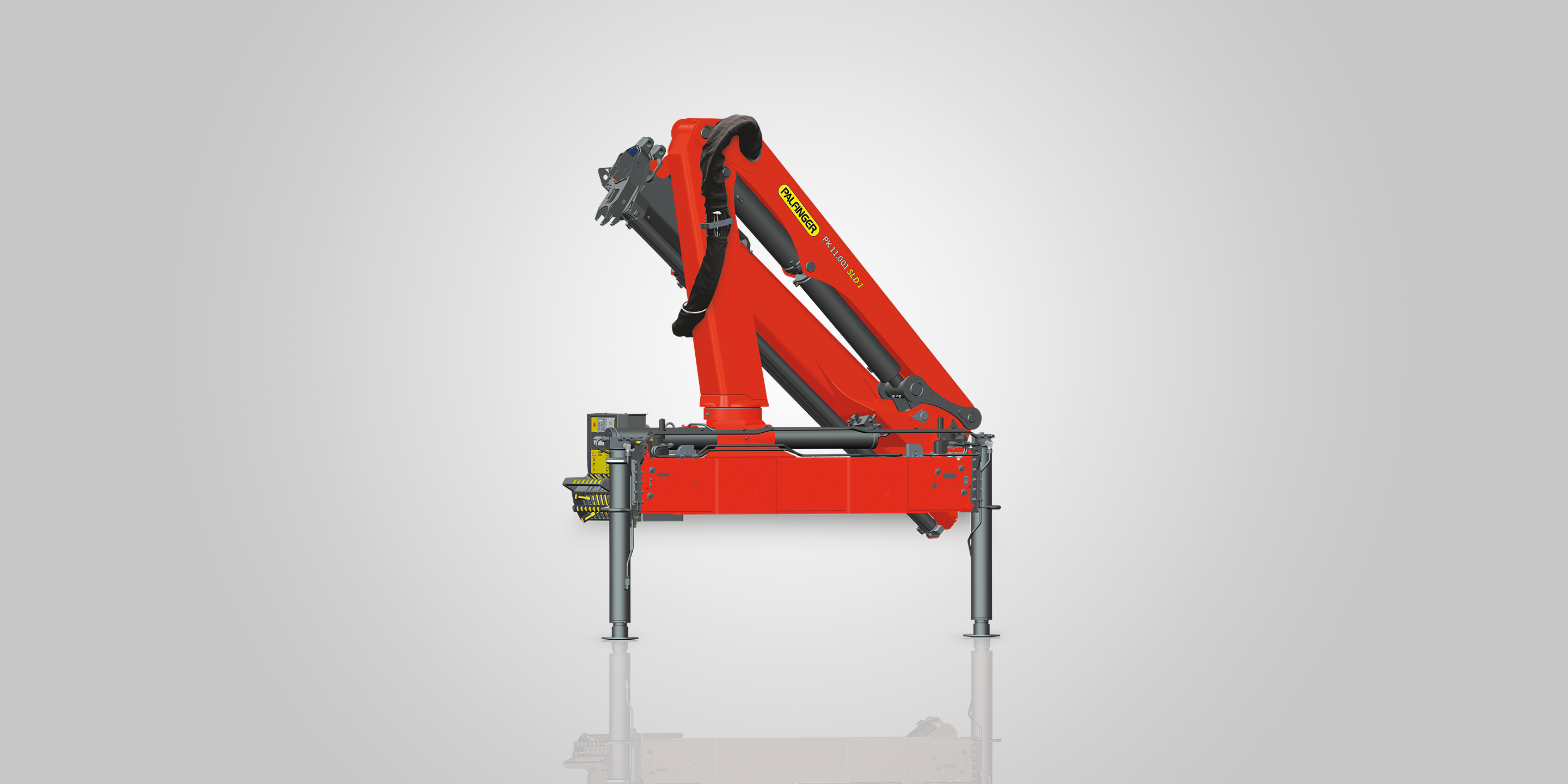

Knuckle Boom Crane
Key Specs
Imperial
Metric
- Max Lifting Moment
- 10.3 mt 74,740 ft_lbs
- Max Lifting Capacity
- 5,700 kg 12570 lb
- Max Hydraulic Outreach
- 12 m 39' 6''
The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. The compact PK 11.001 SLD 3 offers strong hook performance and lightweight design for maximized payload. The Single Link system optimizes boom geometry for smoother handling, ideal for efficient work on compact sites.
Technical data U.S. Units
- Max. lifting moment
- 74,740 ft_lbs
- Max. lifting capacity
- 12570 lb
- Max. hydraulic outreach
- 39' 6''
- Max. manual outreach
- 53'
- Slewing angle
- 400°
- Slewing torque
- 9,370 ft_lbs
- Stabilizer spread (std)
- 16'
- Fitting space required (std)
- 2' 4''
- Width folded
- 7' 7''
- Max. operating pressure
- 4,785 psi
- Pump capacity
- 7.9 - 11.9 gpm
- Dead weight (std)
- 2,510 lbs
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Technical Data Metric
- Max. lifting moment
- 10.3 mt
- Max. lifting capacity
- 5,700 kg
- Max. hydraulic outreach
- 12 m
- Max. manual outreach
- 15.9 m
- Slewing angle
- 400°
- Slewing torque
- 1.3 mt
- Fitting space required (std)
- 0.72 m
- Width folded
- 2.32 m
- Max. operating pressure
- 330 bar
- Pump capacity
- 30 - 45 l/min
- Dead weight (std)
- 1,140 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities U.S. Units
|
Crane Weight (lbs) |
Lifting moment (ft_lbs) |
Pressure (psi) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
Pump capacity (gpm) |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Outreach |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 2,510 lbs | 74,521 ft_lbs | 4,785 psi | 83.07 inch | 94.49 inch | 27.56 inch | 7.9 - 11.9 | 400 | 9370 | |
| A | 2,760 lbs | 72,350 ft_lbs | 4,785 psi | 83.07 inch | 94.49 inch | 27.56 inch | 40' | 7.9 - 11.9 | 400 | 9370 |
| B | 2,980 lbs | 69,456 ft_lbs | 4,785 psi | 83.07 inch | 94.49 inch | 27.56 inch | 46' | 7.9 - 11.9 | 400 | 9370 |
| C | 3,200 lbs | 67,286 ft_lbs | 4,785 psi | 83.07 inch | 94.49 inch | 27.56 inch | 53' | 7.9 - 11.9 | 400 | 9370 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting Capacities Metric
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 2,110 mm | 1,140 kg | 2,400 mm | 720 mm | 10.3 mt | 5.8 m | 33 Mpa | 30-45 | 400 | 1.3 |
| A | 2,110 mm | 1,250 kg | 2,400 mm | 720 mm | 10 mt | 7.8 m | 33 Mpa | 30-45 | 400 | 1.3 |
| B | 2,110 mm | 1,350 kg | 2,400 mm | 720 mm | 9.7 mt | 9.9 m | 33 Mpa | 30-45 | 400 | 1.3 |
| C | 2,110 mm | 1,450 kg | 2,400 mm | 720 mm | 9.5 mt | 12 m | 33 Mpa | 30-45 | 400 | 1.3 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
PALTRONIC – Smart Crane Control
PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.
Optional Features
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
HPSC – Smart Stability, More Reach
High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
