Z Line

M110Z

Medium-Duty Z-Type Timber Loader Crane

alt text
Epsilon Timber and Recycling Crane
Key Specs
Imperial
Metric
Max. outreach
9.6 m
Max. lifting moment
99 kNm
Dead Weight
2130 kg

This Z-type timber loader crane from our Epsolution range has a lifting capacity of 11 metric tons and comes in three arm lengths: 7.9 m, 8.2 m, and 9.6 m. The M110Z features EPSILON’s Epscope and Epslink systems and offers operators a choice of five different control methods.

*Depending on the variant and equipment selected.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

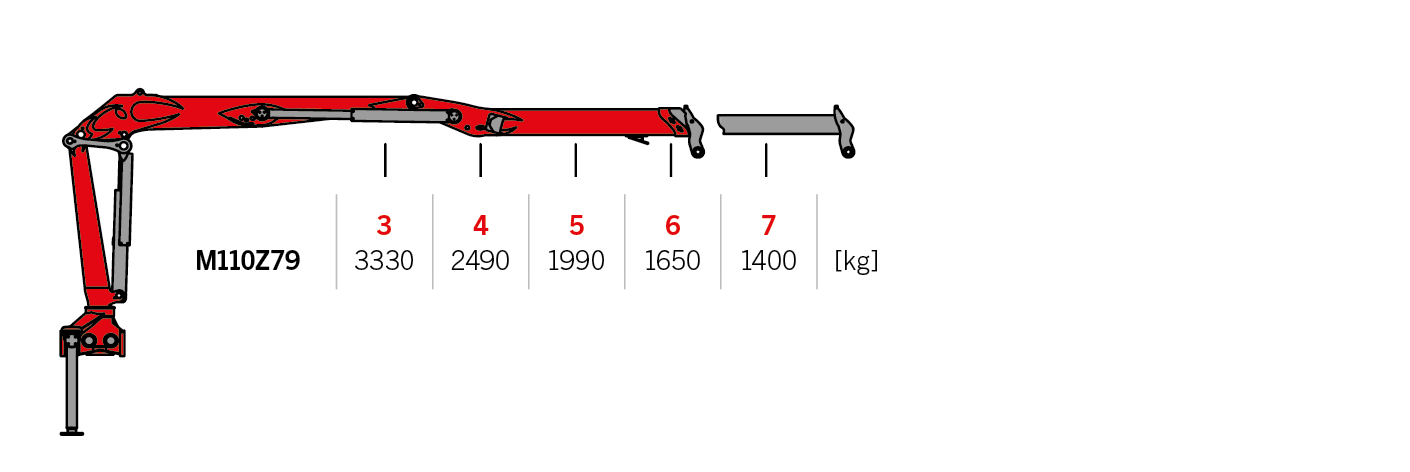

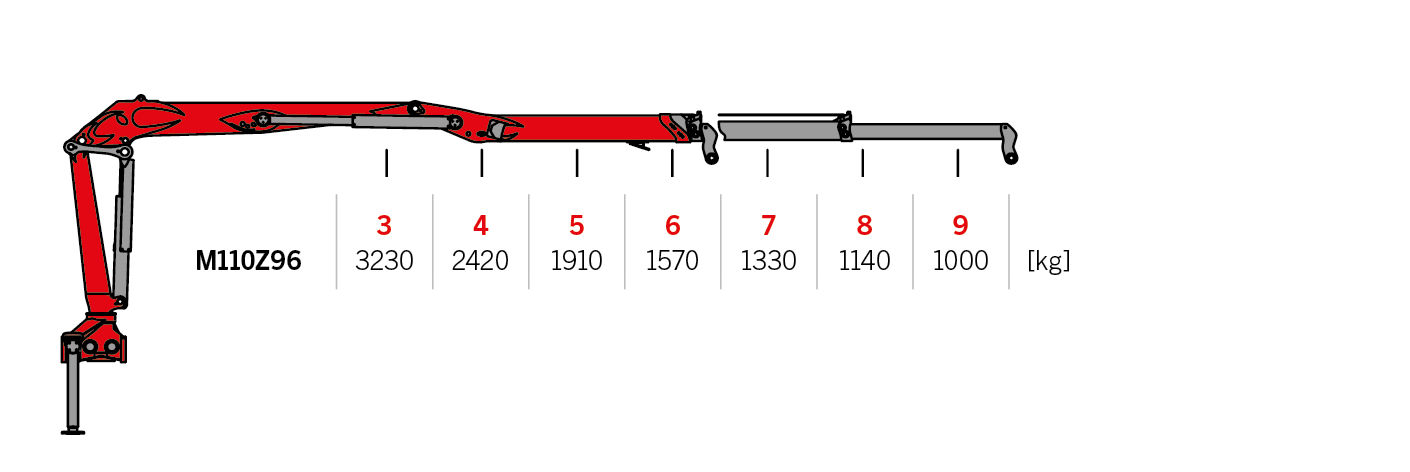

Diagrams

View
alt text

View
alt text

View
alt text

Protected hydraulic routing

Epslink and Epscope combine to deliver unmatched performance.

Protected hydraulic guide

EPSLINK

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

alt text

EPSCOPE

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

alt text
alt text

KTL, finite element modeling, and functional design

Innovative technology for long-lasting surface protection, durability testing, and optimized functionality.

KTL + Finite Elemente + Functional Design

Cathodic dip coating (KTL)

This specialist surface treatment lays the foundations for long-lasting surface protection. PALFINGER’s Marburg and Lengau production facilities feature fully automated cathodic dip coating lines.

This treatment starts by degreasing and rinsing components before activating them, applying a zinc phosphate coating and then rinsing again. This is followed by passivation and a final rinsing step with ultra-pure water before the components undergo cathodic dip coating. Sophisticated robotic systems then finalize the process.

alt text

Finite element method

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Functional Design

We develop every shape and detail based on function and practical application. Our designs follow a clear technical logic that ensures efficient, intuitive operation and high performance. This approach combines technical precision with a clean, functional aesthetic.
alt text

Equipment & Accessories

FG43

With a gripping area of 0.40 m², a maximum load of 5,000 kg, and an operating pressure of 23 MPa, the FG43 delivers reliable performance at a dead weight of just 225 kg.
alt text

FG43S

With a gripping area of 0.40 m², a maximum load of 6,000 kg, and an operating pressure of 24 MPa, the FG43S delivers reliable performance at a dead weight of just 260 kg.
alt text

FG53

With a gripping area of 0.50 m², a maximum load of 5,000 kg, and an operating pressure of 23 MPa, the FG53 delivers reliable performance at a dead weight of just 235 kg.
alt text

Technical Specifications

Technical Data

Telescopic boom length

Number of extensions

Net load moment [kNm]

Net slewing torque [kNm]

Slewing angle [°]

Max. reach [m]

Operating pressure [bar]

Max. pump capacity. 1K [l/min]

Max. pump capacity. 2K [l/min]

Max. pump capacity. 1K-LS [l/min]
79 dm 1 99 kNm 27 kNm 425 ° 7.9 m 245 bar 1x80 2x70 1x150
82 dm 2 99 kNm 27 kNm 425 ° 8.2 m 245 bar 1x80 2x70 1x150
96 dm 2 97 kNm 27 kNm 425 ° 9.6 m 245 bar
Dead weight without joint/rotator

Telescopic boom length [dm]

Incl. Standard top/side seat

Incl. electric cabin (CAE)

Incl. mechanical cabin (CAM)
79 dm 2,130 kg 2,470 kg 2,480 kg
82 dm 2,180 kg 2,520 kg 2,530 kg
96 dm 2,230 kg 2,570 kg 2,580 kg

Discover Standard Features

Epscope

Internally routed hoses and an integrated telescopic cylinder permit safe working without the risk of damage from external sources.

alt text
Epslink

This high-strength four-lug link with rotator and optimized hose routing is suitable for EPSILON polyp grabs and clamshell grabbers.

alt text
Cathodic Dip Coating (CDC)

An innovative technology for long-lasting surface protection.

alt text
Complete CE Compliance

We develop and manufacture every crane in full compliance with CE standards, which ensures the highest safety, reliability, and performance standards across all applications.

alt text
Finite Element Technology

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Control Methods

alt text
Top seat mounting and control options

Standard top seat

The classic top seat with manual controls. Available with joysticks (KH) or linear levers (LH).

Top seat mounting and control options

The Standard top seat can be mounted behind the crane column with dual-circuit hydraulics. In this version, the directly articulated controls comprise two joysticks and two pedals, while the adjustable seat features armrests and a seat contact switch.

alt text

The Standard top seat can be mounted behind the crane column with linear levers. In this version, the directly articulated controls comprise either four linear levers and two pedals, or five linear levers and one pedal. The adjustable seat features armrests and a seat contact switch.

alt text
alt text
EPSCAB, manual

EPSCAB, manual

Efficient operation along with comfort, protection, and efficiency in all weathers in this hydraulically lifted cabin.

EPSCAB, manual

The Manual version of the Epscab is built on solid foundations. Its Parker F130CF control valve in a double-circuit design with ball bearing-mounted levers that are free of play and require no maintenance. Proportional manual operation of the cabin lift ensures convenient control, while a contact switch in the seat protects against unintented operation.



The Epscab Manual delivers on comfort and protection in all weathers. It features front and side doors, with the front window made from 8 mm-thick Lexan safety glass for enhanced safety, while a windscreen washer/wiper helps to provide a clear view of the working area. A water-based heating system with a thermostat and three-speed fan combine with a heated seat to keep the operator comfortable, even in perishing conditions. The cabin also features an RDS radio with a CD player and a line in for an MP3 player to make the working day as pleasant as possible.



Finally, the cabin is finished with a powder-based primer and a final powder coating in RAL 9003 (Signal White).

alt text
alt text
EPSCAB, Electric

EPSCAB CAE

This hydraulically height-adjustable crane cabin ensures excellent visibility and top performance in any weather.

EPSCAB, Electric

The Electric version of the Epscab features electrohydraulic control based on high-quality Parker L90LS and IQAN valves in single-circuit design for variable displacement pump operation, mounted in seven sections on the crane column. A contact switch in the seat protects against unintented operation, while Hultdins vibration dampers support precise, confident operation. The MD3 display allows operators to configure individual settings with Soft Touch control and view past service inspections.



The Epscab Electric delivers on comfort and protection in all weathers. It features front and side doors, with the front window made from 8 mm-thick Lexan safety glass for enhanced safety, while a windscreen washer/wiper helps to provide a clear view of the working area. A water-based heating system with a thermostat and three-speed fan combine with a heated seat to keep the operator comfortable, even in perishing conditions. The cabin also features an RDS radio with a CD player and a line in for an MP3 player to make the working day as pleasant as possible.



Finally, the cabin is finished with a powder-based primer and a final powder coating in RAL 9003 (Signal White).

alt text
alt text
Epscab XL, Electric

EPSCAB CAE XL

This extra-large, hydraulically height-adjustable crane cabin ensures excellent visibility and top performance in any weather.

Epscab XL, Electric

The XL Electric version of the Epscab features electrohydraulic control based on high-quality Parker L90LS and IQAN valves in single-circuit design for variable-displacement pump operation, mounted in seven sections on crane column. A contact switch in the seat protects against unintented operation, while Hultdins vibration dampers support precise, confident operation. The MD3 display allows operators to configure individual settings with Soft Touch control and view past service inspections.



The Epscab Electric delivers on comfort and protection in all weathers. It features front and side doors, with the front window made from 8 mm-thick Lexan safety glass for enhanced safety, while a windscreen washer/wiper helps to provide a clear view of the working area. The Epscab XL is 200 mm longer than the standard variant, and is also available with a panoramic door featuring an inclined front window, specifically designed for chipper applications. A water-based heating system with a thermostat and three-speed fan, a roof-mounted AC unit, a heated Grammer seat, and ergonomic, adjustable armrests combine to keep the operator comfortable in all conditions. The cabin also features an RDS radio with a CD player and a line in for an MP3 player to make the working day as pleasant as possible.



Finally, the cabin is finished with a powder-based primer and a final powder coating in RAL 9003 (Signal White).

Side seat HKR-HKL

Right-side/left-side top seat: - Two joysticks and two pedals - Single and dual circuits available
