Single

T 29

Single Axle

alt text
Hooklifts
Key Specs
Imperial
Metric
Hook Height
900 mm |1370 mm |1570 mm 36" | 54" | 61¾"
Container Length
3,353-6,096 mm 11' – 20'
Min GVWR
15,000 kg 33,000 lbs.

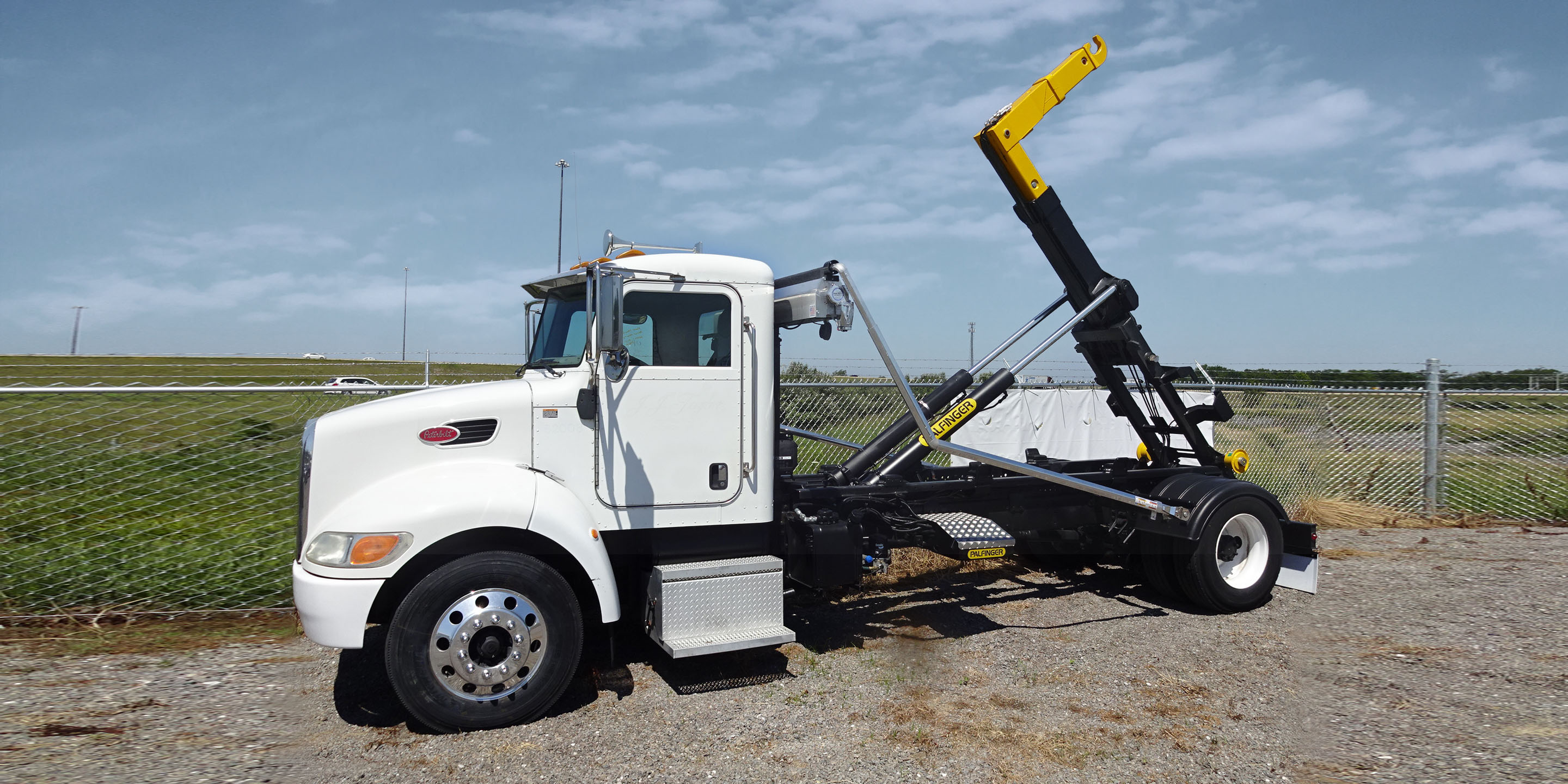

Take on the toughest jobs with our hooklift model featuring a telescoping jib (36", 54" or 64¾") and dual main cylinders for maximum reach and strength. With an impressive 29,000 lb capacity, it delivers unmatched power and reliability for heavy-duty lifting.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

No Welding, No Drilling: Faster Mounting

Secured Advanced Mounting (SAM) ensures compliance with PALFINGER and truck manufacturer guidelines. Its bolted design and full corrosion protection deliver durability and longer equipment life. SAM simplifies mounting—no painting, welding, or drilling—while enabling standardization, accessory interchangeability, and easier maintenance across workshops and dealer networks.

alt text

Extend Equipment Life with Impact-Free Stops

Our soft stop hydraulic braking system ensures a smooth landing after loading or dumping, eliminating harsh impacts. This protects your hooklift, container, and vehicle from unnecessary stress, reducing wear and extending the life of your equipment while improving operator safety and comfort during heavy-duty operations.

alt text

Highlights

State-of-the-Art Engineering

Achieve the highest weight-to-lift ratio in the industry with our hooklift design. Built with high-tensile steel, it reduces overall weight for more payload capacity, improved truck longevity, and lower fuel costs—delivering maximum efficiency and performance for heavy-duty hauling.
alt text

Reduce Risk with Limited Warranty

Enjoy peace of mind with our industry-leading warranty: three years on all structural components and one year on hydraulic parts. Built for durability and backed by strong support, our hooklift systems deliver long-term reliability and reduced maintenance costs for heavy-duty operations.
alt text

Equipment & Accessories

Fender Options

Choose fender options that fit your needs: durable steel for maximum strength or lightweight plastic for flexibility. Both designs offer easy installation and reliable protection for your hooklift.

Bumper Options

Choose bumper options that fit your needs: full-width for maximum coverage or split design for flexibility. Both solutions offer durability and easy installation for optimized hooklift performance.

Lighting Options

Lighting options include mid-body lights for visibility, spotlights for precision, and strobe lights for safety. Designed for durability and easy installation, these solutions keep your hooklift compliant and ready for any job.

Tarp System

Choose tarp system options from trusted brands: Pioneer or Roll-Rite. Both deliver durability, easy operation, and secure coverage for your hooklift, ensuring safety and compliance every time.

Toolbox Options

Choose toolbox options that suit your needs: aluminum or steel construction, available in 36" or 48" sizes. Built for durability and easy installation, these toolboxes provide secure storage and flexibility for any hooklift setup.

Technical Specifications

alt text
Technical data U.S. Units

Lift / DumpCapacity (lb.)

Min. GVWR (lb.)

Hooklift length

Shipping Weight (lb.)

Operating Pressure (PSI)

Optimum CA (in.)

Clear Frame Rail (in.)

Max. Dump Angle

Jib Height (in.)

Pump Type

Fitting Hoses

Paint

Construction

Pivot

# of Lift / Dump Cylinders

Body Length Range (ft.)

Optimum Body Lenghts (ft.)

Jib Action
ST 29,000 lbs 33,000 lbs 162 inch_s 3,190 lbs 3,625 psi 120 inch_s 167 inch_s 50° 36" & 54" Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 11-14' 12-14' Telescopic
S 29,000 lbs 33,000 lbs 162 inch_s 3,190 lbs 3,625 psi 120 inch_s 167 inch_s 50° 36" & 54" Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 11-14' 12-14' Telescopic
M 29,000 lbs 33,000 lbs 170 inch_s 3,260 lbs 3,625 psi 140 inch_s 175 inch_s 50° 54" & 61¾" Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 12-16' 14-16' Telescopic
MT 29,000 lbs 33,000 lbs 170 inch_s 3,260 lbs 3,625 psi 140 inch_s 175 inch_s 50° 36'' & 54'' Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 12-16' 14-16' Telescopic
L 29,000 lbs 33,000 lbs 193 inch_s 3,370 lbs 3,625 psi 160 inch_s 198 inch_s 50° 54" & 61¾" Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 12-18' 14-18' Telescopic
XL 29,000 lbs 33,000 lbs 221 inch_s 3,520 lbs 3,625 psi 186 inch_s 226 inch_s 47° 54" & 61¾" Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 15-20' 18-20' Telescopic
Technical data metric

Lift / DumpCapacity (lb.)

Min. GVWR (lb.)

Hooklift length

Shipping Weight (lb.)

Operating Pressure (PSI)

Optimum CA (in.)

Clear Frame Rail (in.)

Max. Dump Angle

Jib Height (in.)

Pump Type

Fitting Hoses

Paint

Construction

Pivot

# of Lift / Dump Cylinders

Body Length Range (ft.)

Optimum Body Lenghts (ft.)

Jib Action
ST 13,155 kg 15,000 kg 4,095 mm 1,445 kg 250 bar 3,048 4,222 50° 900 & 1,370 mm Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 3,353-4,268 mm 3,658-4,268 mm Telescopic
S 13,155 kg 15,000 kg 4,095 mm 1,445 kg 250 bar 3,048 4,222 50° 1,370 & 1,570 mm Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 3,353-4,268 mm 3,658-4,268 mm Telescopic
M 13,155 kg 15,000 kg 4,300 mm 1,480 kg 250 bar 3,556 4,427 50° 1,370 & 1,570 mm Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 3,658-4,877 mm 4,268-4,877 mm Telescopic
MT 13,155 kg 15,000 kg 4,300 mm 1,480 kg 250 bar 3,556 4,427 50° 900 & 1,370 mm Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 3,658-4,877 mm 4,268-4,877 mm Telescopic
L 13,155 kg 15,000 kg 4,900 mm 1,530 kg 250 bar 4,064 5,027 50° 1,370 & 1,570 mm Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 3,658-5,487 mm 4,268-5,487 mm Telescopic
XL 13,155 kg 15,000 kg 5,600 mm 1,600 kg 250 bar 4,724 5,727 47° 1,370 & 1,570 mm Piston - Direct mount JIC/SAE Primer A514 (T-1) Dual 2/2 4,572-6,096 mm 5,487-6,096 mm Telescopic
Standard features
  • Soft stop landing and sensors
  • Telescopic jib
  • Inside controls
  • Greasable with bronze bushings at all pivot points
  • High-strength steel frame - Z rail design

Discover Standard Features

Dual Pivot Design

Maximize versatility with our dual pivot hooklift design—offering true dumping capabilities and flexible operation for any jobsite. Engineered for strength and efficiency, this innovative system delivers superior performance while simplifying container handling and boosting productivity.

High Pressure Hydraulics

Optimize payload and efficiency with high-pressure hydraulics (3,600–4,500 psi). This advanced system utilizes smaller cylinders to reduce weight, providing you with more available payload without compromising power. Perfect for heavy-duty hooklift applications where performance and productivity matter most.

Outside Container Hold Downs

Ensure maximum load security with outside container hold downs—built for strength and flexibility. These rugged brackets keep containers firmly locked during transport, reducing risk and improving efficiency. Designed for heavy-duty hooklift applications, they deliver reliability and peace of mind on every haul.

Dual Lift/Dump Cylinders

Achieve steady, secure handling with dual lift/dump cylinders—engineered for smooth loading, unloading, and dumping operations. This robust design ensures maximum stability and control, reducing risk and boosting efficiency for heavy-duty hooklift applications.

Dual Counterbalance Valves

Enhance safety and control with dual counterbalance valves—providing power up and power down for secure operation. Designed for easy access and serviceability, this feature ensures reliable performance and peace of mind in demanding hooklift applications.

High Strength Steel Supports

Built tough with high-strength steel supports for maximum durability and reliability. Designed without wearable or replaceable pads, this feature minimizes maintenance and ensures long-lasting performance, making it perfect for heavy-duty hooklift applications where strength is paramount.

Safety Sensors

Stay protected with advanced safety sensors—jib sensors prevent retraction in dump mode, while dump latch sensors ensure latches are fully engaged. Designed for all models, these features deliver superior safety, reliability, and peace of mind during every hooklift operation.

Optional Features

Hydraulic Adjustable Height Jib

Maximize flexibility with our hydraulic adjustable height jib—offering effortless hook position changes for superior adaptability. Designed for heavy-duty hooklift operations, it delivers precision, power, and convenience, making container handling faster and more efficient.
