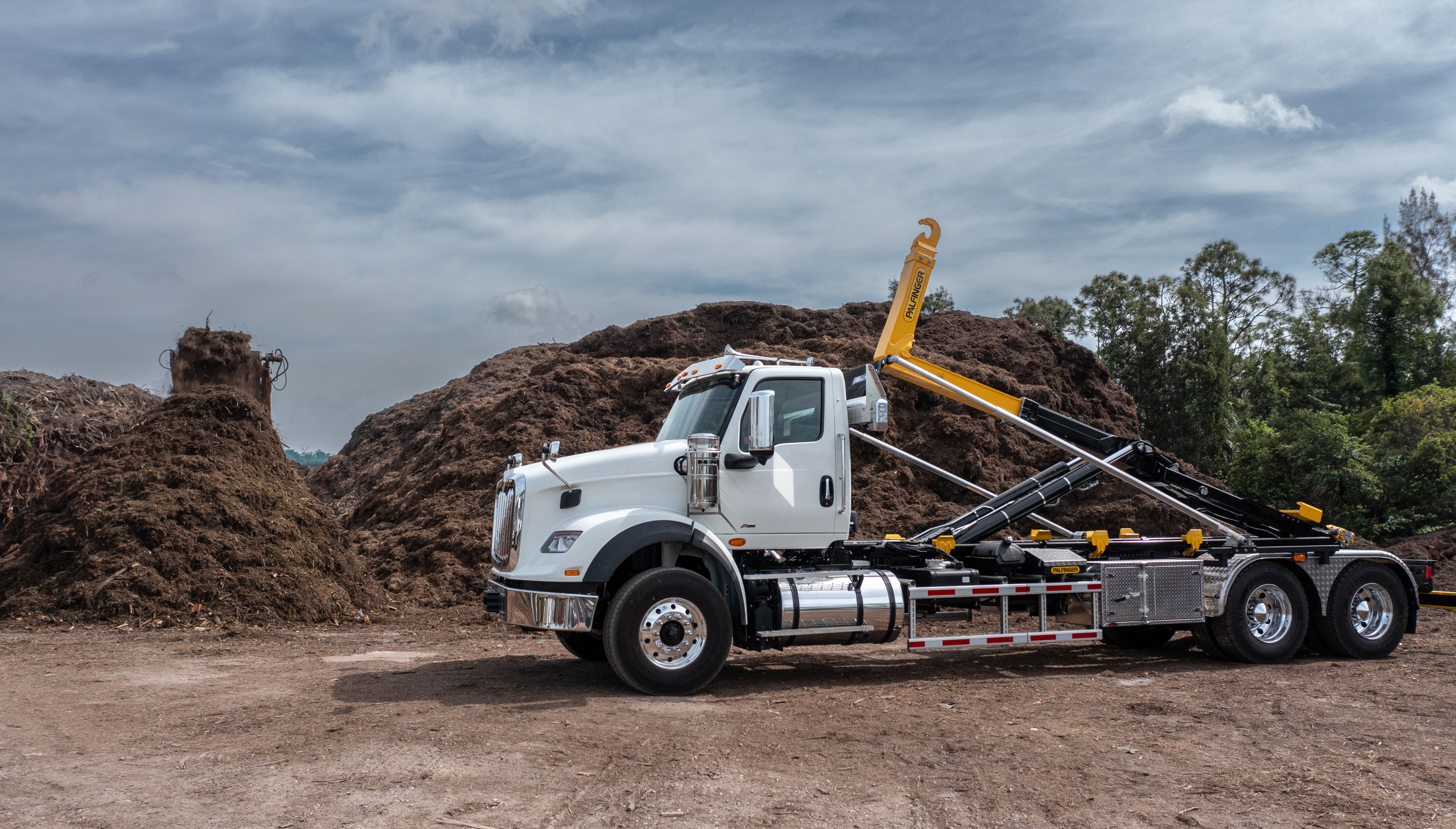

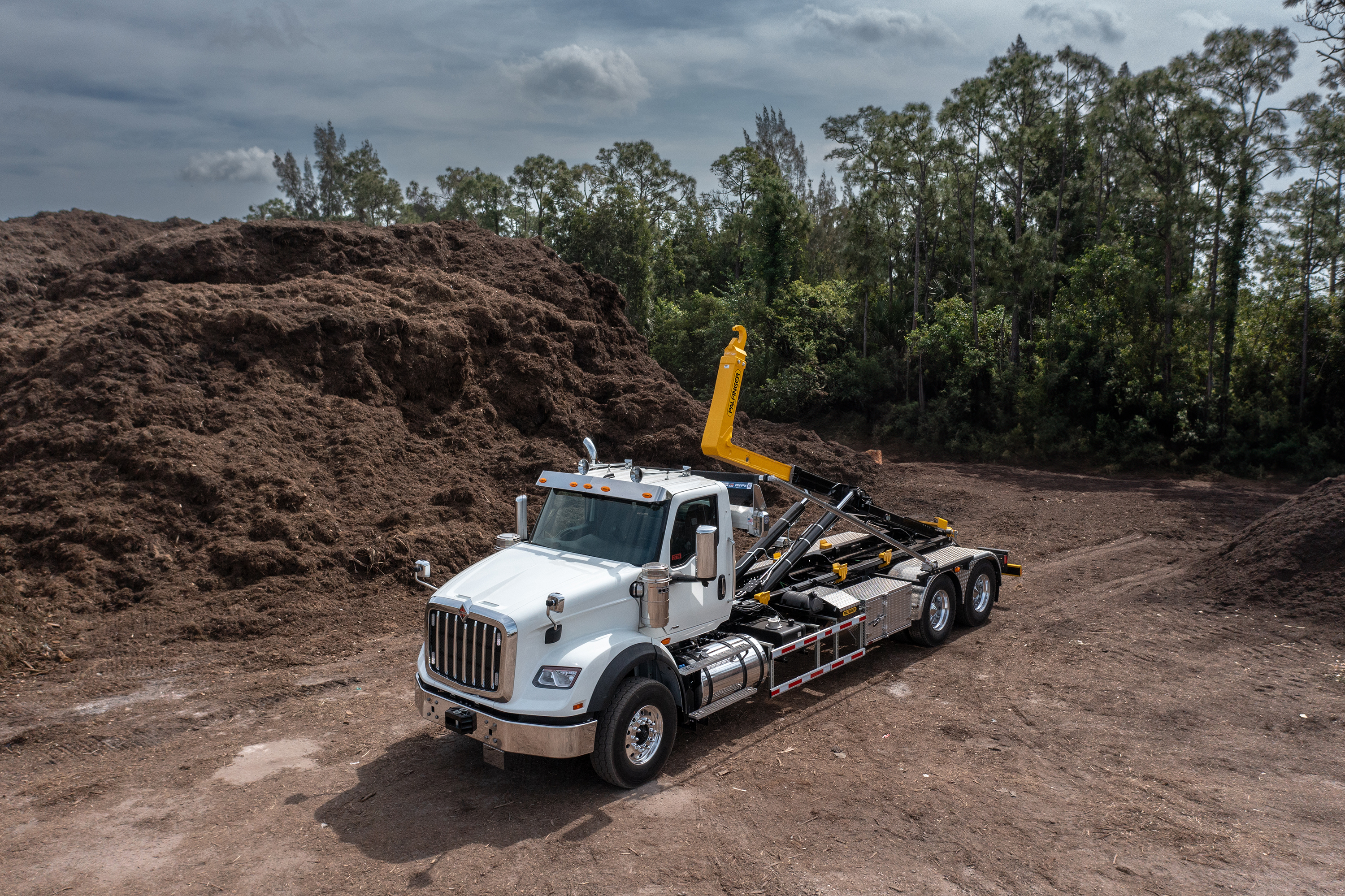

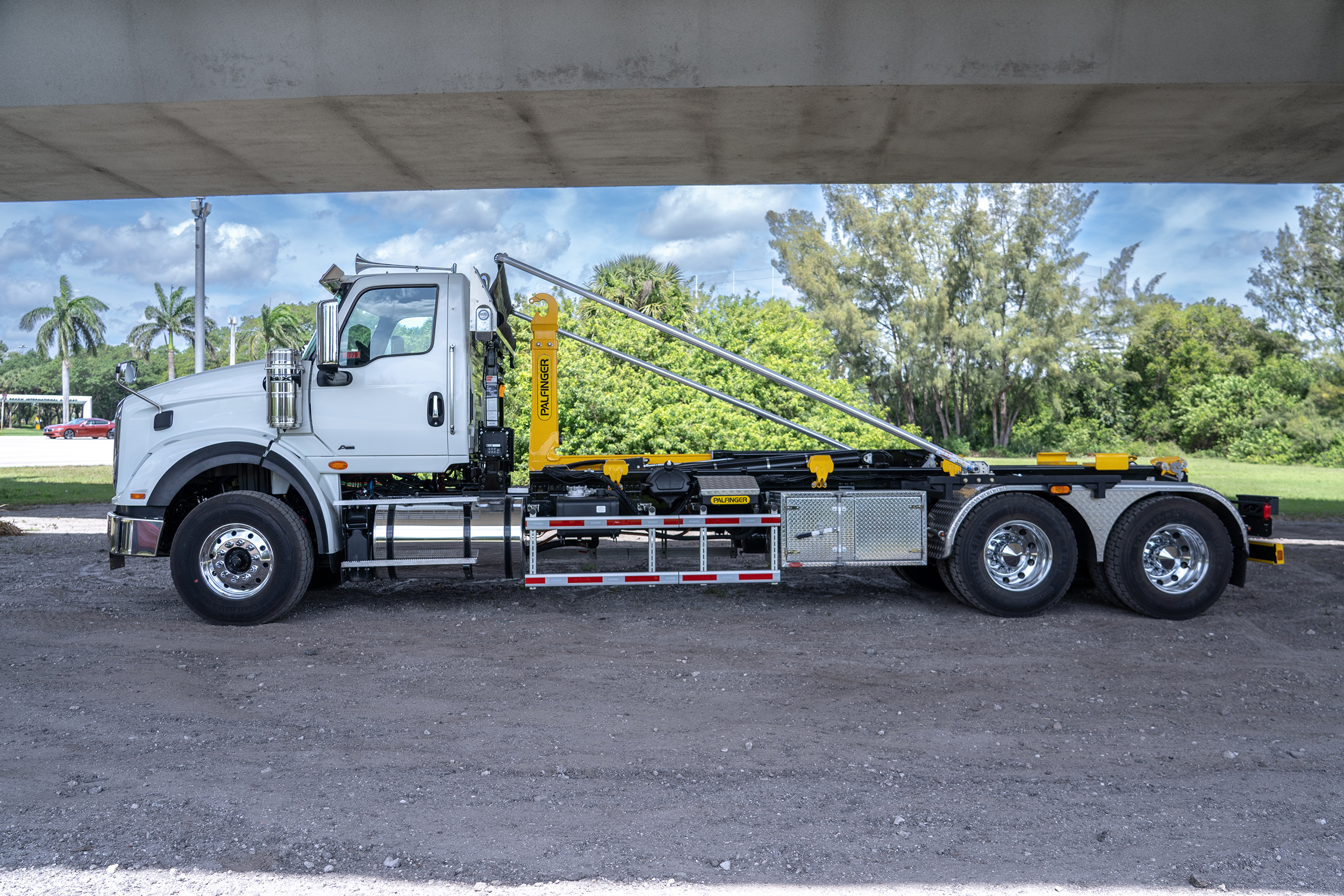

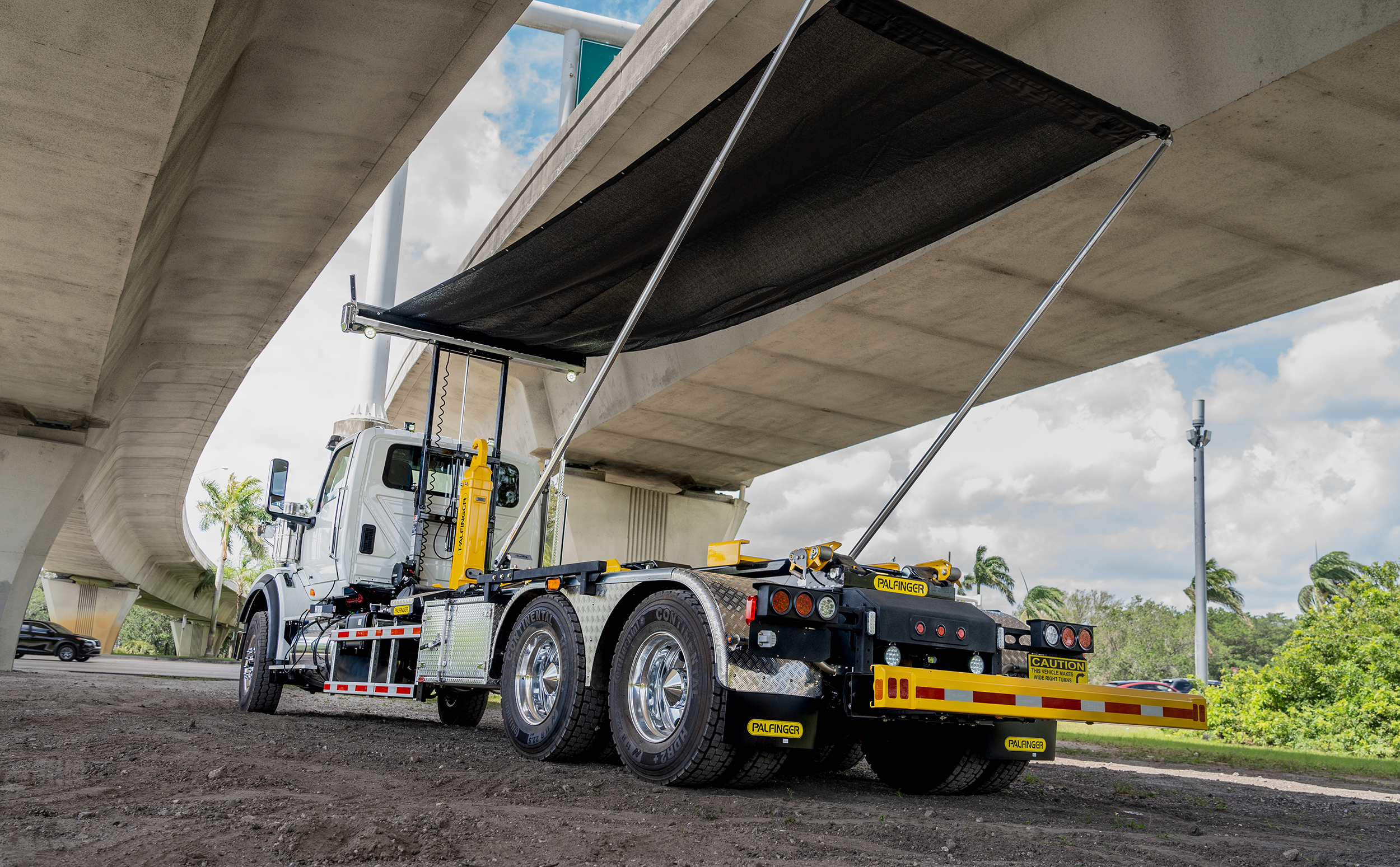

Multi
HT 500
Tandem Axle
Hooklifts
Key Specs
Imperial
Metric
- Hook Height
- 1371.6 mm | 1568.45 mm 54"/61¾"
- Container Length
- 4.9 – 6.7 m 16 – 22 ft
- Min GVWR
- 29030 kg 64,000 lbs.
Redefine heavy-duty hauling with the HT 500—engineered for North America with unmatched safety, comfort, and durability. Featuring a telescoping jib (54" or 61¾") and dual main cylinders, this powerhouse delivers a massive 50,000 lb. capacity for the toughest jobs.
Highlights
Removable & Adjustable Container Slides
Easily adjust container slides to fit multiple lengths for maximum hauling flexibility. Standard rests are built from full-cast steel for lasting strength, while soft-sliding rests use abrasion-resistant plastic pads for smoother movement, reduced noise, and less wear on container rails—delivering durability and convenience in every operation.
New Subframe Design
Experience superior stability with our advanced hooklift subframe design. The X-Beam resists chassis torsion for longer vehicle life, while the front cross beam prevents interference with engine and gearbox components. Enhanced mid-cross and reinforced rear beams deliver unmatched strength and durability for heavy-duty tipping operations.
State-of-the-Art Engineering
Achieve the highest weight-to-lift ratio in the industry with our hooklift design. Built with high-tensile steel, it reduces overall weight for more payload capacity, improved truck longevity, and lower fuel costs—delivering maximum efficiency and performance for heavy-duty hauling.
Technical Specifications
Technical data U.S. Units
|
Lift / DumpCapacity (lb.) |
Min. GVWR (lb.) |
Hooklift length |
Shipping Weight (lb.) |
Operating Pressure (PSI) |
Clear Frame Rail (in.) |
Max. Dump Angle |
Jib Height (in.) |
CA Range (in.) |
Pump Type |
Fitting Hoses |
Paint |
Construction |
Pivot |
# of Lift / Dump Cylinders |
Body Length Range (ft.) |
Optimum Body Lenghts (ft.) |
Jib Action |
Min RBM (in. lb.) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 50,000 lbs | 64,000 lbs | 237 inch_s | 5,280 lbs | 4,500 psi | 242 inch_s | 48 degrees | 54'' & 61.75'' | 185-195" | Piston - Direct mount | JIC/SAE | Finish Coat | A514 (T-1) | Dual | 2/2 | 16-22' | 20-22' | Telescopic | N/A |
| T | 50,000 lbs | 64,000 lbs | 237 inch_s | 5,280 lbs | 4,500 psi | 242 inch_s | 48 degrees | 54'' & 61.75'' | 185-195" | Piston - Direct mount | JIC/SAE | Finish Coat | A514 (T-1) | Dual | 2/2 | 16-22' | 20-22' | Telescopic | N/A |
Technical data metric
|
Lift / DumpCapacity (lb.) |
Min. GVWR (lb.) |
Hooklift length |
Shipping Weight (lb.) |
Operating Pressure (PSI) |
Clear Frame Rail (in.) |
Max. Dump Angle |
Jib Height (in.) |
CA Range (in.) |
Pump Type |
Fitting Hoses |
Paint |
Construction |
Pivot |
# of Lift / Dump Cylinders |
Body Length Range (ft.) |
Optimum Body Lenghts (ft.) |
Jib Action |
Min RBM (in. lb.) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 22,680 kg | 64,000 lbs | 602 cm | 2,395 kg | 310 bar | 615 cm | 48 degrees | 137.16 cm & 156.8 cm | 185-195" | Piston - Direct mount | JIC/SAE | Finish Coat | A514 (T-1) | Dual | 2/2 | 4.88-6.70 m | 6.10-6.71 m | Telescopic | N/A |
| T | 22,680 kg | 64,000 lbs | 602 cm | 2,395 kg | 310 bar | 615 cm | 48 degrees | 137.16 cm & 156.8 cm | 185-195" | Piston - Direct mount | JIC/SAE | Finish Coat | A514 (T-1) | Dual | 2/2 | 4.88-6.70 m | 6.10-6.71 m | Telescopic | N/A |
Standard features
- Dual rear rollers
- Soft stop landing and sensors
- Telescopic jib
- Inside controls
- Greasable with bronze bushings at all pivot points
- High-strength steel frame - Z rail design
Dual Pivot Design
Maximize versatility with our dual pivot hooklift design—offering true dumping capabilities and flexible operation for any jobsite. Engineered for strength and efficiency, this innovative system delivers superior performance while simplifying container handling and boosting productivity.
High Pressure Hydraulics
Optimize payload and efficiency with high-pressure hydraulics (3,600–4,500 psi). This advanced system utilizes smaller cylinders to reduce weight, providing you with more available payload without compromising power. Perfect for heavy-duty hooklift applications where performance and productivity matter most.
Outside Container Hold Downs
Ensure maximum load security with outside container hold downs—built for strength and flexibility. These rugged brackets keep containers firmly locked during transport, reducing risk and improving efficiency. Designed for heavy-duty hooklift applications, they deliver reliability and peace of mind on every haul.
Dual Lift/Dump Cylinders
Achieve steady, secure handling with dual lift/dump cylinders—engineered for smooth loading, unloading, and dumping operations. This robust design ensures maximum stability and control, reducing risk and boosting efficiency for heavy-duty hooklift applications.
Dual Counterbalance Valves
Enhance safety and control with dual counterbalance valves—providing power up and power down for secure operation. Designed for easy access and serviceability, this feature ensures reliable performance and peace of mind in demanding hooklift applications.
High Strength Steel Supports
Built tough with high-strength steel supports for maximum durability and reliability. Designed without wearable or replaceable pads, this feature minimizes maintenance and ensures long-lasting performance, making it perfect for heavy-duty hooklift applications where strength is paramount.
Manual Adjustable Height Jib
Adapt to any job with our manual adjustable height jib—offering flexible hook positions for maximum versatility. Designed for heavy-duty performance, it ensures precise container handling and easy adjustment, making your hooklift operations more efficient and reliable.
Safety Sensors
Stay protected with advanced safety sensors—jib sensors prevent retraction in dump mode, while dump latch sensors ensure latches are fully engaged. Designed for all models, these features deliver superior safety, reliability, and peace of mind during every hooklift operation.
