Fixed

CC 80

Basic Carrier

alt text
Container Delivery Unit (CDU)
Key Specs
Imperial
Metric
Container Sizes
2-10 cu. yd. 2-10 cu. yd.
Rotating Capacity
N/A N/A

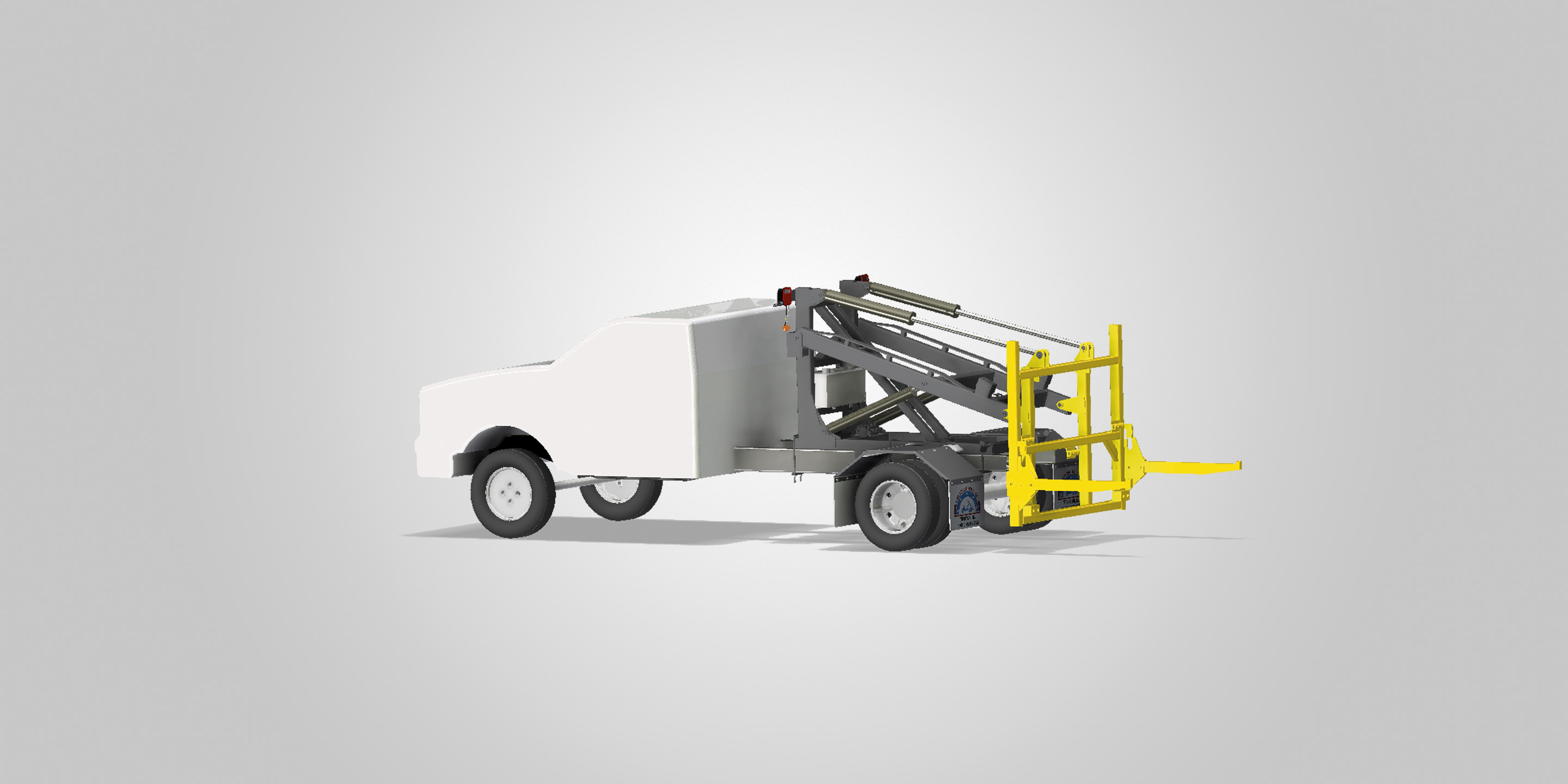

Load, unload, and transport 2–8 yd³ front-load containers with ease using the CC 80. Mounts on a 16,000 lb. GVWR chassis and 60" CA. Move single or multiple containers on a flatdeck trailer. Features in-cab cable controls and bolt-on forks for quick replacement. Options: 62" forks, inside air controls.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Strong, Simple Design for Maximum Durability

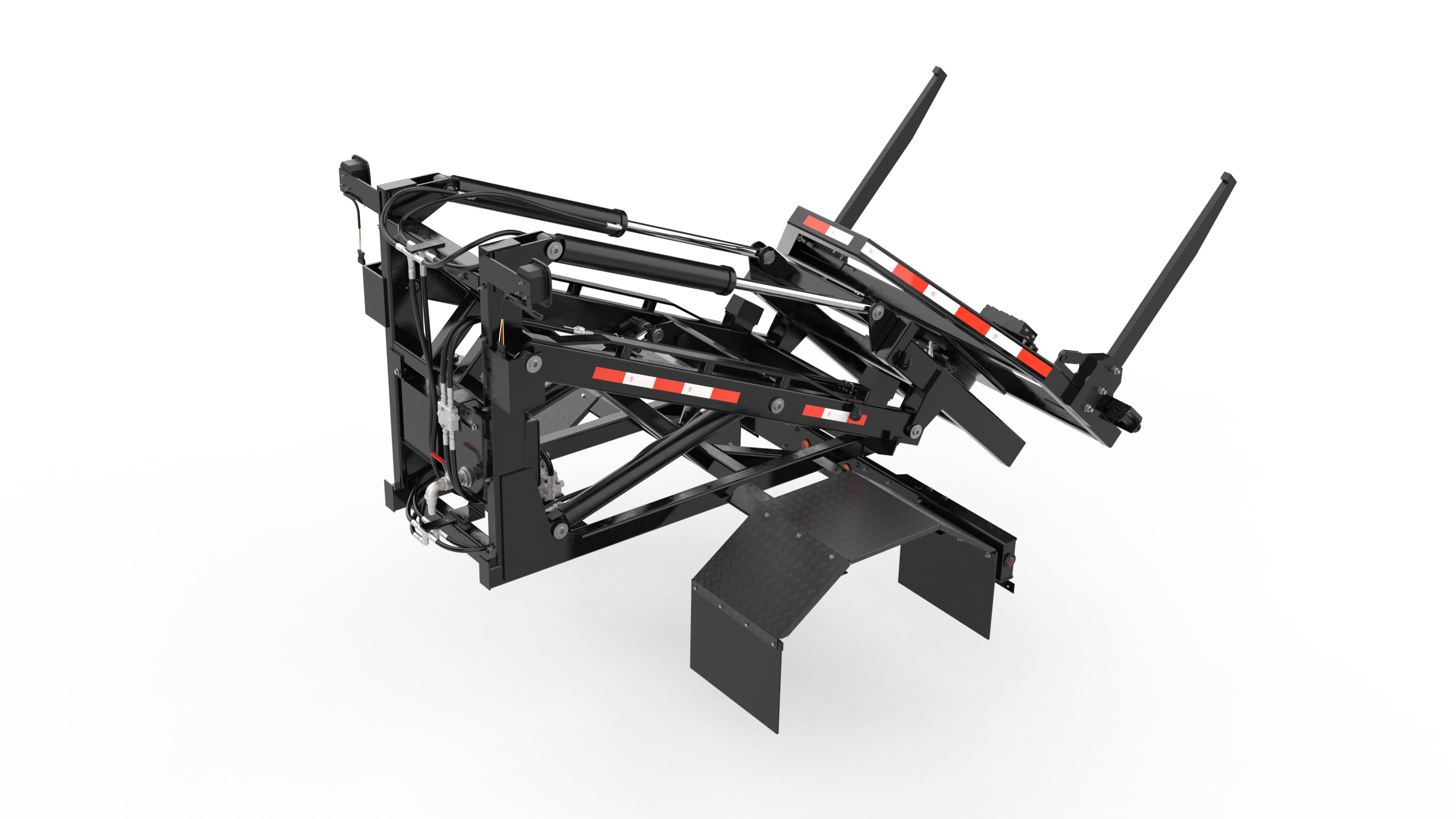

Engineered by PALFINGER for strength and reliability, our container delivery units feature a robust, raising-frame design built with solid components. This simple yet powerful structure ensures long-lasting performance and superior durability for heavy-duty applications.

alt text

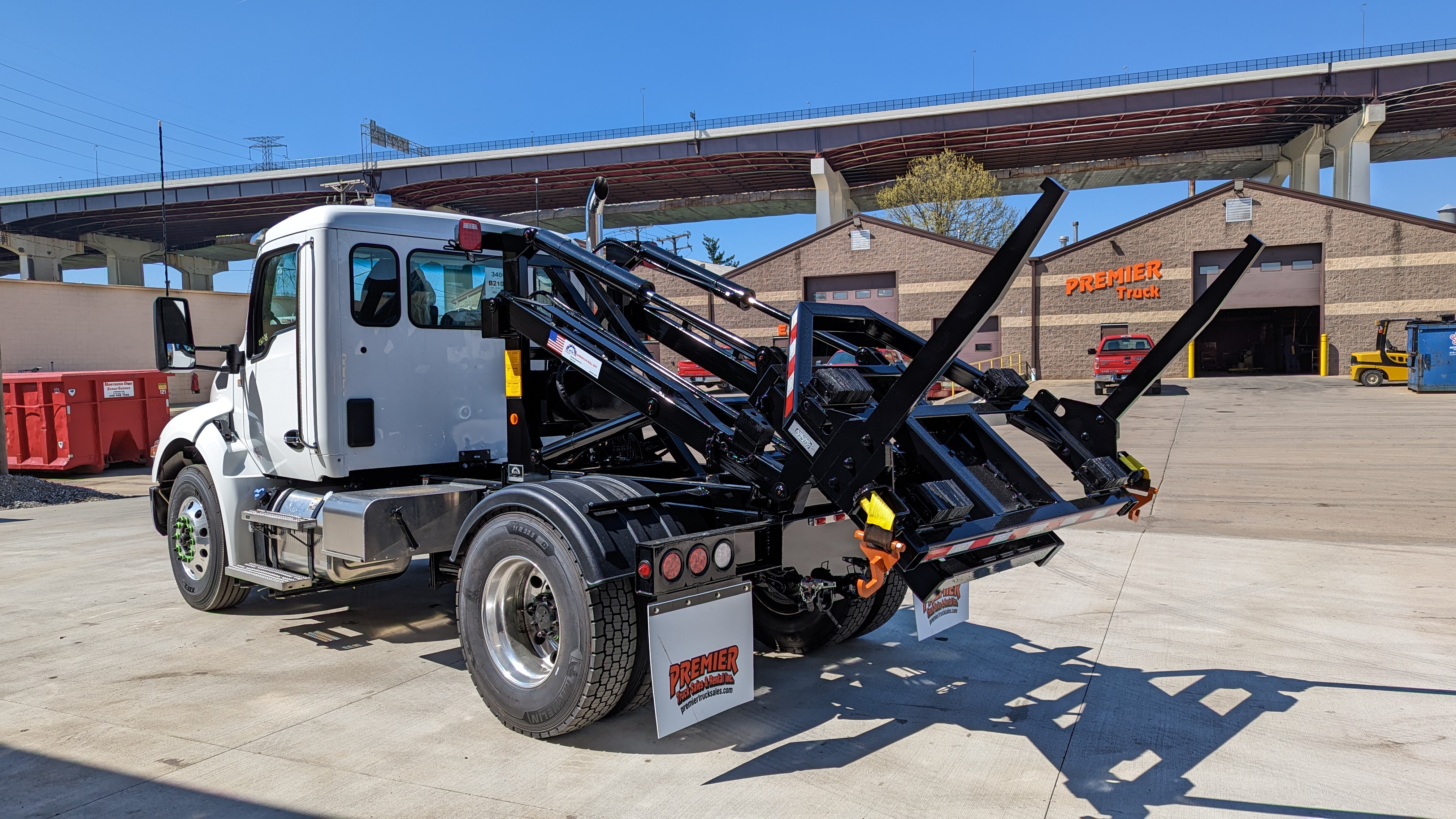

Flexible Transport for Any Job Site

Solve container transport challenges with the CDU’s versatility. Move containers individually or load multiple units on a flat-deck trailer for job site delivery. In-cab two-function cable controls ensure safe, easy operation, while bolt-on forks make replacements quick and cost-effective.

alt text

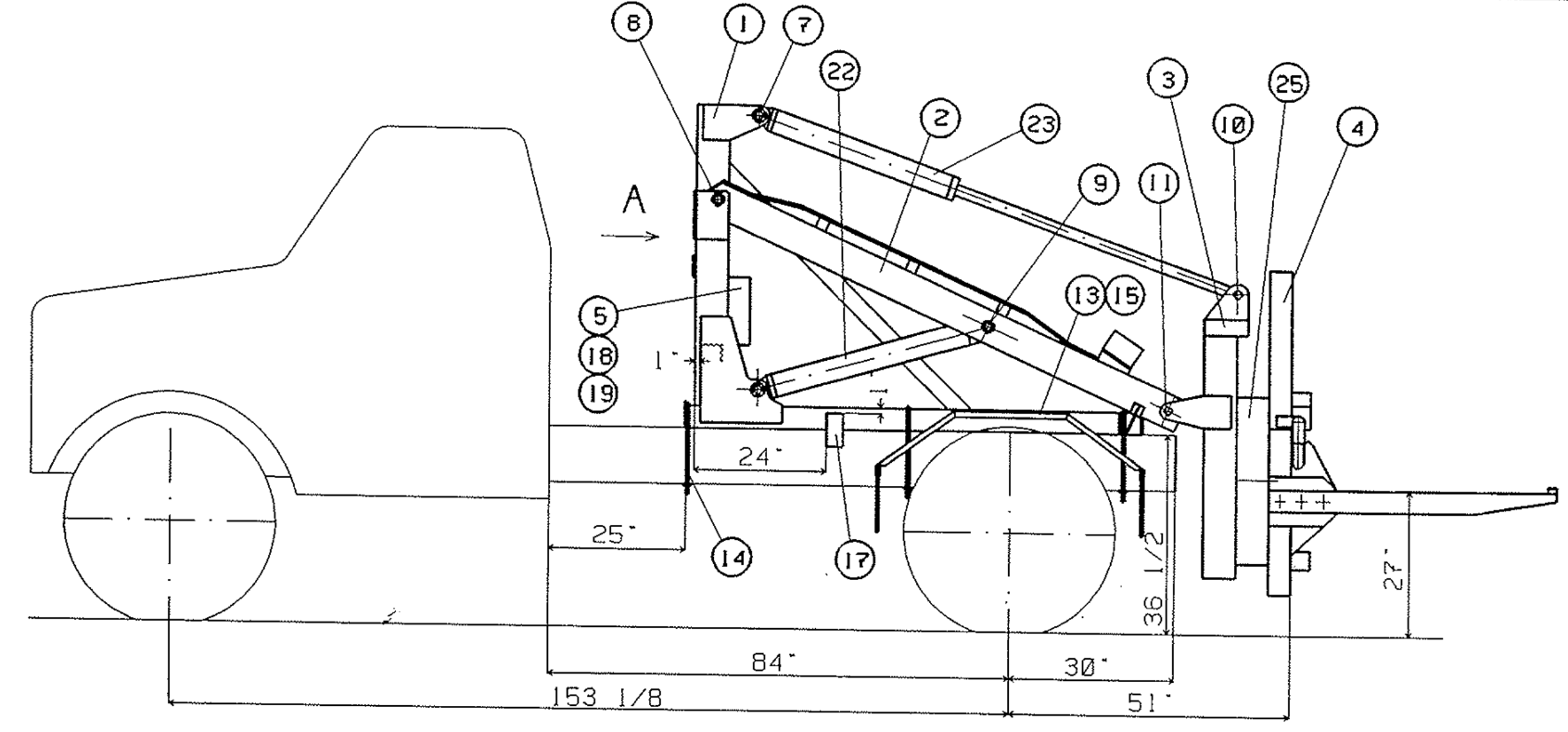

Technical Specifications

alt text
Technical data U.S. Units
Lifting Capacity
8,000 lb
Rotating capacity (360° bi-rotational)
N/A
Weight (approx.)
2,550 lb
Forks (heat treated - bolt on)
1-1/2" x 48"
Control valve
2 spools
Operating pressure
2,500 psi
Hydraulic tank
10 gal.
Lift cylinders
3-1/2"
Tilt Cylinders
4"
Optimum C/A
84"
Recommended GVWR
24,000 lb
Container sizes
2-10 cu. yd.
Shipping Weight
2,550 lb
Technical data metric
Lifting Capacity
3,628 kg
Rotating capacity (360° bi-rotational)
N/A
Weight (approx.)
1,156 kg
Forks (heat treated - bolt on)
1-1/2" x 48"
Control valve
2 spools
Operating pressure
2,500 psi
Hydraulic tank
37.8 l
Lift cylinders
3-1/2"
Tilt Cylinders
4"
Optimum C/A
84"
Recommended GVWR
24,000 lbs
Container sizes
2-10 cu. yd.
Shipping Weight
1,156 kg

Discover Standard Features

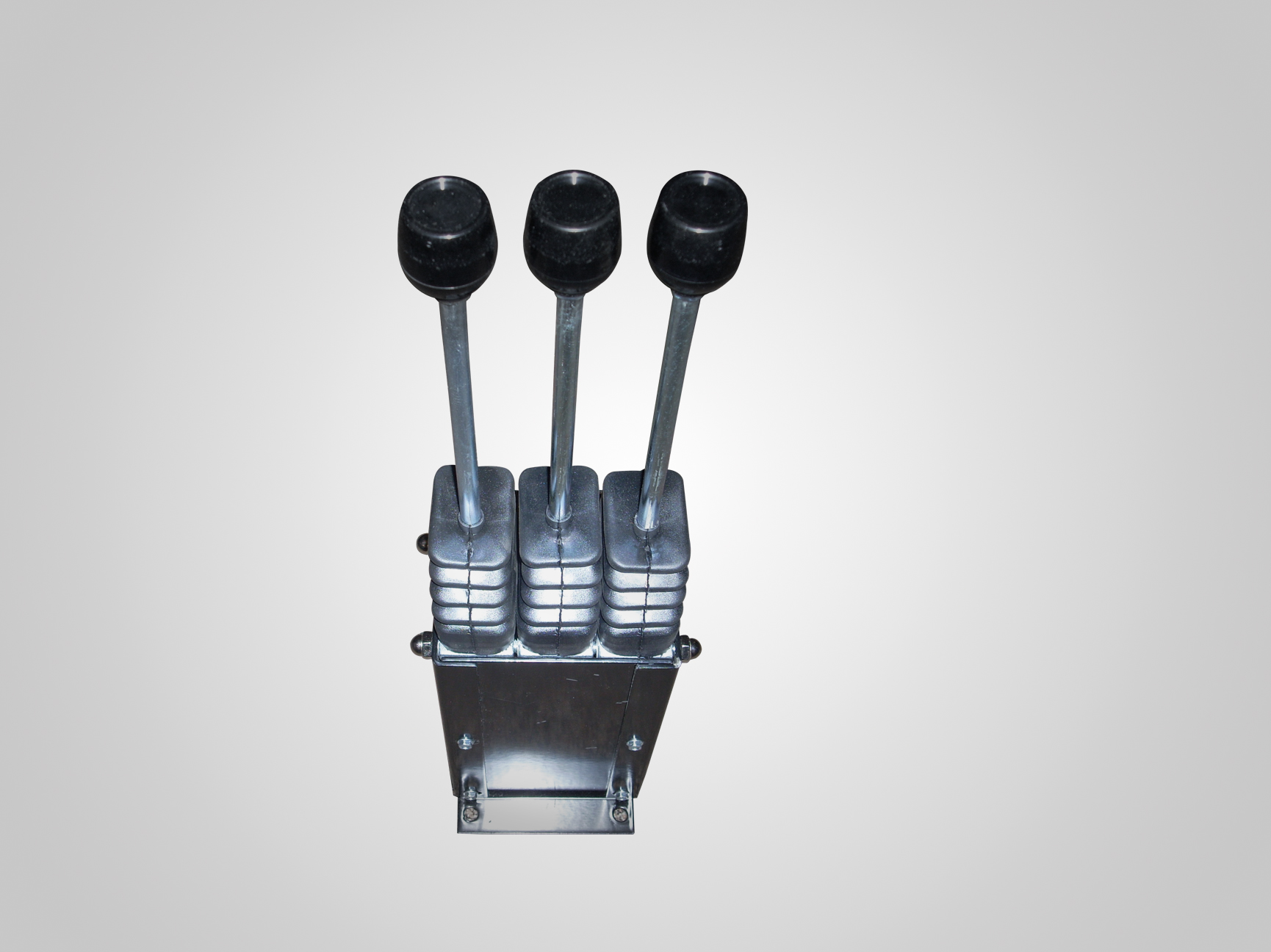

Inside Controls

Operate with ease and safety using inside controls on our container delivery units. Designed for convenience, this feature keeps operators in control from the cab—boosting efficiency, reducing downtime, and ensuring smooth, precise handling for every heavy-duty job.

alt text
Twin Lock

The twin lock feature on our container delivery units ensures maximum security and stability during transport and placement. Designed for heavy-duty applications, it delivers safe, efficient, and reliable performance every time—giving operators confidence and control on the job.

alt text

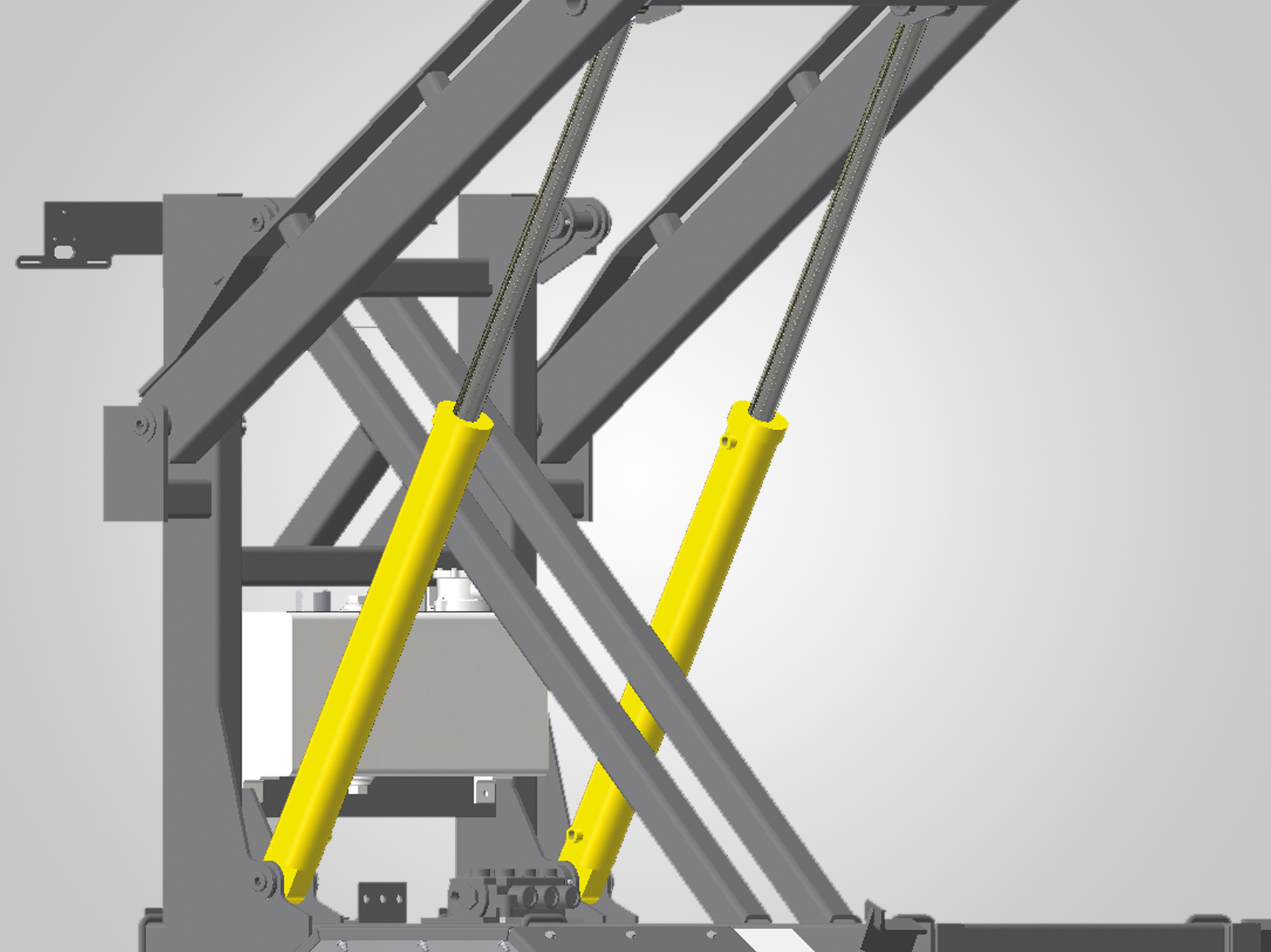

Twin Lifting Cylinders

Our container delivery units feature twin lifting cylinders for unmatched strength and balance. This design ensures smooth, stable lifting of heavy loads, reducing stress on components and boosting efficiency. Engineered for reliability, it delivers consistent performance on every job.

alt text

Optional Features

52" Forks

Upgrade your container delivery unit with 52" forks for superior strength and reach. Designed for heavy-duty applications, these forks provide secure handling and precise control, making every lift safer and more efficient. Perfect for demanding jobs where reliability matters most.

78" Forks

Upgrade your container delivery unit with 78" forks for maximum strength and extended reach. Built for heavy-duty applications, these forks ensure secure handling and precise control, making every lift safer and more efficient—perfect for demanding jobs where reliability matters most.

64" Forks

Upgrade your container delivery unit with 64" forks for maximum strength and extended reach. Built for heavy-duty jobs, these forks ensure secure handling and precise control, making every lift safer and more efficient—perfect for demanding applications where reliability matters most.
