up to 75,000 lbs.

American Roll-Off

ARH Models

alt text

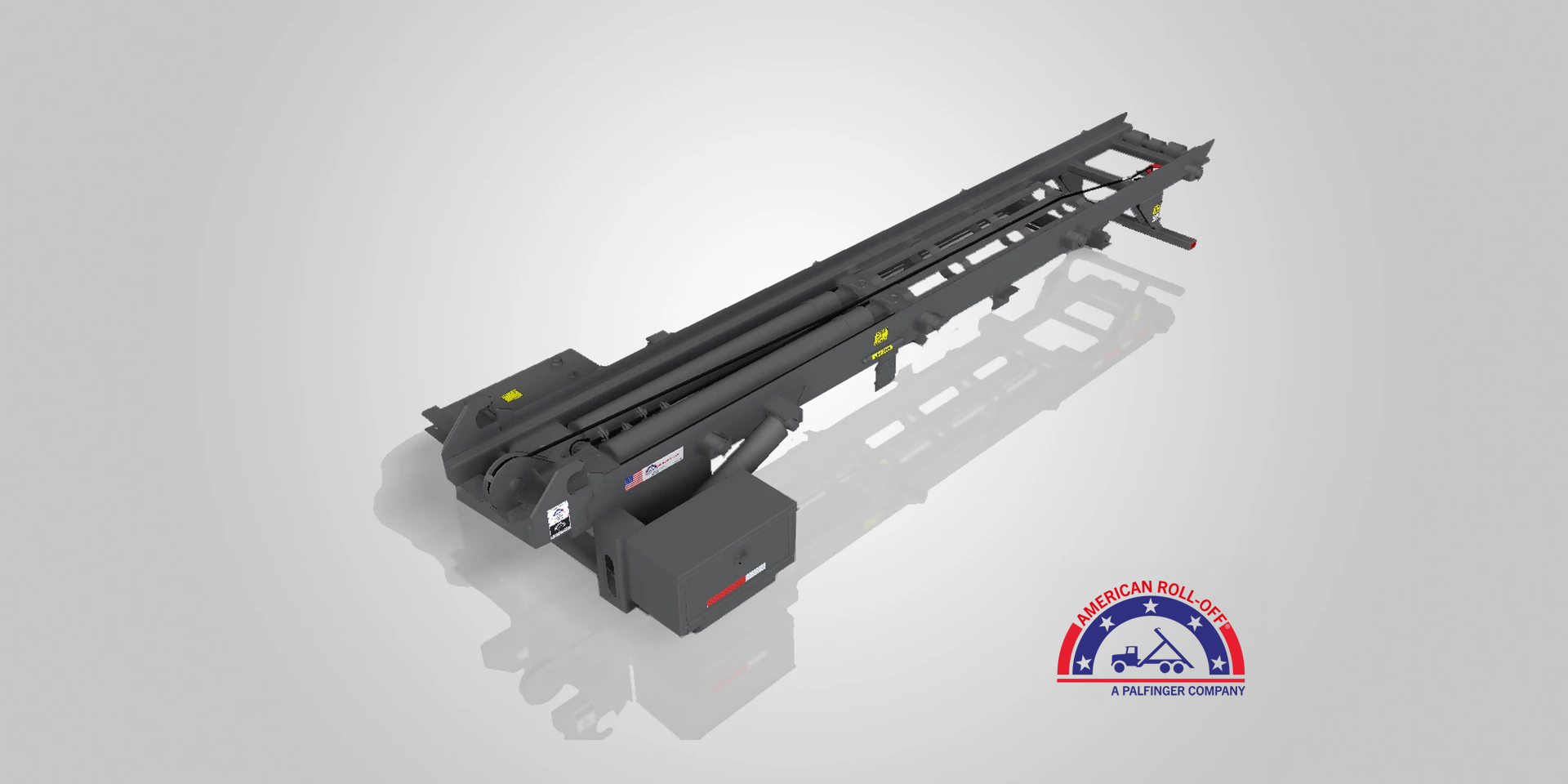

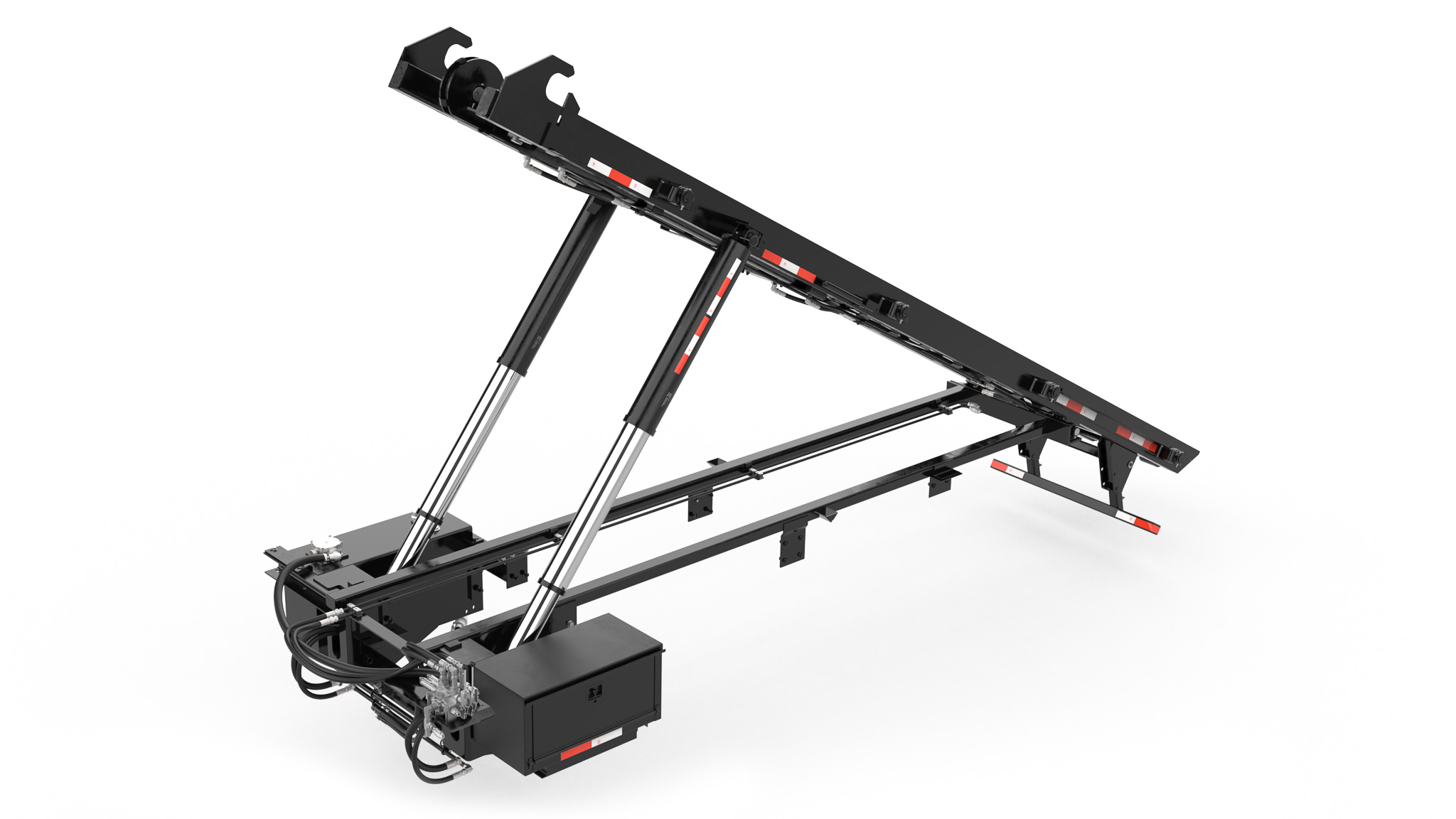

Cable Hoist
Key Specs
Imperial
Metric
Type
ARH ARH
Max Length
7.32 m 24 ft
Max Capacity
34019 kg 75000 lbs

Heavy-Duty Cable Roll-Off Hoists built for demanding jobs. With capacities up to 75,000 lbs, these versatile hoists handle scrap and other heavy-duty applications with ease. Proudly made in Trenton, NJ, American Roll-Off delivers strength and reliability nationwide.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Durable Design and Easy Maintenance

Integrated hydraulic return filter reduces damage risk and simplifies upkeep. Removable sheaves and large-diameter pins improve serviceability and reduce wear during heavy lifting. Frame options include inside/outside rail and extreme-duty configurations, with reinforced rails and oversized rollers for long-lasting performance.

alt text

Enhanced Safety and Locking Features

Dual safety props provide added protection when working under the hoist, while dual front container locks ensure secure load handling. Optional hydraulic automatic container locks, operated through PTO engagement, simplify operations and improve efficiency for heavy-duty applications.

alt text

Highlights

Combat Roller Wear: Upgrade to Heavy-Duty Strength

Experience unmatched durability with heavy-duty side and rear rollers. Featuring 50% larger, taller, and wider side rollers, reinforced rails, and a solid three-section rear roller, this design ensures superior strength and reduced wear in demanding lifting conditions. Easy maintenance and large-diameter pins deliver long-lasting performance you can trust.
alt text

Equipment & Accessories

Fender Options

Choose fender options that fit your needs: durable steel for maximum strength or lightweight plastic for flexibility. Both designs offer easy installation and reliable protection for your hooklift.

Bumper Options

Choose bumper options that fit your needs: full-width for maximum coverage or split design for flexibility. Both solutions offer durability and easy installation for optimized hooklift performance.

Lighting Options

Lighting options include mid-body lights for visibility, spotlights for precision, and strobe lights for safety. Designed for durability and easy installation, these solutions keep your hooklift compliant and ready for any job.

Tarp System

Choose tarp system options from trusted brands: Pioneer or Roll-Rite. Both deliver durability, easy operation, and secure coverage for your hooklift, ensuring safety and compliance every time.

Toolbox Options

Choose toolbox options that suit your needs: aluminum or steel construction, available in 36" or 48" sizes. Built for durability and easy installation, these toolboxes provide secure storage and flexibility for any hooklift setup.

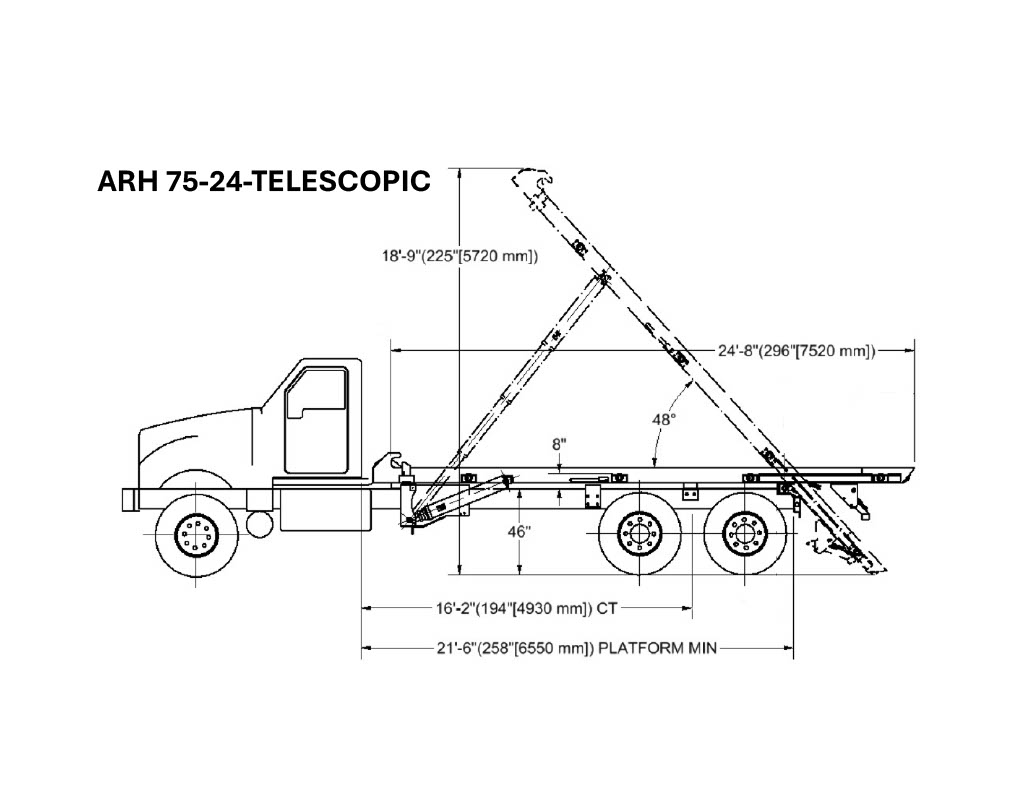

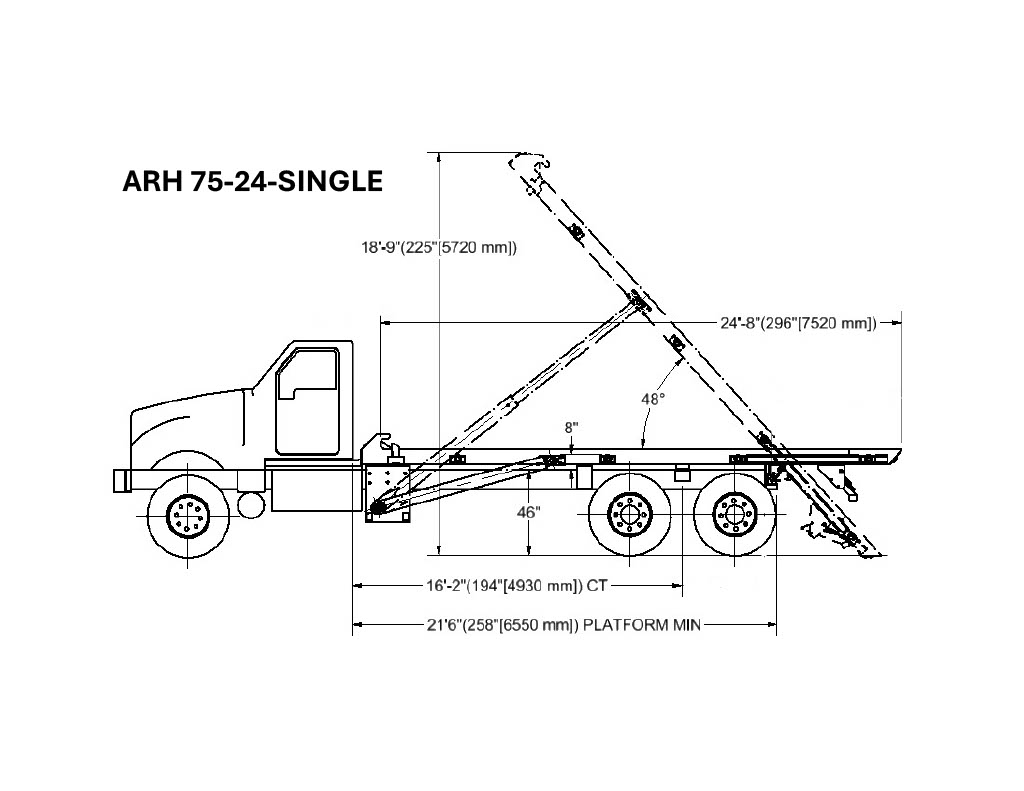

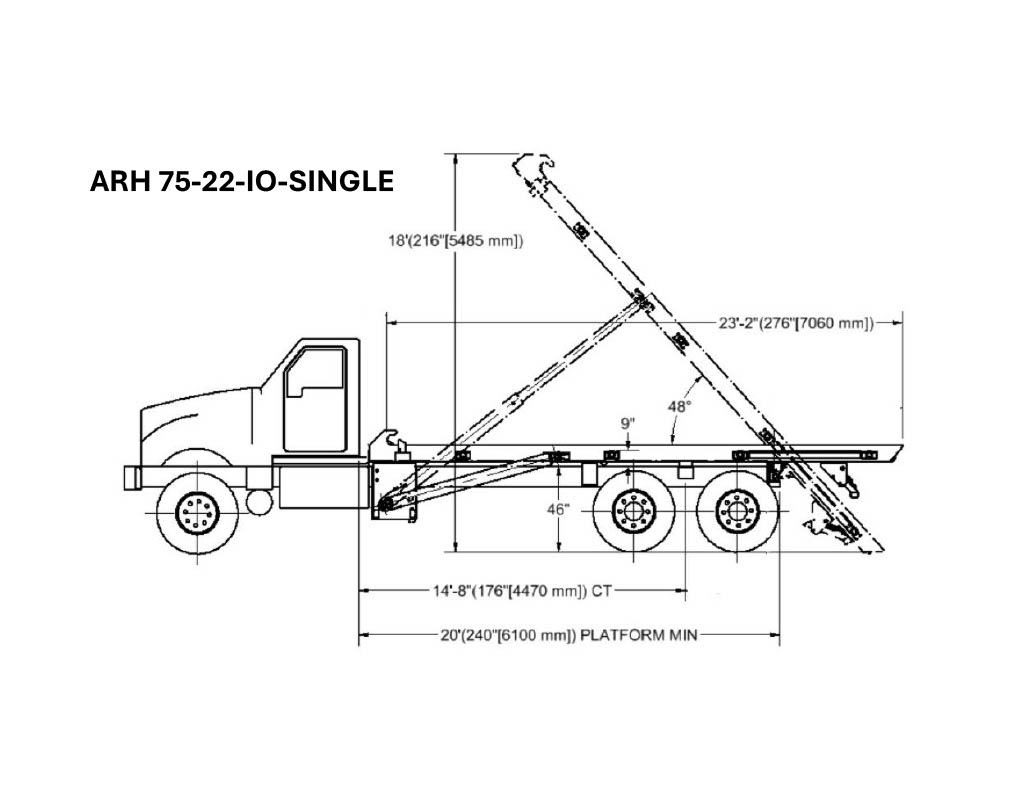

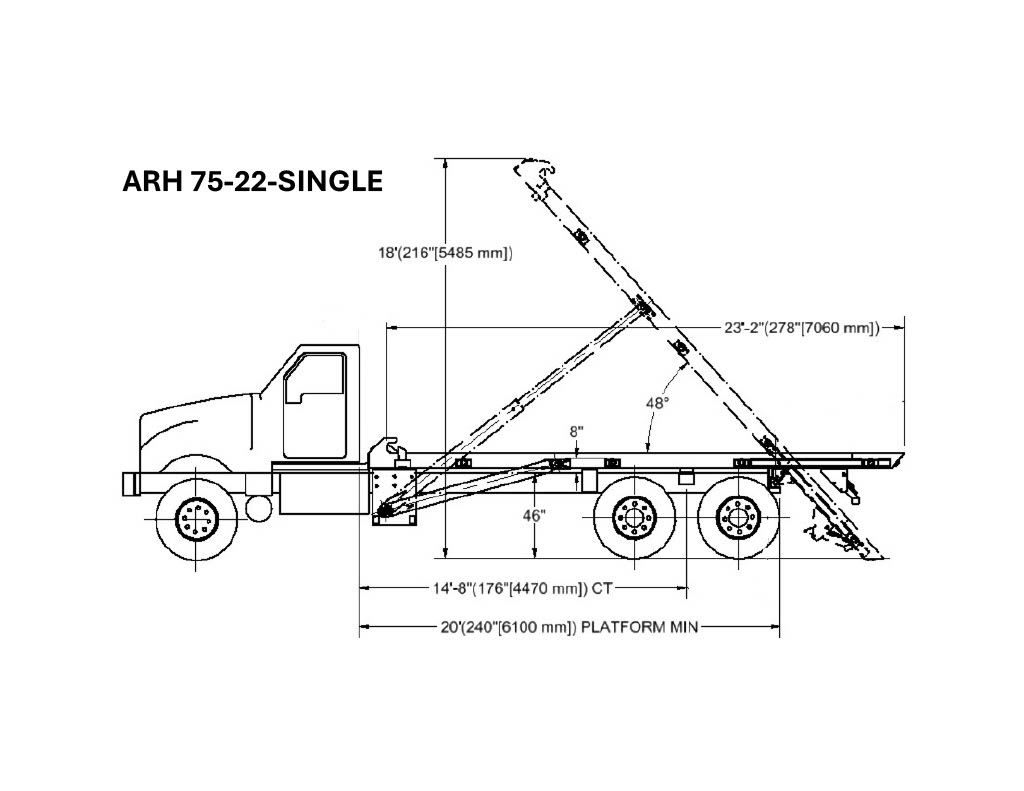

Technical Specifications

Technical data U.S. units

Capacity (lb)

Dump angle

Min C/T (in.)

Hoist length (in.)

Container length (ft.)

GVWR F/R (lb.)

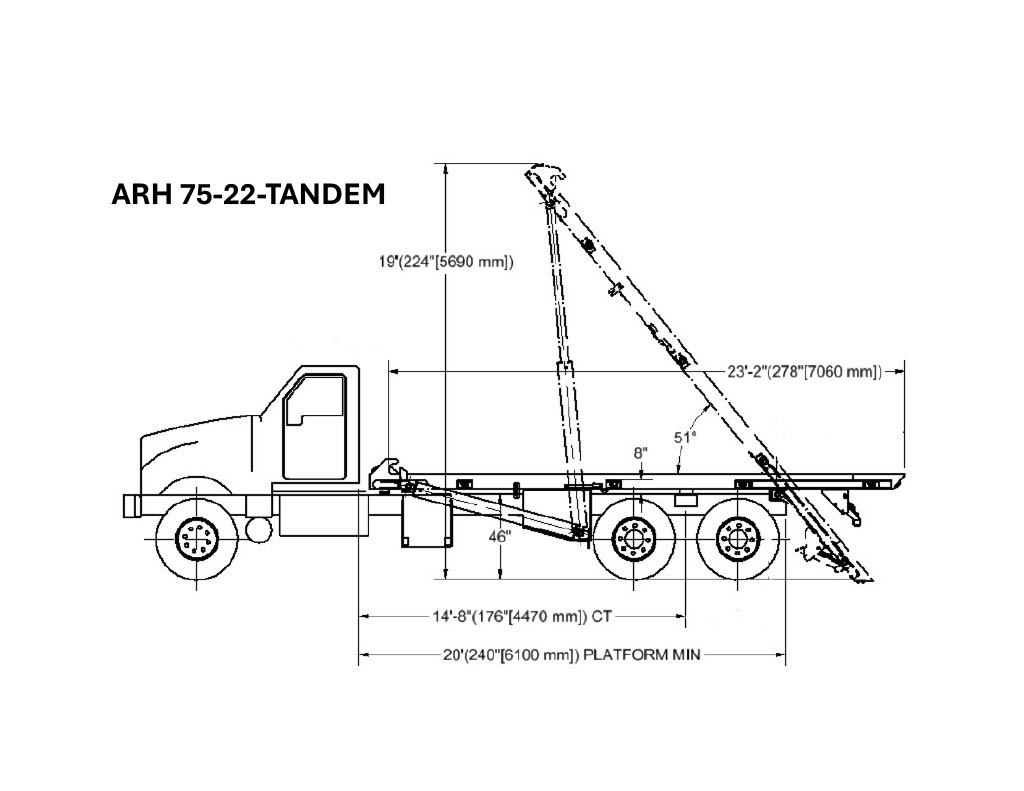

ARH 75-22 75,000 lbs 48 degrees 176 inch_s 289 inch_s 12-22 ft. 18,000/46,000

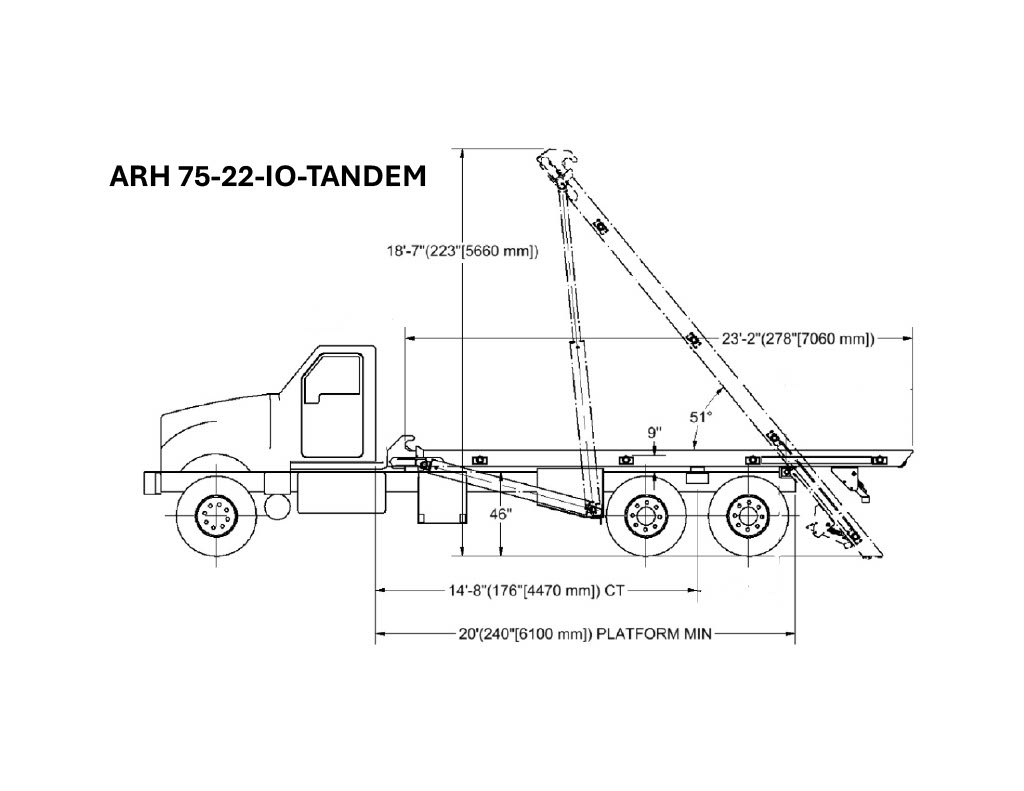

ARH 75-22 IO 75,000 lbs 48 degrees 176 inch_s 289 inch_s 12-22 ft. 18,000/46,000
ARH 75-22 XD 75,000 lbs 48 degrees 176 inch_s 289 inch_s 12-22 ft. 18,000/46,000

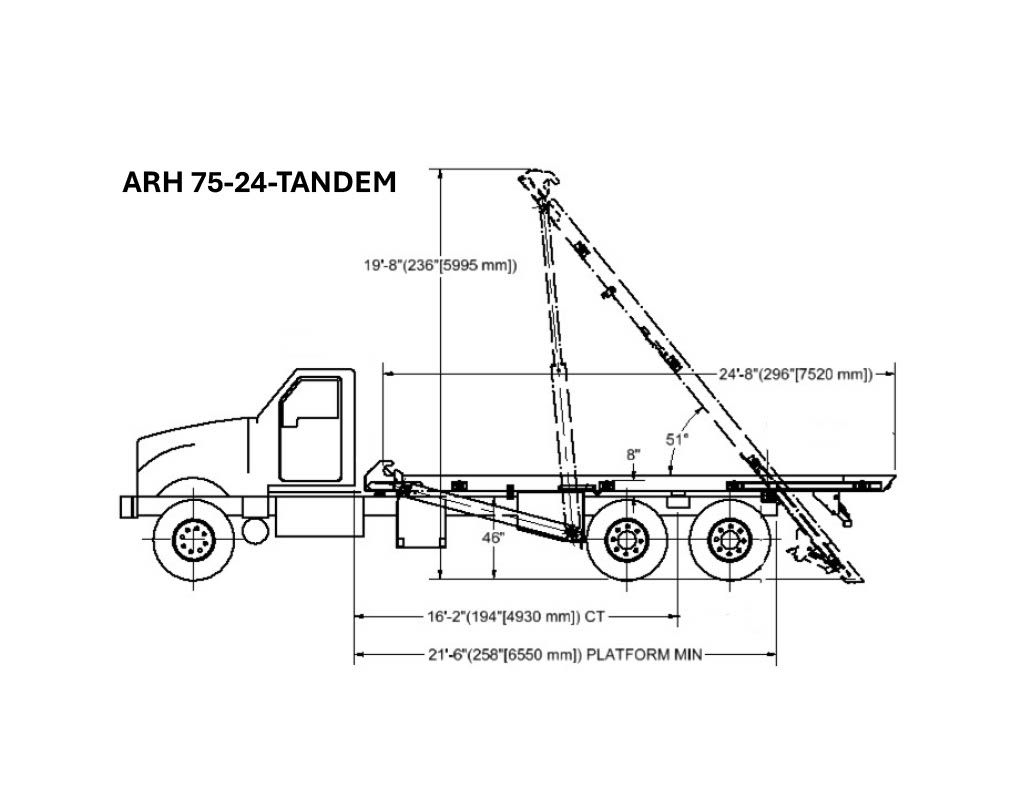

ARH 75-24 75,000 lbs 48 degrees 194 inch_s 307 inch_s 12-24 ft. 18,000/46,000
ARH 75-24 IO 75,000 lbs 48 degrees 194 inch_s 307 inch_s 12-24 ft. 18,000/46,000
ARH 75-24 XD 75,000 lbs 48 degrees 194 inch_s 307 inch_s 12-24 ft. 18,000/46,000
Technical data metric

Dump angle

Min C/T (in)

Hoist length (cm)

Capacity (kg)

Container length (m)

GVWR F/R (lbs.)
ARH 75-22 48 degrees 176 inch_s 734.06 cm 34,019 kg 3.66-6.71 m 18,000/46,000
ARH 75-22 IO 48 degrees 176 inch_s 734.06 cm 34,019 kg 3.66-6.71 m 18,000/46,000
ARH 75-22 XD 48 degrees 176 inch_s 734.06 cm 34,019 kg 3.66-6.71 18,000/46,000
ARH 75-24 48 degrees 194 inch_s 779.78 cm 34,019 kg 3.66-7.32 m 18,000/46,000
ARH 75-24 IO 48 degrees 194 inch_s 779.78 cm 34,019 kg 3.66-7.32 m 18,000/46,000
ARH 75-24 XD 48 degrees 194 inch_s 779.78 cm 34,019 kg 3.66-7.32 m 18,000/46,000
Standard features
  • Reeving cylinder
  • Lifting cylinder
  • Heavy-duty hinges and pivots
  • Low-profile track
  • Casted lift cylinder baskets
  • Support steel ramps
  • Tail cylinder under track
  • Dual automatic front left and right container stops and locks

Discover Standard Features

Removable Sheaves and Pins

Simplify maintenance with removable sheaves and pins designed for easy serviceability. Large-diameter pins reduce wear during heavy lifting, ensuring long-lasting durability and reliable performance in demanding conditions.

Integrated Hydraulic Return Filter

Protect your system with an internal hydraulic return filter that minimizes the risk of damage while simplifying maintenance. This design ensures cleaner operation, improved reliability, and easy serviceability for long-lasting performance in heavy-duty cable hoist applications.

Optional Features

Inside/Outside Rail

Get versatile strength with our inside/outside rail frame option for cable hoists. Designed for demanding lifting applications, it offers balanced durability and flexibility to handle heavy-duty jobs with confidence.

Outside Rail Only

Streamlined and strong, the outside rail-only frame delivers efficient performance for standard heavy-duty operations. Built for reliability, it ensures smooth lifting and long-lasting durability.

Outside Rail – Extreme Duty

Take on the toughest jobs with our extreme-duty outside rail frame. Engineered for maximum strength and durability, it’s the ultimate solution for heavy lifting in the harshest conditions.
