Non-insulated

PB 30 T

Truck-Mounted Telescopic

Key Specs

Imperial

Metric

Type

Working height: Up to 10.67 m Up to 35'

Side reach: Up to 6.76 m Up to 22' 2"

View all specifications

Engineered for performance, the PALFINGER PB 30 T Bucket Truck delivers 35' working height, 22' reach, and 350 lb capacity. With fast boom speeds, low step-in access, and true one-handed controls, it’s built for safety, simplicity, and nonstop productivity—day in, day out.

Open Diagrams

Find Sales Partner

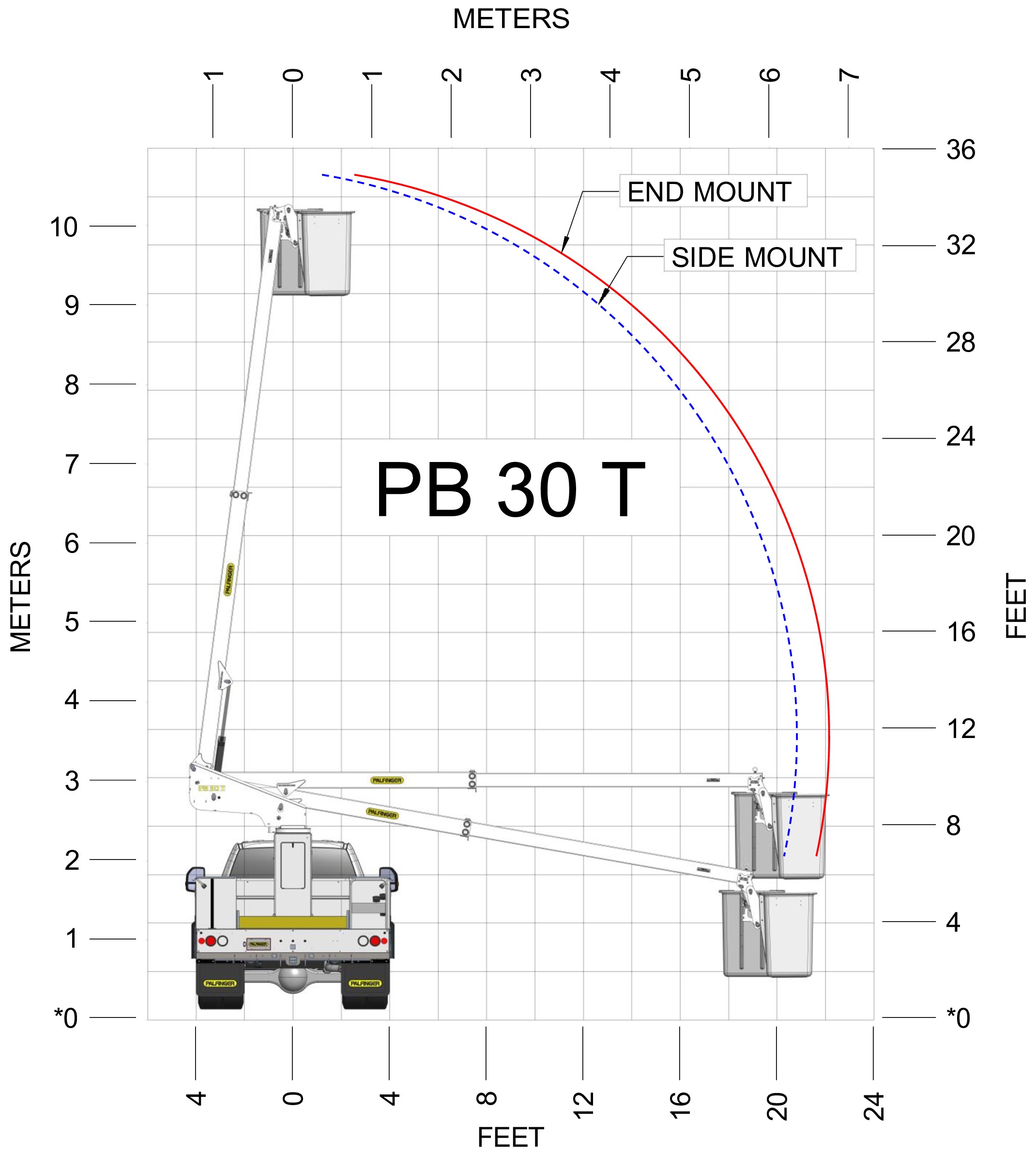

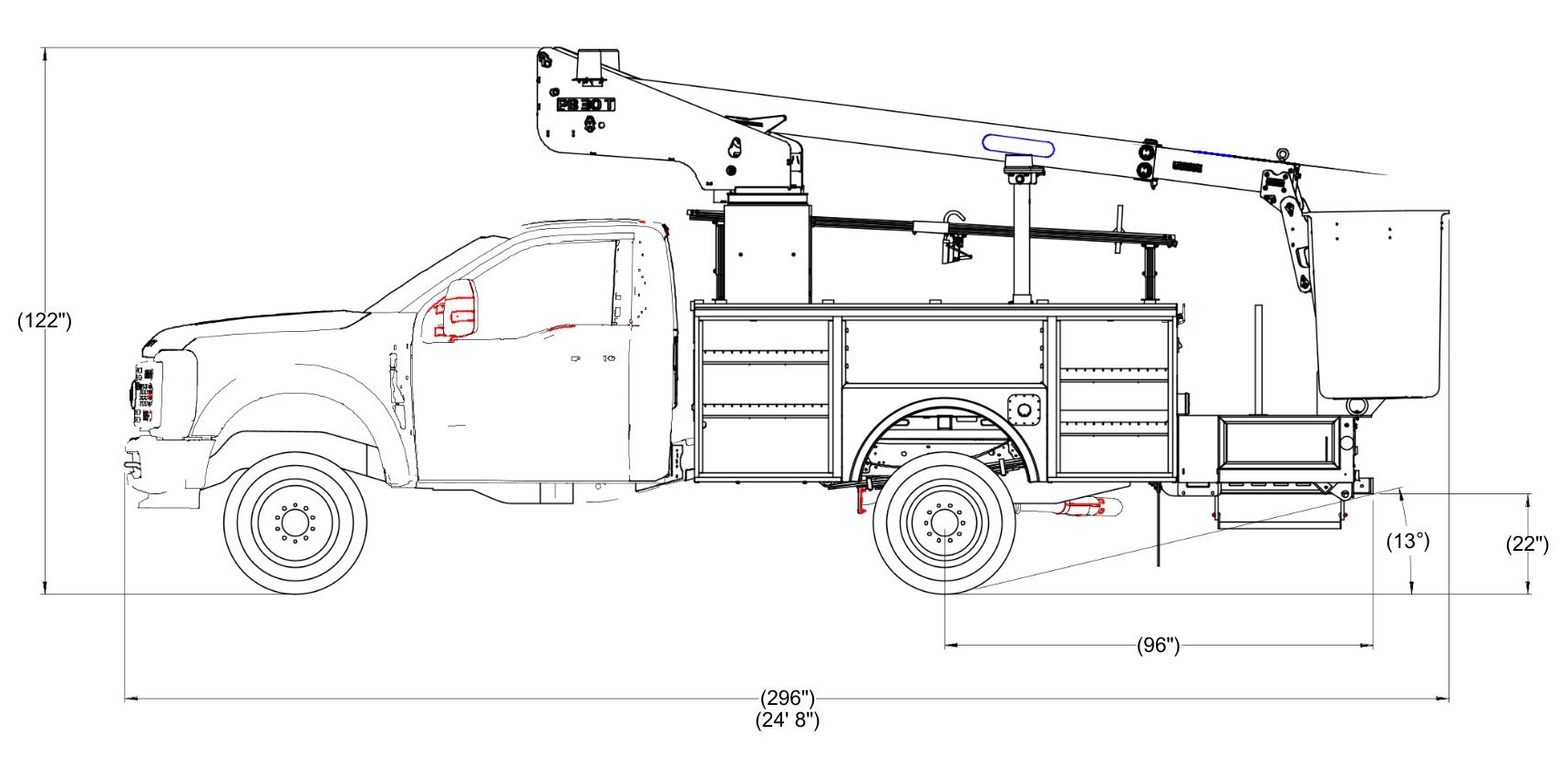

Diagrams

PB 30 T

View

Diagrams

PB 30 T

View

Step in With Ease

With a low 1 ft. 4 in. (0.41 m) entry height, the PB 38 AT P bucket truck ensures faster, safer, and more ergonomic access—boosting operator comfort and jobsite efficiency.

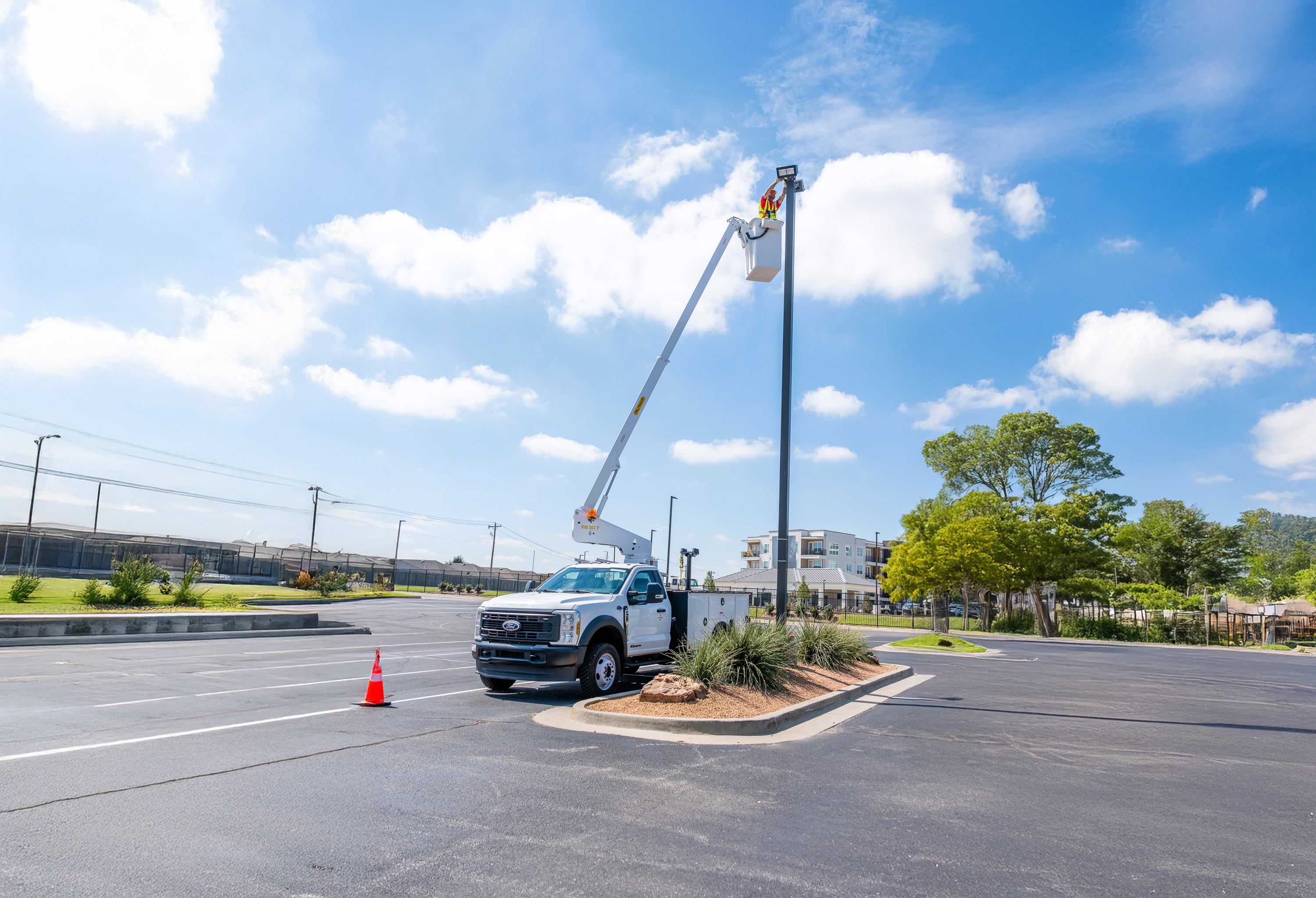

Speed. Precision. No Slowdowns.

Speed meets precision with fast boom movements that get operators in position quickly—minimizing wait time and maximizing productivity. Whether you're lifting, loading, or accessing hard-to-reach areas, this feature keeps your workflow moving and your team ahead of schedule.

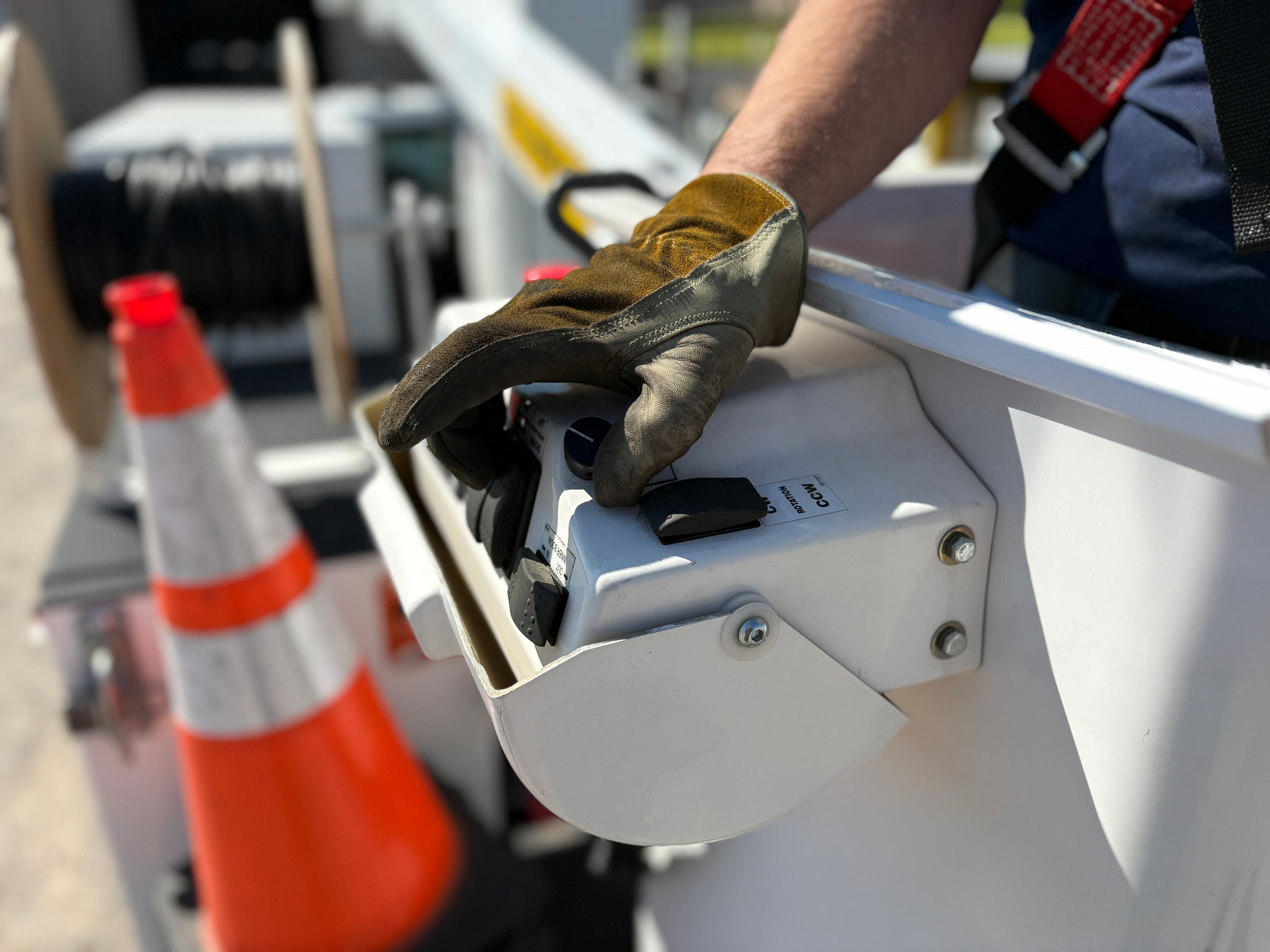

True One-Handed Operation

Engineered for efficiency, this bucket truck features intuitive one-handed controls—freeing your second hand for tools, materials, or added stability to help you work faster, safer, and smarter on the job.

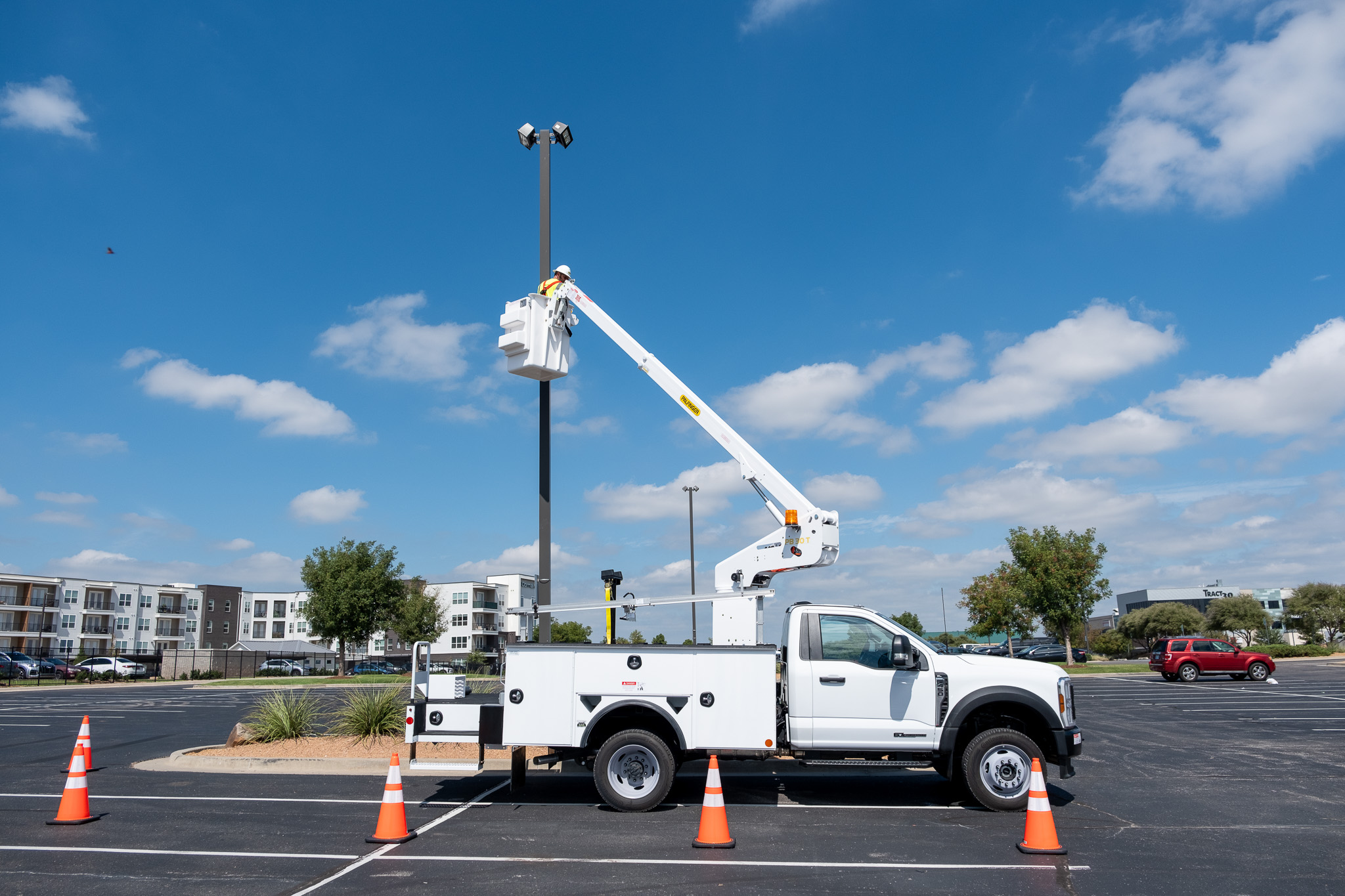

Value Without Compromise

Simplicity meets reliability—this unit is built to perform without the hassle. Engineered for dependable operation in demanding conditions, it delivers consistent results without unnecessary complexity, so you can focus on the job, not the equipment.

Equipment & Accessories

Hour Meter

Track equipment usage with a precision hour meter—designed for accurate monitoring and maintenance planning. Stay ahead of service schedules and extend equipment life with runtime data at your fingertips.

Tow Hitch

Connect with confidence using a 7-blade to 6-prong adapter—this durable adapter ensures reliable lighting and brake signal integration for a wide range of towing setups.

Water Can

Durable water cans are available in 3- and 5-gallon sizes. Built for easy handling and secure storage, they offer a practical solution for keeping water on hand in remote or demanding work environments.

E-Track & Hooks

Stay organized with E-track and hook systems—built for secure, adjustable storage. Designed for fast access and flexible configurations, they keep tools and equipment in place, even in rugged, fast-paced work environments.

Wire Storage

Streamline your setup with dedicated wire storage—designed for quick access, tangle-free organization, and job-ready efficiency. Built tough for daily use, it keeps cords and cables neatly managed and always within reach.

Ladder Rack

Transport ladders securely with a heavy-duty ladder rack—engineered for stability, easy access, and efficient storage. Built to handle tough jobs, it keeps equipment in place and ready to go when and where you need it.

Grill Guard Options

Shield your truck with durable grill guard options—available with or without winch integration. Built for strength and versatility, they offer added protection and utility for demanding work conditions and rugged environments.

Power Inverter

Power your tools anywhere with versatile inverter options—engineered for reliable 115V output from your vehicle. Designed for performance and safety, these solutions keep your equipment running smoothly on the go, wherever the job takes you.

Grounding Reels

Protect your crew and equipment with grounding reels—engineered for fast, reliable static discharge. Designed for durability and ease of use, they ensure safe operations in environments where electrical grounding is essential.

Spare Tire Holder

Secure your backup with a durable spare tire holder—engineered for easy access and reliable support. Designed to maximize space and ensure readiness, it keeps your spare firmly in place, even in rugged, on-the-go environments.

Technical Specifications

PB 30 T—1 Page Brochure

Technical data U.S. units

	C.A.	GAWR (front)	GAWR (rear)	GVWR (dual rear wheels)	Operating pressure	Operating volume	Rated bucket capacity	Height to bottom of bucket	Side reach	Working height
End Mount	60 inch	6,000 lbs	11,000 lbs	16,000 lbs	2,250 psi	4.5 gpm	350 lbs	30'	22' 2"	35'
Side Mount	60 inch	6,000 lbs	11,000 lbs	16,000 lbs	2,250 psi	4.5 gpm	350 lbs	30'	22' 2"	35'

Technical data metric

	C.A.	GAWR (front)	GAWR (rear)	GVWR (dual rear wheels)	Operating pressure	Operating volume	Rated bucket capacity	Height to bottom of bucket	Side reach	Working height
End Mount	1,524 mm	2,722 kg	4,990 kg	7,258 kg	155 bar	17 l/min	159 kg	9.14 m	6.76 m	10.67 m
Side Mount	1,524 mm	2,722 kg	4,990 kg	7,258 kg	155 bar	17 l/min	159 kg	9.14 m	6.76 m	10.67 m

Standard features

Standard Body Configuration

Regular 4x2 Cab Gas (Diesel and 4X4 options)
PTO
12V emergency power
High idle throttle control (2-speed throttle control option)
Strobe lights at the knuckle
9' body length (11' option)
3'6" tailshelf
Post-mounted strobe light on the headache rack

Standard Aerial Configuration

350 lb basket capacity

Discover Standard Features

Proportional Upper Controls

Experience precision and safety with proportional upper controls featuring start-stop functionality, variable speed adjustment, and an emergency descent valve—engineered for smooth, responsive operation in demanding environments.

Platform Leveling

Hydraulic platform leveling gives you precise control—automatically or manually—for smooth dump operations or fast, safe operator rescue. Designed for reliability and safety, this feature keeps your platform stable when it matters most.

Serviceability

Boost uptime and reduce maintenance with adjustable boom wear pads and replaceable pin bushings. Designed for durability and easy servicing, these components help extend equipment life and ensure smooth, reliable operation in demanding environments.

Durable, Corrosion-Resistant Coating

Get lasting protection with powder-coated aerial components designed to resist corrosion and wear. This durable finish enhances the life of your equipment, keeping it looking sharp and performing reliably in harsh environments. Built to withstand the elements, it’s a smart upgrade for long-term value.

Optional Features

Start/Stop Switch Location

Customize your control setup with flexible start/stop switch placement—choose upper, lower, or rear locations to match your workflow. Designed for convenience and efficiency, this feature enhances operator comfort and accessibility on every job.

Hot Stick Storage

Choose your setup with streetside or curbside hot stick storage—designed for convenience, safety, and quick access. This flexible configuration ensures crews can work efficiently in any environment, maximizing productivity and minimizing downtime.

Pintle Hitch

Equip your vehicle for heavy-duty towing and versatility with a pintle hitch. Designed for strength and compatibility, this setup ensures secure connections and smooth operation—ideal for rough terrain and heavy-duty trailers.

Backup Camera & Sensors

Enhanced safety with integrated backup cameras and sensors. Designed for real-time visibility and obstacle detection, this system streamlines maneuvering in tight spaces. Ideal for high-traffic job sites, it reduces blind spots and boosts operator confidence behind the wheel.

Cone Holder

Keep safety gear secure and accessible with a dedicated cone holder—engineered for quick deployment and efficient storage. Designed to withstand tough job site conditions, it ensures your traffic cones are always within reach. Ideal for crews who need fast, reliable access to safety equipment.

Headache Rack Lights

Boost visibility and safety with headache rack lights designed for bucket trucks. These durable, high-performance lights provide superior illumination for work zones. Built to withstand tough conditions, they enhance worksite safety.

Toolbox Options

Access your tools quickly with toolboxes—engineered for durability, security, and convenience. Designed to maximize storage without sacrificing space, these solutions keep your gear protected and within reach. Ideal for dynamic job sites where efficiency and organization matter most.

Compartment Shelf Layout Options

Customize your bucket van with versatile compartment shelf layout options. Organize tools and equipment for maximum efficiency and easy access on the job. Built for durability and flexibility, these layouts help streamline workflow and keep everything securely in place, even in demanding conditions.

Pedestal-Mounted Light

Illuminate your workspace with a pedestal-mounted light—designed to elevate lighting where it’s needed most. This solution enhances safety and productivity in demanding environments and is ideal for night operations and low-light job sites.

Oversized Bucket

Take on bigger tasks with an oversized bucket sized at 2'W x 2'6"L x 3'6" H. Built for extra space and durability, it offers secure, comfortable positioning and added capacity for tools and materials. Ideal for demanding jobs where efficiency and versatility matter most.
