Non-insulated

ETT 29 SNV

Non-Insulated Van Mounted

alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
alt text
Bucket Trucks
Key Specs
Imperial
Metric
Type
Working height
Up to 10.67 m Up to 35'
Side reach
6.32 m 20' 9"

The ETT 29 SNV delivers up to 35 ft of reach on Sprinter or Transit vans, combining smart design with serious capability. Its bridge frame boosts storage and access, while advanced hydraulic features and customizable options make it a powerful, versatile aerial solution.

Find Sales Partner

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

Request a quote

I agree that my data will be stored to fulfill my request in the systems of the PALFINGER Group. This data is stored for documentation purposes for three years. *

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes.

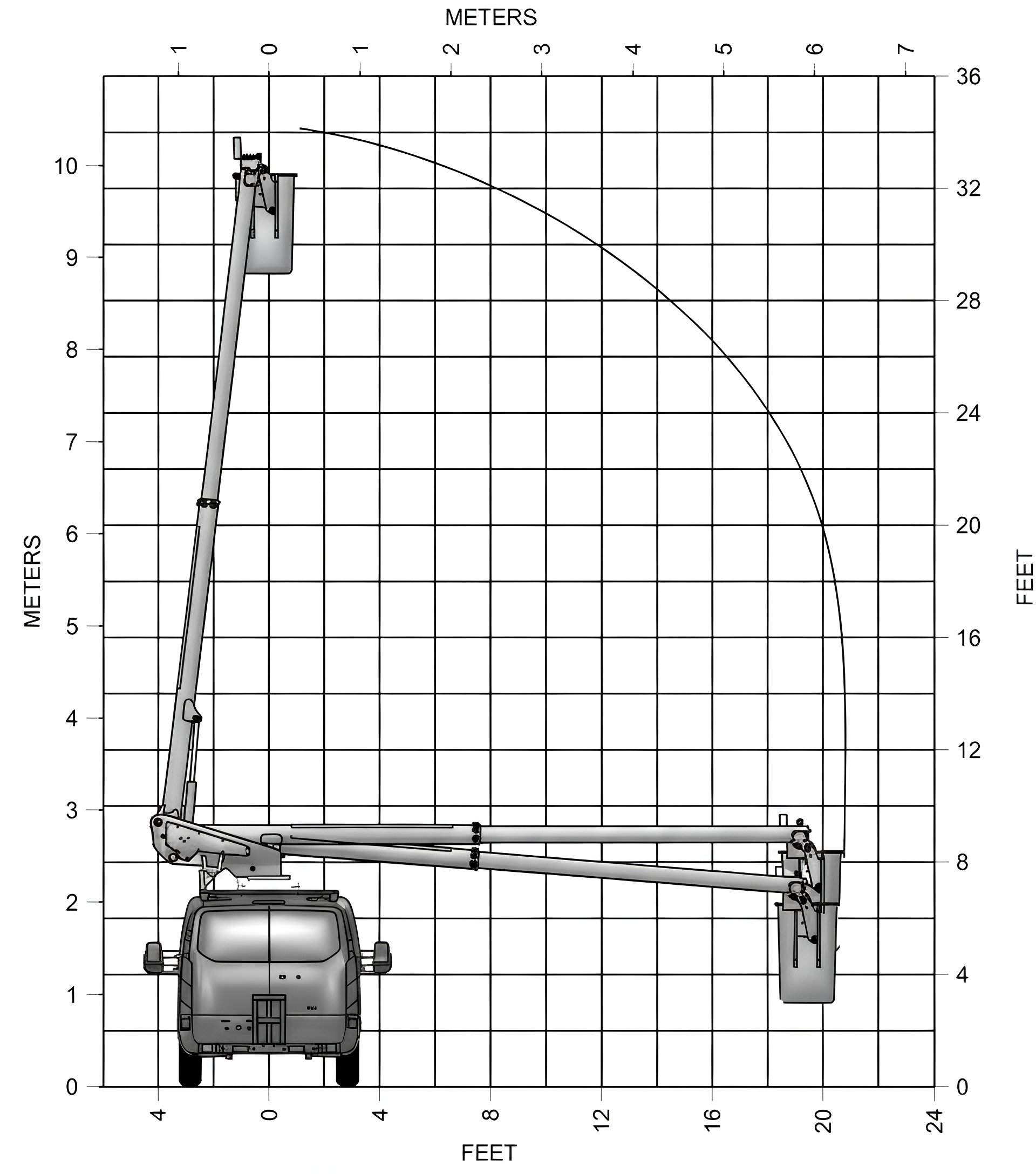

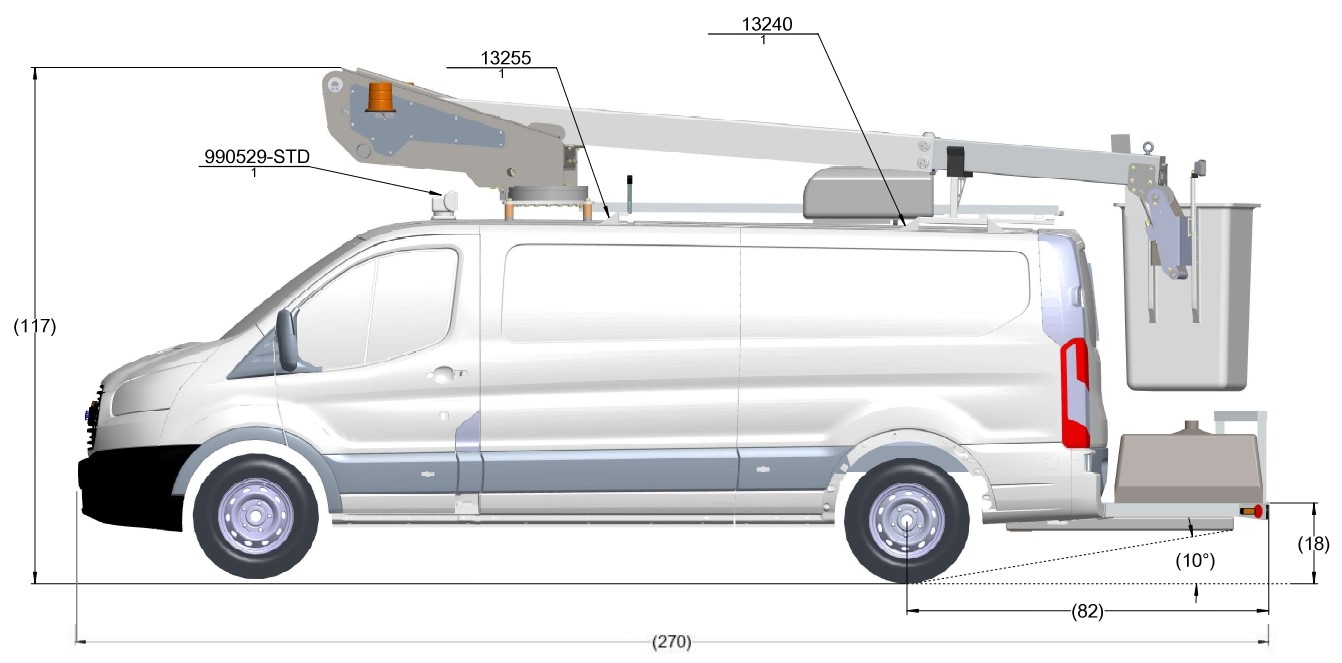

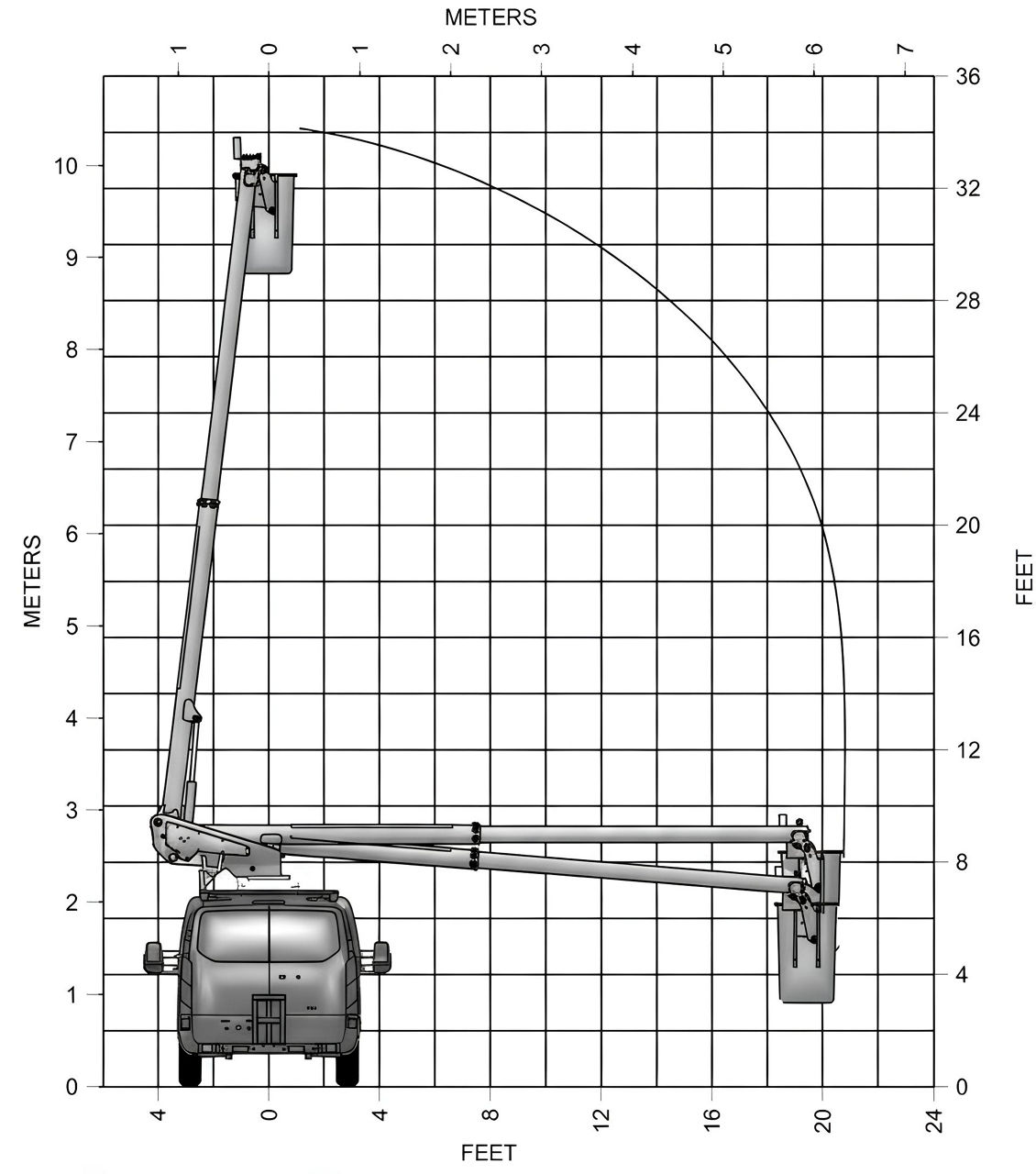

Diagrams

ETT 29 SNV

View
alt text

Diagrams

ETT 29 SNV

View
alt text

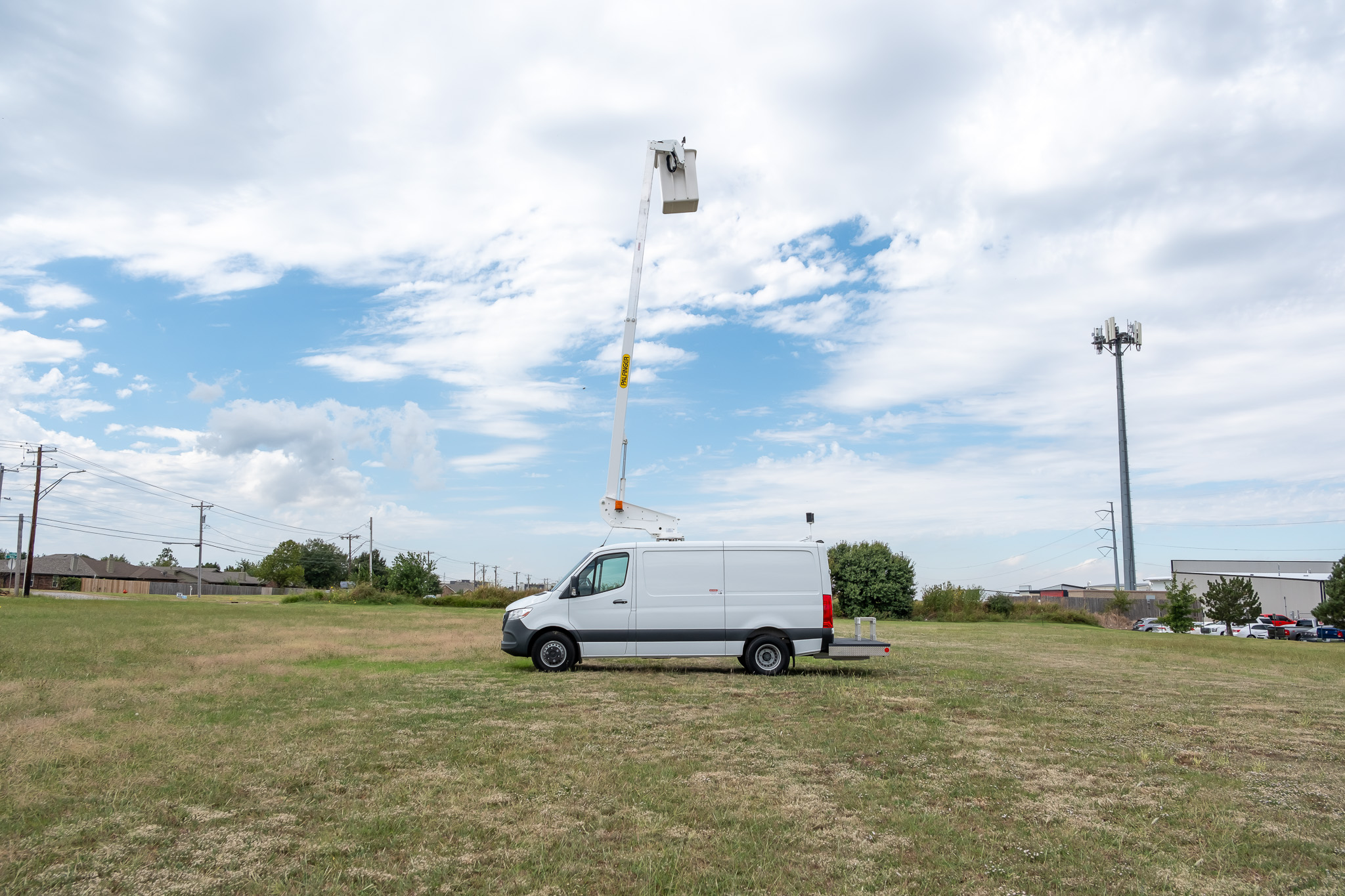

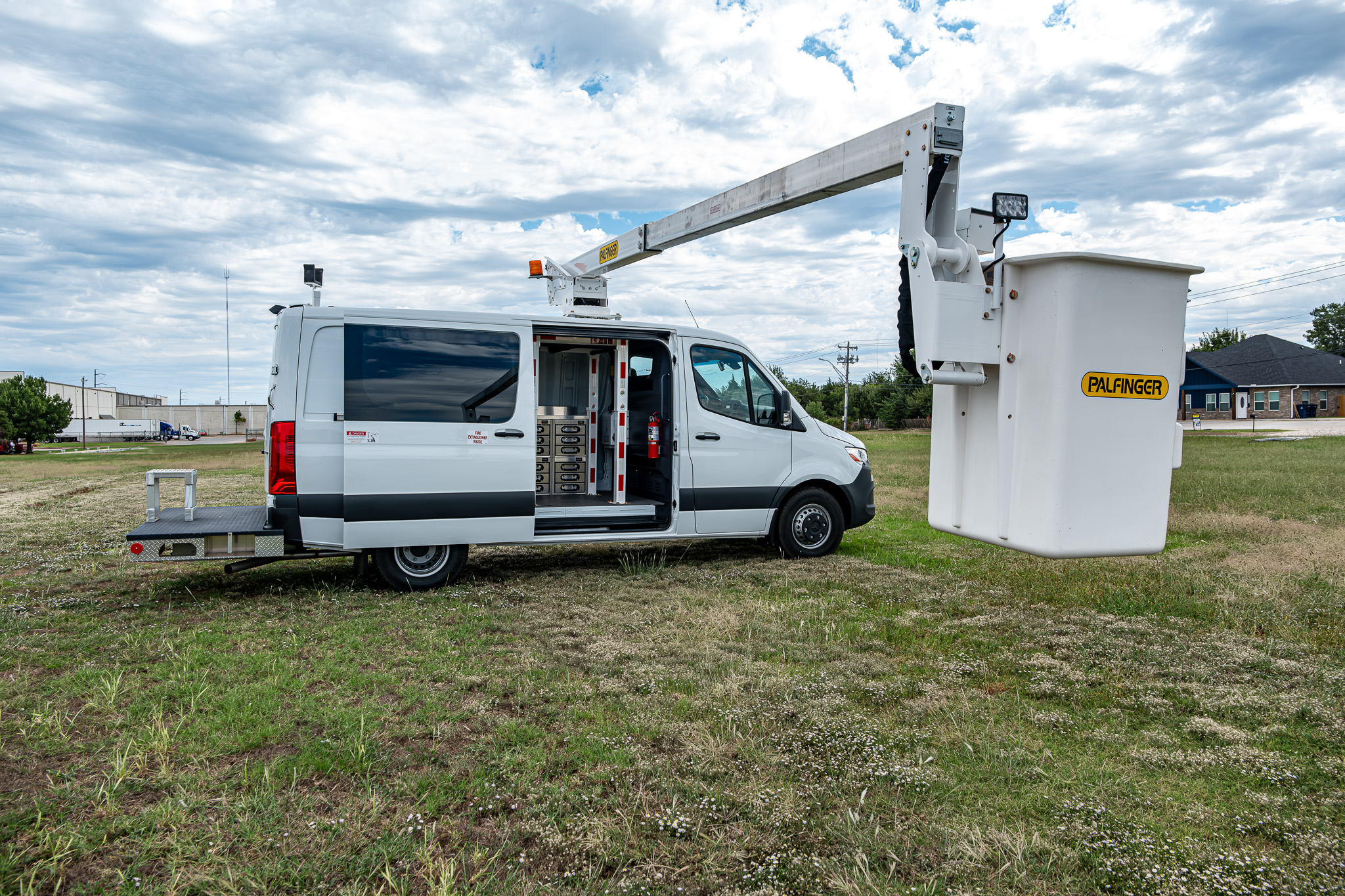

Strong. Adaptable. Ready for Work.

From telecom and fiber splicing to security systems and signage installs, this versatile aerial unit is built to handle it all. Engineered for adaptability and performance, it’s the go-to solution for professionals who need reliable reach and functionality across multiple industries.

alt text

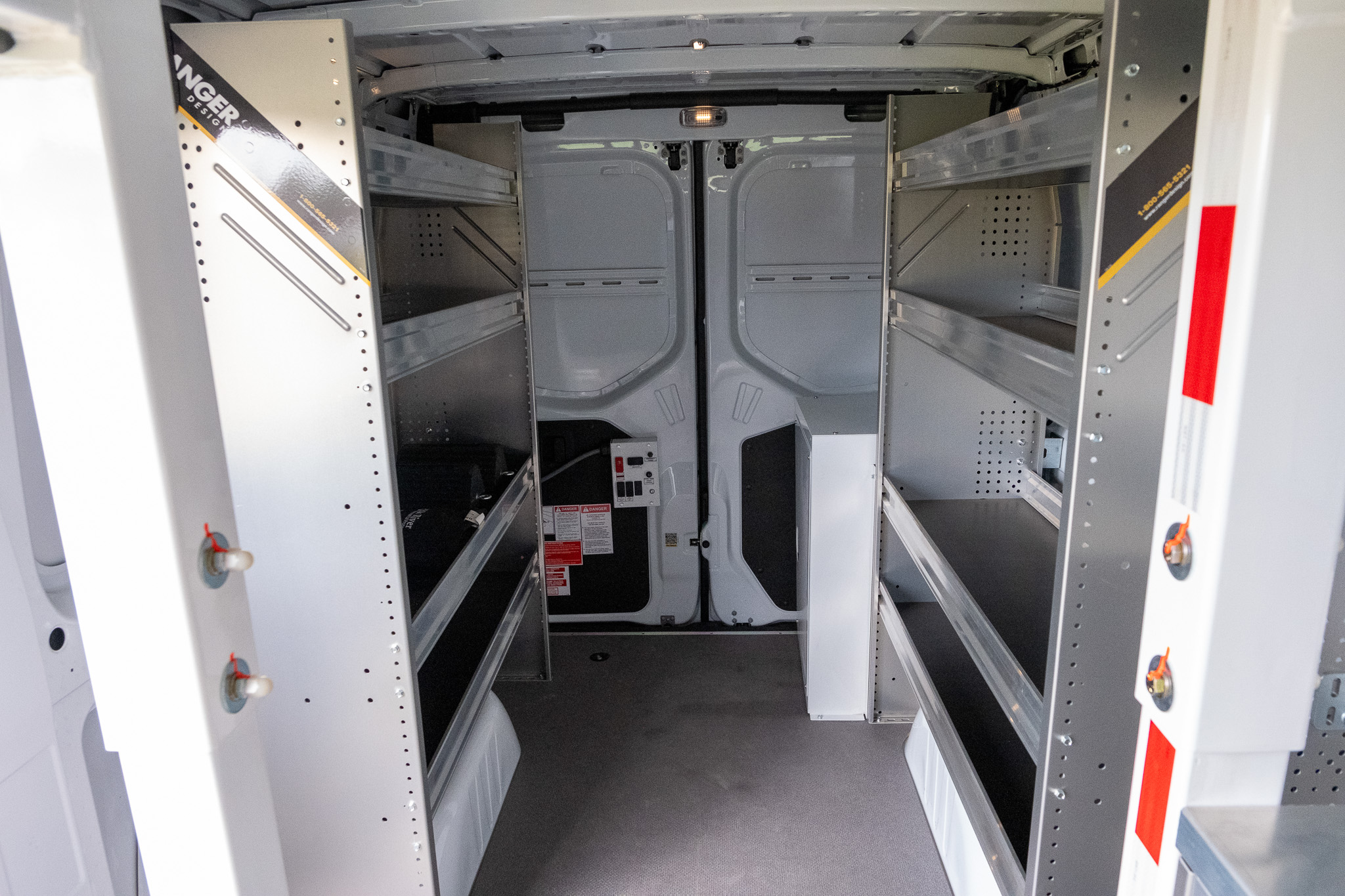

Maximize Every Inch

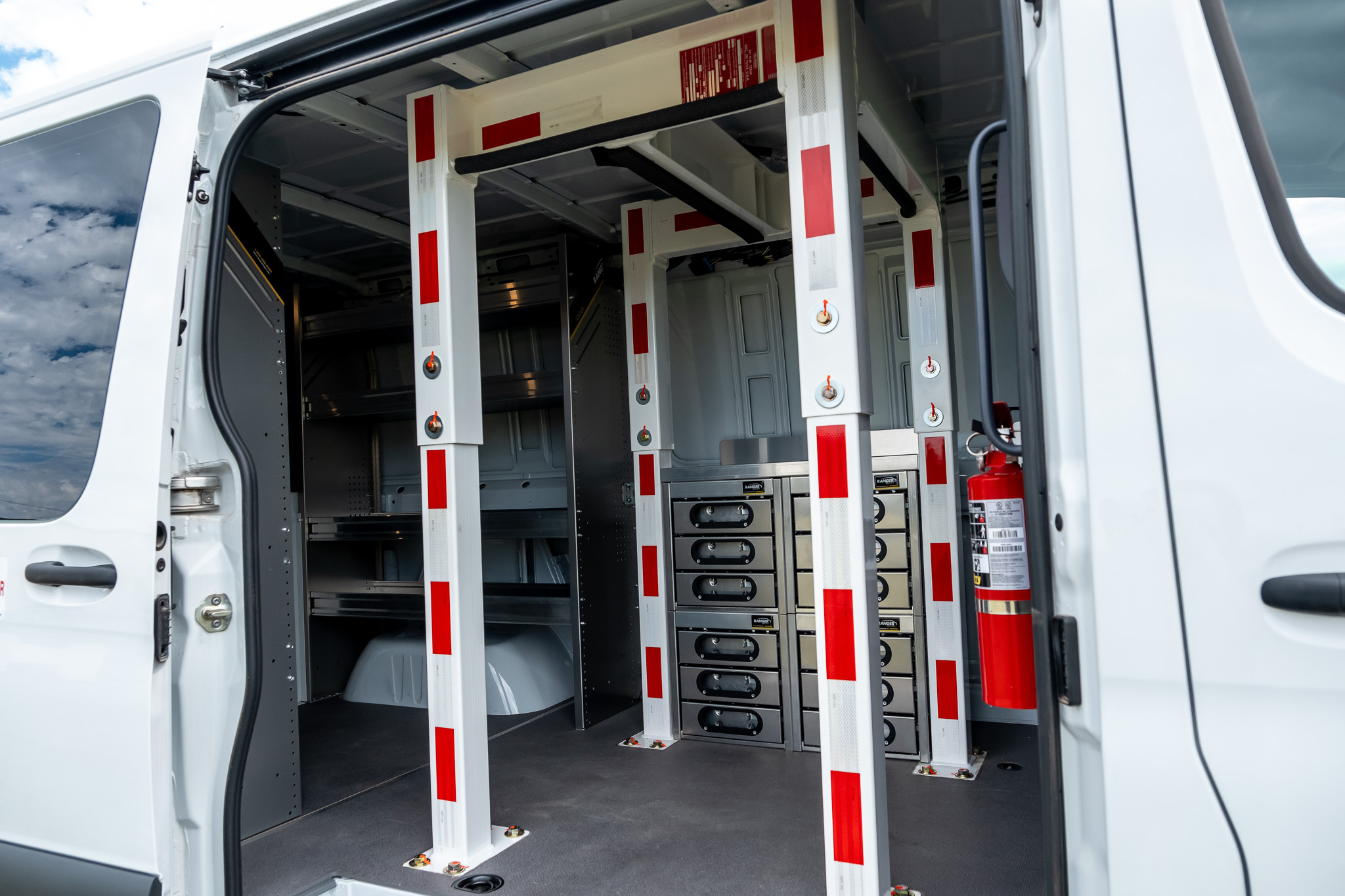

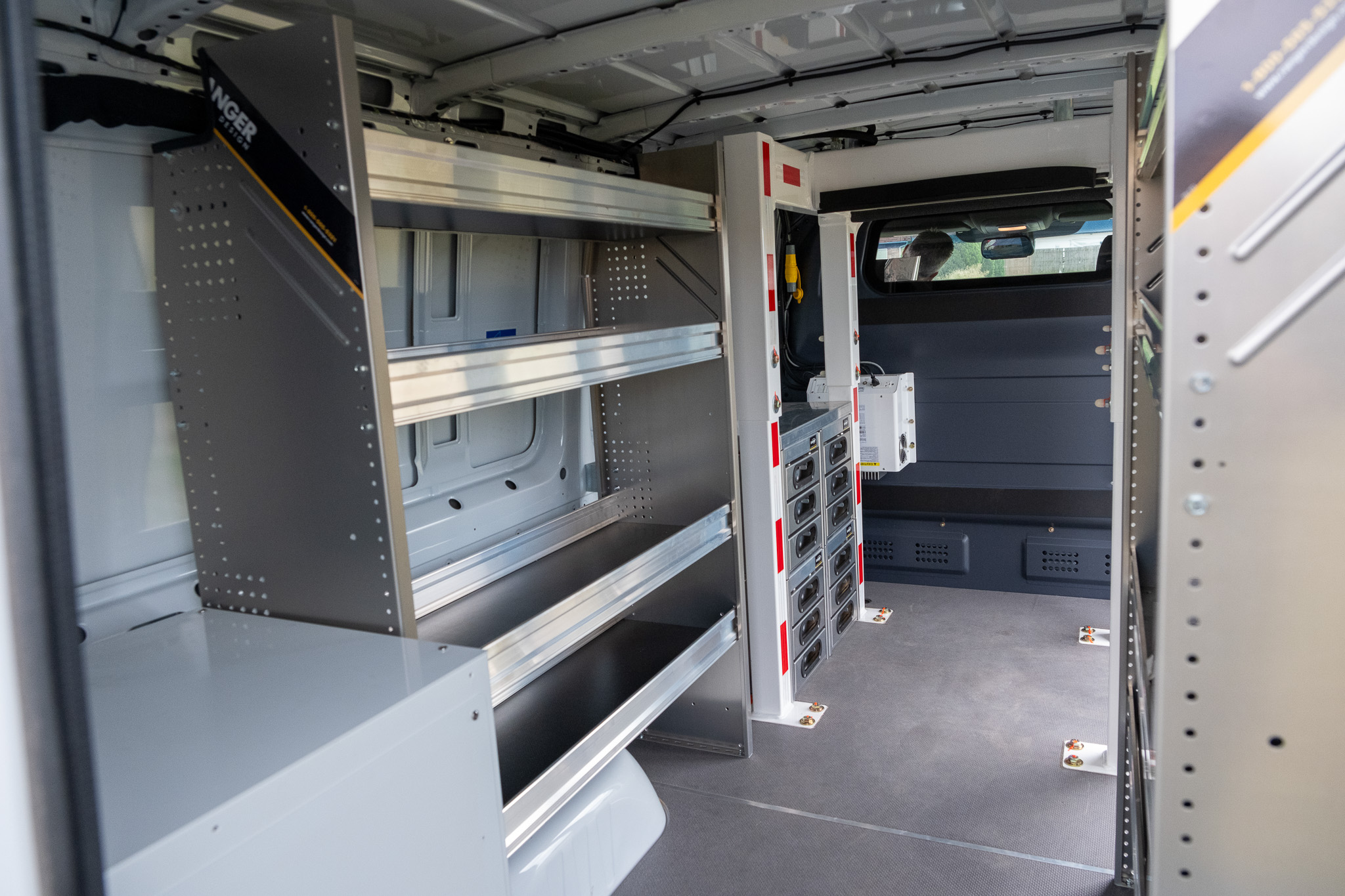

The van’s innovative bridge frame interior boosts storage and streamlines access—keeping tools, gear, and materials organized and always within reach. Designed for efficiency and convenience, it transforms your workspace into a mobile command center built for productivity.

alt text

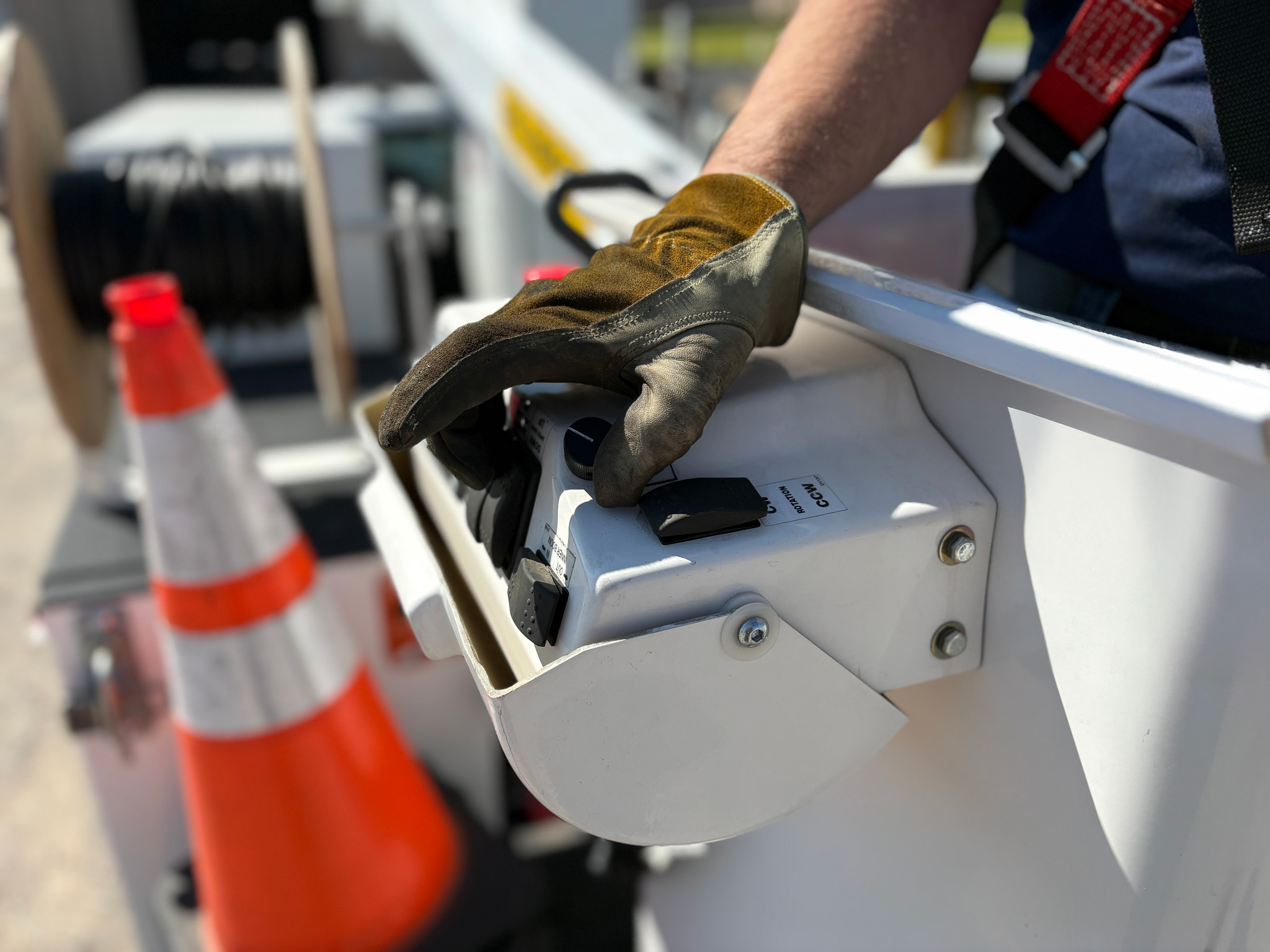

True One-Handed Operation

Engineered for efficiency, this bucket truck features intuitive one-handed controls—freeing your second hand for tools, materials, or added stability to help you work faster, safer, and smarter on the job.

alt text

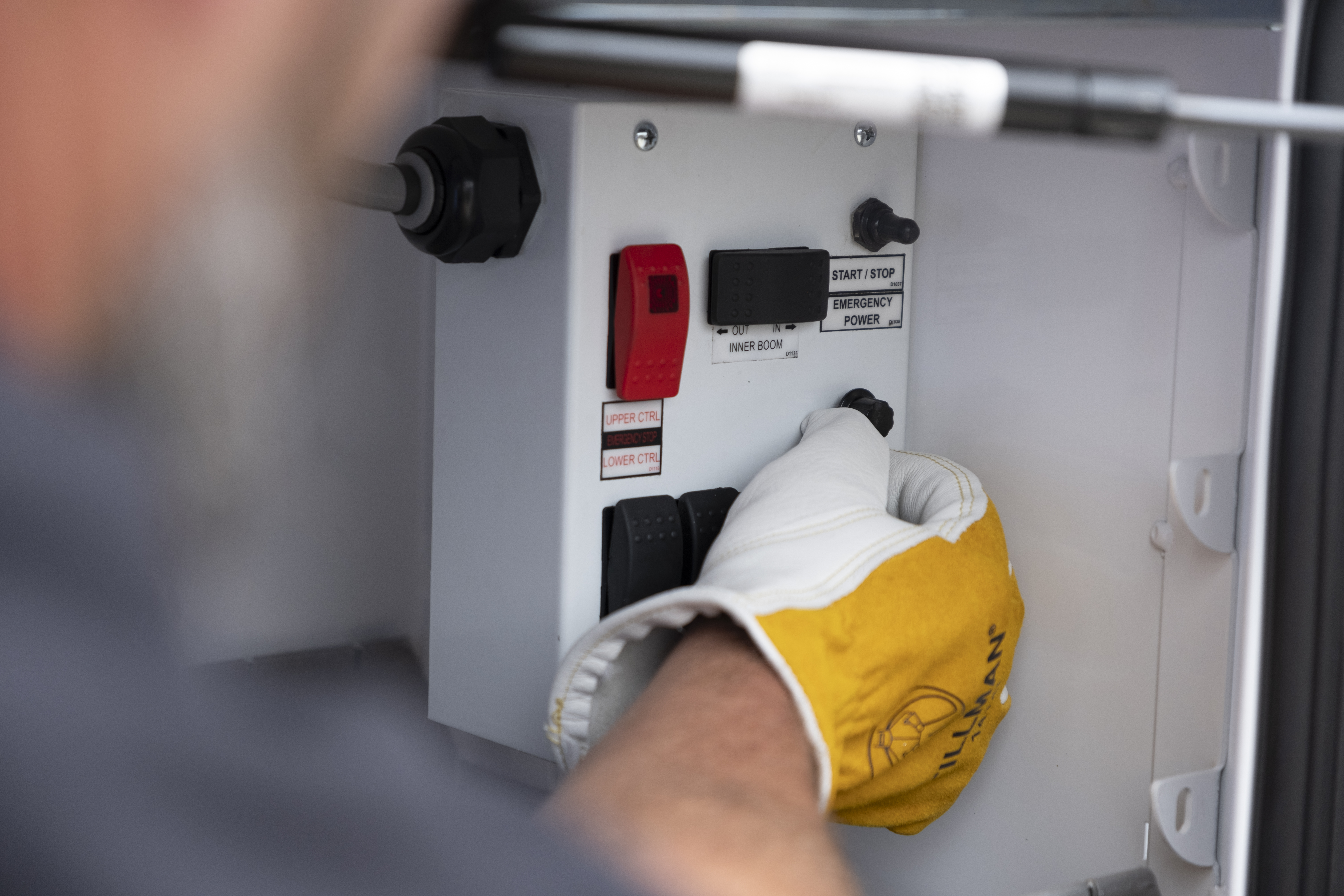

Precise. Smooth. Confident.

Take control with precision—variable speed controls let operators position themselves exactly where they need to be. Whether navigating tight spaces or adjusting for complex tasks, this feature ensures smooth, responsive movement for maximum efficiency and safety.

alt text

Equipment & Accessories

Hour Meter

Track equipment usage with a precision hour meter—designed for accurate monitoring and maintenance planning. Stay ahead of service schedules and extend equipment life with runtime data at your fingertips.

Ladder Rack

Transport ladders securely with a heavy-duty ladder rack—engineered for stability, easy access, and efficient storage. Built to handle tough jobs, it keeps equipment in place and ready to go when and where you need it.

Worklight at Basket

Illuminate your workspace with a basket-mounted worklight that delivers bright, reliable lighting for nighttime or low-light jobs, improving visibility and safety while boosting efficiency on every task.

Heater

Stay warm and productive in any season—our bucket vans with integrated heaters keep crews comfortable and efficient, even in freezing conditions. Discover unmatched performance and comfort today!

Technical Specifications

alt text
Technical data U.S. units

C.A.

GAWR (front)

GAWR (rear)

GVWR (dual rear wheels)

Operating pressure

Operating volume

Rated bucket capacity

Height to bottom of bucket

Side reach

Working height
Ford Transit T350 14 inch 4,130 lbs 5,515 lbs 9,500 lbs 2,250 psi 2.5 gpm 350 lbs 29' 20' 9" 34'
Sprinter Van 14 inch 4,410 lbs 7,720 lbs 11,030 lbs 2,250 psi 2.5 gpm 350 lbs 30' 20' 9" 35'
Technical data metric

C.A.

GAWR (front)

GAWR (rear)

GVWR (dual rear wheels)

Operating pressure

Operating volume

Rated bucket capacity

Height to bottom of bucket

Side reach

Working height
Ford Transit T350 35.6 cm 1,873 kg 2,502 kg 4,309 kg 155.13 bar 9.5 l/min 158 kg 8.84 m 6.32 m 10.36 m
Sprinter Van 35.6 cm 2,000 kg 3,502 kg 5,003 kg 155.13 bar 9.5 l/min 158 kg 9.14 m 6.32 m 10.67 m
Standard features

Standard Body Configuration

  • Mercedes Sprinter 4X2
  • Tech package
  • 12V emergency power
  • High idle throttle control
  • 12' wheelbase
  • 3' 5" tailshelf length
  • Fiberglass work platform
  • Strobe light at knuckle
  • Shelving and drawer options
  • 2 overhead lights (option for 3)
  • Raceway outlet (option for 2)



Standard Aerial Configuration

  • 350 lb basket capacity

Discover Standard Features

Proportional Upper Controls

Experience precision and safety with proportional upper controls featuring start-stop functionality, variable speed adjustment, and an emergency descent valve—engineered for smooth, responsive operation in demanding environments.

Platform Leveling

Hydraulic platform leveling gives you precise control—automatically or manually—for smooth dump operations or fast, safe operator rescue. Designed for reliability and safety, this feature keeps your platform stable when it matters most.

Serviceability

Boost uptime and reduce maintenance with adjustable boom wear pads and replaceable pin bushings. Designed for durability and easy servicing, these components help extend equipment life and ensure smooth, reliable operation in demanding environments.

Durable, Corrosion-Resistant Coating

Get lasting protection with powder-coated aerial components designed to resist corrosion and wear. This durable finish enhances the life of your equipment, keeping it looking sharp and performing reliably in harsh environments. Built to withstand the elements, it’s a smart upgrade for long-term value.

DC-Powered Hydraulic System

Powerful and efficient, the DC-powered hydraulic system delivers reliable performance with minimal maintenance. Designed for smooth, quiet operation and energy efficiency, it’s the ideal solution for mobile applications where dependability and simplicity are key.

Optional Features

Fiber Splicing Configuration

Stay powered and productive with a fiber splicing setup featuring a tailshelf-mounted generator, roof-mounted A/C, cargo area climate control, and a dedicated splicing table. Whether heating or cooling, this configuration ensures optimal working conditions and reliable energy—perfect for precision tasks in any environment.

Backup Camera & Sensors

Enhanced safety with integrated backup cameras and sensors. Designed for real-time visibility and obstacle detection, this system streamlines maneuvering in tight spaces. Ideal for high-traffic job sites, it reduces blind spots and boosts operator confidence behind the wheel.

Compartment Shelf Layout Options

Customize your bucket van with versatile compartment shelf layout options. Organize tools and equipment for maximum efficiency and easy access on the job. Built for durability and flexibility, these layouts help streamline workflow and keep everything securely in place, even in demanding conditions.
