Insulated
ETC MH 40 IH
Material Handler
Bucket Trucks
Key Specs
Imperial
Metric
- Type
- Working height
- 13.72 m 45'
- Side reach
- 8.36 m 30'

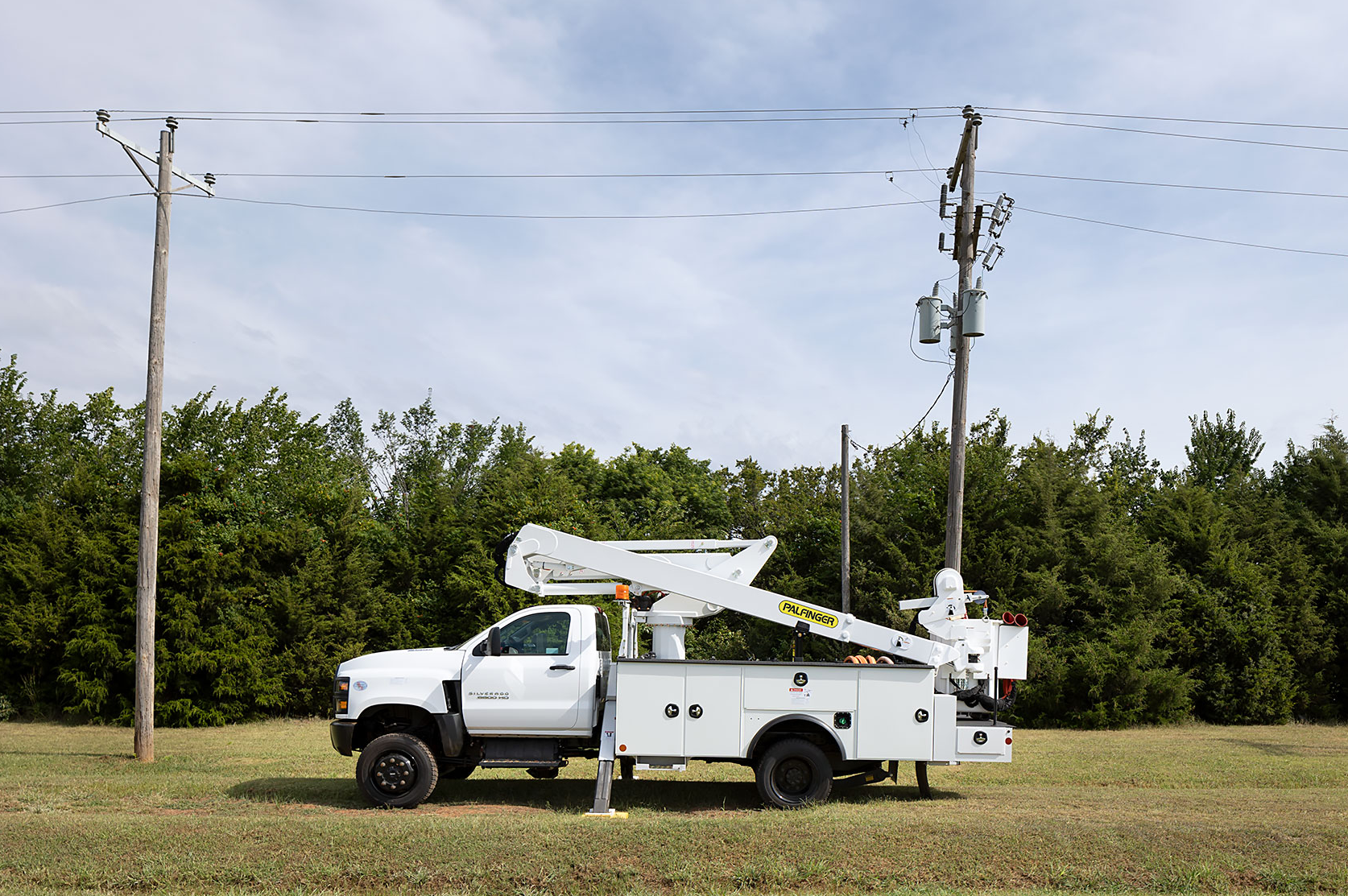

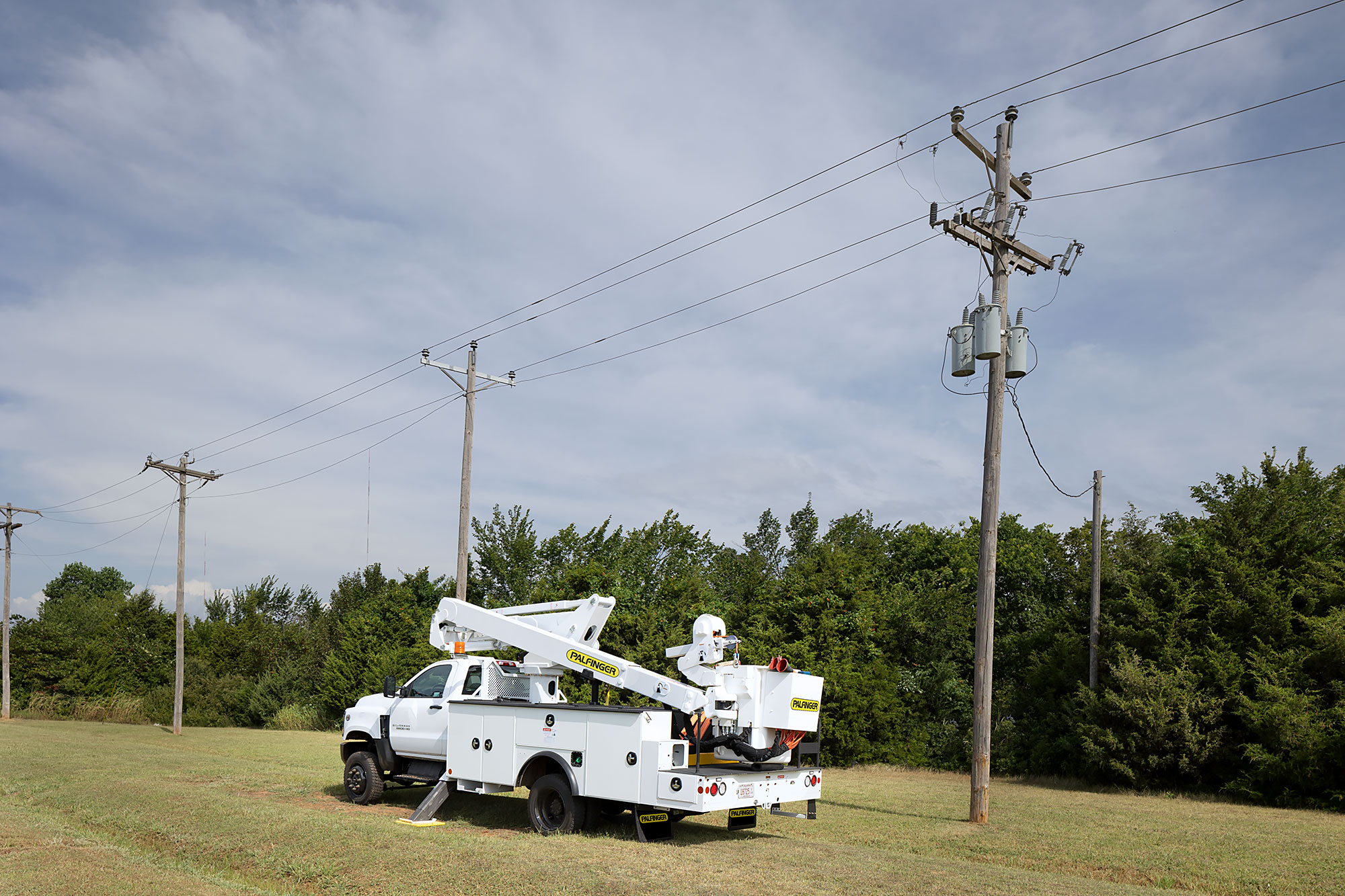

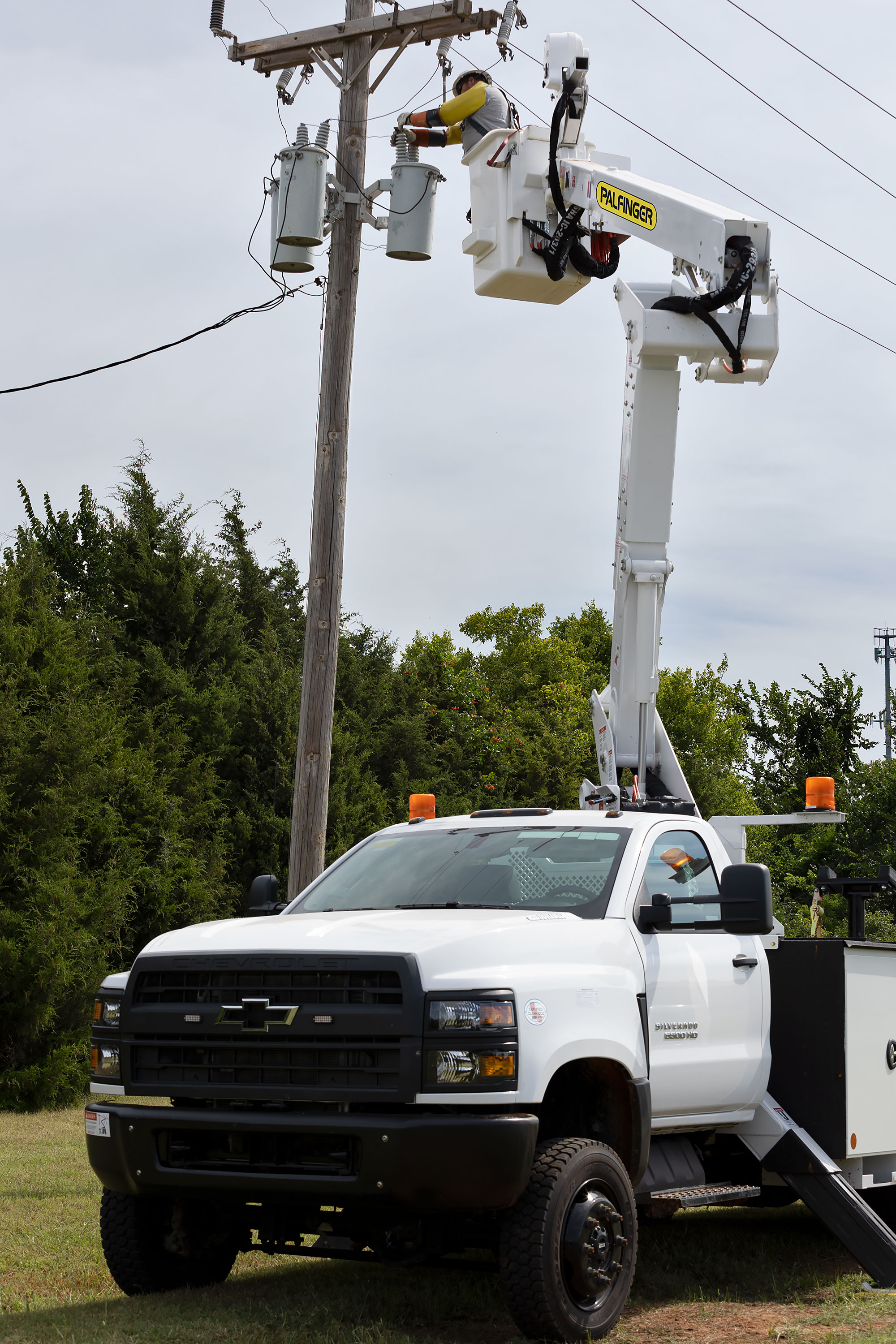

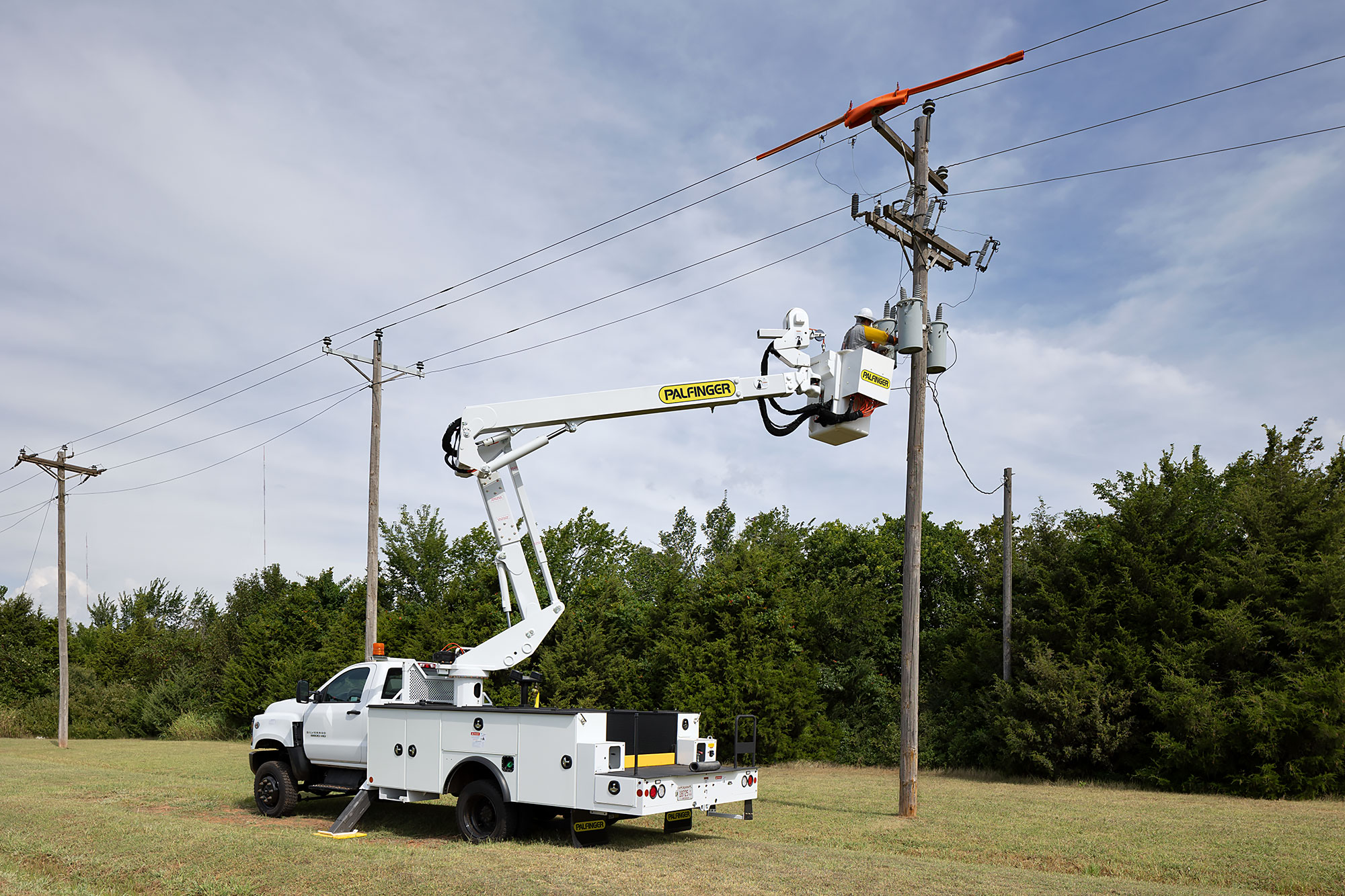

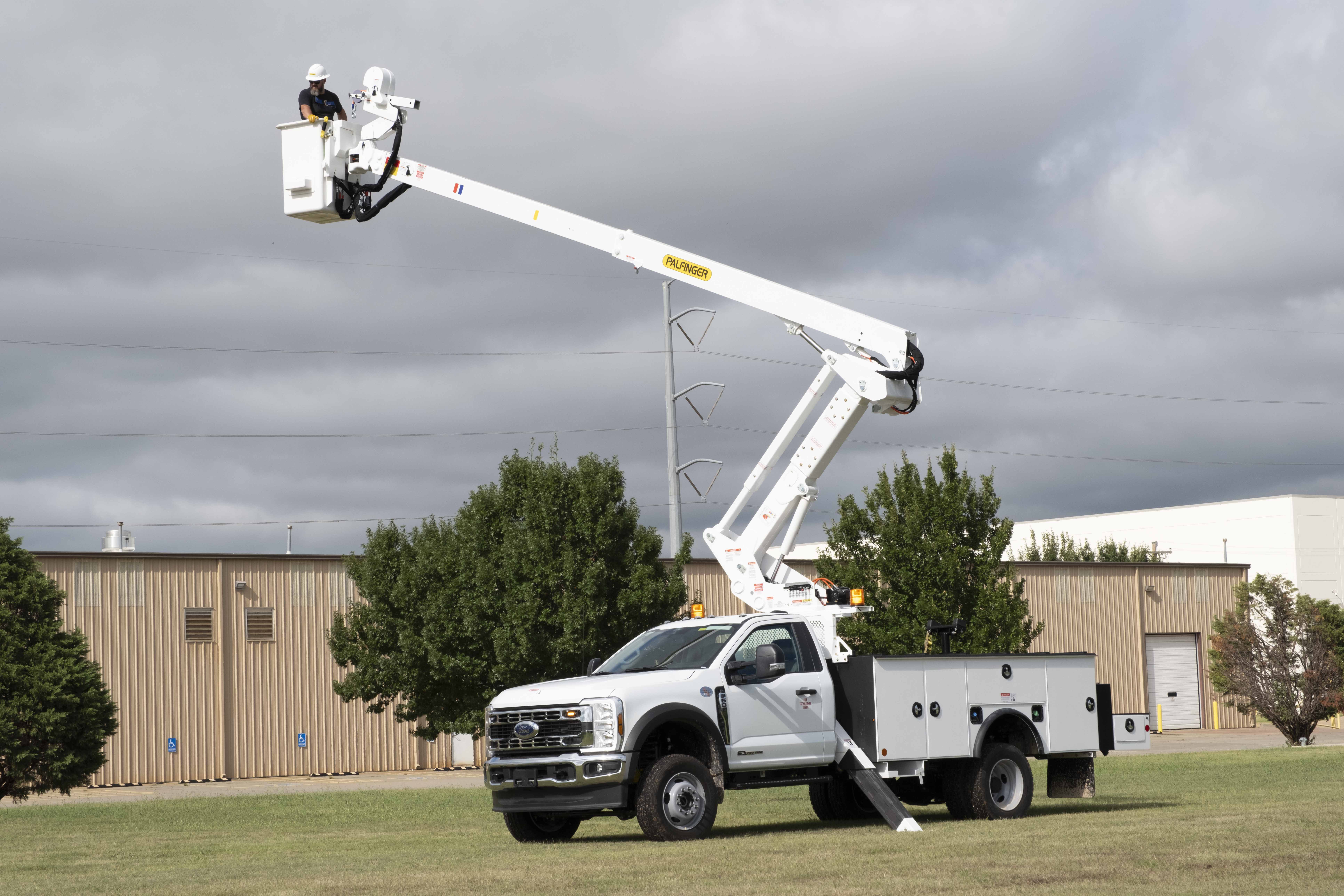

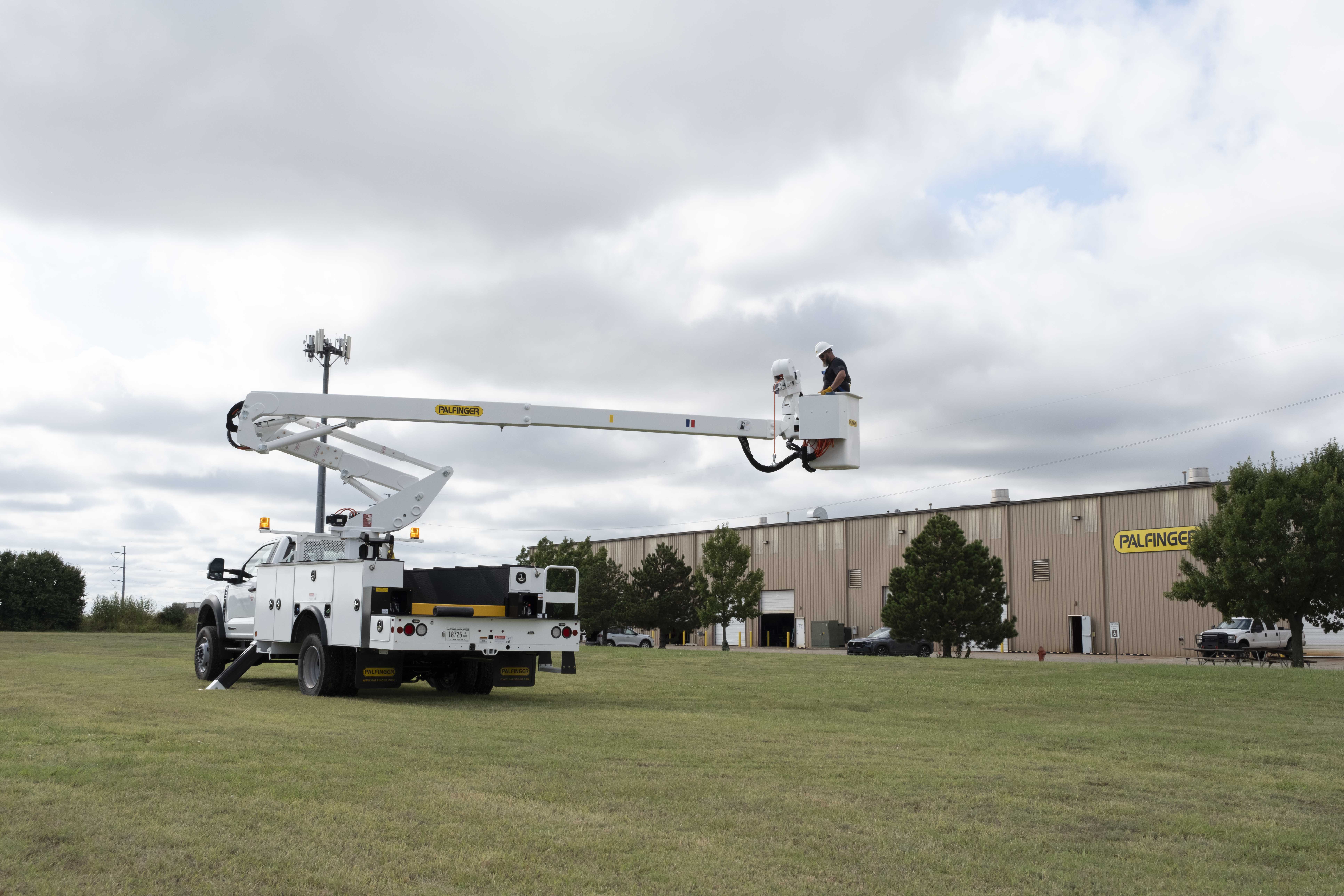

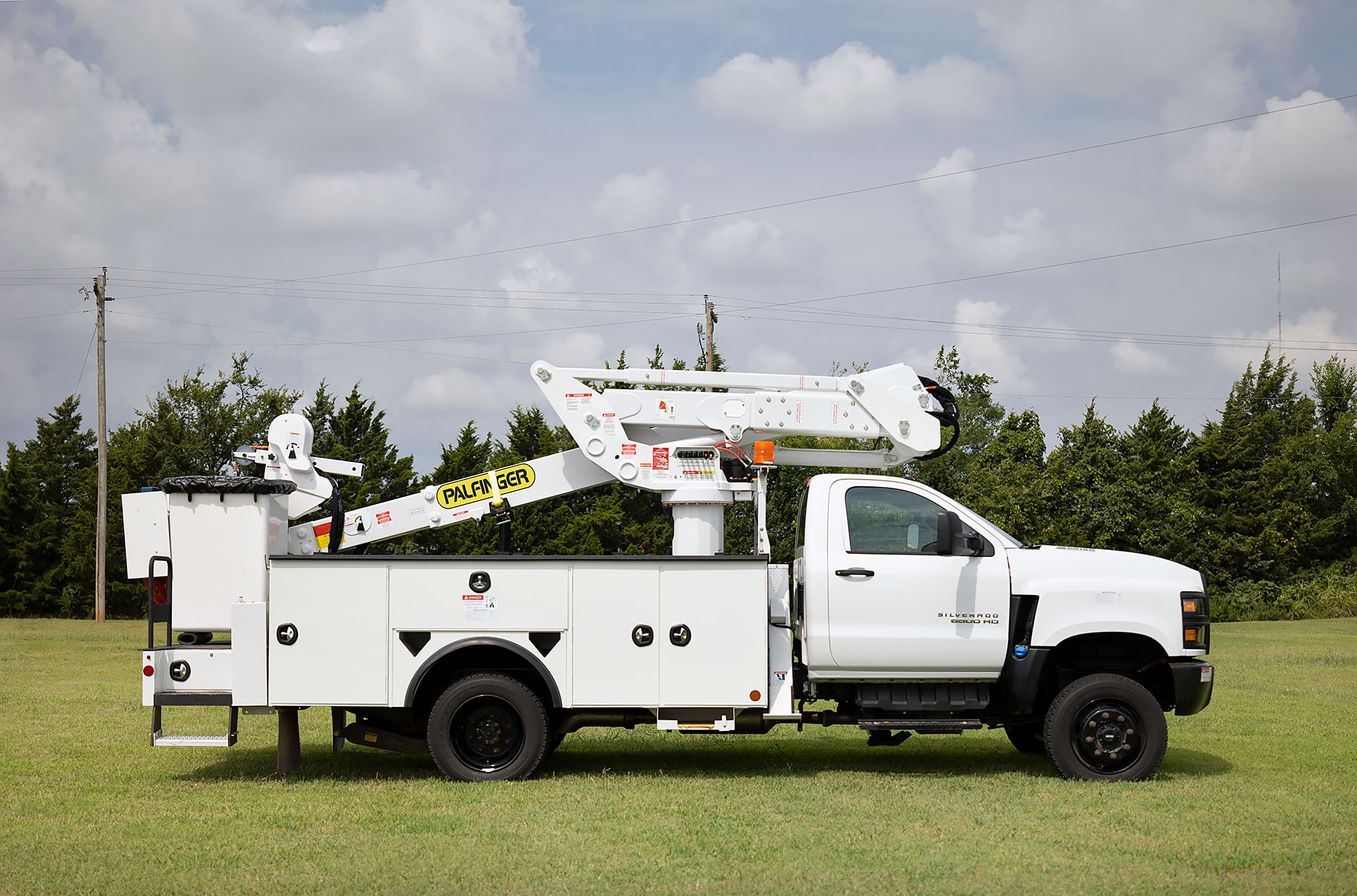

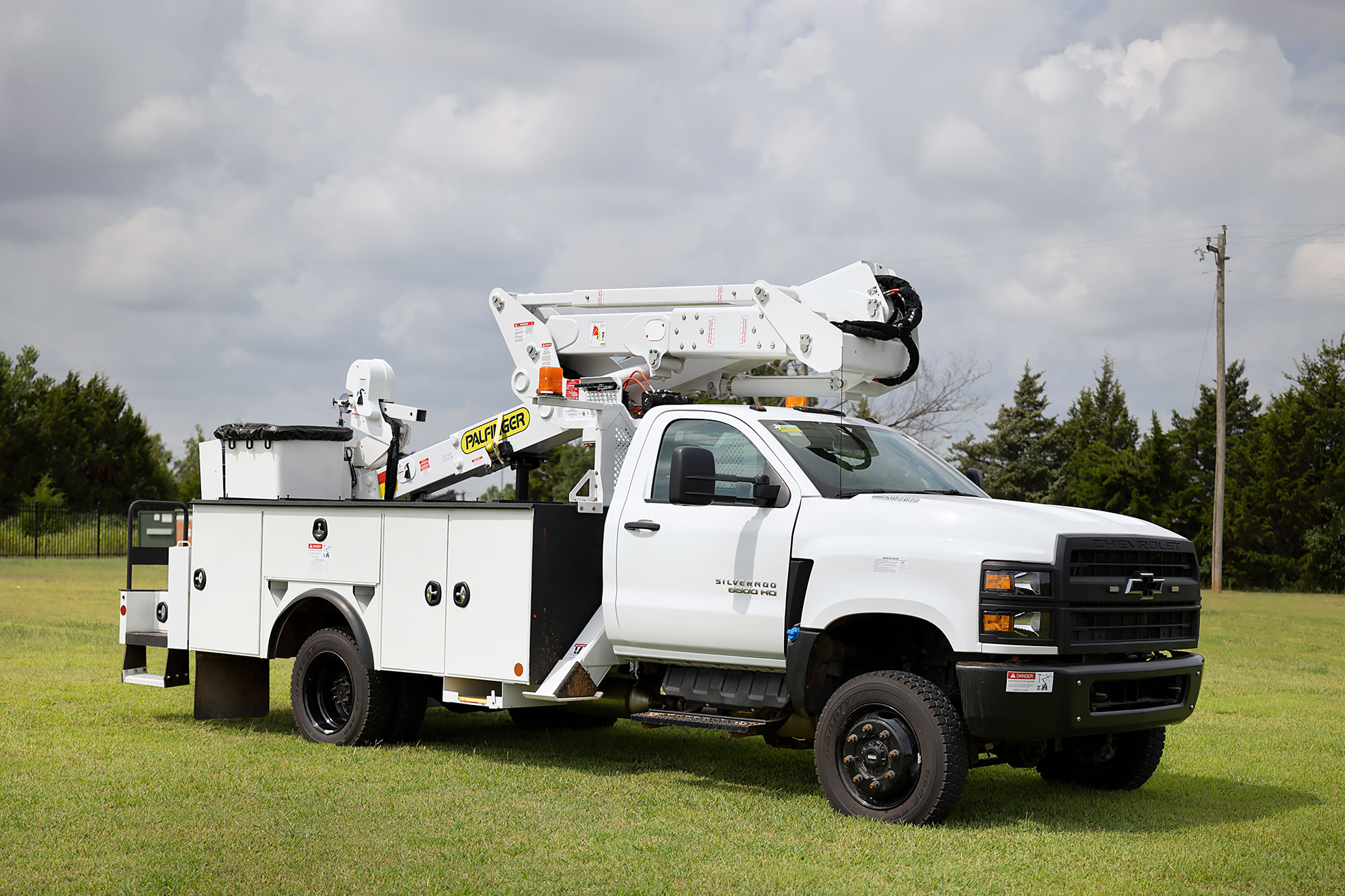

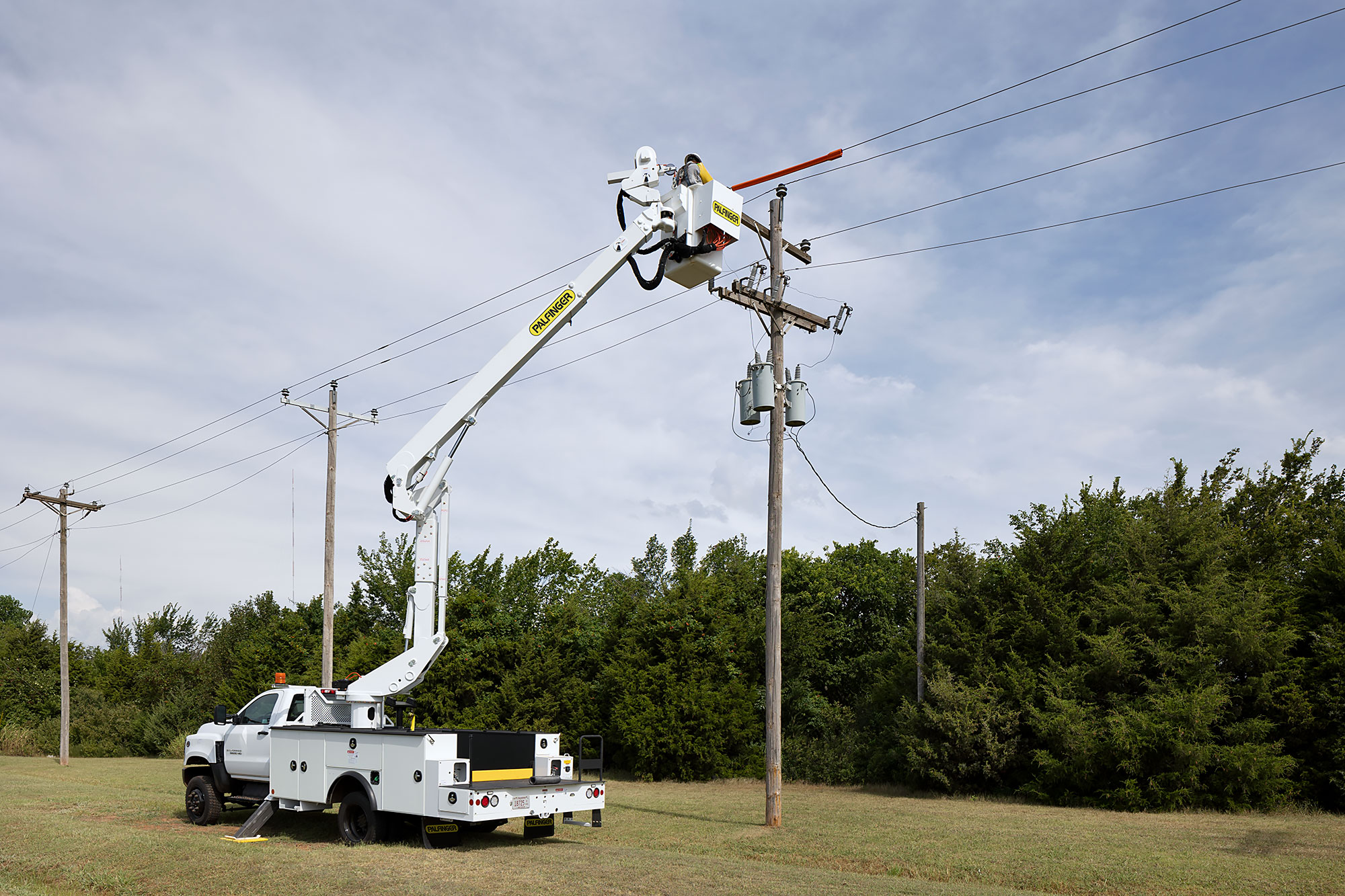

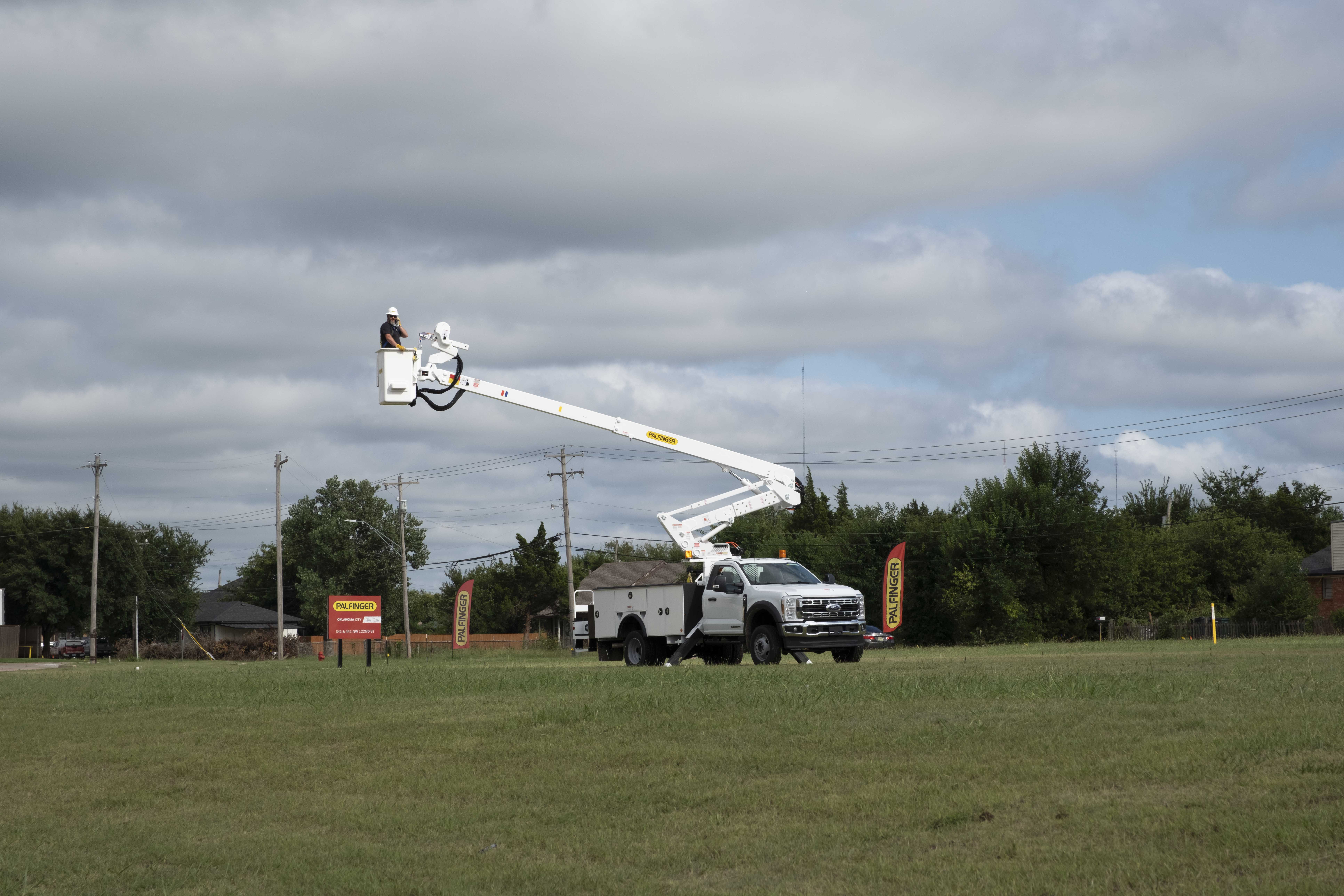

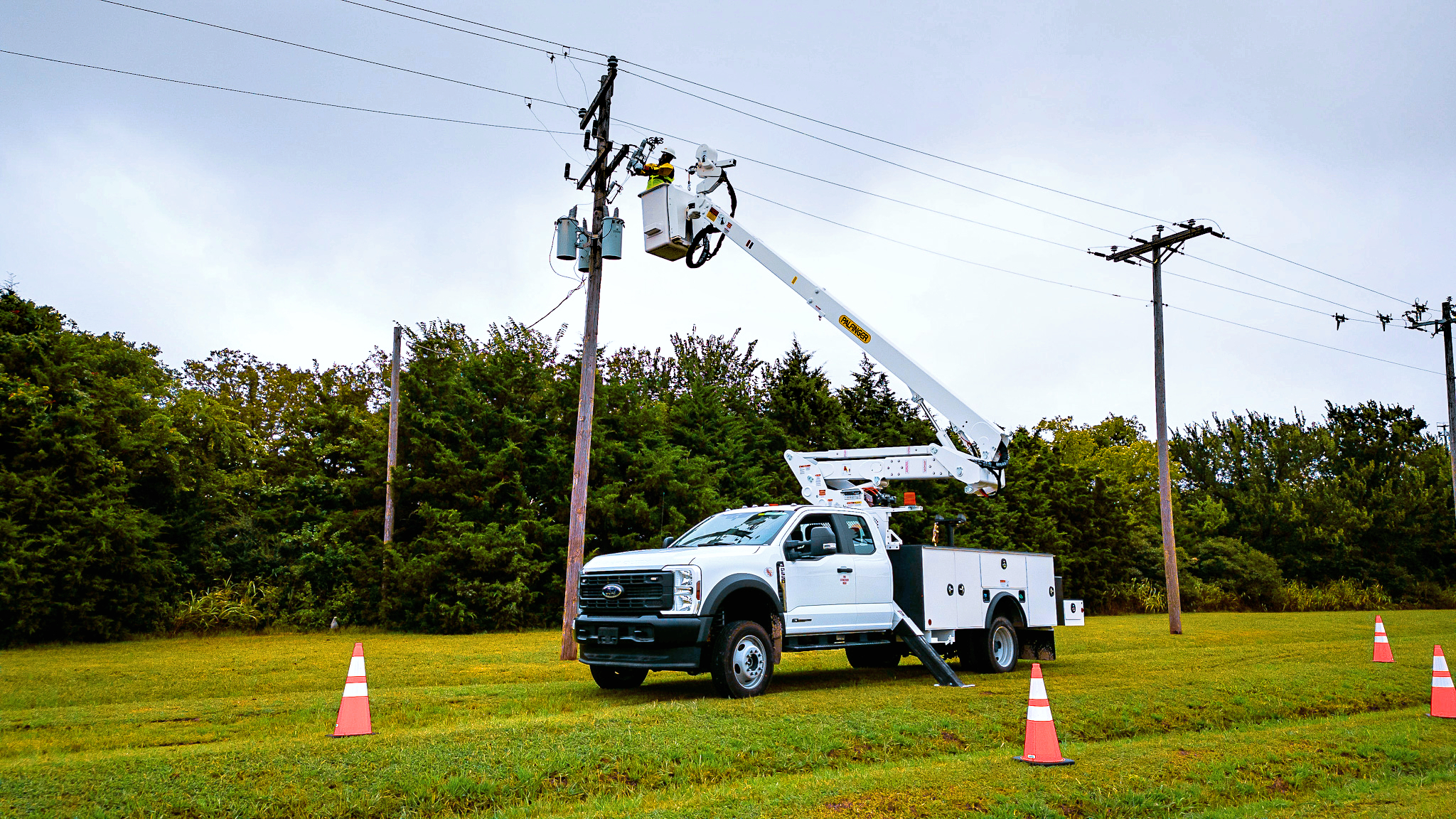

The ETC MH 40 IH is a powerhouse insulated aerial unit with 40' reach and full 360° rotation. Built for tough jobs, it features a hydraulic winch and 3' jib that lifts up to 1,000 lbs—perfect for high-demand material handling and utility work with unmatched flexibility.
Technical Specifications
Technical data U.S. units
|
C.A. |
GAWR (front) |
GAWR (rear) |
GVWR (dual rear wheels) |
Operating pressure |
Operating volume |
Rated bucket capacity |
Height to bottom of bucket |
Side reach |
Working height |
|
|---|---|---|---|---|---|---|---|---|---|---|
| ETC MH 40 IH | 84 inch | 7,000 lbs | 13,500 lbs | 19,500 lbs | 2,400 psi | 6.5 gpm | 400 lbs | 40' - 0" | 30' | 45' - 0" |
Technical data metric
|
C.A. |
GAWR (front) |
GAWR (rear) |
GVWR (dual rear wheels) |
Operating pressure |
Operating volume |
Rated bucket capacity |
Height to bottom of bucket |
Side reach |
Working height |
|
|---|---|---|---|---|---|---|---|---|---|---|
| ETC MH 40 IH | 213.36 cm | 3,175 kg | 6,124 kg | 8,845 kg | 165.47 bar | 30 l/min | 181.4 kg | 12.19 m | 8.36 m | 13.72 m |
Standard features
Standard Body Configuration
- Regular Cab 4X2 Gas (Diesel and 4X4 options)
- PTO
- 12V emergency power
- High idle throttle control (2-speed throttle control option)

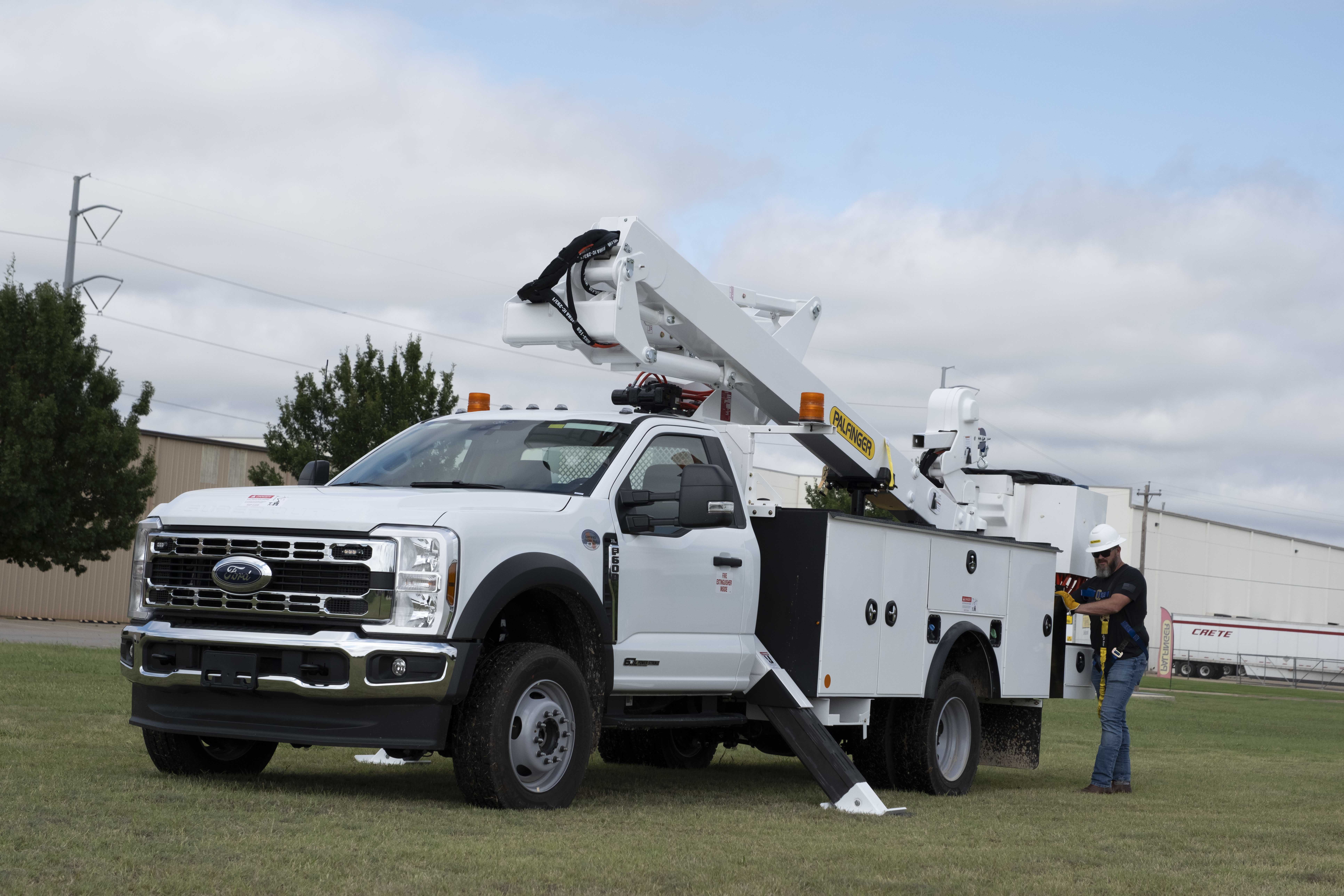

- Front A-frame outriggers
- Outrigger pads—18x18x1 (24x24x2 option)
- Standard boom rest
- 3' tailshelf length
- 11' body length
- Standard headache rack
- Fiberglass work platform
Standard Aerial Configuration
- 400 lb basket capacity (500 lb option)
- Bucket liner
- 300/1000 max material handler capacity (lower capacity option)
- 180° basket rotator (90° option)

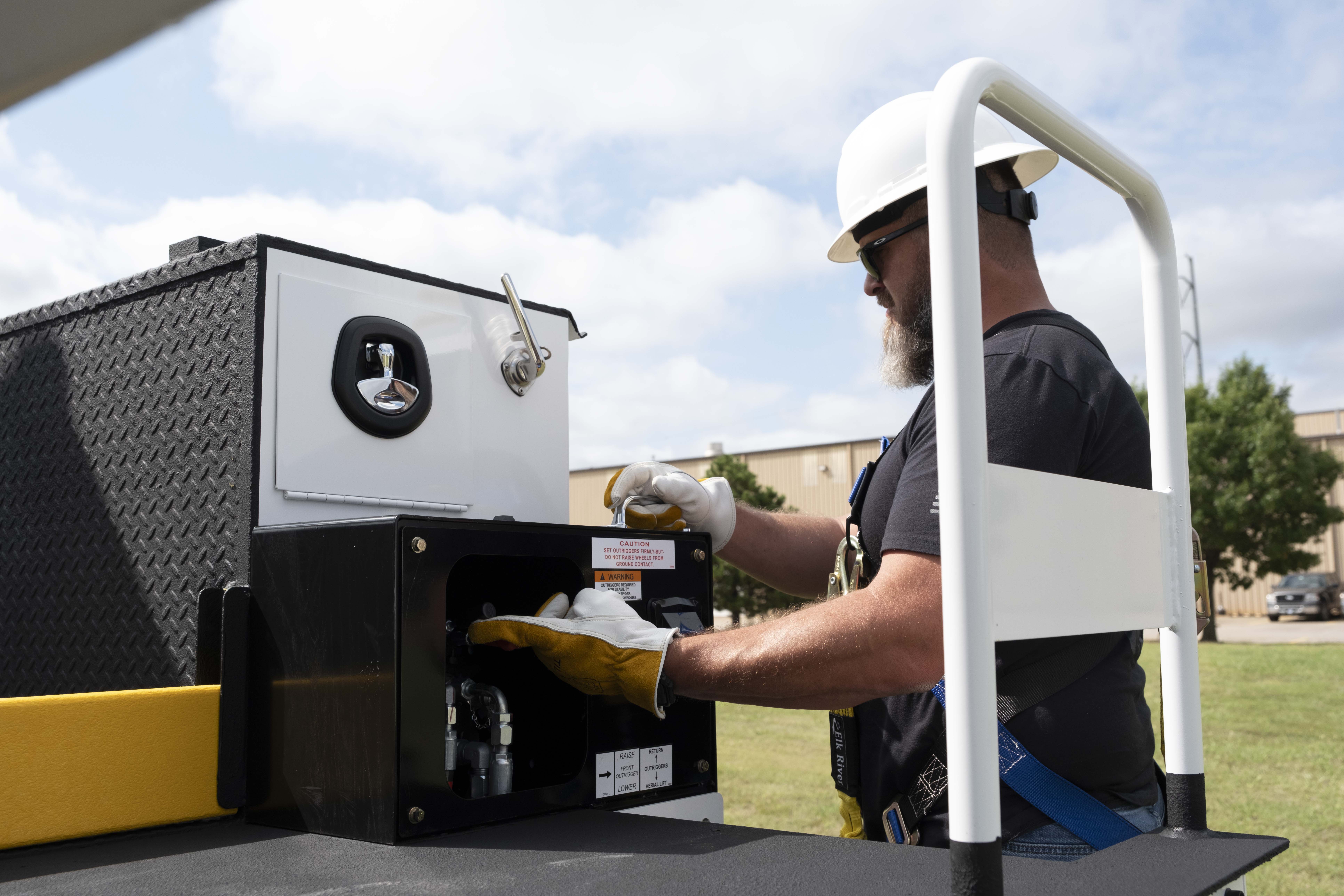

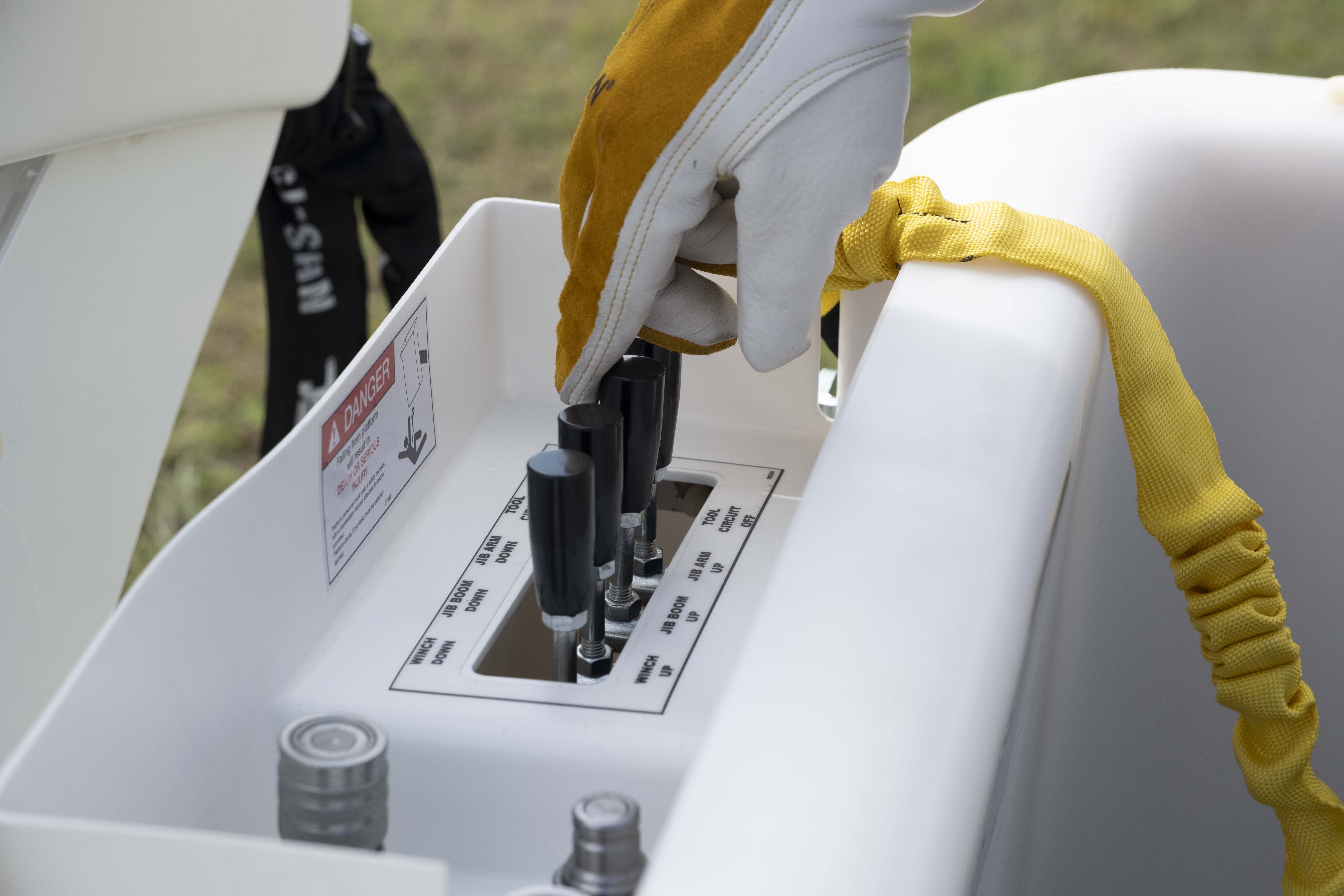

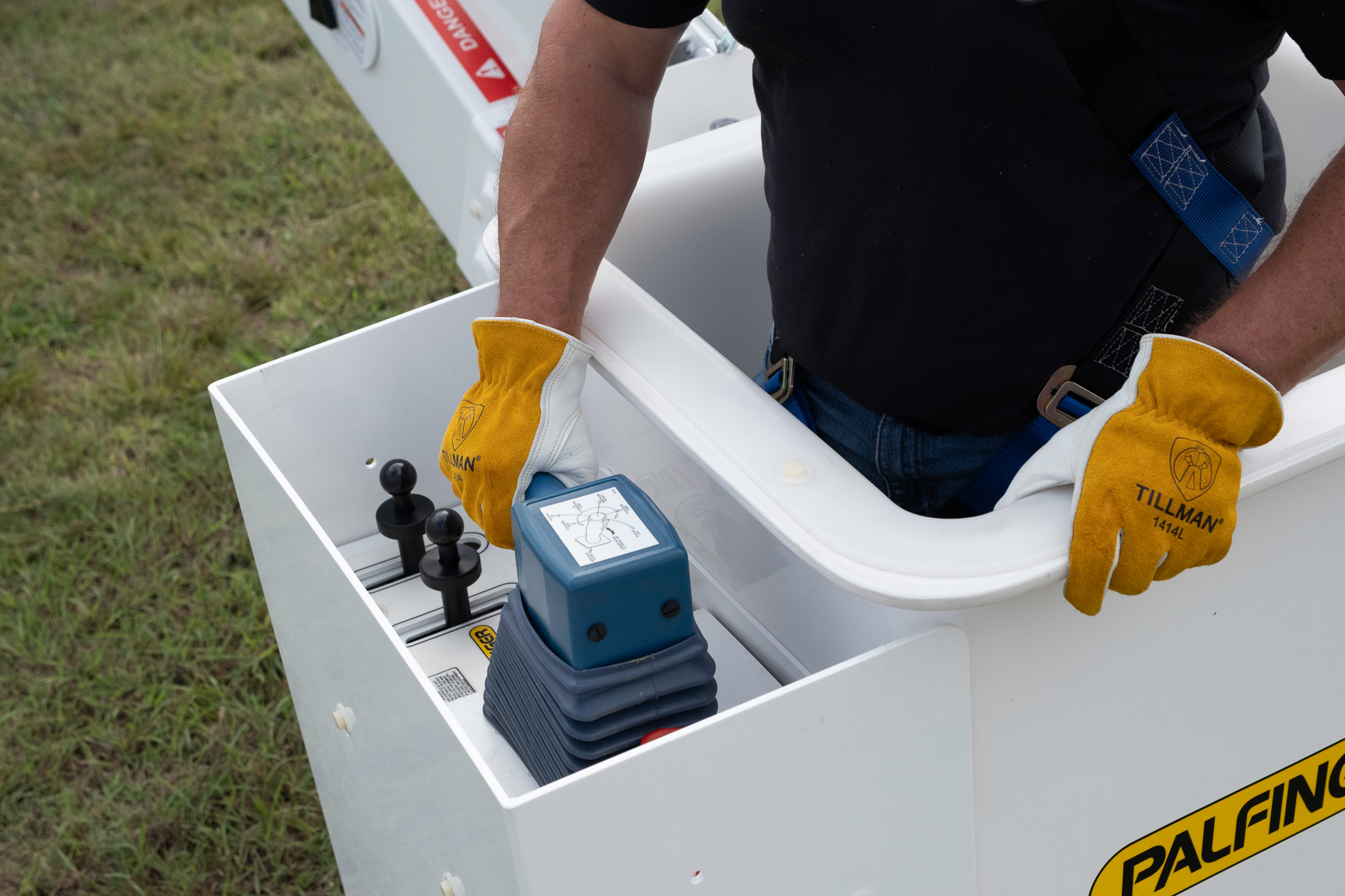

Single-Hand Proportional Upper Controls
Operate with precision and safety using insulated, single-hand proportional upper controls featuring start-stop, variable speed, and an emergency descent valve. Designed for smooth, responsive handling, this system ensures confident control in critical situations.
Platform Leveling
Hydraulic platform leveling gives you precise control—automatically or manually—for smooth dump operations or fast, safe operator rescue. Designed for reliability and safety, this feature keeps your platform stable when it matters most.

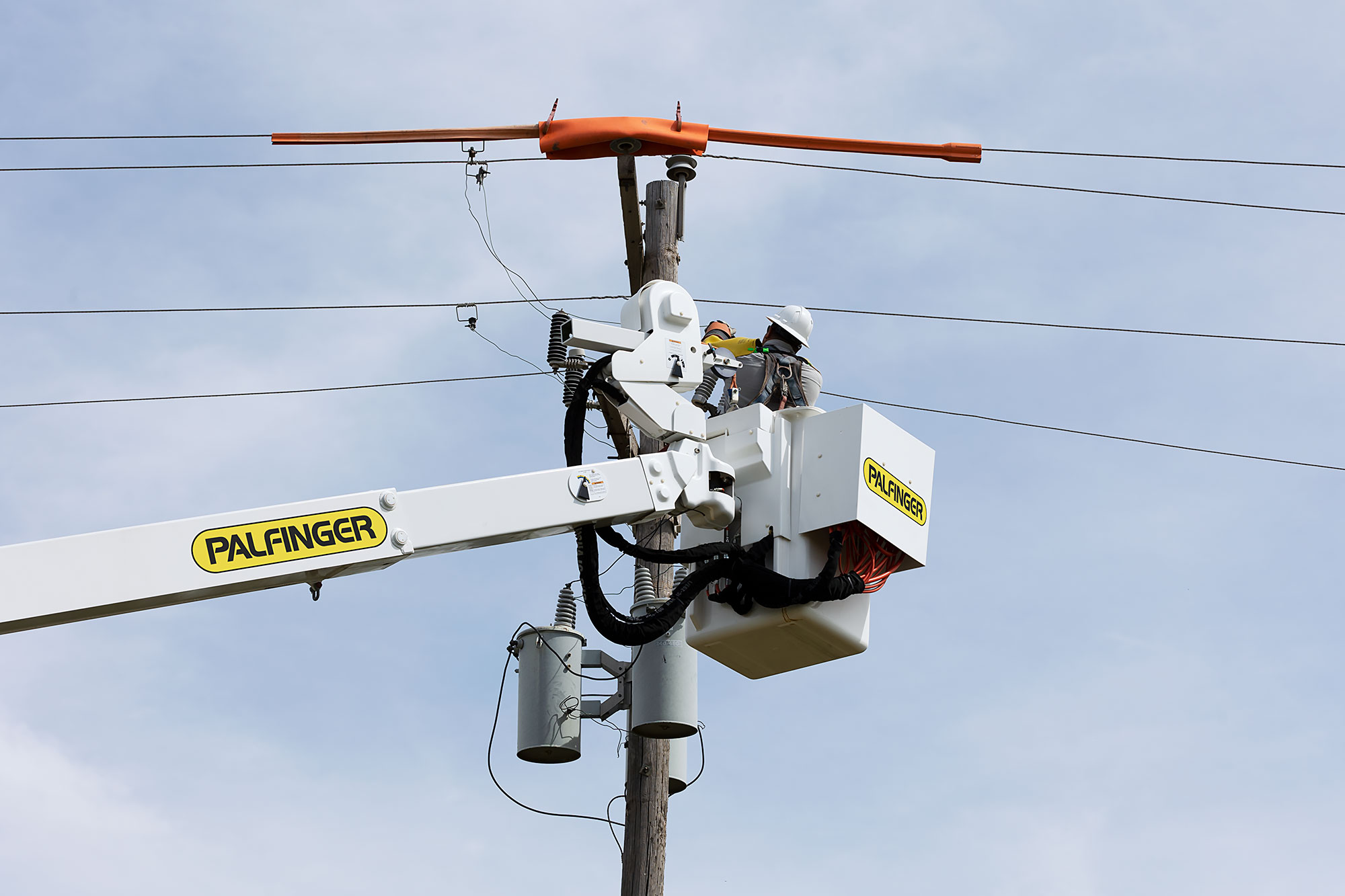

Hydraulic Bucket Rotator (180°)
Take control with a hydraulic bucket rotator offering a smooth 180° range. Designed for precision and versatility, it allows easy positioning in tight spaces—boosting productivity and safety on every job site.
Outrigger Interlock & Motion Alarm
Stay safe and informed with integrated outrigger interlock and motion alarm systems. These features help prevent unsafe operation and alert crews to truck movement—ensuring stability, awareness, and confidence on every job site.

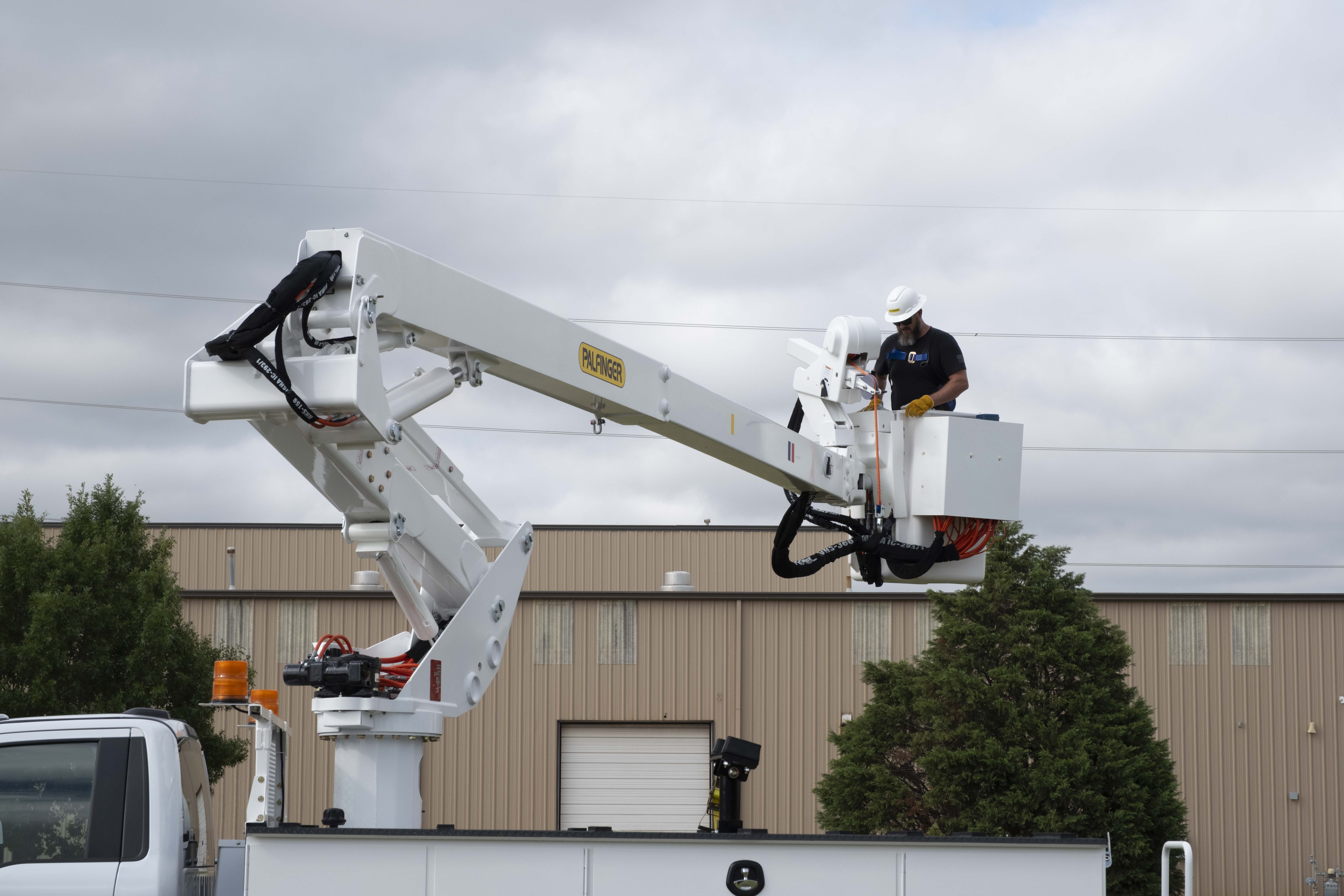

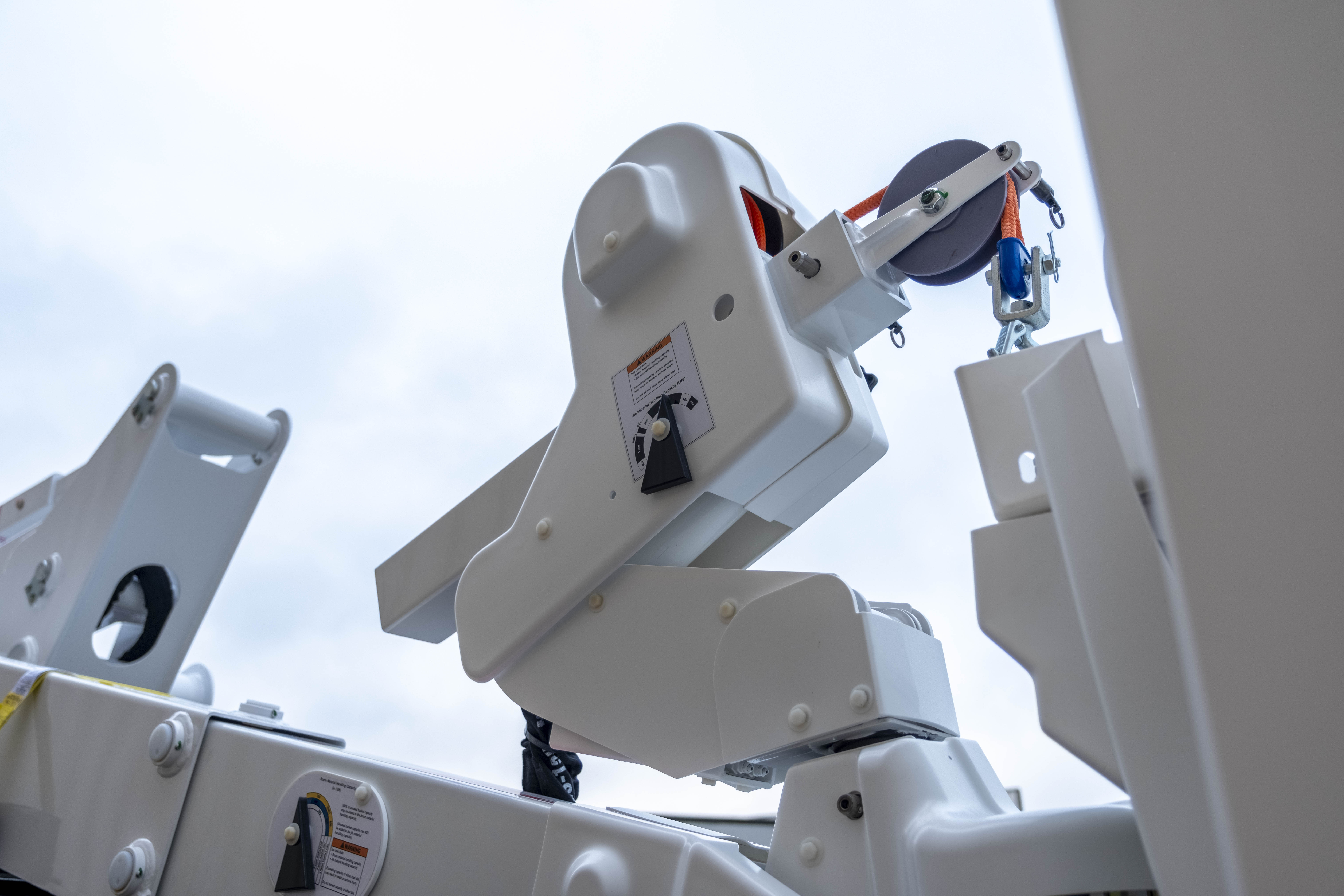

3 ft Top-Mount Rotating Jib
Lift with strength and precision using the top-mounted, rotating 3 ft (0.9 m) jib with hydraulic lift and hoist. Built to handle up to 1,000 lbs (454 kg) and 300 lbs (136 kg) at full side reach, it’s the perfect solution for demanding material handling in tight or elevated spaces.
Hydraulic Tool Circuit at Platform
Power up tools right where you need them with a hydraulic tool circuit at the platform. Designed for efficiency and convenience, this feature lets operators run hydraulic tools directly from the lift—saving time and boosting productivity on the job site.

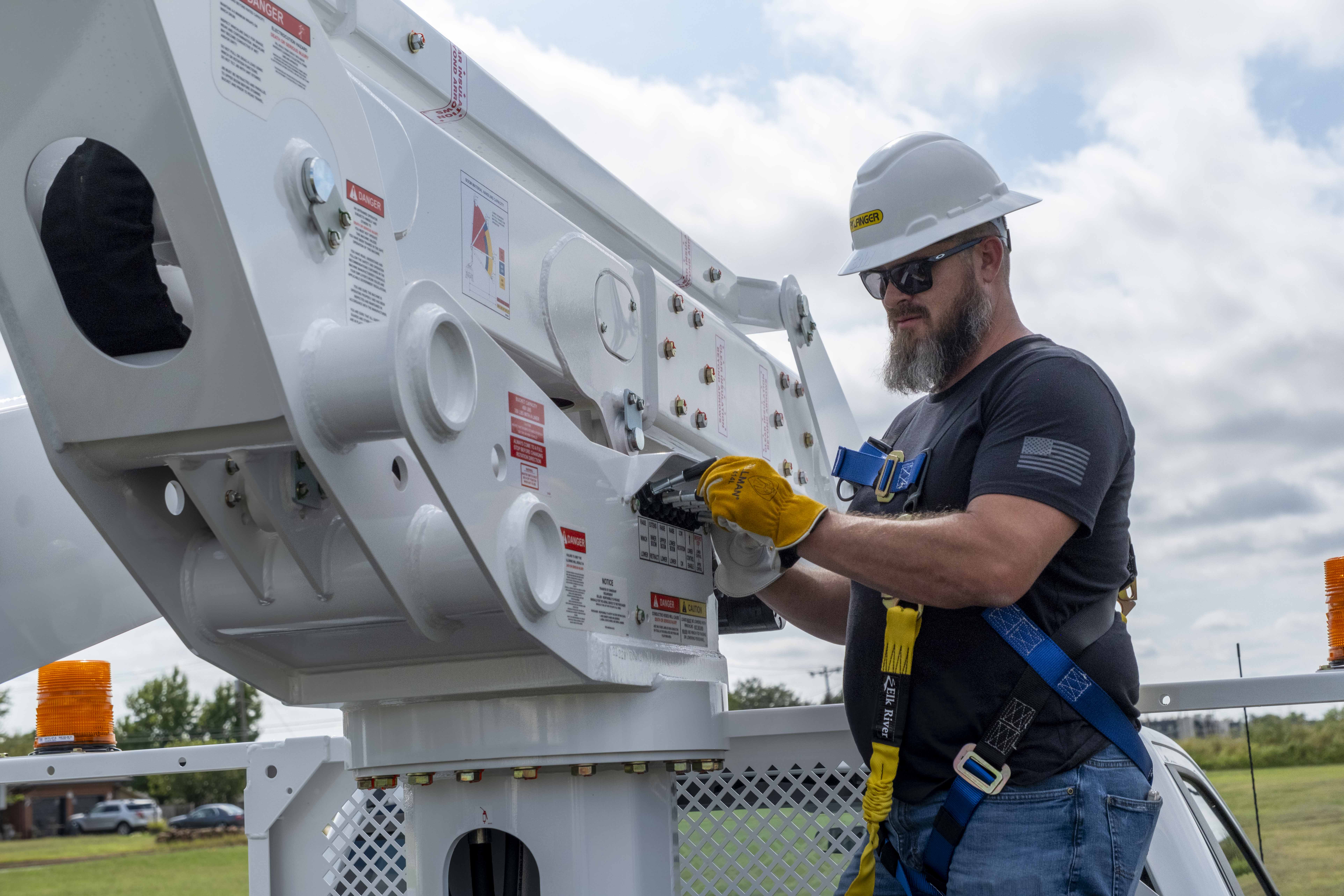

Serviceability
Boost uptime and reduce maintenance with adjustable boom wear pads and replaceable pin bushings. Designed for durability and easy servicing, these components help extend equipment life and ensure smooth, reliable operation in demanding environments.
Durable, Corrosion-Resistant Coating
Get lasting protection with powder-coated aerial components designed to resist corrosion and wear. This durable finish enhances the life of your equipment, keeping it looking sharp and performing reliably in harsh environments. Built to withstand the elements, it’s a smart upgrade for long-term value.
