ETC MH 40 IH - Insulated Material Handler

• 11′ Body with Standard Shelving and Torsion Bar Stabilizing Build.
• Please Note: Photos shown may include optional equipment and represent example build configurations. Final specifications and features may vary by unit.

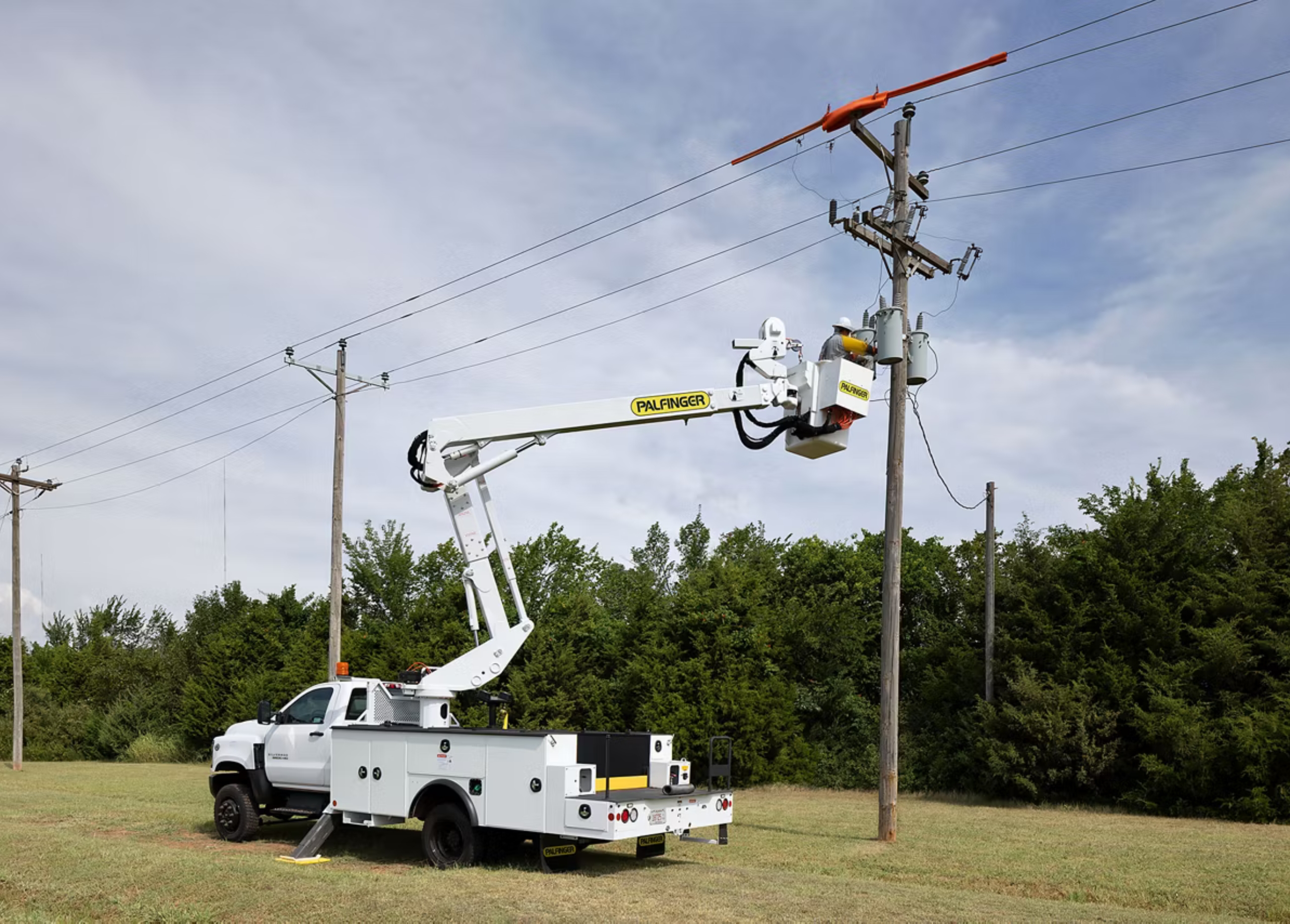

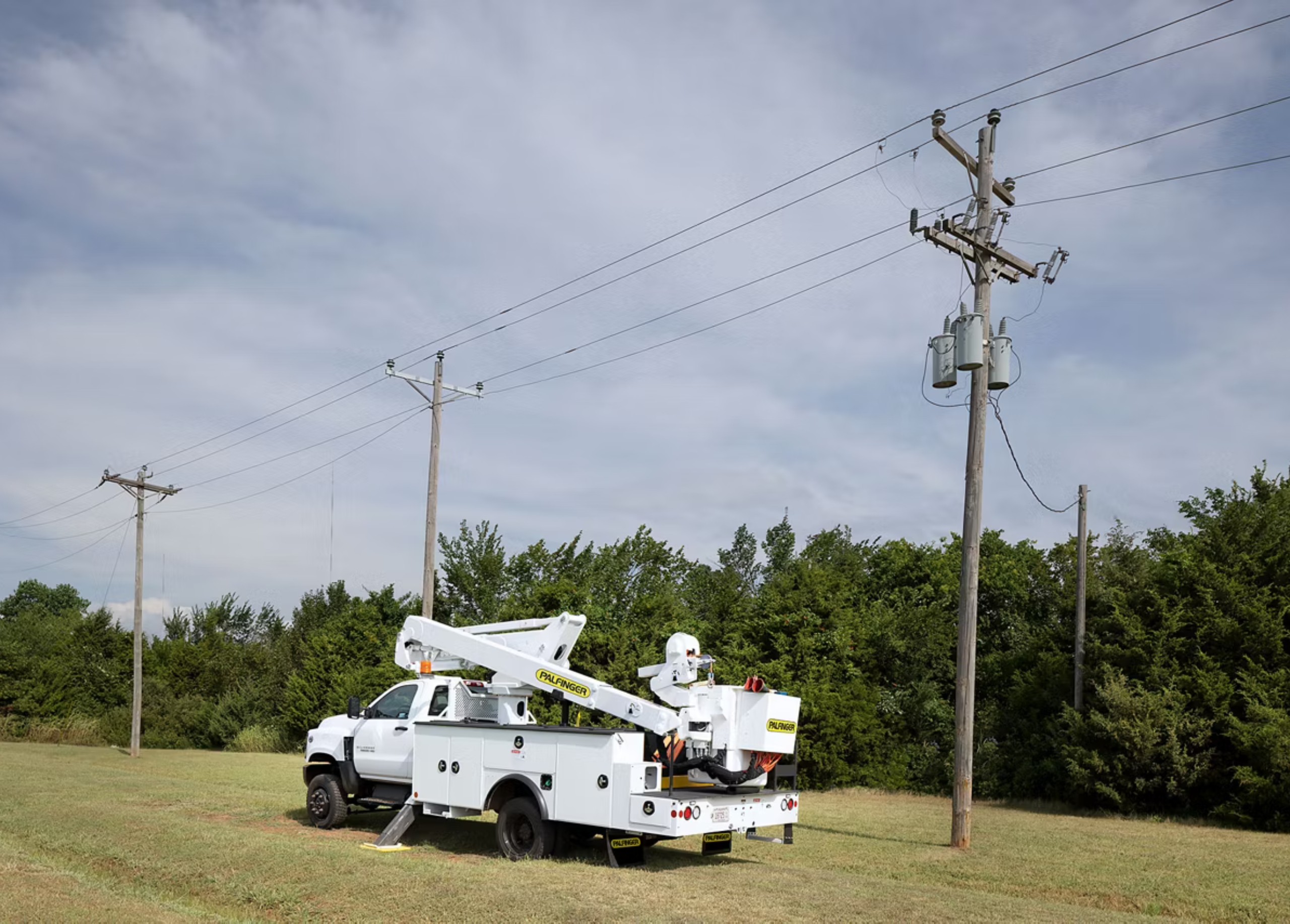

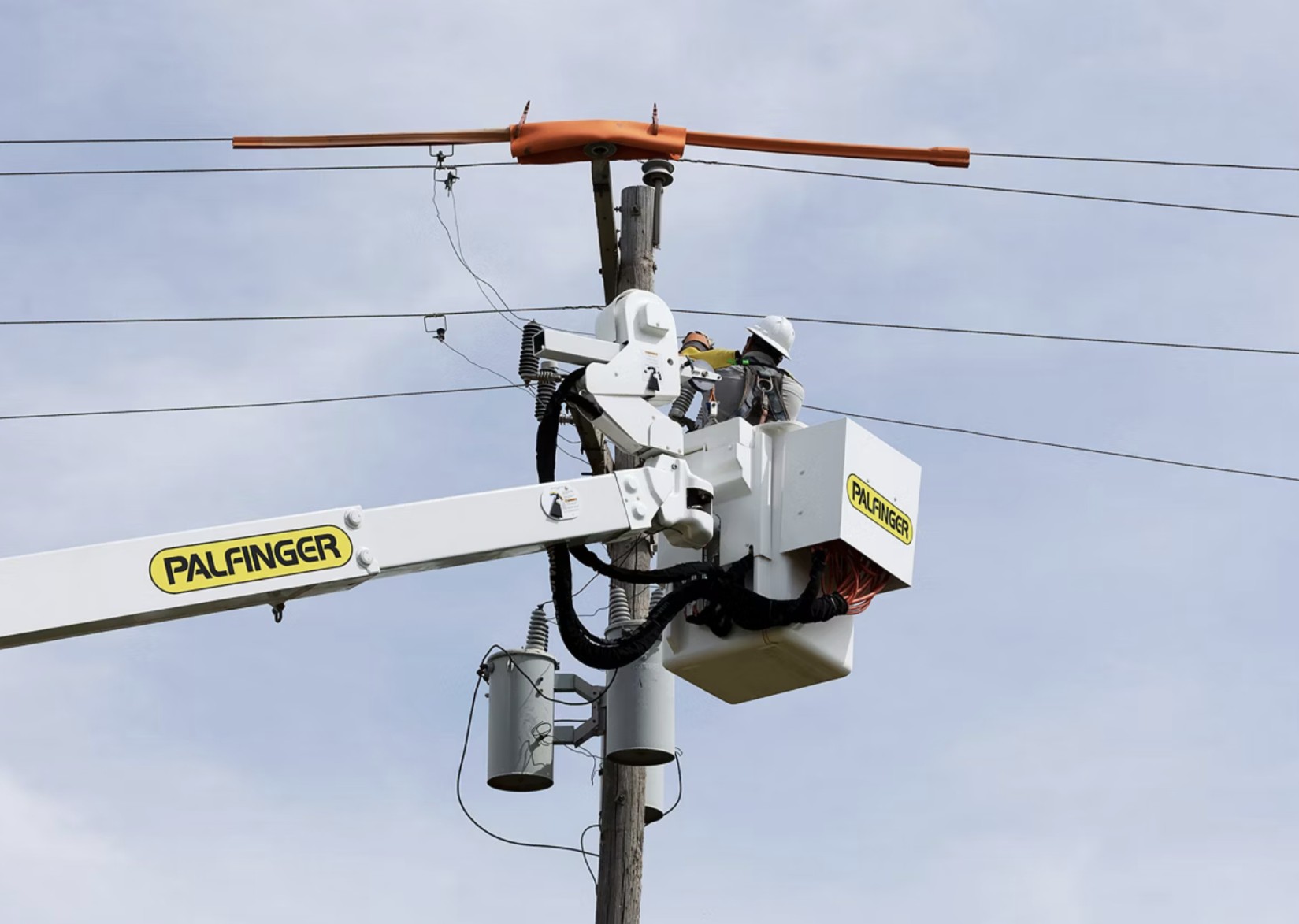

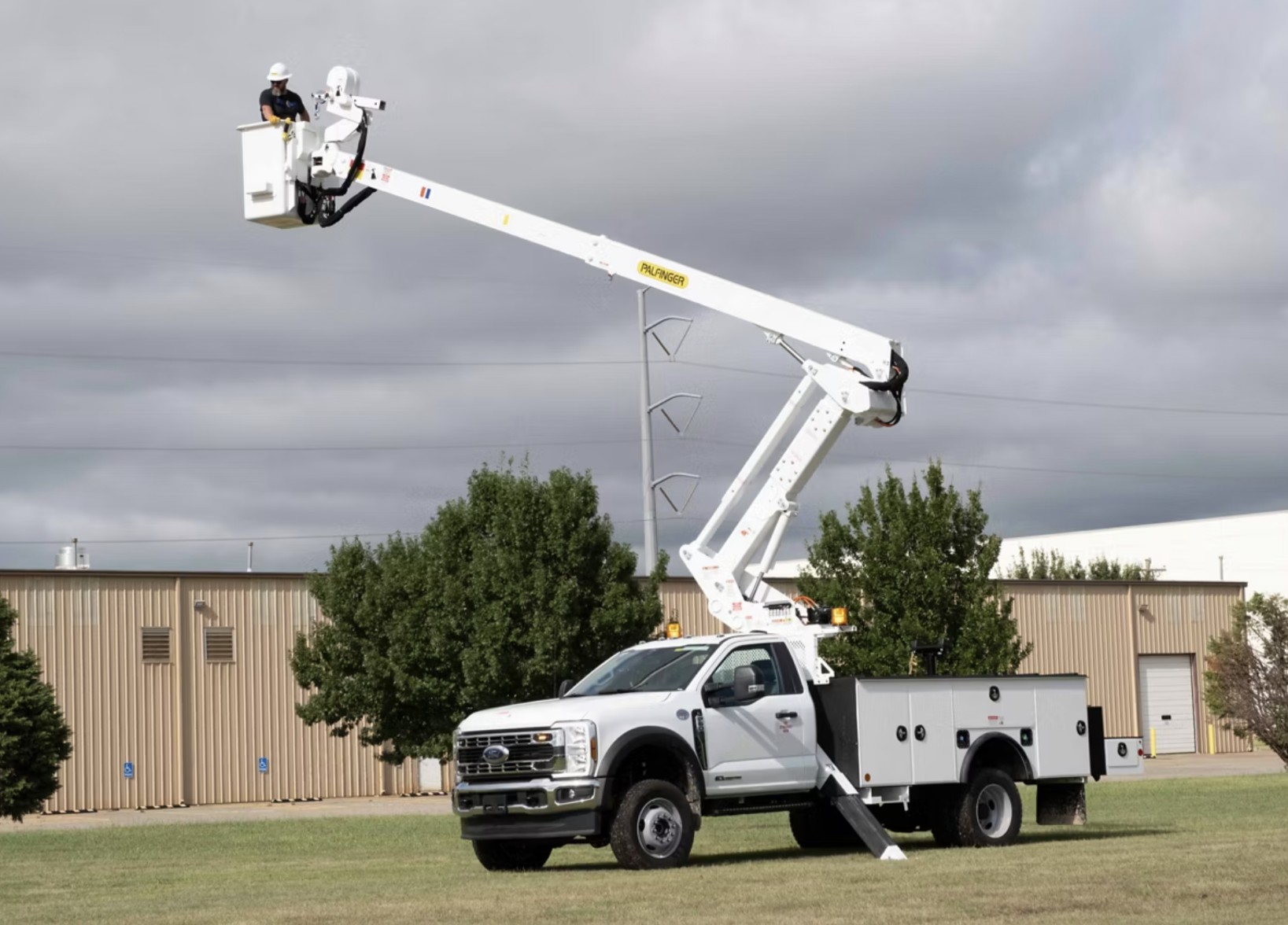

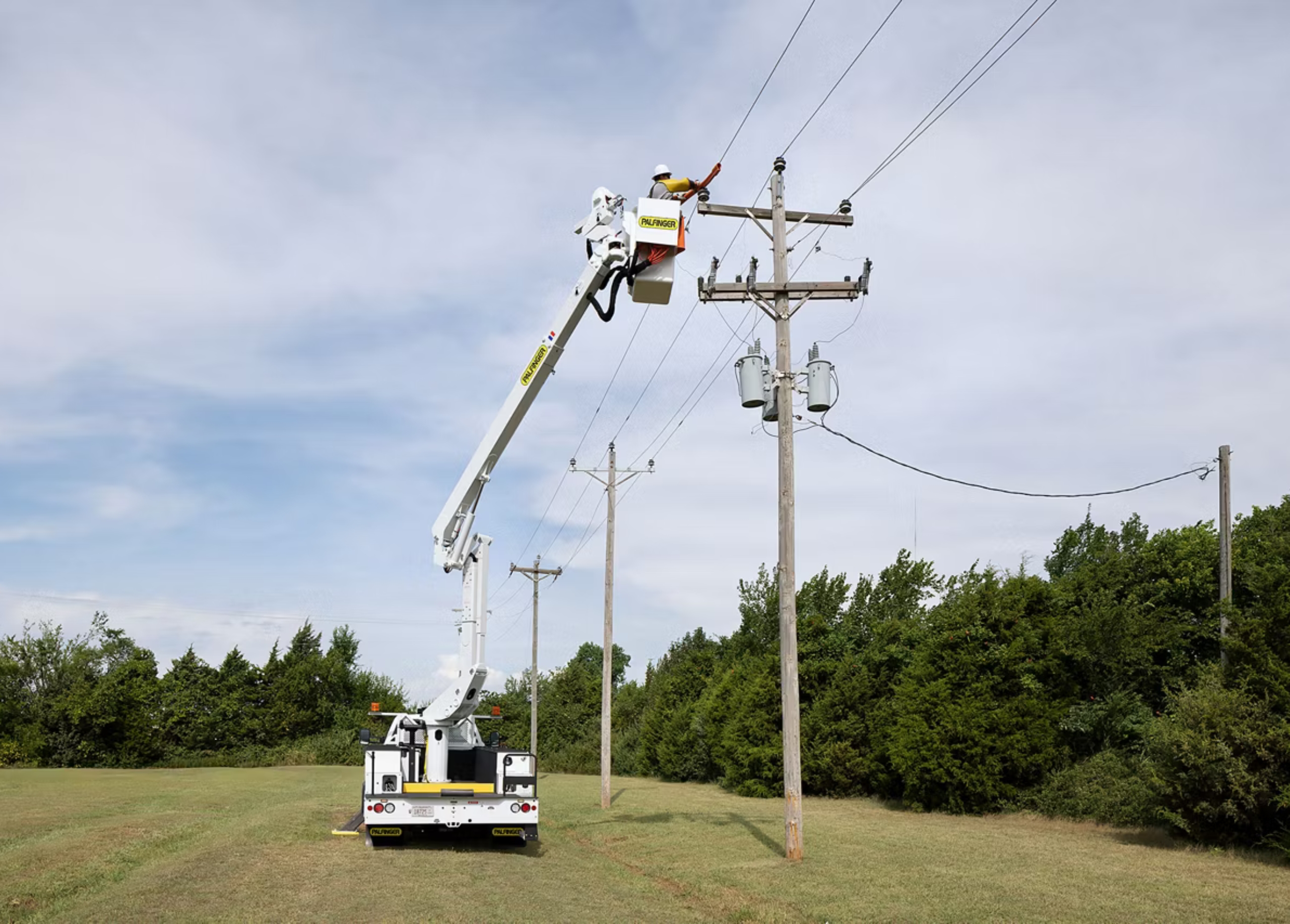

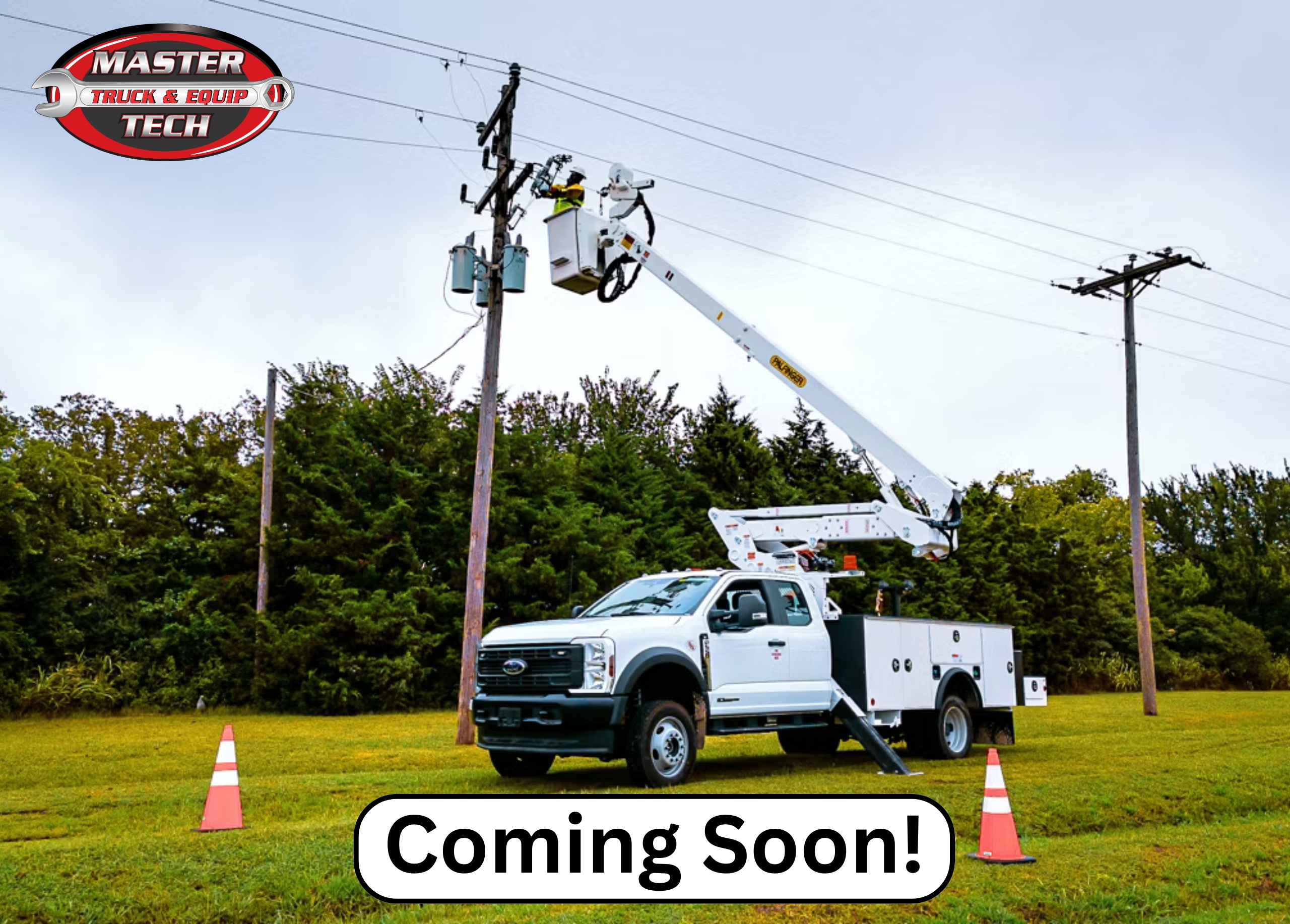

Images shown include our in-house builds featuring the BrandFX body, as well as additional reference photos to demonstrate available PALFINGER steel body configurations. Final builds may vary.

• 45′ Working Height
• 40′ Ground to Bottom of Bucket
• 30′ Side Reach
• Continuous Rotation
• Insulated
• Fiberglass Inner Boom
• 400 lb Bucket Capacity
• End Mount Bracket with 180° Hydraulic Rotator
• Manual Emergency Lowering Valve
• Non-Metallic 4-Function Control
• PTO & Pump Powered Hydraulics

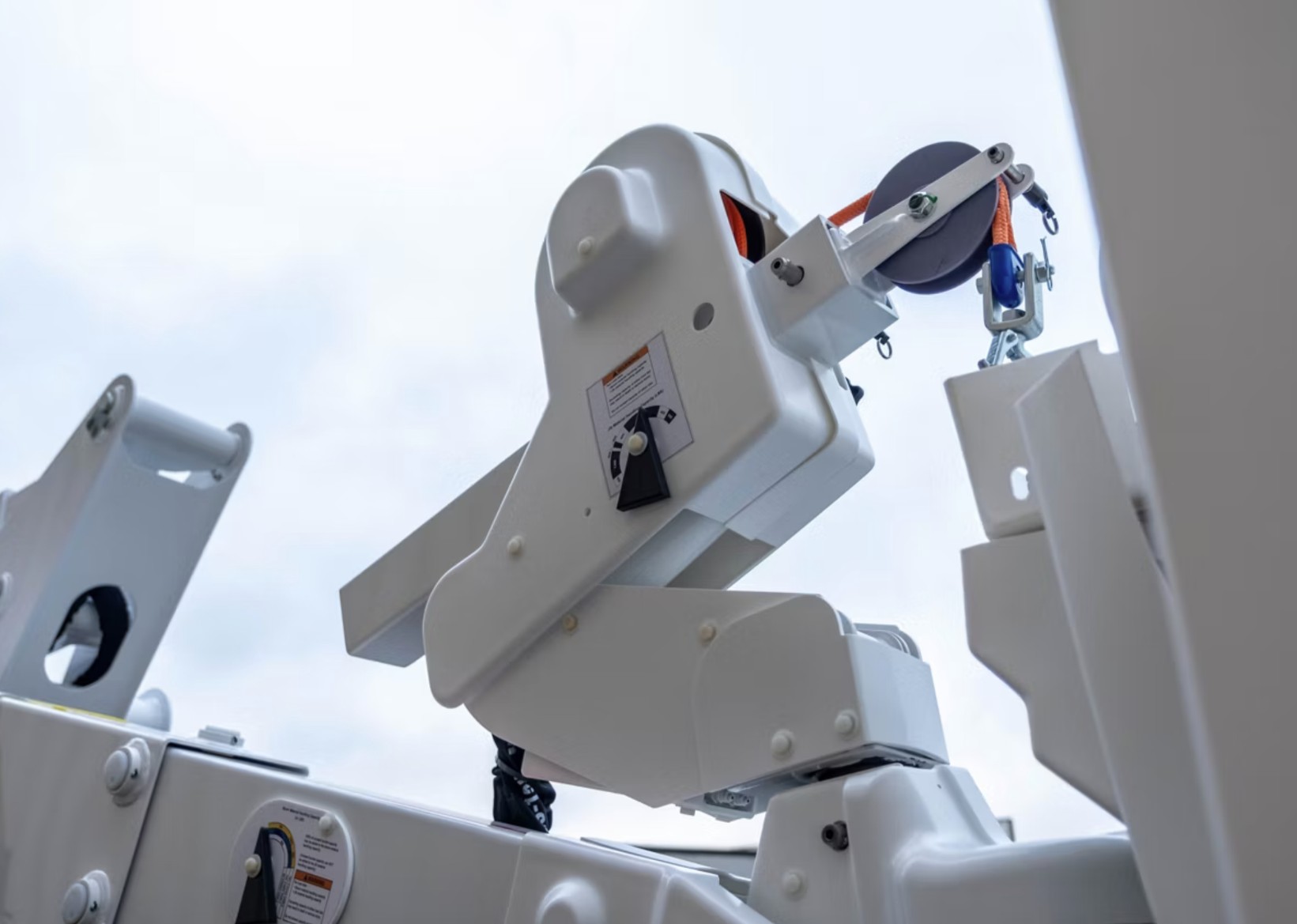

Lift with confidence using the top-mounted rotating jib—engineered to handle up to 1,000 lbs (454 kg) and 300 lbs (136 kg) at full side reach. Designed for strength and flexibility, it delivers reliable material handling performance where you need it most.

• Engine: 6.7L Power Stroke Turbo Diesel – 330 HP & 750 LB-FT
• Transmission: Ford TorqShift HD 10-Spd Automatic
• Gear Ratio: 4.30 Limited Slip
• Wheelbase: 145″ (Available in multiple wheelbase configurations, allowing you to customize this truck to best fit your operation. Contact our team to explore available options.)
• Wheels: Steel
• GVWR: 22,000 lbs
• Front Axle Rating: 7,500 lbs
• Rear Axle Rating: 15,500 lbs
• Fuel Capacity: 40 gal
• CARB Compliant
• DOT Inspected
• PTO Provision
• Extra Heavy-Duty Suspension
• Engine Block Heater
• Chrome Appearance Group
• Receiver Hitch & Trailer Wiring
• Rear View Camera
