MBB Medilift

LB 300

Column Lift for Buses

Key Specs

Lifting height

Dead weight: 200 kg

Cycle time

View all specifications

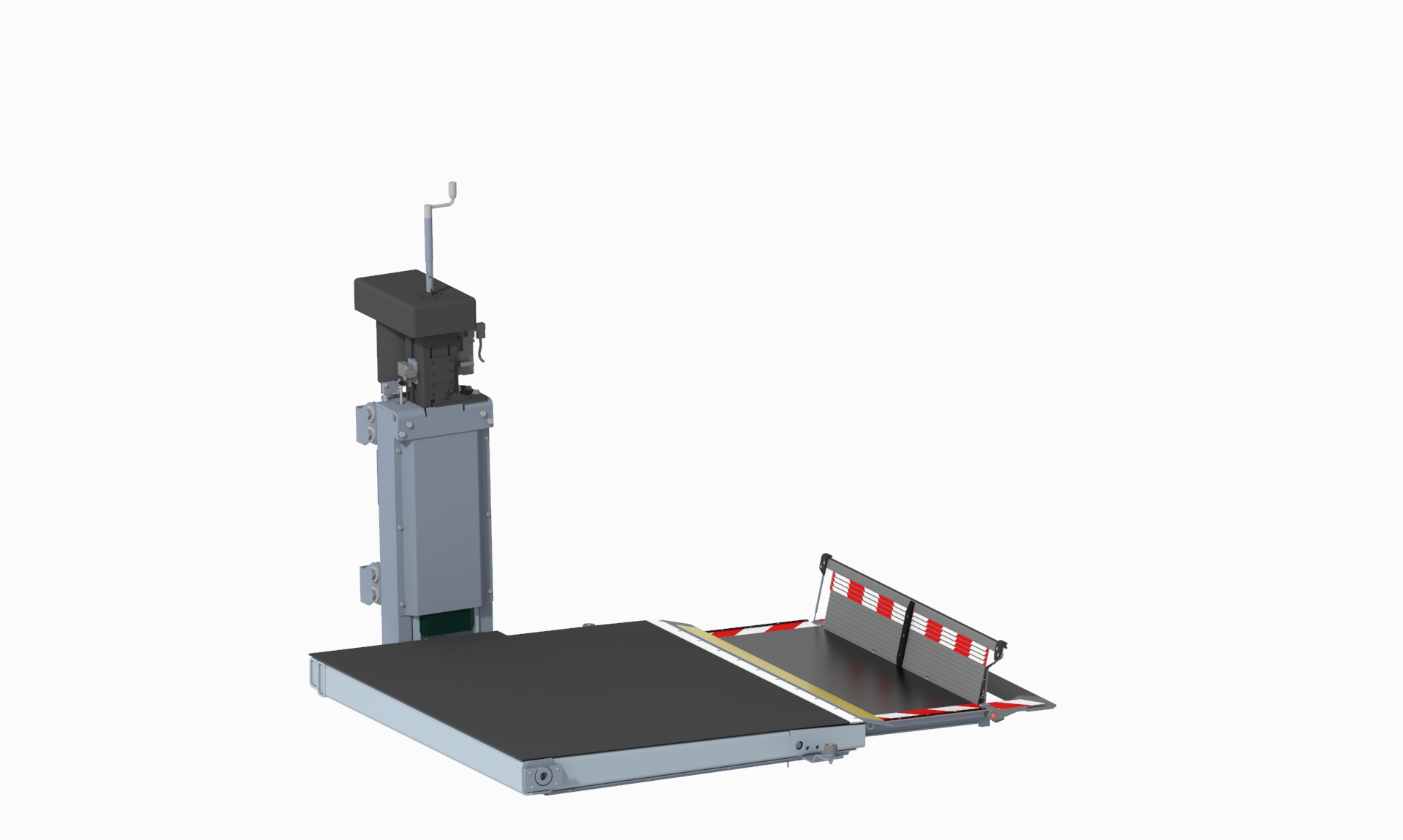

The fully automatic column lift LB 300 for buses bridges up to 300 mm and enables barrier-free boarding and alighting in public transport. Passengers use the lift independently and without additional assistance. Discreetly integrated into the vehicle floor, the side column is unobtrusively installed and not visible to passengers.

Find Sales Partner

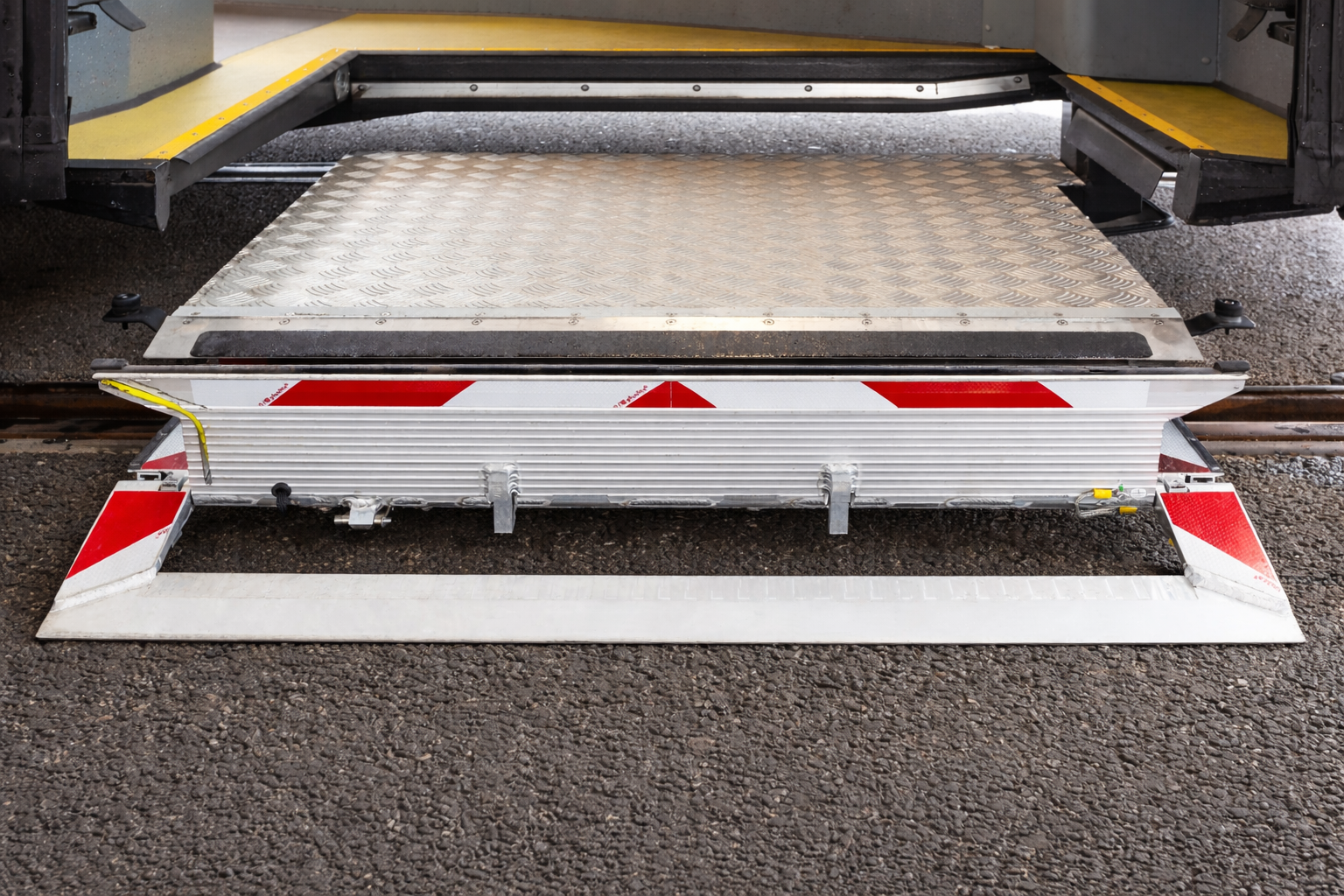

Reliable Quality – Made in Germany

The LB 300 offers a lifting height of up to 300 mm and can be customized to specific customer requirements if needed. Developed and manufactured in Germany, this fully automatic column lift stands for quality “Made in Germany”. Its robust construction, high reliability and low-maintenance design make it a proven solution for barrier-free operation in daily bus service.

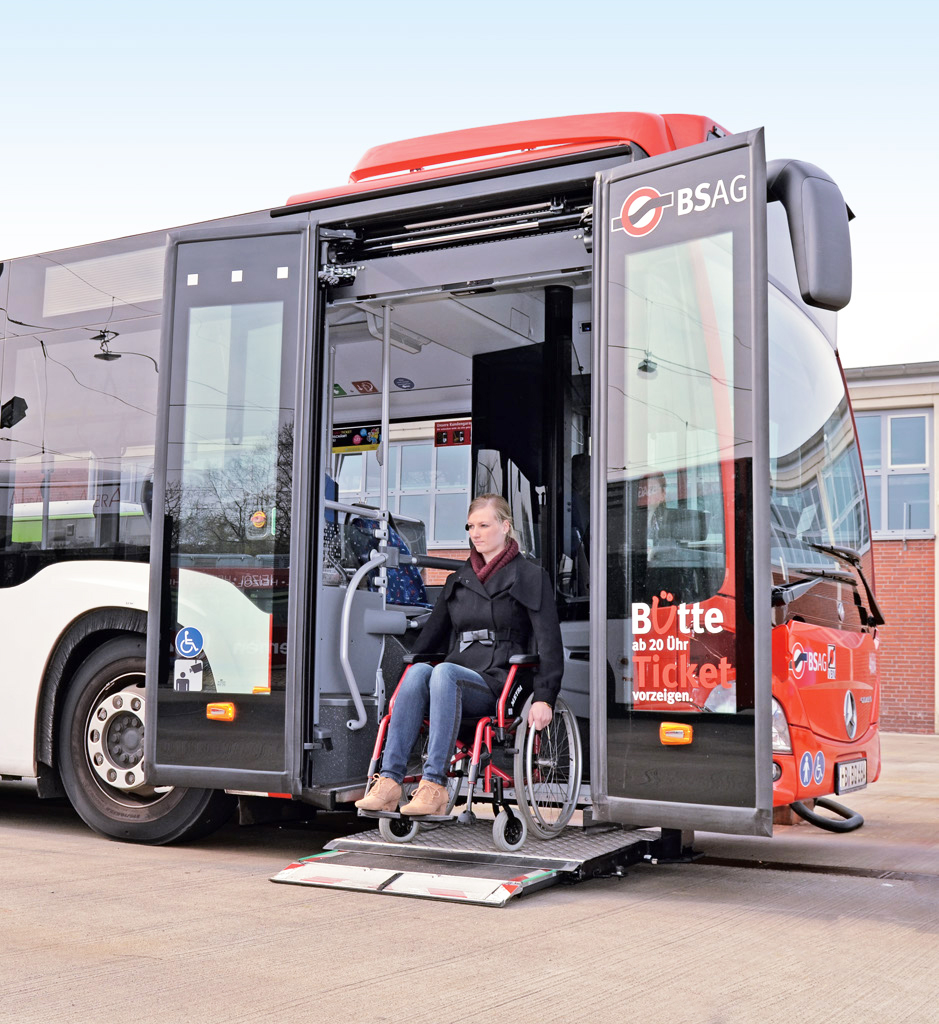

Accessibility for end users

The LB 300 is designed for fully independent use by wheelchair users. Fully automatic operation enables smooth boarding and alighting without additional assistance. The side column is discreetly integrated into the vehicle structure, is space-saving and remains invisible to passengers. Comprehensive safety features ensure a controlled and safe operating sequence.

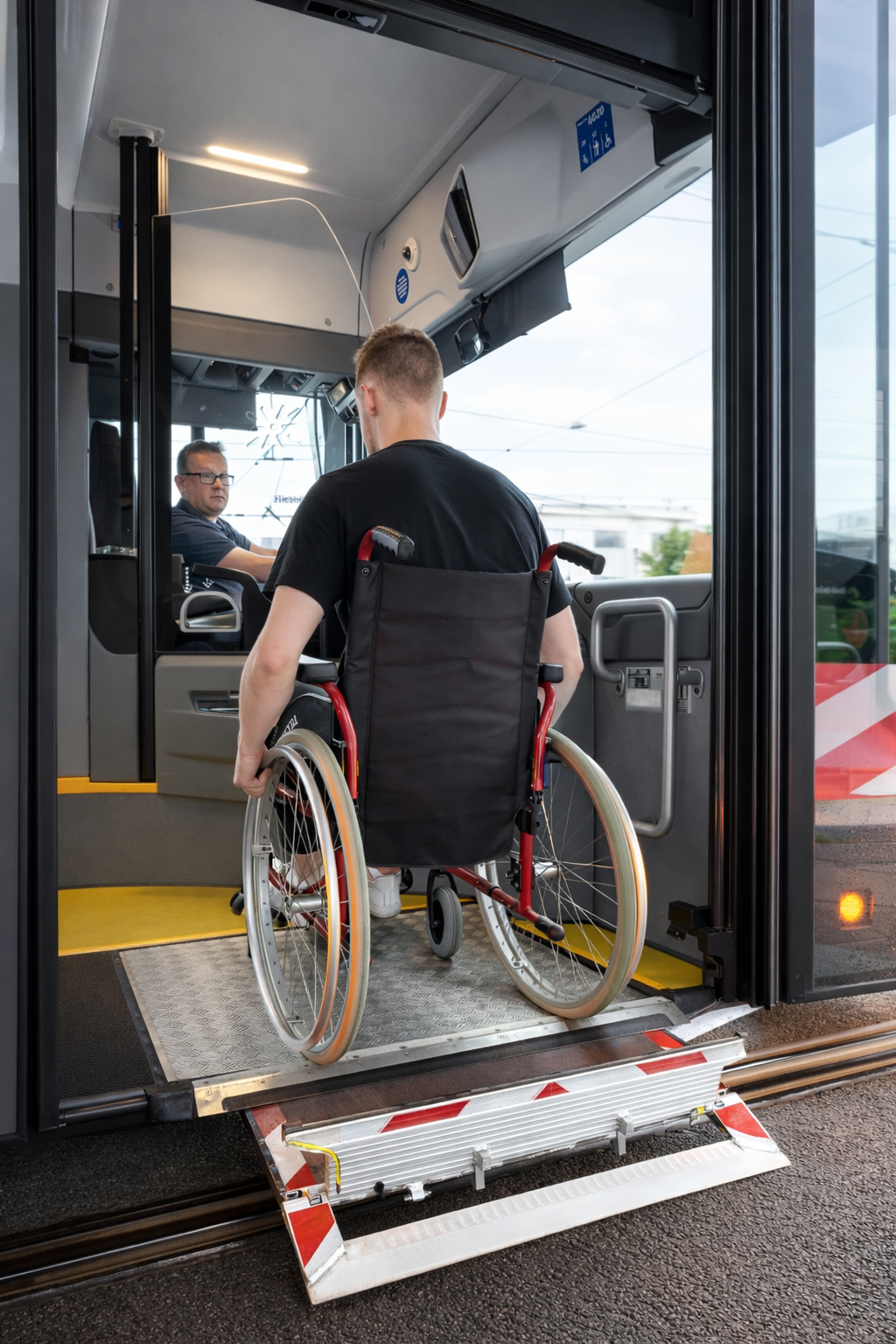

Step-free, without incline

The lift lowers completely to ground level, enabling level boarding and alighting without any incline or edge at the vehicle floor. This ensures maximum wheelchair stability, prevents the risk of tipping and allows a particularly safe and controlled transition. The smooth, level movement enhances comfort and provides a reassuring sense of safety during every use.

Technical Specifications

PALFINGER Passenger Lifts Product Overview

Technical data

Lifting height: approx. 320 mm
Lifting column / cassette height: 840 mm
Platform / cassette width: 1200 mm
Platform / cassette depth: 870 mm
Capacity: 350 kg
Entire platform height: 1200 mm
Entire platform width: 925 mm
Dead weight: 200 kg
Voltage: 24 V
Current consumption: 30 A

Discover Standard Features

Comprehensive safety concept

The fully automatic roll-off protection ensures maximum safety during lift operation. A non-slip surface combined with clearly visible, slip-resistant safety markings provides secure footing. Sensors and safety edges reliably detect people and automatically stop movement. Acoustic and visual warning signals accompany operation and increase awareness of passengers in the surrounding area.

Plug-and-play integration

The lift solution is designed as a plug-and-play system and can be seamlessly integrated into the vehicle’s existing electrical circuit. No separate power supply is required for the lift. This simplifies installation, reduces integration effort for vehicle manufacturers and enables quick and efficient commissioning.

Optional Features

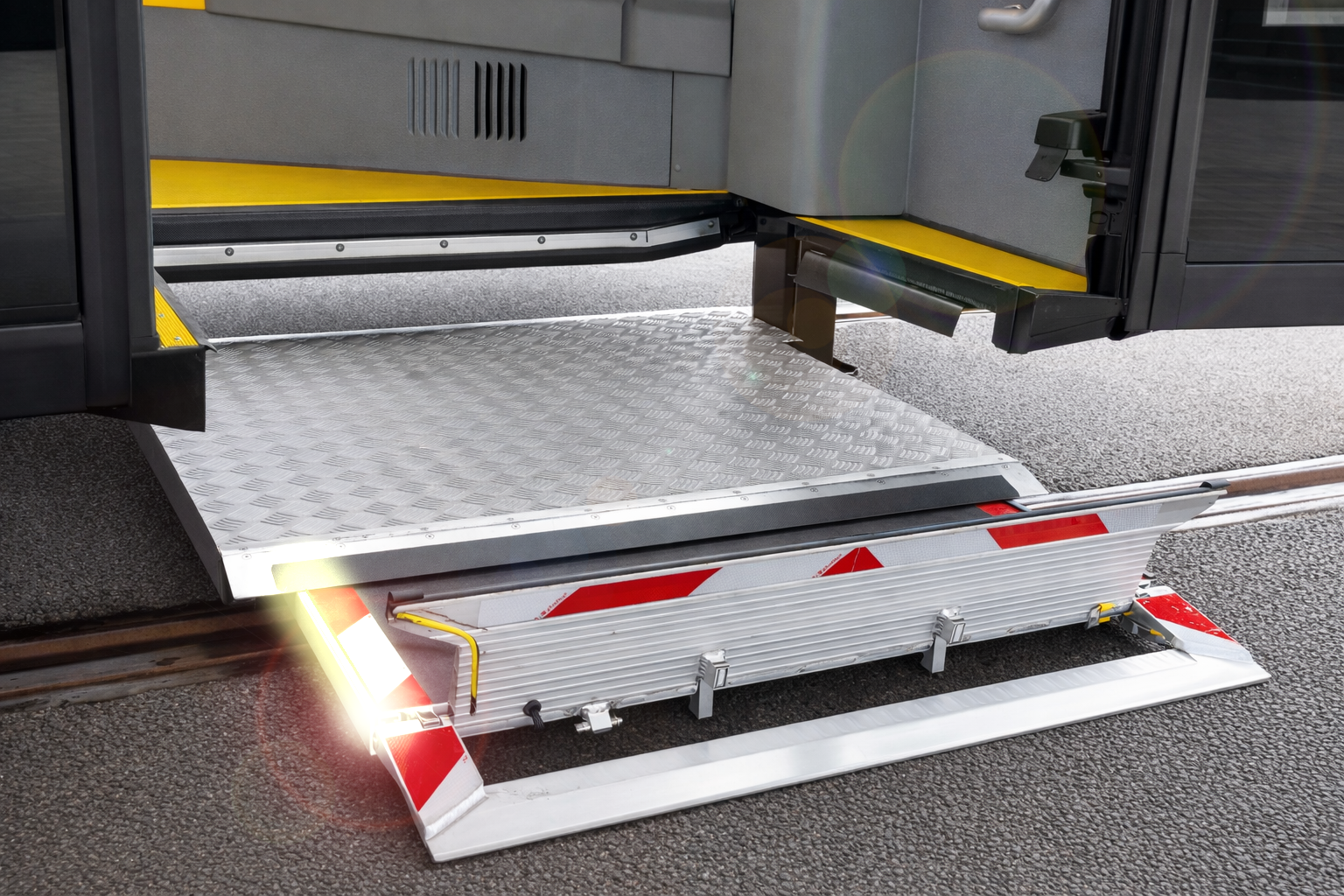

Optional LED light strips

Side-mounted LED light strips clearly indicate when the lift is extending or in use. The highly visible light strips increase awareness in the surrounding area, improve perception of the lift’s movement and contribute to enhanced safety for passengers and pedestrians.

Optional test box for vehicle manufacturers

With the optional test box, vehicle manufacturers can fully cycle and test the lift before the vehicle’s power supply is available during the production process. This simplifies integration, accelerates commissioning and increases process reliability in vehicle manufacturing.

Installation support for initial integration

For the first installation in your vehicle, we offer optional professional installation support. Our expert team provides guidance throughout the entire installation process – from integration to commissioning. This ensures a smooth implementation and an efficient start to operation.
