MBB Medirampe

Floor Version Ramp (FV)

For Buses and Trams

alt text
Passenger Lift
Key Specs
Dead weight
approx. 60 kg
Extension and retraction time
3 - 6 seconds

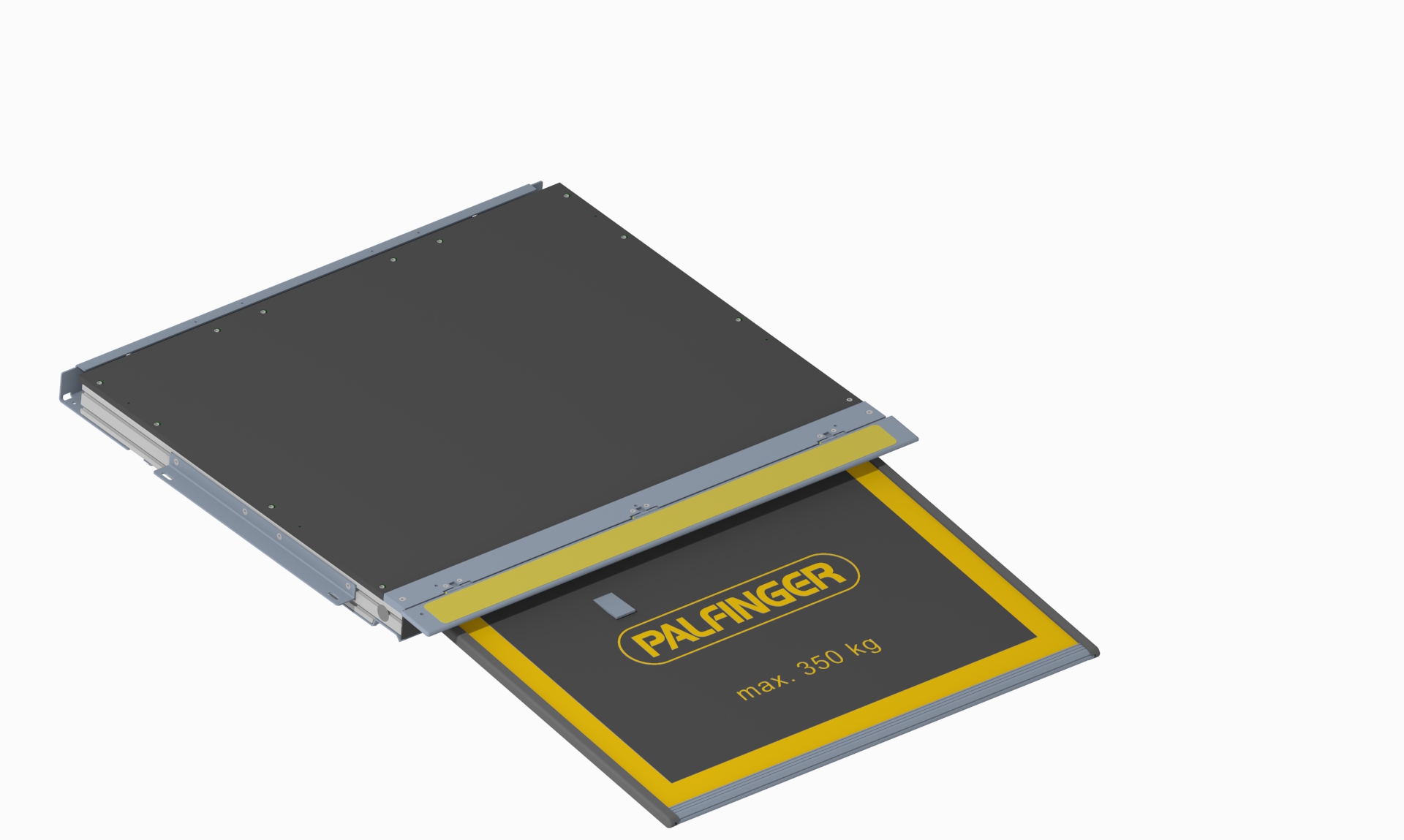

The fully automatic MediRamp Floor Version (FV) enables barrier-free boarding in public transport and is primarily used in buses. It bridges height differences of up to 200 mm and offers quick and easy operation. Discreetly integrated into the vehicle floor, the ramp remains invisible when not in use and provides a space-saving solution.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Simple and independent operation

The ramp is activated via a push button inside the vehicle. Wheelchair users can initiate the process independently, while the driver releases the ramp conveniently from the driver’s seat. This ensures barrier-free boarding that is simple, safe and efficient, without additional effort for daily operations.

alt text

Fast operation in only 6 seconds

The MediRamp FV requires only 6 seconds for extension and 6 seconds for retraction. This enables quick passenger exchange, reduces dwell times at stops and supports efficient, on-time operation in daily public transport.

alt text

Optimised incline & high load capacity

The ramp is designed to comply with the maximum permitted incline of 6.7°, ensuring safe and comfortable access. At the same time, it offers a load capacity of up to 350 kg – an excellent value for compact ramp solutions and ideal for daily use in public transport.

alt text

Technical Specifications

Technical data
Installation
in the floor
Cassette / platform length
850 mm
Cassette height
60 mm / 74 mm
Cassette width
1040 mm
Platform height
360 mm / 690 mm
Platform width
920 mm
Capacity
350 kg
Dead weight
approx. 60 kg
Voltage
24 V
Extension and retraction time
3 - 6 seconds
Drive
electrical

Discover Standard Features

Intelligent safety features

Sensors and safety edges reliably detect people and automatically stop movement. Combined with a non-slip surface, this ensures a high level of safety during boarding and alighting and protects passengers as well as the surrounding area during ramp operation.

Plug-and-play integration

The ramp solution is designed as a plug-and-play system and can be seamlessly integrated into the vehicle’s existing electrical circuit. No separate power supply is required for the ramp. This simplifies installation, reduces integration effort for vehicle manufacturers and enables quick and efficient commissioning.

Optional Features

Optional LED light strips

Side-mounted LED light strips clearly indicate when the ramp is extending or in use. The highly visible light strips increase awareness in the surrounding area, improve perception of the lift’s movement and contribute to enhanced safety for passengers and pedestrians.

alt text

Installation support for initial integration

For the first installation in your vehicle, we offer optional professional installation support. Our expert team provides guidance throughout the entire installation process – from integration to commissioning. This ensures a smooth implementation and an efficient start to operation.
