MBB Medirampe

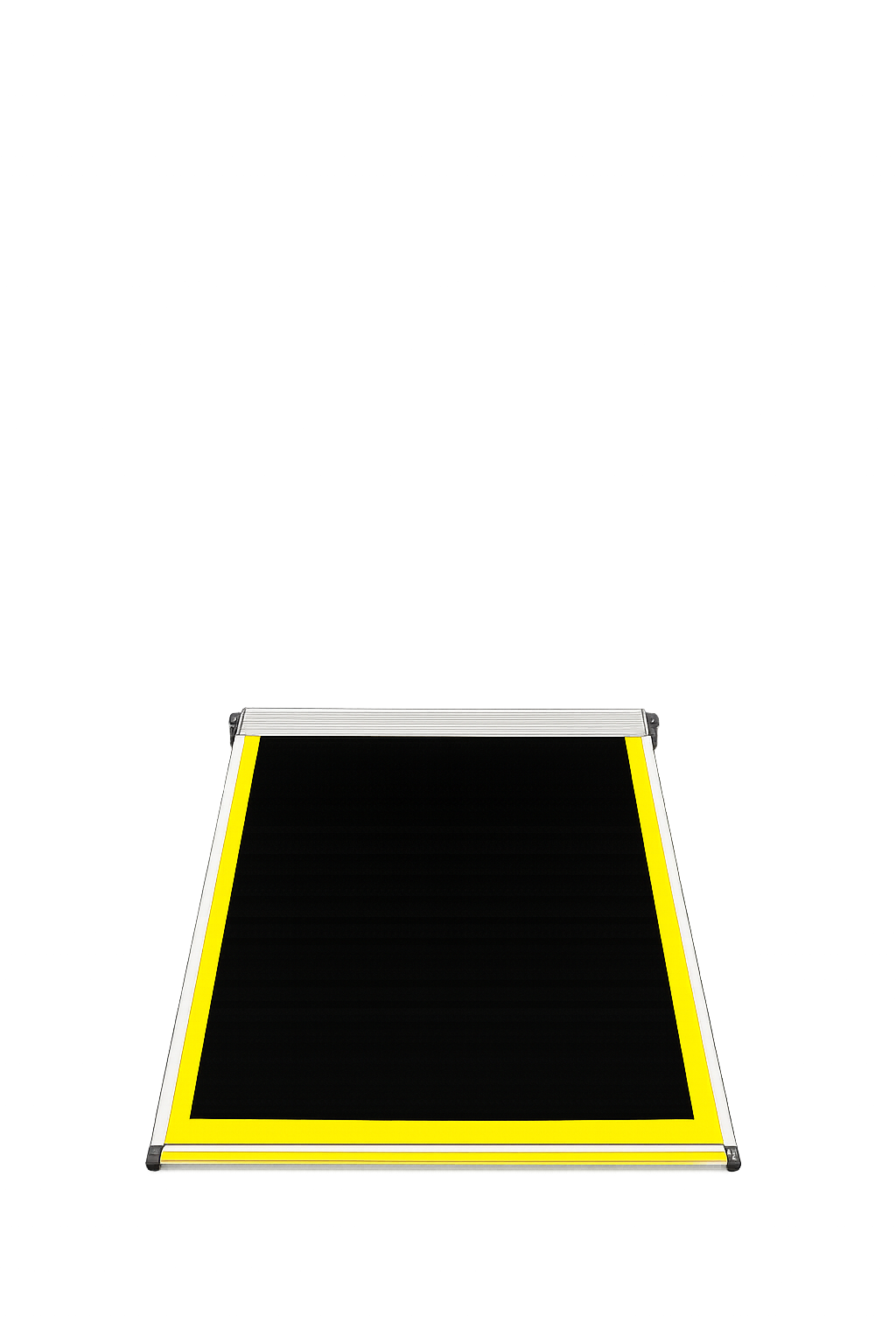

Cassette Ramp

For Buses and Trams

alt text
Passenger Lift
Key Specs
Dead weight
approx. 65 kg
Extension and retraction time
8 seconds

The fully automatic cassette ramp is mounted as a cassette solution beneath the vehicle floor and is primarily used in buses. It enables barrier-free boarding in public transport and features a space-saving design. Invisible to passengers, it integrates discreetly into the vehicle layout and offers vehicle manufacturers a high degree of planning flexibility.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

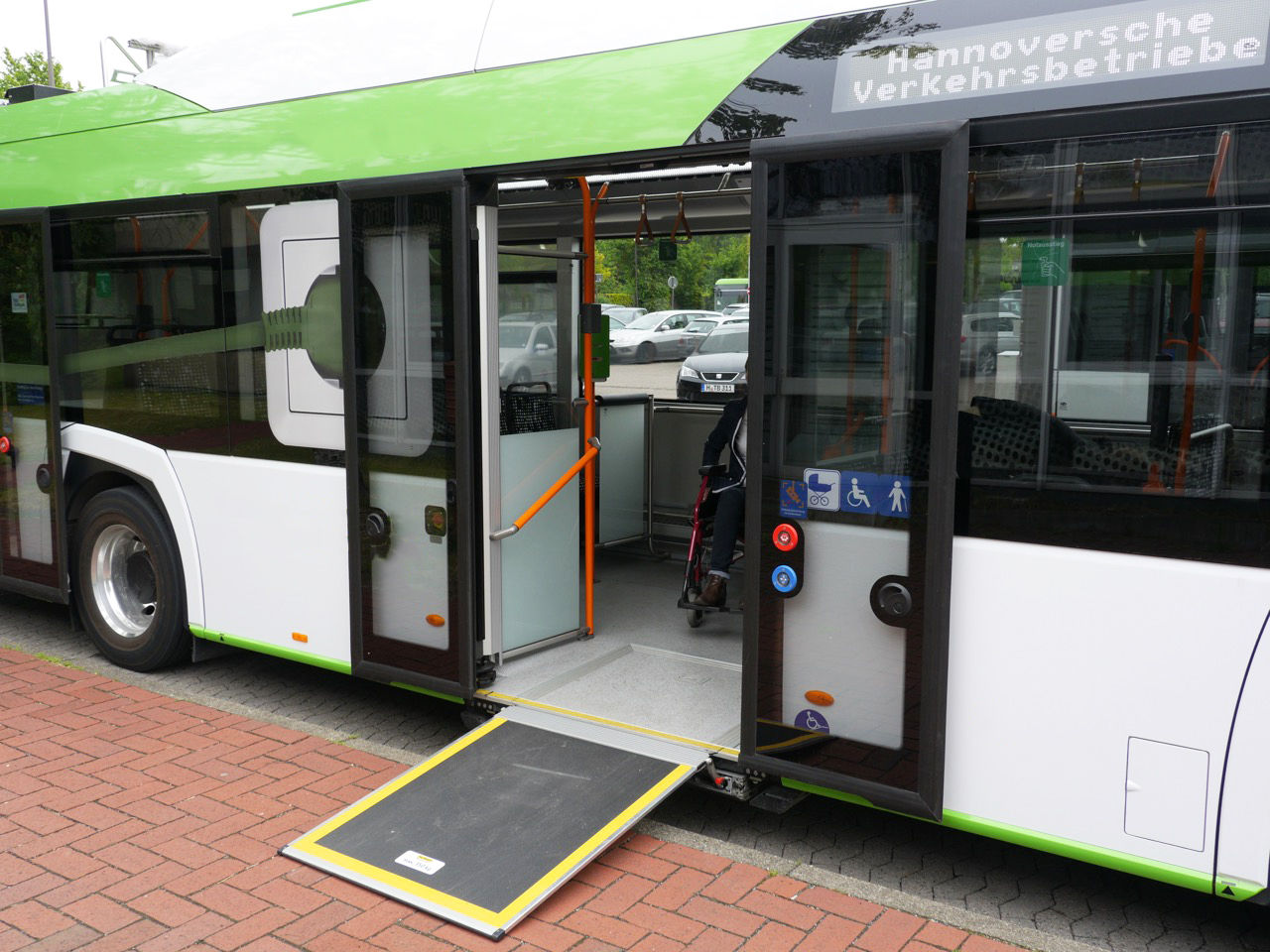

Flexible retrofitting & backup solution

The cassette ramp is mounted underneath the vehicle, making it ideal for retrofitting. It is also available in combination with a manual ramp. This combined solution offers two access options on the same platform, providing a reliable backup solution for maximum operational safety and flexibility in daily service.

alt text

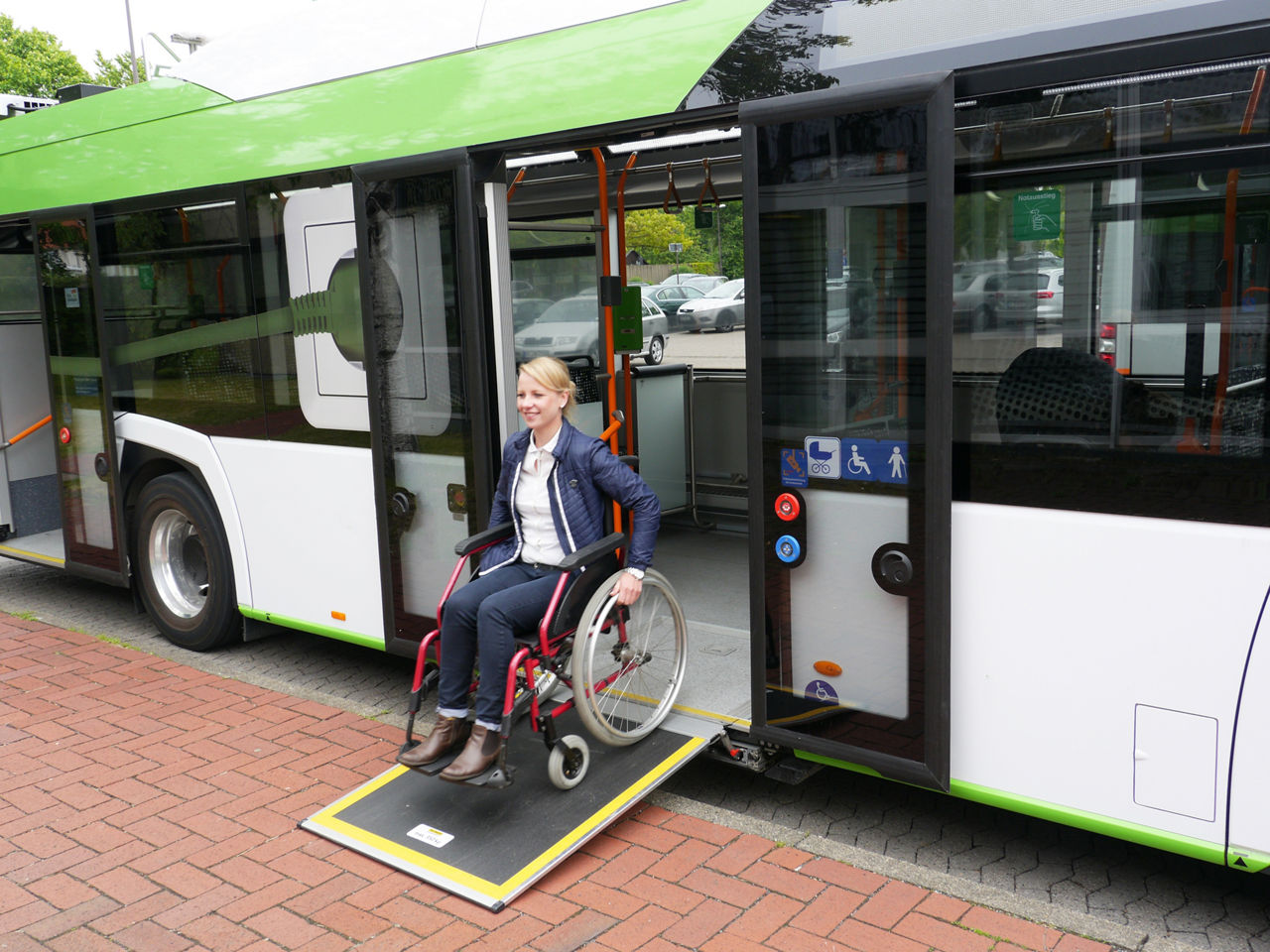

Fast operation in only 8 seconds

The cassette ramp requires only 8 seconds for extension and 8 seconds for retraction. This enables quick passenger exchange, reduces dwell times at stops and supports efficient, on-time operation in daily public transport.

alt text

Optimised incline & high load capacity

The ramp is designed to comply with the maximum permitted incline of 6.7°, ensuring safe and comfortable access. At the same time, it offers a load capacity of up to 350 kg – an excellent value for compact ramp solutions and ideal for daily use in public transport.

alt text

Technical Specifications

Technical data
Installation
under the floor
Cassette / platform length
1480 mm
Cassette height
70 mm
Cassette width
1137 mm
Platform height
1095 mm
Platform width
920 mm
Capacity
350 kg
Dead weight
approx. 65 kg
Voltage
24 V
Extension and retraction time
8 seconds
Drive
electrical / manual

Discover Standard Features

Intelligent safety features

Sensors and safety edges reliably detect people and automatically stop movement. Combined with a non-slip surface, this ensures a high level of safety during boarding and alighting and protects passengers as well as the surrounding area during ramp operation.

Plug-and-play integration

The ramp solution is designed as a plug-and-play system and can be seamlessly integrated into the vehicle’s existing electrical circuit. No separate power supply is required for the ramp. This simplifies installation, reduces integration effort for vehicle manufacturers and enables quick and efficient commissioning.

Optional Features

Optional LED light strips

Side-mounted LED light strips clearly indicate when the ramp is extending or in use. The highly visible light strips increase awareness in the surrounding area, improve perception of the lift’s movement and contribute to enhanced safety for passengers and pedestrians.

alt text

Installation support for initial integration

For the first installation in your vehicle, we offer optional professional installation support. Our expert team provides guidance throughout the entire installation process – from integration to commissioning. This ensures a smooth implementation and an efficient start to operation.
