MBB V 500 L

Key Specs

Lifting capacity

Lifting gear hydraulics

Load centre - lengthwise

View all specifications

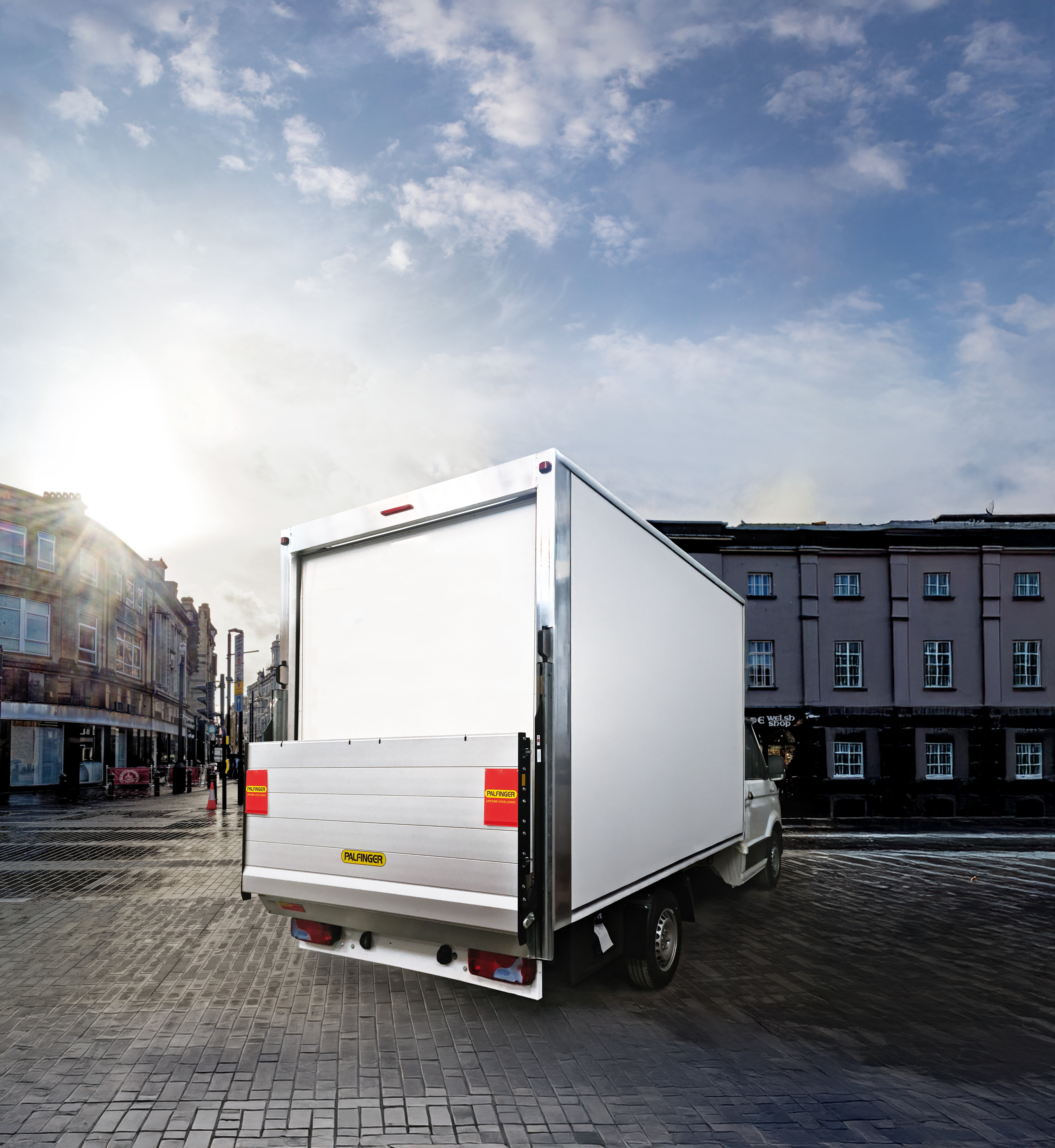

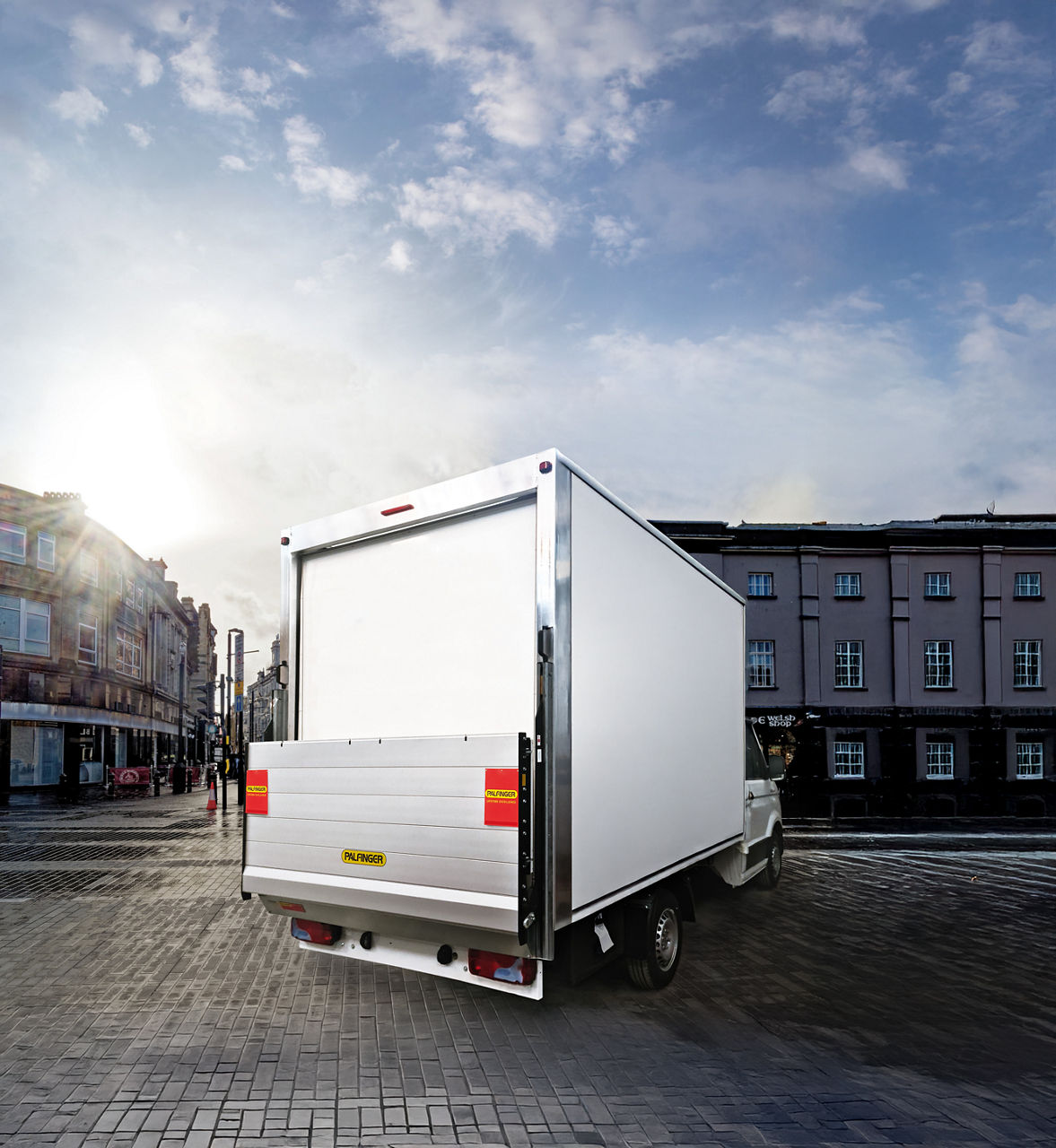

The MBB V 500 L is specifically developed for 3.5-ton vehicles and impresses with fast body installation, low dead weight and high reliability – all at an excellent price-performance ratio. Simple and safe operation ensures quick and straightforward installation.

Find Sales Partner

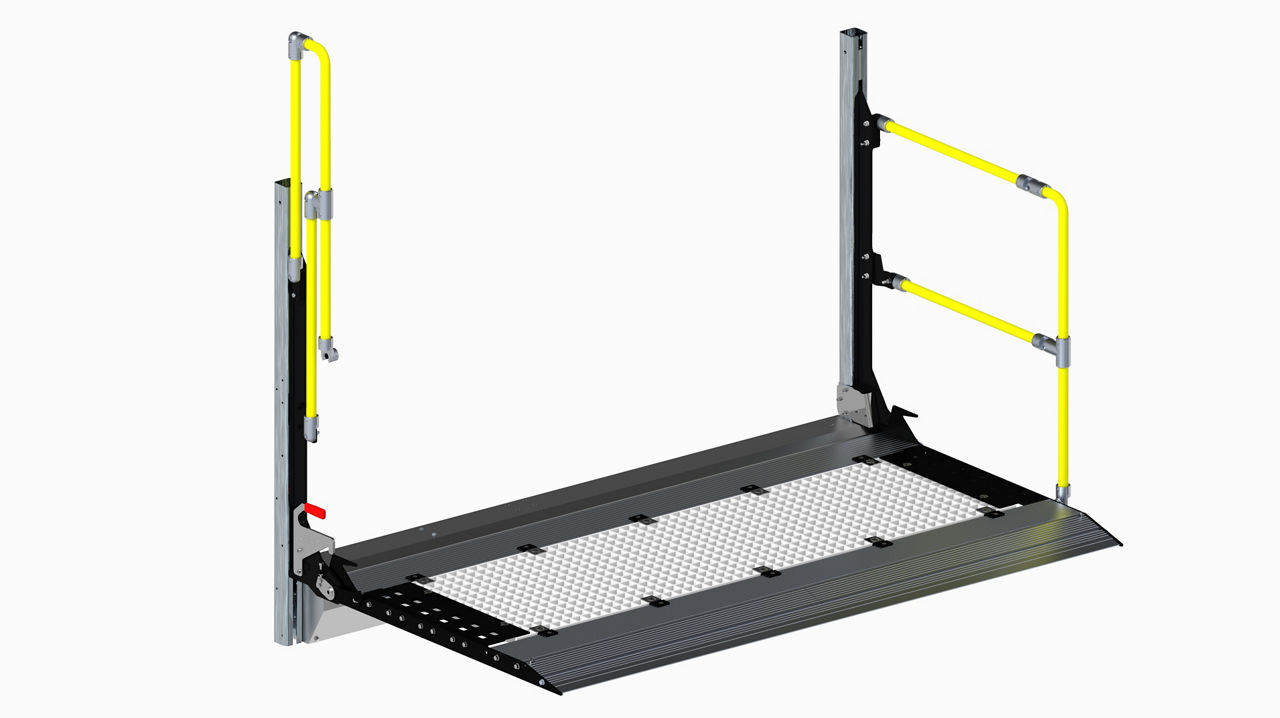

Flexible solution for drop-side vehicles

For use on drop-side vehicles, the MBB V 500 L is also available with a specially developed mounting console. The MBB V 500 L DROP SIDE variant enables simple, safe and vehicle-specific installation on drop-side bodies, extending the application range of the tail lift with additional flexible usage options.

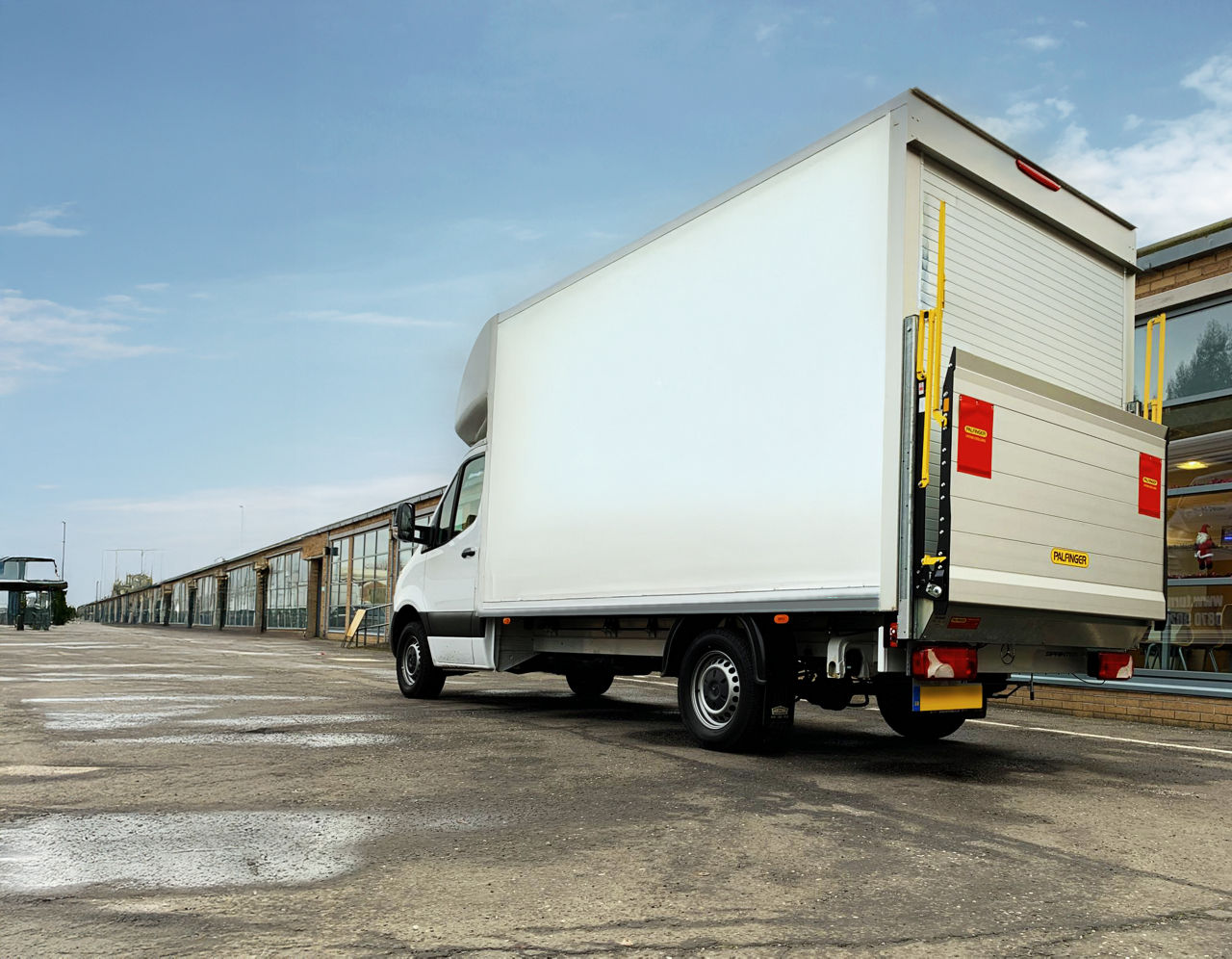

Extended options for maximum versatility

A wide range of optional equipment is available for this model. Various platform options as well as additional safety-related features allow individual adaptation to different operating requirements, providing even greater flexibility and safety in daily use.

Technical Specifications

Technical data

The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Weights

The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Diagram

Model	MBB V 500 L
Lift weight (CC 1955 mm)	145 kg
Lifting capacity	500 kg
Column centre (min.)	1736 mm
Column centre (max.)	2220 mm
Minimum floor height	800 mm
Maximum floor height	1100 mm
Platform depths	770 mm* / 920 mm / 1070 mm / 1220 mm
Column length	1430 mm

* Platform depth 770 mm: not for CC 1736 mm and 1886 mm
