MBB V 1000 L

Key Specs

Lifting capacity

Lifting gear hydraulics

Load centre - lengthwise

View all specifications

The MBB V 1000 L with a lifting capacity of 1,000 kg is ideal for vehicles from 5 to 15 tonnes, as typically used in rental fleets and logistics. Its smart design and high-strength materials make it one of the lightest tail lifts in its class.

Find Sales Partner

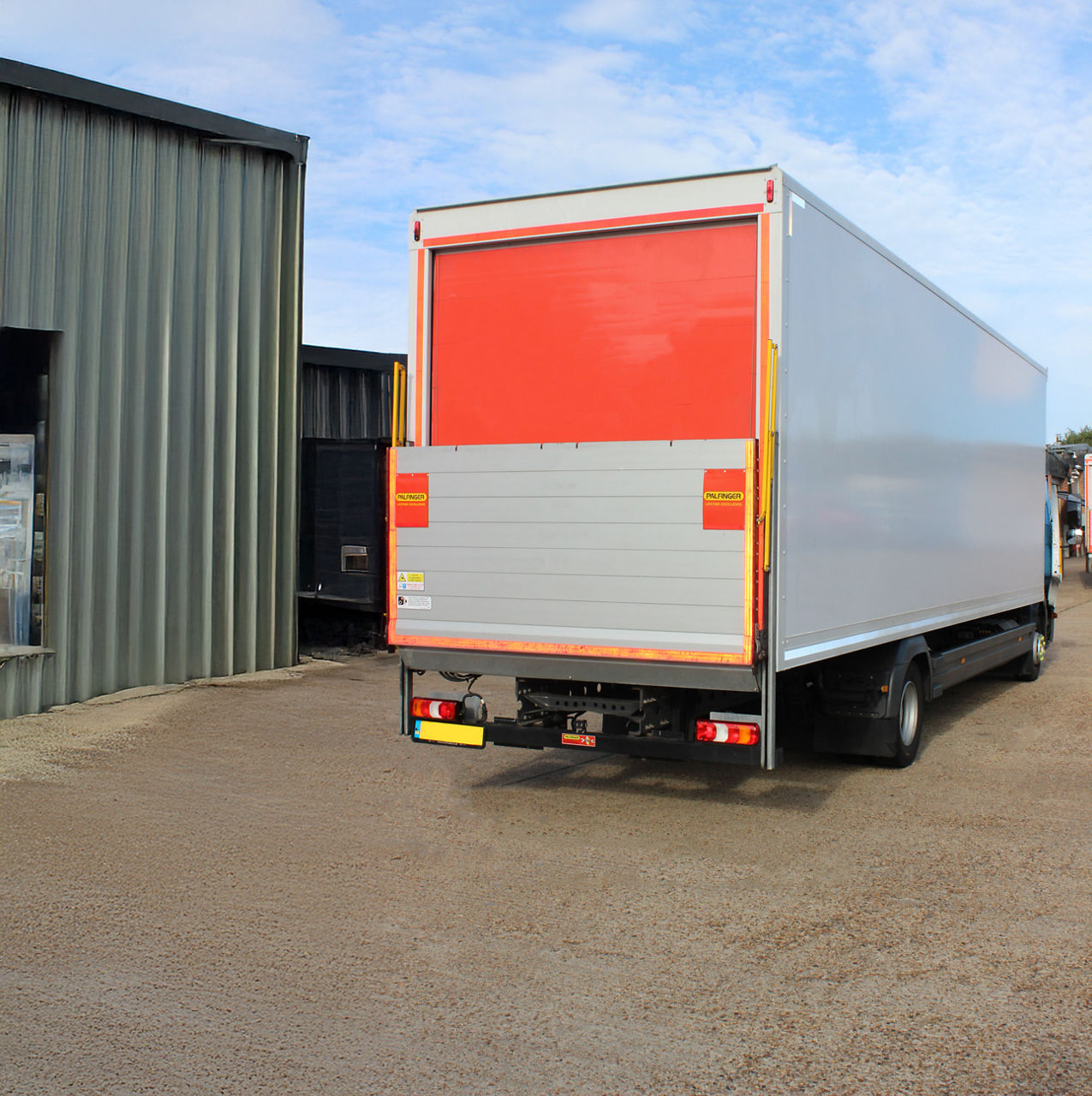

Integrated underrun protection device in accordance with R58-03

The MBB V 1000 L is equipped as standard with an integrated underrun protection device in accordance with ECE R58-03, without limitation. This ensures compliance with the highest safety requirements and provides a high level of road safety while maintaining a compact and well-engineered design.

Vehicle-specific solutions for versatile applications

The MBB V 1000–1500 SCL / SML is designed as a vehicle-specific solution for a wide range of transport and mobile applications. A key highlight is its suitability for transporting skip and roll-off containers. The top-mounted, low-maintenance drive system ensures high reliability, making the tail lift ideal for municipal vehicles as well as applications such as fire and emergency services.

Technical Specifications

Technical data

The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Weights

The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Diagram

Model	MBB V 1000 L
Lift weight (CC 1955 mm)	155 kg
Lifting capacity	1000 kg
Column centre (min.)	1955 mm
Column centre (max.)	2470 mm
Minimum floor height	831 mm
Maximum floor height	1250 mm
Platform depths	770 mm / 920 mm / 1070 mm / 1220 mm
Column length	1560 mm (min.) / 1920 mm (max.)

Dimensions
