Retractable
MBB R 2000 S TRAILER
Tail Lift
Key Specs
- Lifting capacity
- 2,000 kg
- Lifting gear hydraulics
- 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
- Load centre - lengthwise
- 1,000 mm

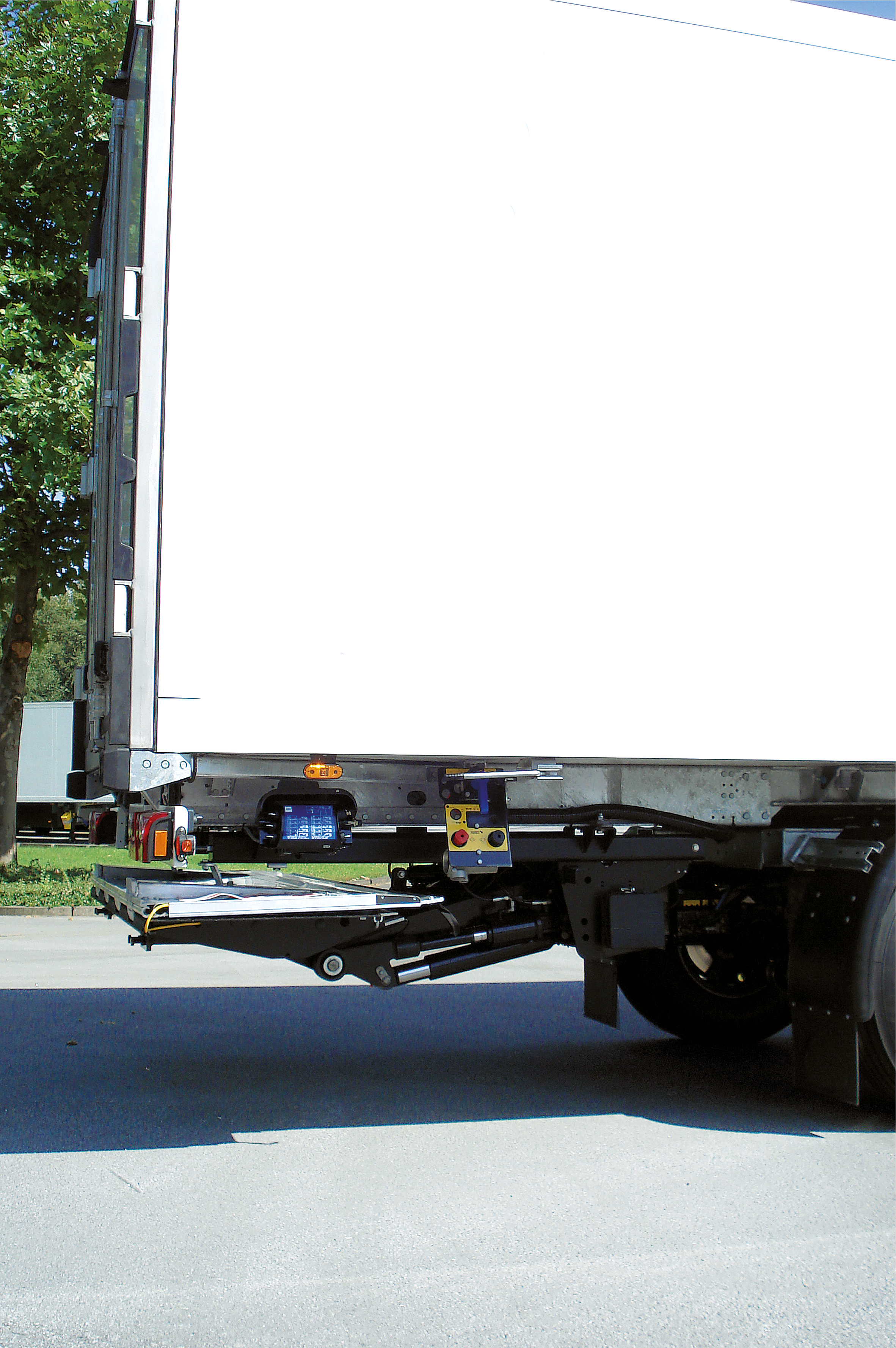

The MBB R 2000 S TRAILER is the powerful retractable model for semi-trailers with short rear overhangs. Its high level of pre-assembly enables fast installation, while the simply folded platform ensures short loading and unloading times and efficient workflows in trailer operations.
Technical Specifications
Technical data
- Lifting capacity
- 2,000 kg
- Lifting capacity
- 2000 kg
- Main beam
- 180 mm x 180 mm
- Lifting gear hydraulics
- 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
- Lifting arm pitch
- 820 mm
- Load centre, longitudinal
- 1,000 mm
- Load centre, across centre
- Central, 50% of rated load on one side
- Inclination angle of the platform
- +10° to -10°
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Weights
|
Dead Weight |
platform height |
Platform width |
|
|---|---|---|---|
| 623 kg | 1,900 mm | 2,400 mm |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Diagram
| a (mm) | Q (kg) |
| 1000 | 2000 |
| 1200 | 1650 |
| 1500 | 1350 |
| 1800 | 1100 |
| 2100 | 950 |

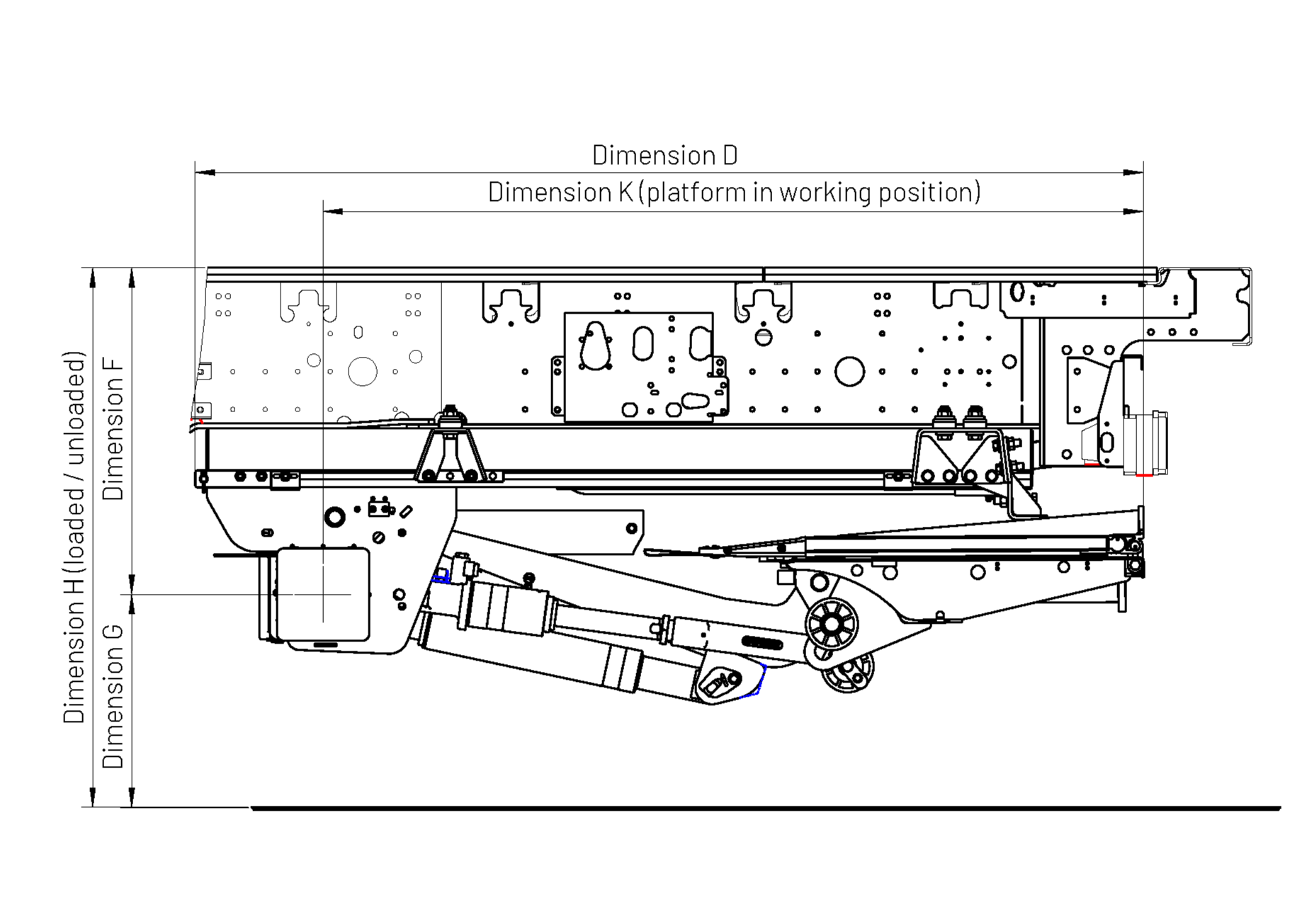

Dimensions
| Lifting arm lengths (mm) | 800 | 900 |
| H (max.) loading height, unloaded | 1381 | 1441 |
| H (min.) loading height, loaded | 916 | 1006 |
| F (max.) middle of main beam to upper edge of loading floor | 770 | 817 |
| K (min.) at dimension F (max.) | 601 | 623 |
| D (min.) installation dimension | 1924 | 2066 |
| F (min.) | 566 | 614 |
| K (max.) at dimension F (min.) | 820 | 907 |
| G (max.) unloaded (middle of main beam to ground) | 611 | 624 |
| G (min.) loaded | 350 | 392 |
| E (max.) vehicle frame width | 1490 | 1490 |
| E (min.) vehicle frame width | 1330 | 1330 |
Robust lifting mechanism for precise movement
The lifting mechanism with two lifting cylinders, two tilting cylinders and one moving cylinder ensures precise, smooth movements. The platform serves as underrun protection device. All steel components are KTL-coated as standard, providing optimal corrosion protection. An additional powder coating is available as an option, further increasing the durability and service life of the tail lift.
Steel/aluminium platform for everyday use
The standard non-slip surface (R10) of the steel/aluminium platform for retractable tail lifts ensures secure footing during loading and unloading. Warning lights and warning flags are included as standard, ensuring safe and comfortable operation in daily distribution work.
Comfortable operation as standard
The tail lift is equipped as standard with a control box. This robust and proven control unit features ergonomic control switches for safe and comfortable operation of the tail lift. It is mounted underneath the vehicle body, while a foldable cover reliably protects the switches from external influences.
Reliable control with MBB Control
MBB Control is the central control unit of the tail lift, connecting all key components for precise and responsive movement sequences. The processor-based control system enables individual software adjustments for various vehicle and application requirements. Integrated diagnostic functions support quick error analysis and ensure maximum reliability in daily operation.
Optional Features
Protective features for long-lasting platform durability
Additional protective bars for warning lights and foot switches reliably protect components from damage. These protective options enhance platform durability and reduce maintenance effort – even in demanding working environments.
Roll-stops for increased safety
Roll-stops are available in various versions. They prevent roll containers and other wheeled loads from unintentionally rolling off the platform during loading and unloading, thereby increasing safety and control in daily operation.
Flexible operating options
In addition to the control box, various control units are available – from foot switches to the Remote Control BT and wanderlead controls. This allows each tail lift to be perfectly adapted to its specific area of application.
Individual software options
Various software options are available for additional functions or specific application requirements. These allow customised control adjustments and can be tailored to customer-specific requirements and application profiles – ensuring greater comfort, efficiency and safety in daily operation.
Alternative hydraulic oils
Depending on the operating environment, different hydraulic oils can be selected. AeroShell Fluid ensures reliable performance at temperatures down to –40 °C, while the biodegradable bio oil offers an environmentally friendly option for everyday use.
