Cantilever
MBB C 2500 S
Tail Lift
Key Specs
- Lifting capacity
- 2,500 kg
- Lifting gear hydraulics
- 2 lifting cylinders / 2 tilting cylinders
- Load centre - lengthwise
- 1,000 mm

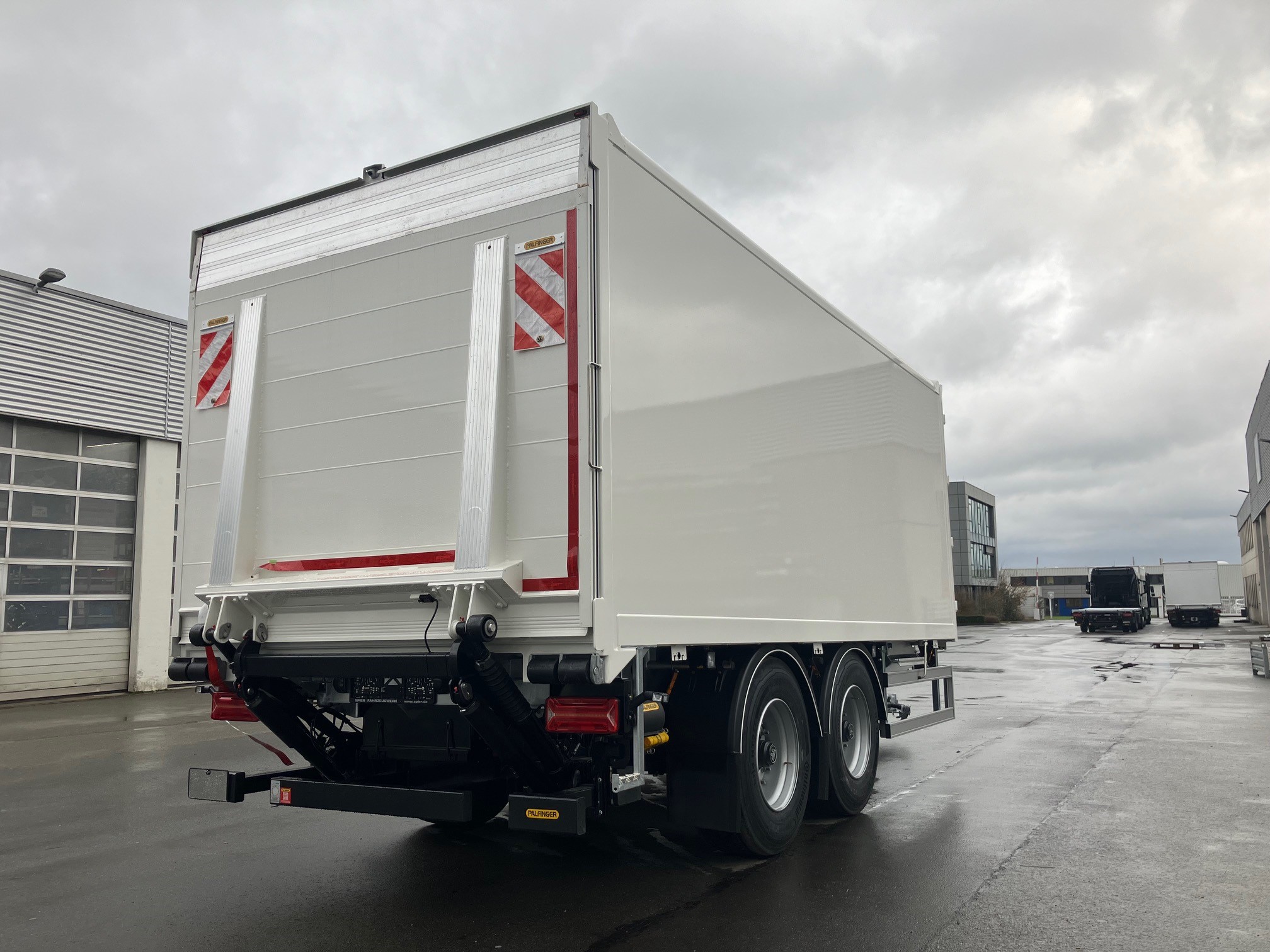

The MBB C 2500 S is a robust heavy-duty tail lift designed for vehicles in food and beverage distribution. With its high load moment and durable platform systems it provides reliable performance and long-term operational stability.
Technical Specifications
Technical data
- Lifting capacity
- 2,500 kg
- Lifting capacity
- 2500 kg
- Main beam
- 180 mm x 180 mm
- Lifting gear hydraulics
- 2 lifting cylinders / 2 tilting cylinders
- Platform overlap with floor
- - 72 mm
- Lifting arm pitch
- 1300 mm
- Load centre, longitudinal
- 1,000 mm
- Load centre, across centre
- Central, 50% of rated load on one side
- Inclination angle of the platform
- +90° to -10°
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Weights
|
Dead Weight |
platform height |
Platform width |
|
|---|---|---|---|
| 690 kg | 2,050 mm | 2,500 mm | |
| 772 kg | 2,400 mm | 2,500 mm | |
| 880 kg | 2,009 mm | 2,500 mm | |
| 941 kg | 2,409 mm | 2,500 mm |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Diagram
| a (mm) | Q (kg) |
| 1000 | 2500 |
| 1400 | 1785 |
| 1600 | 1560 |
| 1800 | 1385 |

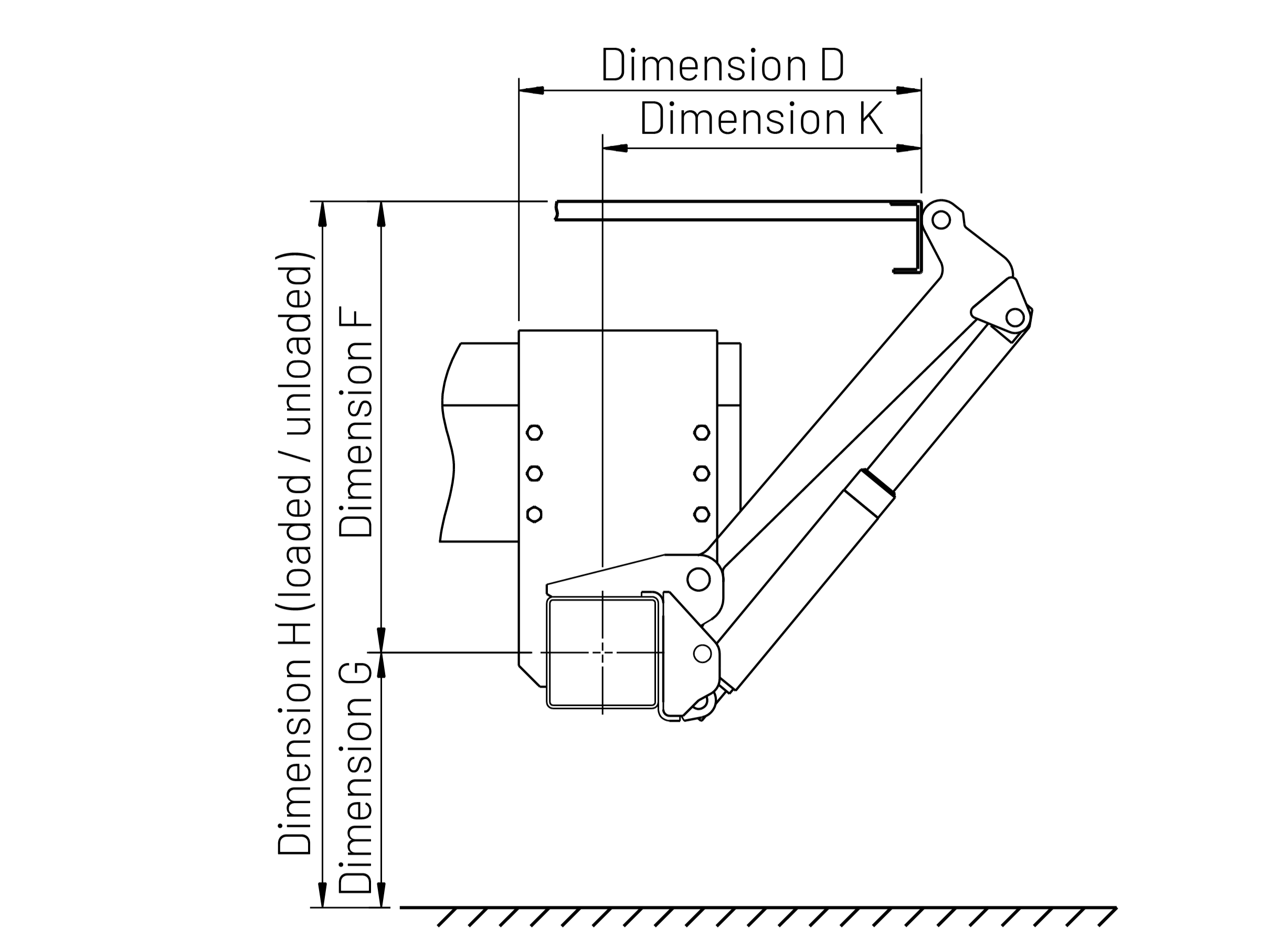

Dimensions
| Lifting arm lengths (mm) | 900 |
| H (max.) loading height, unloaded | 1554 |
| H (min.) loading height, loaded | 990 |
| F (max.) middle of main beam to upper edge of loading floor | 924 |
| K (min.) at dimension F (max.) | 655 |
| D (min.) installation dimension | 846 |
| F (min.) | 600 |
| K (max.) at dimension F (min.) | 920 |
| D (max.) installation dimension | 1111 |
| G (max.) | 630 |
| G (min.) | 390 |
Robust lifting mechanism for precise movement
The durable lifting mechanism with two lifting and two tilting cylinders, a three-part underrun protetction device, and Q8 Heller T15 hydraulic oil ensures stable and precise platform movements during lifting and lowering. All steel components are KTL-coated as standard for optimal corrosion protection. An additional powder coating is available as an option, further increasing the tail lift’s durability and resistance – ensuring long-lasting, reliable performance in daily operation.
Robust aluminium platform for everyday operation
The AluTop aluminium platform is known for its high stability. Its standard anti-slip surface (R10) provides secure footing during loading and unloading. Warning lights and warning flags are included as standard – ensuring safe and convenient operation in daily distribution work.
Comfortable operation as standard
The tail lift is equipped as standard with the Slim Control Panel in the Basic version. The flat, robust control panel enables intuitive and safe operation of the lift. Thanks to its ergonomic button layout and flexible installation options, it ensures a high level of operating comfort and efficient workflows in daily use.
Reliable control with MBB Control
MBB Control is the central control unit of the tail lift, connecting all key components for precise and responsive movement sequences. The processor-based control system enables individual software adjustments for various vehicle and application requirements. Integrated diagnostic functions support quick error analysis and ensure maximum reliability in daily operation.
Optional Features
Adjustable three-part underrun protection device
The optional adjustable underrun protection device offers maximum flexibility for bodybuilders. Its modular design allows the individual sections to be precisely adapted to the vehicle and easily replaced if damaged – reducing maintenance effort and simplifying installation.
Stabilizer options for increased stability
Depending on the requirements, the lifting mechanism can be equipped with either a hydraulic or a mechanical stabilizer. Both options increase stability during loading and unloading and minimise vehicle movement – ensuring safe and steady operation, even with heavy loads.
Alternative steel platform variant
In addition to the standard AluTop platform, the FerroStar X steel platform offers maximum robustness for demanding operating conditions. Its heavy-duty tunnel profiles ensure exceptional durability, while the flat rear surface can be equipped with an optional advertising panel – providing a clean, uniform rear appearance and optimal brand visibility in daily operation.
Optional platform coatings
Depending on the application requirements, various platform coatings are available. In addition to the standard platform, options include simple cross-milling (R11) and a synthetic coating that provides additional surface protection, reduced noise levels, and a durable, low-maintenance finish.
Protective features for platform durability
Stainless steel caps protect the outer platform edges from impacts and wear, while additional protective bars for warning lights and foot switches prevent damage to components. Together, these options ensure long-lasting reliability and reduced maintenance effort – even in demanding working environments.
MBB SafeClose
The MBB SafeClose system provides intelligent protection against obstacles during the closing process. Integrated into the sealing system, it ensures a precise platform-to-vehicle closure. If resistance is detected, the movement stops automatically to help prevent damage and reduce the risk of accidents. This smart safety feature supports operators in daily work routines – while their responsibility for safe operation remains unchanged.
Options for increased load safety
Optional roll-stops and recesses provide reliable protection when handling roll containers and other wheeled loads. Roll-stops prevent cargo from moving off the platform, while recesses help securely position containers on the platform surface. Together, these features increase stability, safety, and control during loading and unloading.
Efficient side-loading solution
An optional lateral C-profile (FixoEdge) can be integrated at the platform edge, enabling stepless attachment of a side loading rail (FixoBridge). This allows convenient side loading and unloading, increasing efficiency and flexibility in daily operation.
Flexible operating options
In addition to the Slim Control Panel (Basic version), a wide range of control units is available – from the Slim Control Panel in Plus and Premium versions to foot switches, the control box, Remote Control BT, 3+1 control buttons and wanderlead controls. This allows each tail lift to be perfectly adapted to its specific area of application.
Optional cabin control
The optional in-cab control unit allows the tail lift to be operated directly from the driver’s cabin. This reduces walking routes around the vehicle and speeds up preparation for loading and unloading – improving convenience, safety, and workflow efficiency in daily operation.
Individual software options
Various software options are available for additional functions or specific application requirements. These allow customised control adjustments, such as QuickDown – reducing lowering time through combined lowering and opening movements for greater comfort, efficiency, and safety in daily operation.
Alternative hydraulic oils
Depending on the operating environment, different hydraulic oils can be selected. AeroShell Fluid ensures reliable performance at temperatures down to –40 °C, while the biodegradable bio oil offers an environmentally friendly option for everyday use.
