Light
PK 7.501K SLD 5
Loader Crane
Key Specs
- Max. lifting moment
- 6.9 mt
- Max. lifting capacity
- 3,300 kg
- Max. hydraulic outreach
- 8.8 m

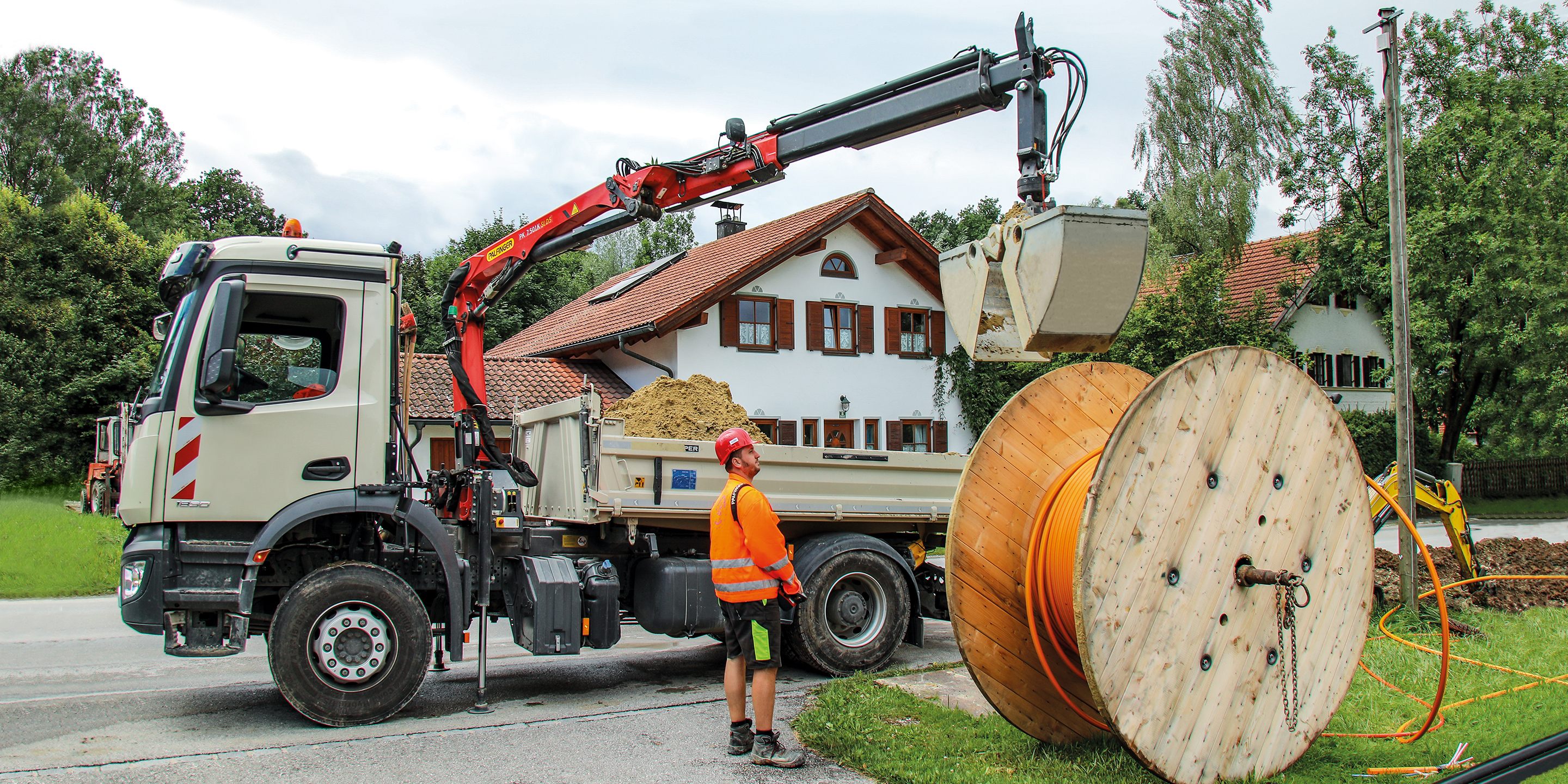

The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. The PK 7.501K SLD 5 is a true workhorse, uniting operator comfort with added lifting headroom for precise placement. The A-HPLS boosts power with smooth hydraulic response – ideal for municipal tasks calling for controlled strength.
Technical Specifications
Technical data
- Max. lifting moment
- 6.9 mt
- Max. lifting capacity
- 3,300 kg
- Max. hydraulic outreach
- 8.8 m
- Slewing angle
- 400°
- Slewing torque
- 0.8 mt
- Stabilizer spread (std)
- 3.0 m
- Max. operating pressure
- 360 bar
- Pump capacity
- 30 - 40 l/min
- Dead weight (std)
- 765 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

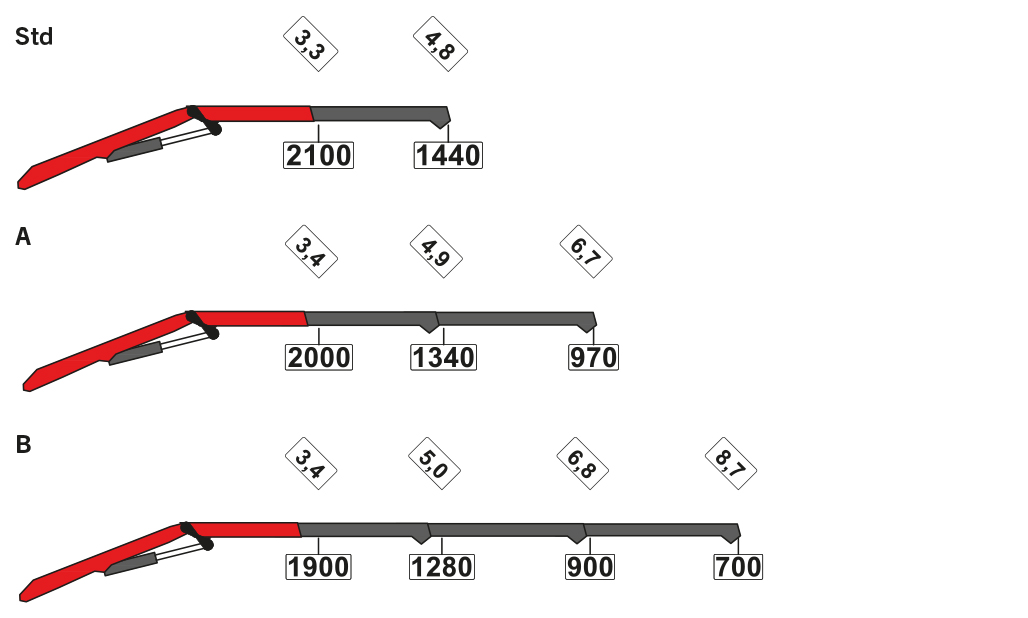

Lifting capacities
|

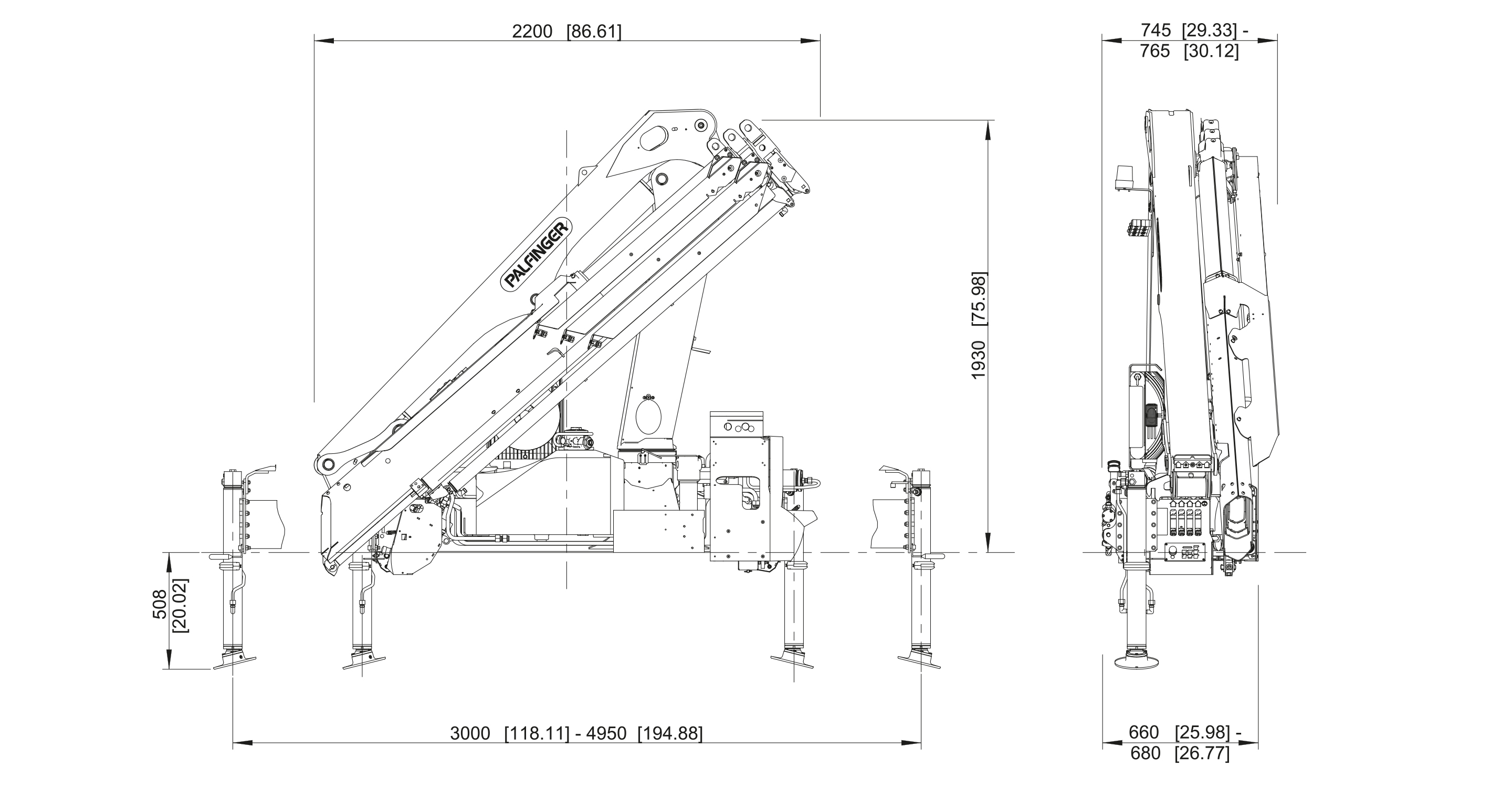

Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 1,930 kg | 765 kg | 2,200 mm | 660 mm | 6.9 mt | 5 m | 36 Mpa | 30 - 40 | 400 | 0.8 |
| A | 1,930 mm | 845 kg | 2,200 mm | 660 mm | 6.6 mt | 6.9 m | 36 Mpa | 30 - 40 | 400 | 0.8 |
| B | 1,930 mm | 915 kg | 2,200 mm | 660 mm | 6.5 mt | 8.8 m | 36 Mpa | 30-40 | 400 | 0.8 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
