Special
PK 40001 EL
Loader Crane
Key Specs
- Max. lifting moment
- 39.2 mt
- Max. lifting capacity
- 5,000 kg
- Max. hydraulic outreach
- 25.4 m

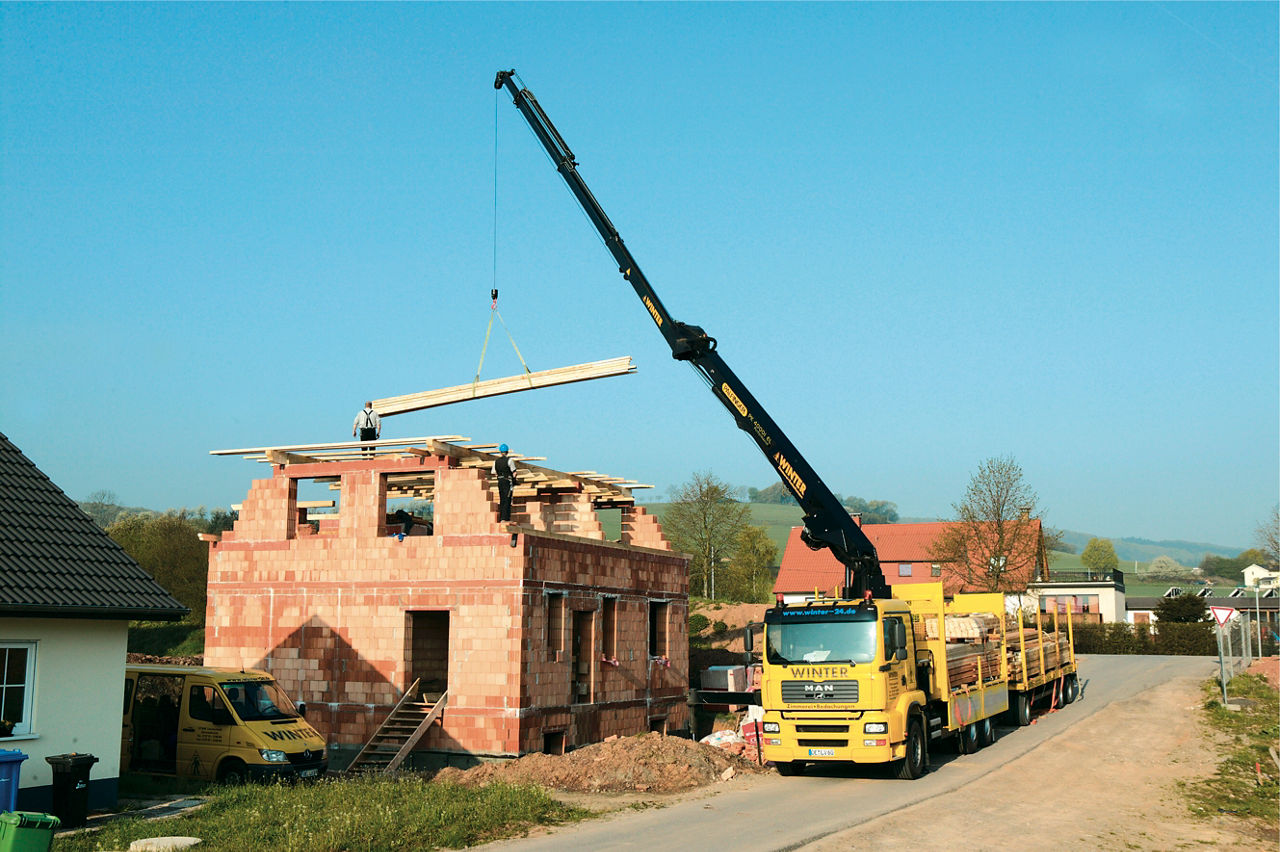

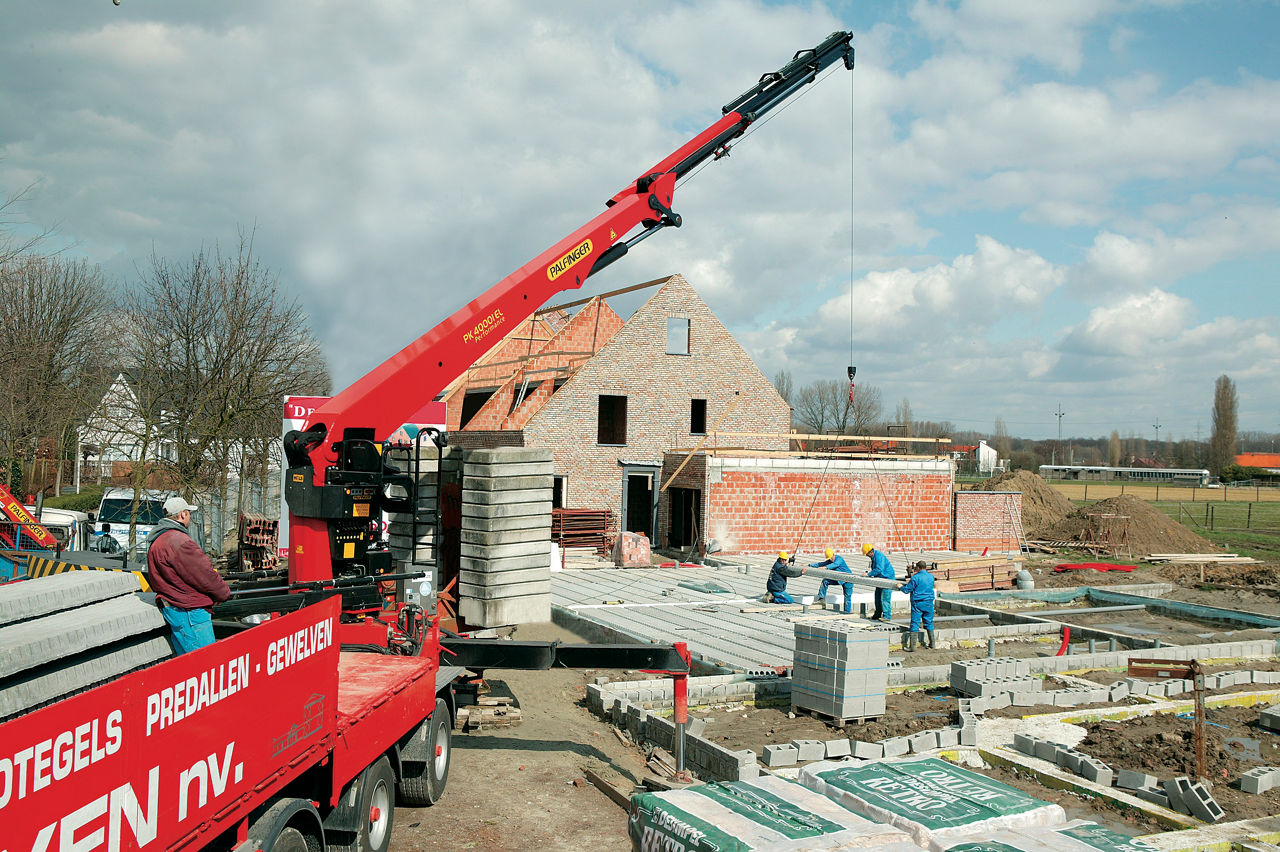

Our Performance cranes are engineered to handle building materials securely, offering high lifting capacity and convenient control. The long-reach PK 40001 EL delivers on speed, range, and mobility, making it ideal for roofing and assembly tasks. The 3.5-metric ton winch and endless slewing further enhance flexibility.
Technical Specifications
Technical data
- Max. lifting moment
- 39.2 mt
- Max. lifting capacity
- 5,000 kg
- Max. hydraulic outreach
- 25.4 m
- Max. outreach (with fly jib)
- 32.4 m
- Slewing angle
- ∞
- Slewing torque with 1 gear
- 7 mt
- Fitting space required (std)
- 1.36 m
- Max. operating pressure
- 330 bar
- Pump capacity
- 80 - 100 l/min
- Dead weight (std)
- 3,870 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting capacities
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|
| A | 2,300 mm | 3,870 kg | 1,400 mm | 35.9 mt | 18.4 m | 33 Mpa | 80-100 | ∞ | 7.0 |
| A PJ080 B | 4,567 kg | 2,550 mm | 19.4 mt | 26.4 m | 33 Mpa | 80-100 | ∞ | 7 | |
| A PJ080 C | 4,660 kg | 2,550 mm | 15.4 mt | 28.3 m | 33 Mpa | 80-100 | ∞ | 7 | |
| B | 2,300 mm | 4,185 kg | 1,400 mm | 33.1 mt | 21.9 m | 33 Mpa | 80-100 | ∞ | 7.0 |
| C | 2,300 mm | 4,475 kg | 1,400 mm | 30.6 mt | 25.4 m | 33 Mpa | 80-100 | ∞ | 7.0 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
POWER LINK PLUS – Maximum Flexibility
Power Link Plus reverse linkage system allowis the knuckle boom to tilt upward by up to 15° beyond horizontal. This increased flexibility supports safe and efficient lifting in confined spaces and around obstacles. At the same time, the crane folds compactly on the truck within legal height limits, delivering smooth movements, high precision, and reliable performance in demanding applications.
High Speed Extension – Faster Cycles
High Speed Extension increases boom extension and retraction speed by up to 30% by reusing return oil within the hydraulic system. Faster movements reduce load cycle times and improve overall productivity. The crane completes more work in less time without compromising control or precision.
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
PALTRONIC – Smart Crane Control
PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.
Unlimited Rotation for Full Flexibility
With continuous slewing the crane rotates without fixed end stops, providing an unrestricted working radius. Smooth, backlash-free rotation improves positioning accuracy and reduces cycle times, especially in tight spaces. Eliminating hard stops increases safety, reduces wear on components, and extends service life—enabling faster, more flexible, and more reliable crane operation in any direction.
Optional Features
HPSC – Smart Stability, More Reach
High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
HPLS – On-demand extra power
High Power Lifting System (HPLS) increases lifting capacity by up to 15% when required by automatically boosting hydraulic pressure. Lifting speed is reduced at the same time to maintain control and precision. This allows heavier loads to be handled safely, improves lift-to-weight performance, and reduces stress on the crane structure—helping extend service life and protect long-term value.
AOS – Steady Loads, Safer Lifting
Active Oscillation Suppression (AOS) reduces boom vibrations and load swing during and after crane movements. Active oscillation countering brings the boom to a fast and controlled stop. This improves precision, protects the load and surroundings, and allows faster operation with greater confidence. Reduced stress on the crane structure also extends service life and improves long-term value.
