Special
PK 23501-W
Loader Crane
Key Specs
- Max. lifting moment
- 22.1 mt
- Max. lifting capacity
- 4,000 kg
- Max. hydraulic outreach
- 10.2 m

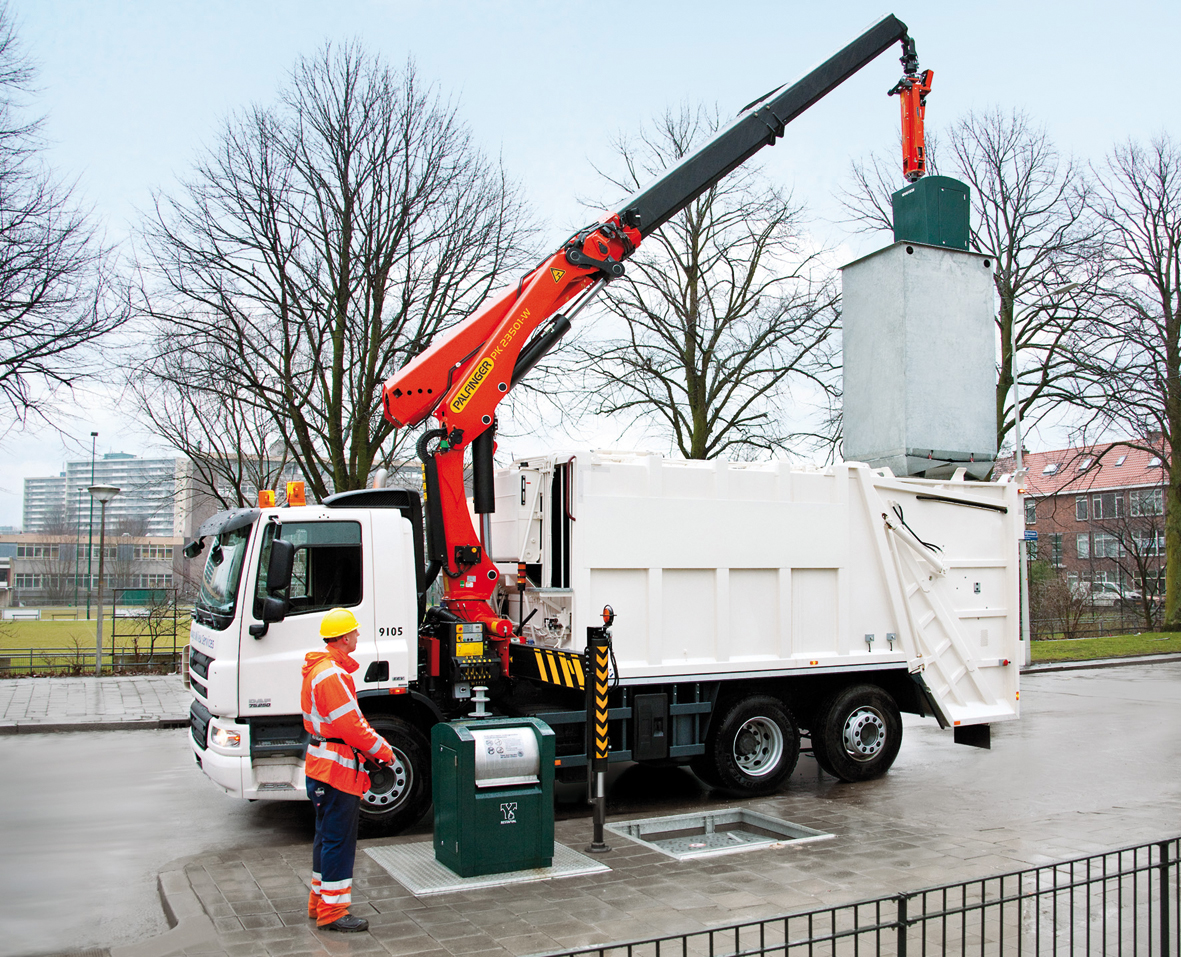

The W range brings a brand new truck-mounted crane to the waste and recycling industry. The new PK 23501 W is designed to meet the specific needs of urban waste management companies. Featuring a low height knuckle boom with internally mounted extension cylinders, it handles underground waste containers with ease.
Technical Specifications
Technical data
- Max. lifting moment
- 22.1 mt
- Max. lifting capacity
- 4,000 kg
- Max. hydraulic outreach
- 10.2 m
- Slewing angle
- 400°
- Slewing torque
- 2.8 mt
- Stabilizer spread (std)
- 5.0m
- Width folded
- 2.55 m
- Max. operating pressure
- 300 bar
- Pump capacity
- 65 - 90 l/min
- Dead weight (std)
- 2,974 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

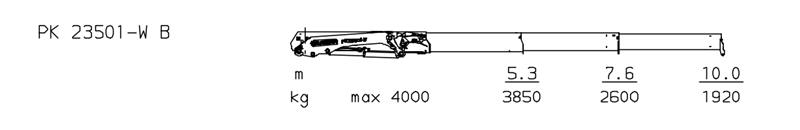

Lifting capacities
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| B | 2,670 mm | 2,974 | 2,550 mm | 906 mm | 22.1 mt | 10.2 m | 30 Mpa | 65-90 | 400 | 2.8 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
HPSC – Smart Stability, More Reach
High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
High Speed Extension – Faster Cycles
High Speed Extension increases boom extension and retraction speed by up to 30% by reusing return oil within the hydraulic system. Faster movements reduce load cycle times and improve overall productivity. The crane completes more work in less time without compromising control or precision.
Low-Maintenance Extension System
Low-maintenance extension system eliminates the need for regular greasing by using self-lubricating synthetic sliding elements and corrosion-resistant coating. This keeps the boom clean, reduces service effort, and prevents lubricant contamination of loads or work areas. Smoother extension movements, lower maintenance costs, and longer service life improve overall efficiency and resale value.
Optional Features
AOS – Steady Loads, Safer Lifting
Active Oscillation Suppression (AOS) reduces boom vibrations and load swing during and after crane movements. Active oscillation countering brings the boom to a fast and controlled stop. This improves precision, protects the load and surroundings, and allows faster operation with greater confidence. Reduced stress on the crane structure also extends service life and improves long-term value.
