PK 19500 T EH
Loader Crane
Key Specs
- Max. lifting moment
- 17.4 mt
- Max. lifting capacity
- 7,300 kg
- Max. hydraulic outreach
- 10 m
Our T-Crane range combines compact design with smart hydraulic control for efficient roadside operation. With advanced electronic controls, the PK 19500 T EH delivers safety and convenience. The HPLS provides enhanced power on demand, making this model ideal for precise and controlled loading tasks, whatever the conditions.
Technical data
- Max. lifting moment
- 17.4 mt
- Max. lifting capacity
- 7,300 kg
- Max. hydraulic outreach
- 10 m
- Slewing angle
- 420°
- Slewing torque
- 2.5 mt
- Max. operating pressure
- 350 bar
- Pump capacity
- 50 - 70 l/min
- Dead weight (std)
- 1,576 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

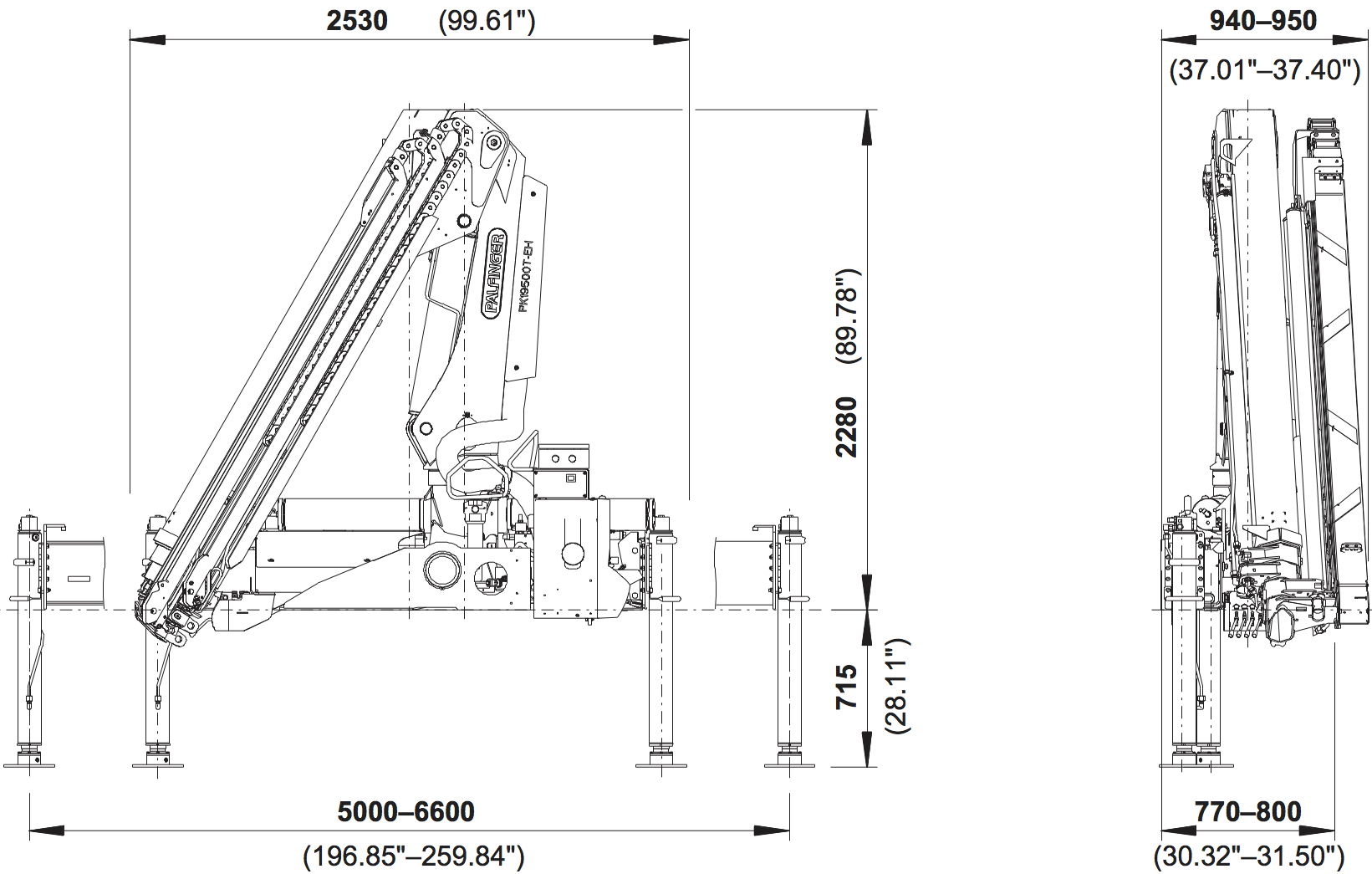

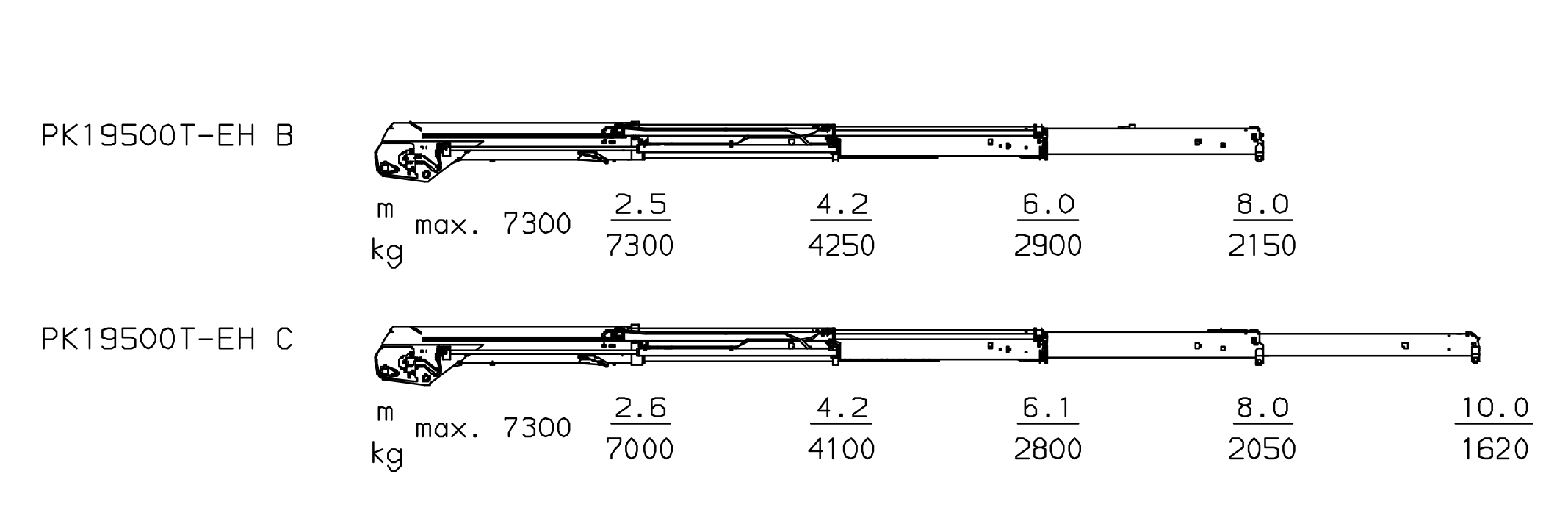

Lifting capacities
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| B | 2,280 mm | 1,576 kg | 2,530 mm | 770 mm | 17.2 mt | 8 m | 35 Mpa | 50-70 | 420 | 2.5 |
| C | 2,280 mm | 1,696 kg | 2,530 mm | 800 mm | 16.2 mt | 10 m | 35 Mpa | 50-70 | 420 | 2.5 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
PALTRONIC – Smart Crane Control
PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.
Low-Maintenance Extension System
Low-maintenance extension system eliminates the need for regular greasing by using self-lubricating synthetic sliding elements and corrosion-resistant coating. This keeps the boom clean, reduces service effort, and prevents lubricant contamination of loads or work areas. Smoother extension movements, lower maintenance costs, and longer service life improve overall efficiency and resale value.
HPLS – On-demand extra power
High Power Lifting System (HPLS) increases lifting capacity by up to 15% when required by automatically boosting hydraulic pressure. Lifting speed is reduced at the same time to maintain control and precision. This allows heavier loads to be handled safely, improves lift-to-weight performance, and reduces stress on the crane structure—helping extend service life and protect long-term value.
