Medium
PK 14.501K SLD 5
Loader Crane
Key Specs
- Max. lifting moment
- 14.6 mt
- Max. lifting capacity
- 6,200 kg
- Max. hydraulic outreach
- 11.7 m

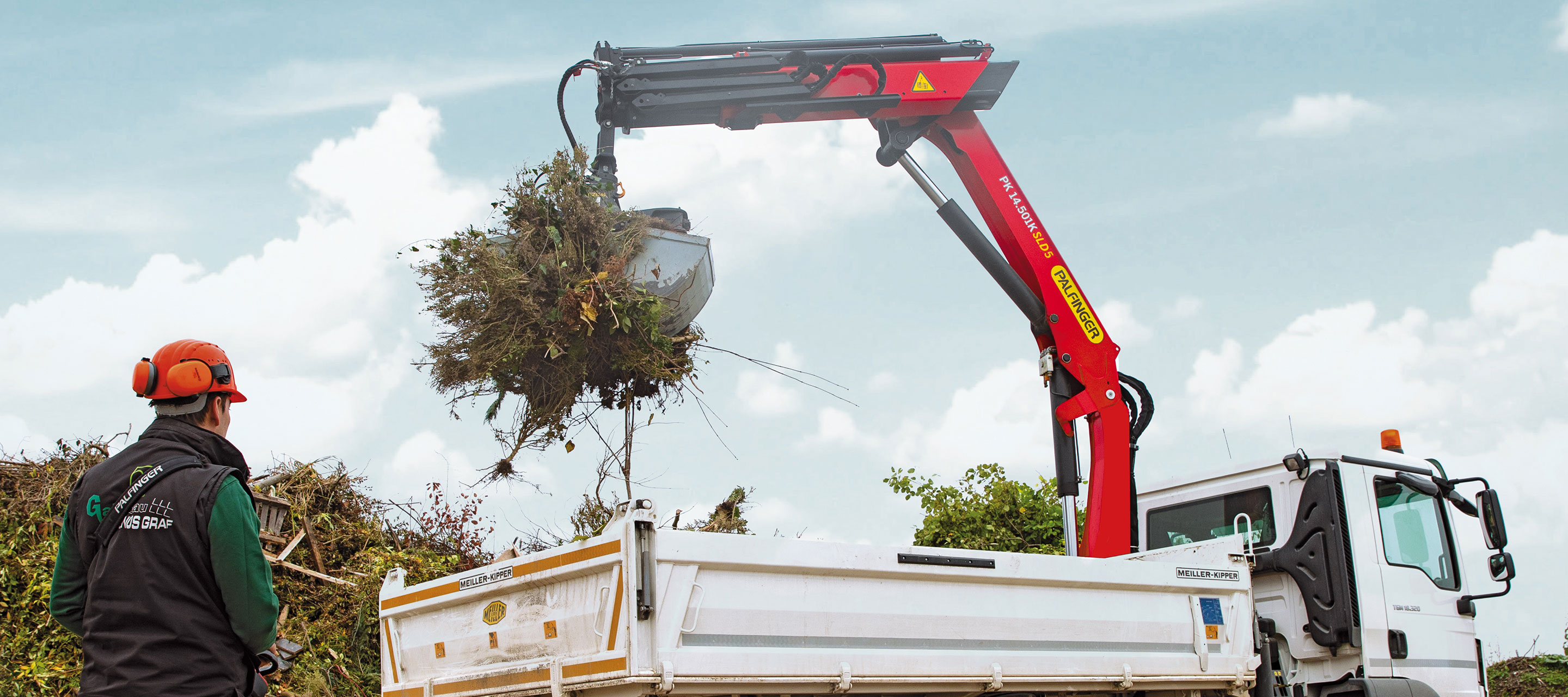

The SLD range combines trusted technology with durable design to deliver robust, value-driven performance. Powerful yet lightweight, the PK 14.501K SLD 5 offers reliable performance in varied tasks. The A-HPLS boosts lifting power for heavier loads while maintaining stability and precision – vital attributes for tight work sites.
Technical Specifications
Technical data
- Max. lifting moment
- 14.6 mt
- Max. lifting capacity
- 6,200 kg
- Max. hydraulic outreach
- 11.7 m
- Slewing angle
- 420°
- Slewing torque
- 1.6 mt

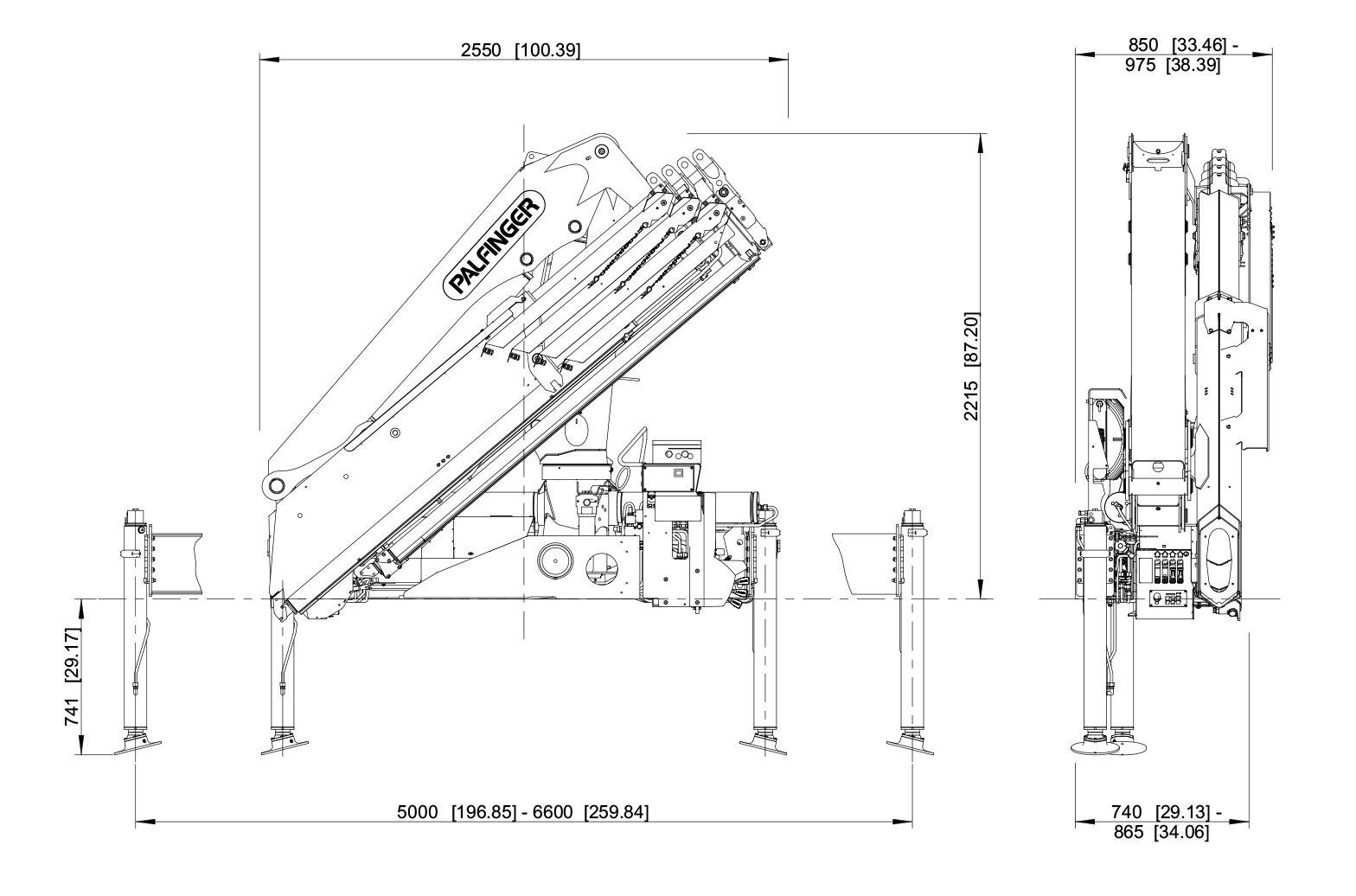

- Stabilizer spread (std)
- 5.0 m
- Fitting space required (std)
- 0.74 m
- Width folded
- 2.55 m
- Max. operating pressure
- 360 bar
- Pump capacity
- 50 - 70 l/min
- Dead weight (std)
- 1,510 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

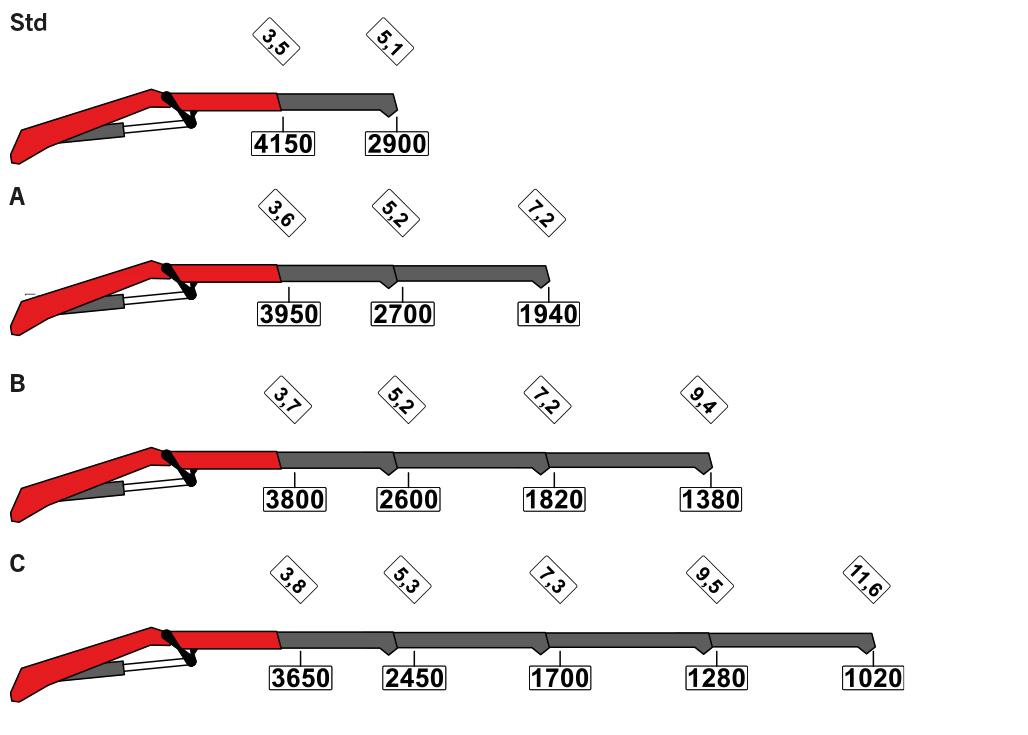

Lifting capacities
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 2,215 mm | 1,510 kg | 2,550 mm | 740 mm | 14.6 mt | 5.2 m | 36 Mpa | 50-70 | 420 | 1.6 |
| A | 2,215 mm | 1,660 kg | 2,550 mm | 740 mm | 14.3 mt | 7.3 m | 36 Mpa | 50-70 | 420 | 1.6 |
| B | 2,215 mm | 1,780 kg | 2,550 mm | 740 mm | 14 mt | 9.5 m | 36 Mpa | 50-70 | 420 | 1.6 |
| C | 2,215 mm | 1,890 kg | 2,550 mm | 740 mm | 13.7 mt | 11.7 m | 36 Mpa | 50-70 | 420 | 1.6 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
