Special

PK 12001 L

alt text
Loader Crane
Key Specs
Max. lifting moment
11.4 mt
Max. lifting capacity
4,800 kg
Max. hydraulic outreach
8.9 m

Our Performance cranes are engineered to handle building materials securely, offering high lifting capacity and convenient control. The streamlined PK 12001 L combines powerful lifting with low dead weight. The specially designed high seat ensures excellent operator visibility and supports safe, precise material handling.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

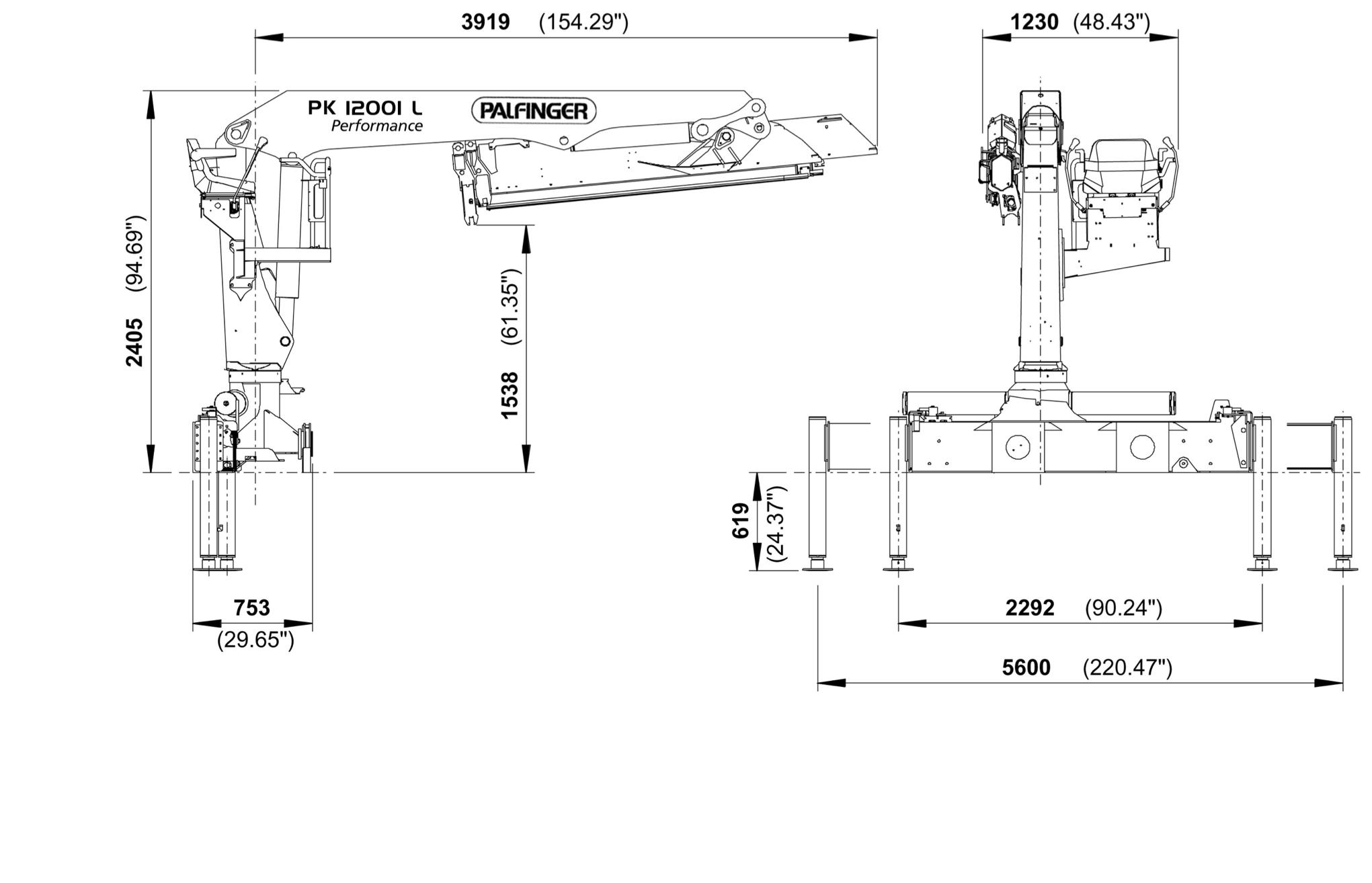

Diagrams

PK 12001 L

View
alt text

PK 12001 LA

View
alt text

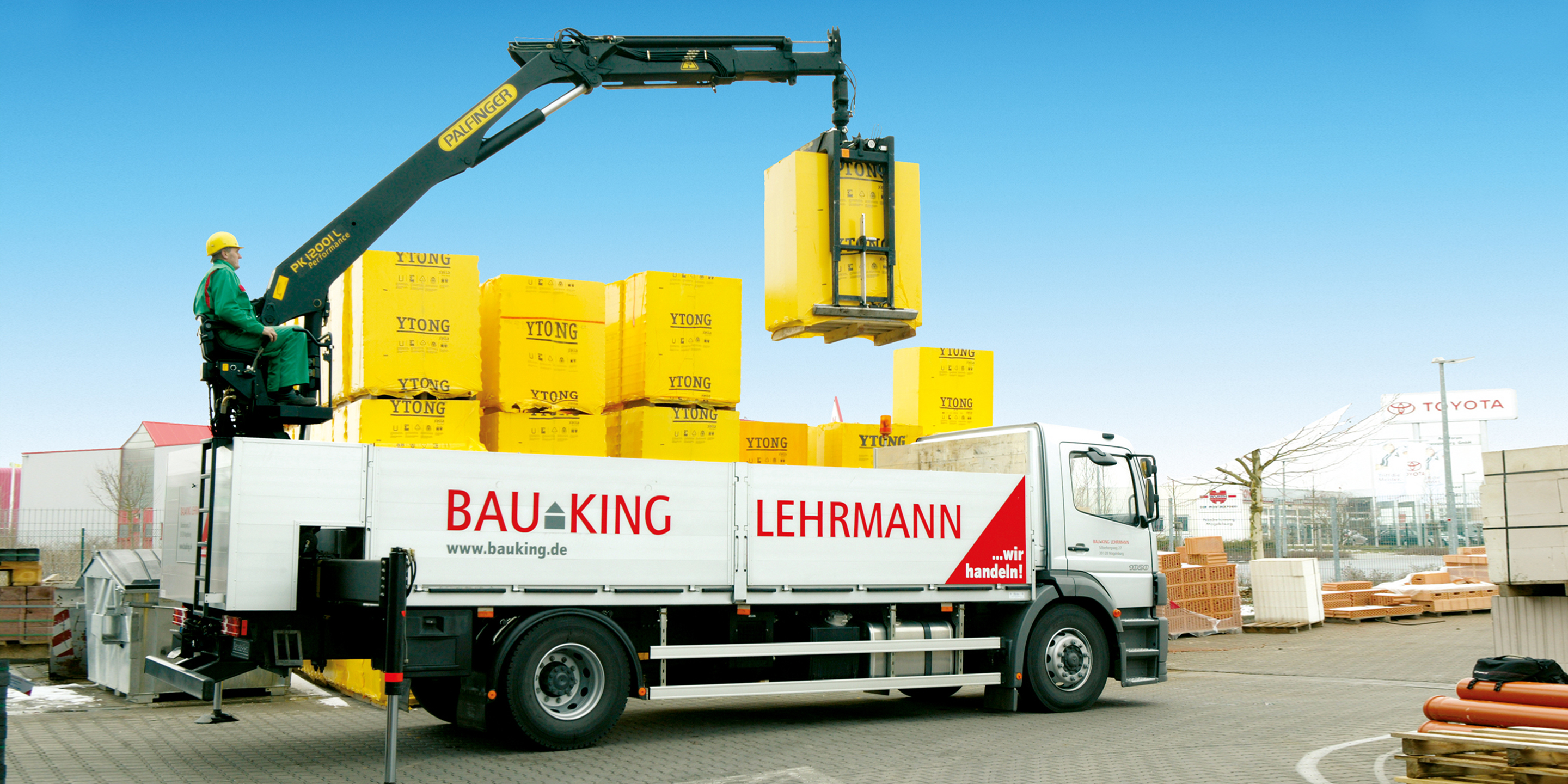

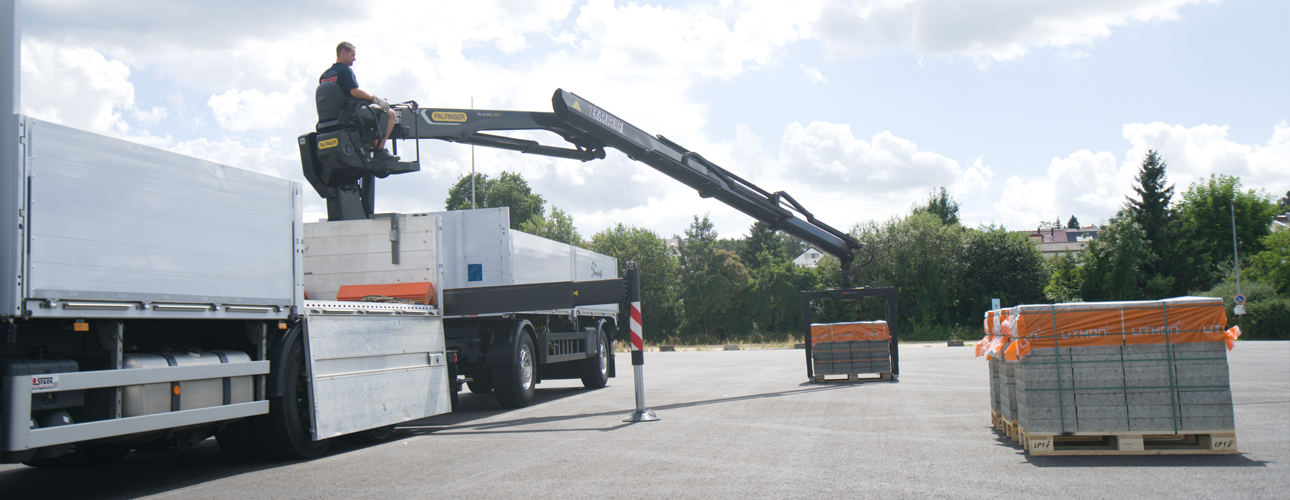

Swift and secure handling of construction materials

Our L cranes are built for swift and secure handling of construction materials to support efficient site operations. Combining a low dead weight with high lifting capacity and advanced ergonomic deatures, these loader cranes maximize productivity on fast-paced work sites. What’s more, the clear view from the operator’s high seat supports safe lifting.

alt text

Technical Specifications

alt text
Technical data
Max. lifting moment
11.4 mt
Max. lifting capacity
4,800 kg
Max. hydraulic outreach
8.9 m
Slewing angle
420°
Slewing torque
1.5 mt
Stabilizer spread (std)
5.6 m
Width folded
2.5 m
Max. operating pressure
300 bar
Pump capacity
30 - 50 l/min
Dead weight (std)
1,597 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

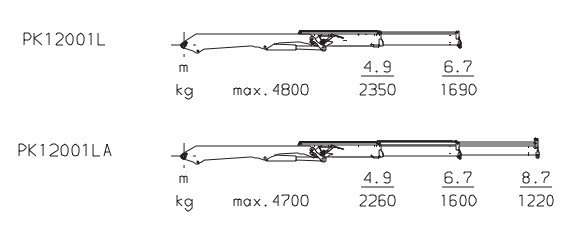

Lifting capacities

Crane Height (mm)

Crane Weight (kg)

Crane Width (mm)

Lifting moment (mt)

Outreach (m)

Pressure (MPa)

Pump capacity (l/min)

Slewing angle (°)

Slewing torque (mt)
Std 2,405 mm 1,597 kg 2,480 mm 11.4 mt 6.9 m 30 Mpa 30-50 420 1.5
A 2,405 mm 1,712 kg 2,480 mm 10.9 mt 8.9 m 30 Mpa 30-50 420 1.5
alt text

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Discover Standard Features

Low-Maintenance Extension System

Low-maintenance extension system eliminates the need for regular greasing by using self-lubricating synthetic sliding elements and corrosion-resistant coating. This keeps the boom clean, reduces service effort, and prevents lubricant contamination of loads or work areas. Smoother extension movements, lower maintenance costs, and longer service life improve overall efficiency and resale value.

alt text

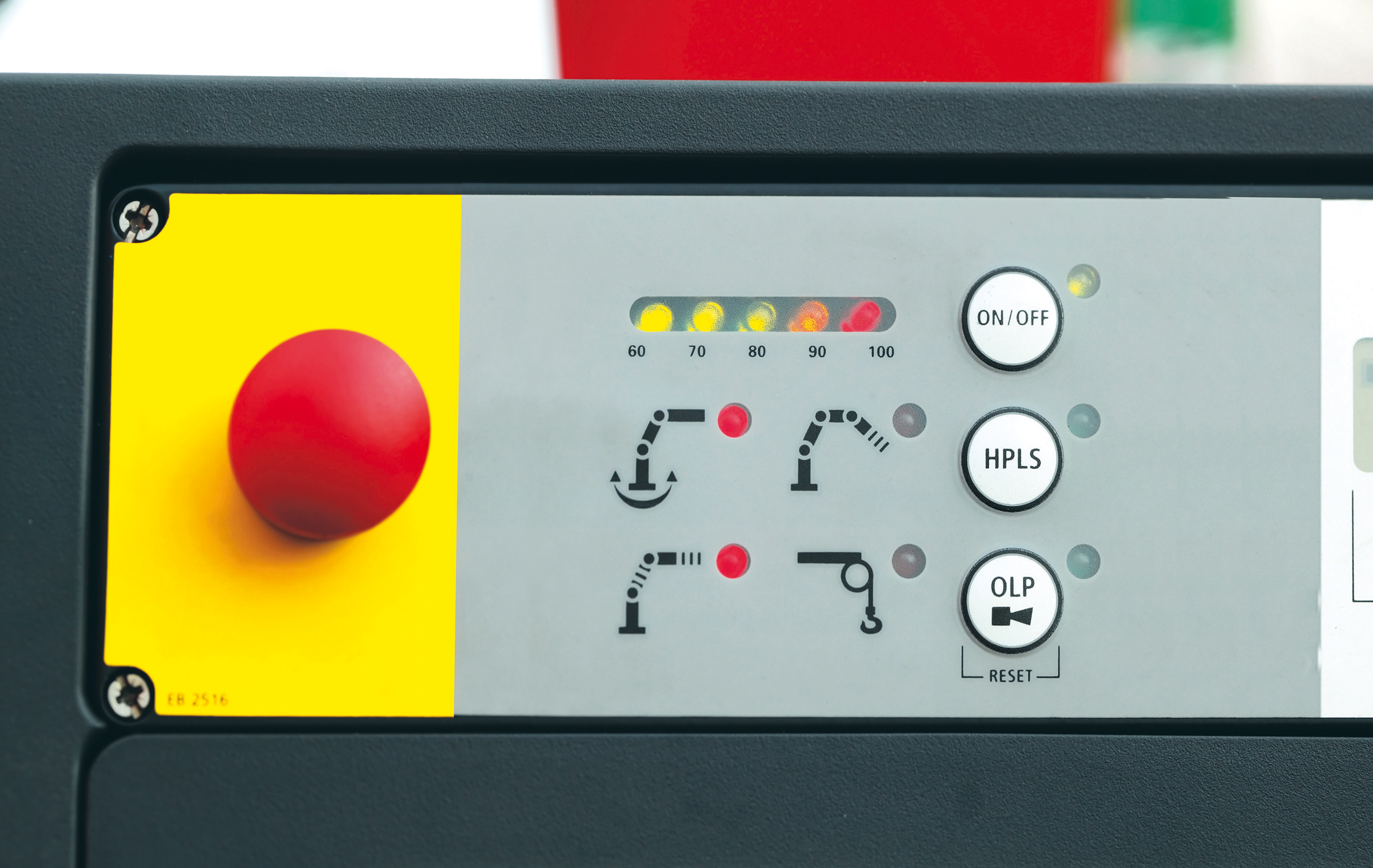

PALTRONIC – Smart Crane Control

PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.

alt text

Optional Features

alt text

HPSC – Smart Stability, More Reach

High Performance Stability Control (HPSC) continuously calculates crane stability based on the real position of the stabilizers. The system automatically adjusts the permitted working range for each setup situation, maximizing the lifting capacity even when space is limited. This improves safety, increases usable reach, and gives the operator clear, reliable guidance during crane operation.
