Light
PK 10000
Loader Crane
Key Specs
- Max. lifting moment
- 9.5 mt
- Max. lifting capacity
- 5,700 kg
- Max. hydraulic outreach
- 12.5 m

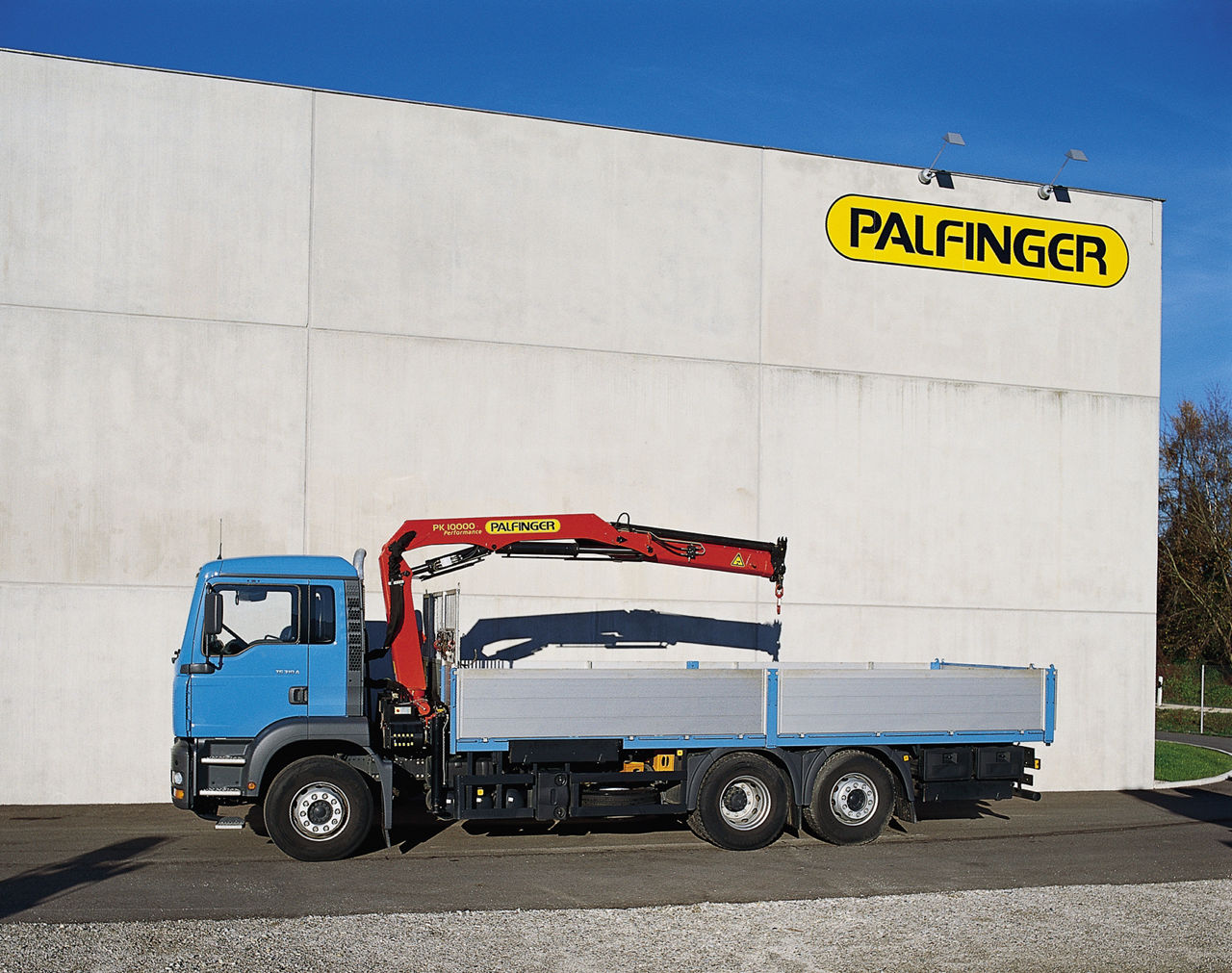

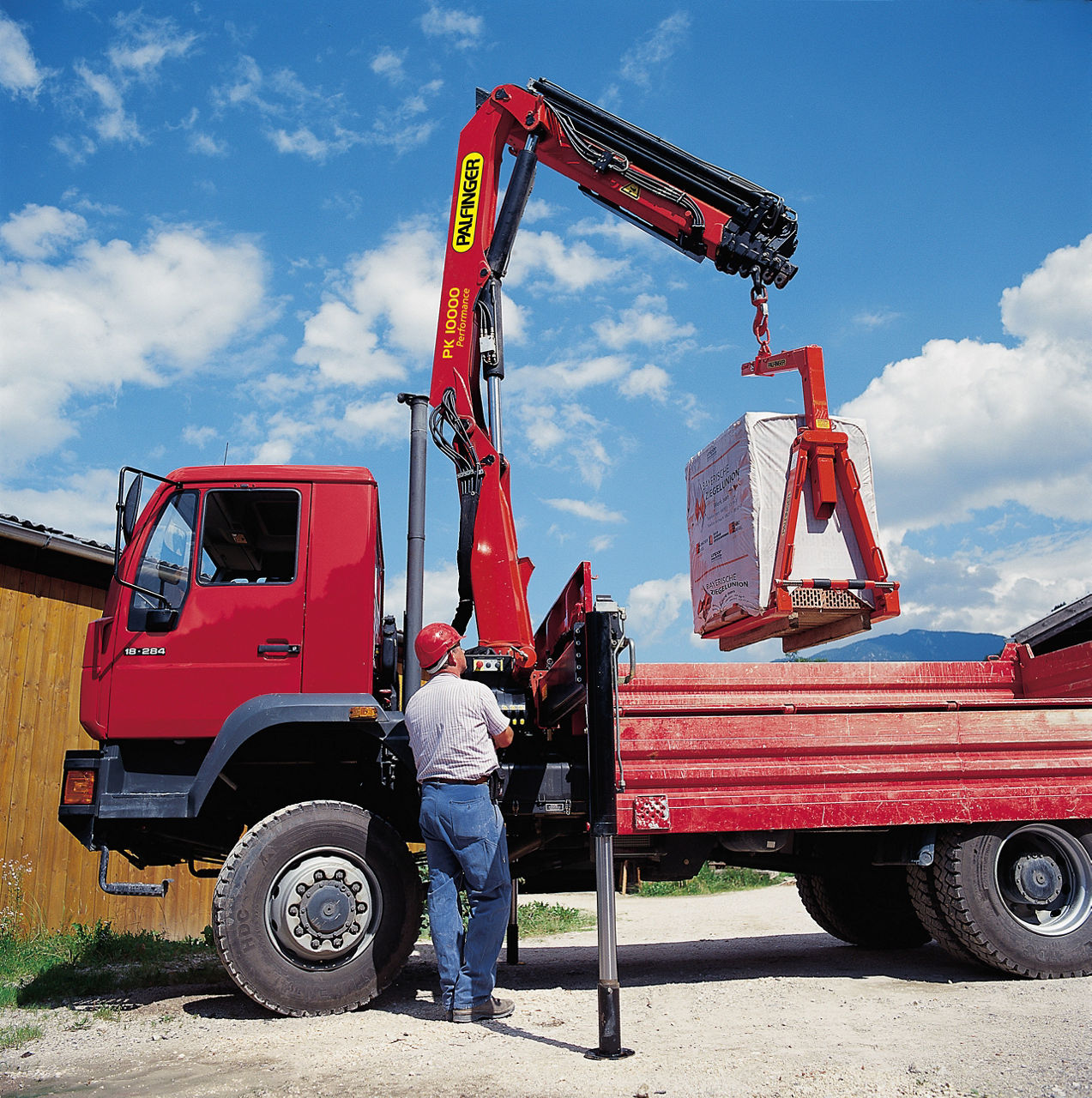

Our Performance cranes are engineered to handle building materials securely, offering high lifting capacity and convenient control. The PK 10000 offers the best weight-to-lifting ratio in its class. Its hexagonal boom profile creates a rigid structure for superior stability, ideal for efficient performance in day-to-day lifting.
Technical Specifications
Technical data
- Max. lifting moment
- 9.5 mt
- Max. lifting capacity
- 5,700 kg
- Max. hydraulic outreach
- 12.5 m
- Slewing angle
- 400°
- Slewing torque
- 1.2 mt
- Stabilizer spread (std)
- 10' 9"
- Fitting space required (std)
- 0.7 m
- Width folded
- 2.5 m
- Max. operating pressure
- 315 bar
- Pump capacity
- 30 - 45 l/min
- Dead weight (std)
- 1,031 kg
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting capacities
|
Crane Height (mm) |
Crane Weight (kg) |
Crane Width (mm) |
Installation Width (mm) |
Lifting moment (mt) |
Outreach (m) |
Pressure (MPa) |
Pump capacity (l/min) |
Slewing angle (°) |
Slewing torque (mt) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 2,016 mm | 1,031 kg | 2,415 mm | 657 mm | 9.5 mt | 6.2 m | 31.5 Mpa | 30 - 45 | 400 | 1.20 |
| A | 2,016 mm | 1,129 kg | 2,440 mm | 657 mm | 9.2 mt | 8.2 m | 31.5 Mpa | 30-45 | 400 | 1.20 |
| B | 2,016 mm | 1,232 kg | 2,500 mm | 657 mm | 8.9 mt | 10.3 m | 31.5 Mpa | 30-45 | 400 | 1.20 |
| C | 2,016 mm | 1,327 kg | 2,500 mm | 657 mm | 8.6 mt | 12.5 m | 31.5 Mpa | 30-45 | 400 | 1.20 |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
High Speed Extension – Faster Cycles
High Speed Extension increases boom extension and retraction speed by up to 30% by reusing return oil within the hydraulic system. Faster movements reduce load cycle times and improve overall productivity. The crane completes more work in less time without compromising control or precision.
Optional Features
Radio Remote Control – Full Control
Radio remote control system operates the crane safely and efficiently from a distance. Operator commands are transmitted wirelessly delivering precise hydraulic movements. This enables clear visibility of the load, one-person operation, and allows work outside danger zones. Adjustable controls, speed settings, and built-in safety shutoffs improve comfort, accuracy, and overall job site safety.
PALTRONIC – Smart Crane Control
PALTRONIC control electronics continuously monitor crane load, position, and stability in real time. Sensors send data to the system, which automatically activates safety, assistance, and performance functions when needed. This results in smoother movements, overload protection, improved stability, and easier operation—allowing the operator to focus fully on safe, precise load handling.
