GENERATION 3

TZ12

Generation 3 Z-Type Crane

alt text

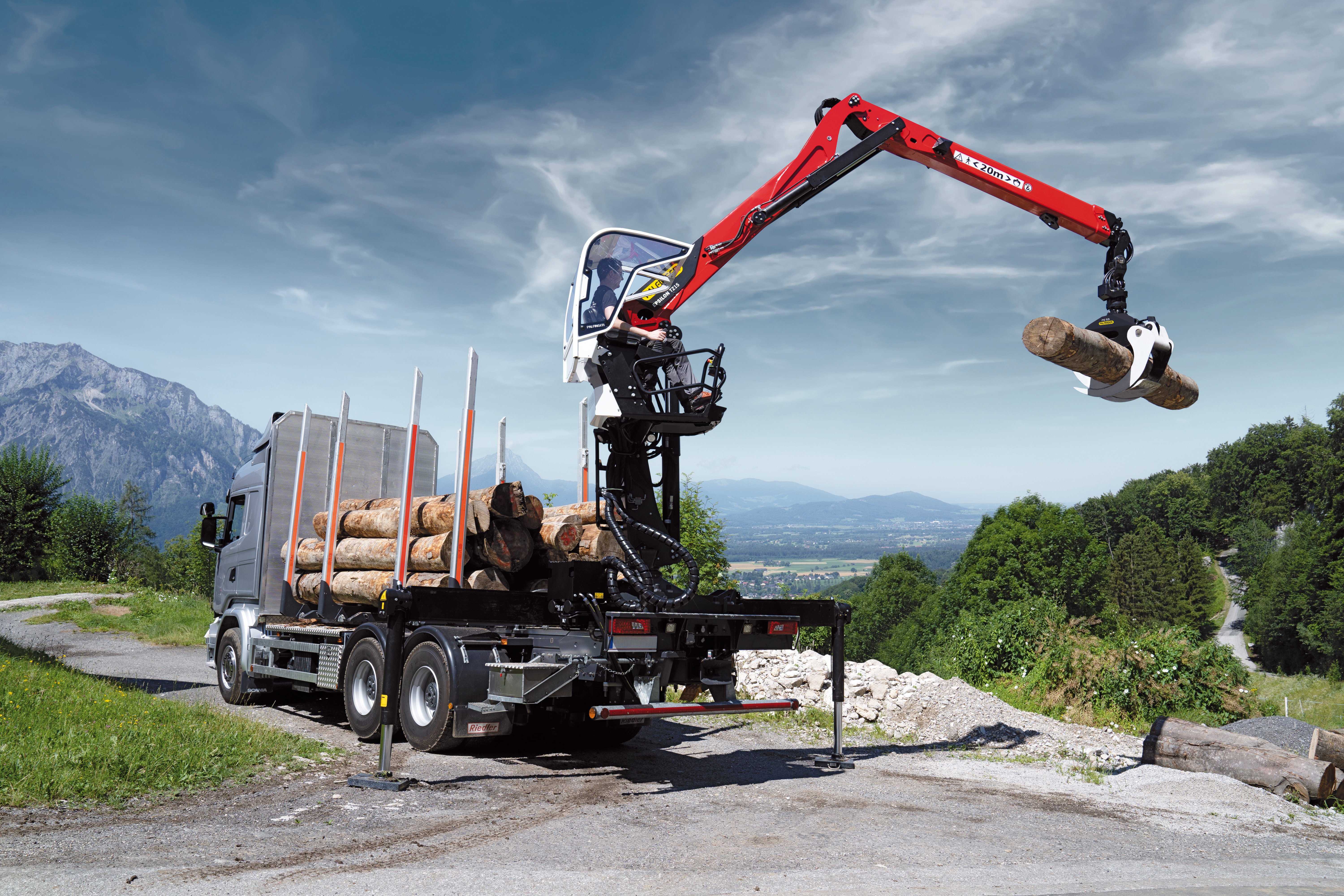

Epsilon Timber and Recycling Crane
Key Specs
Max. outreach
10.9 m
Max. lifting moment
109 kNm
Dead Weight
2,270 kg

This Z-type crane has a lifting capacity of 12 metric tons and comes in three arm lengths: 8.6 m, 9.8 m and 10.9 m. Featuring the longest outreach in its class and a protected hydraulic system, the high-performing TZ12 offers five control methods and optional PALFINGER Smart Control.

*Depending on the variant and equipment selected.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

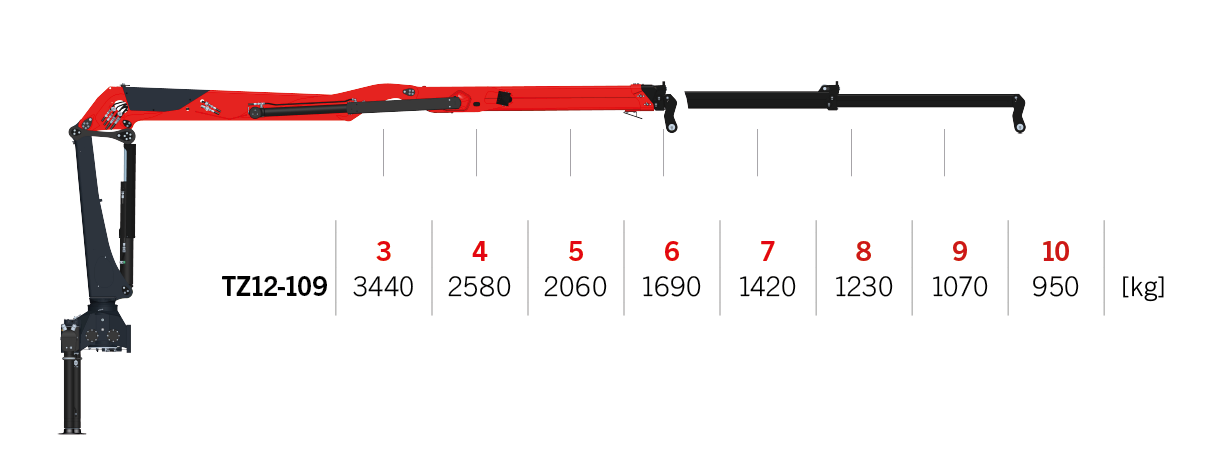

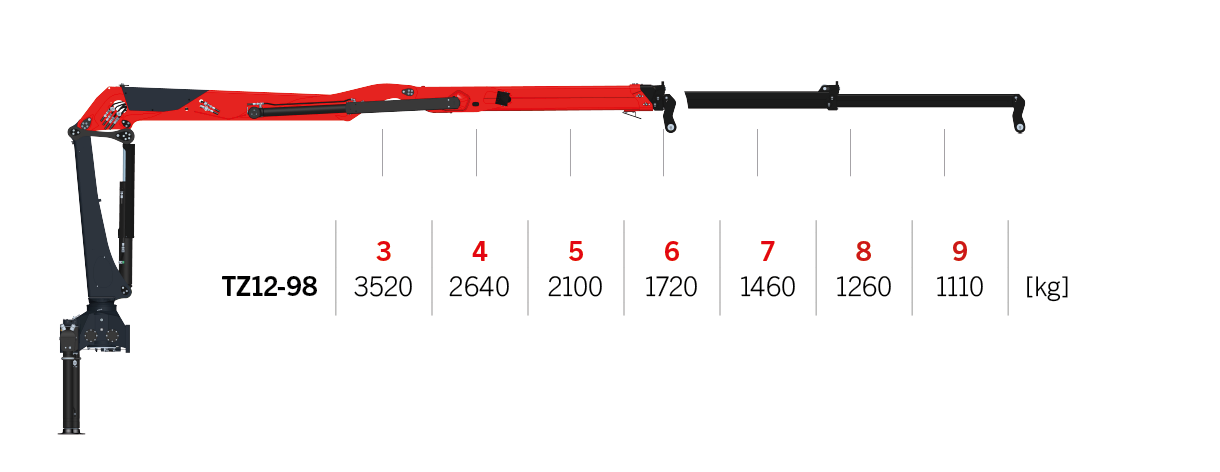

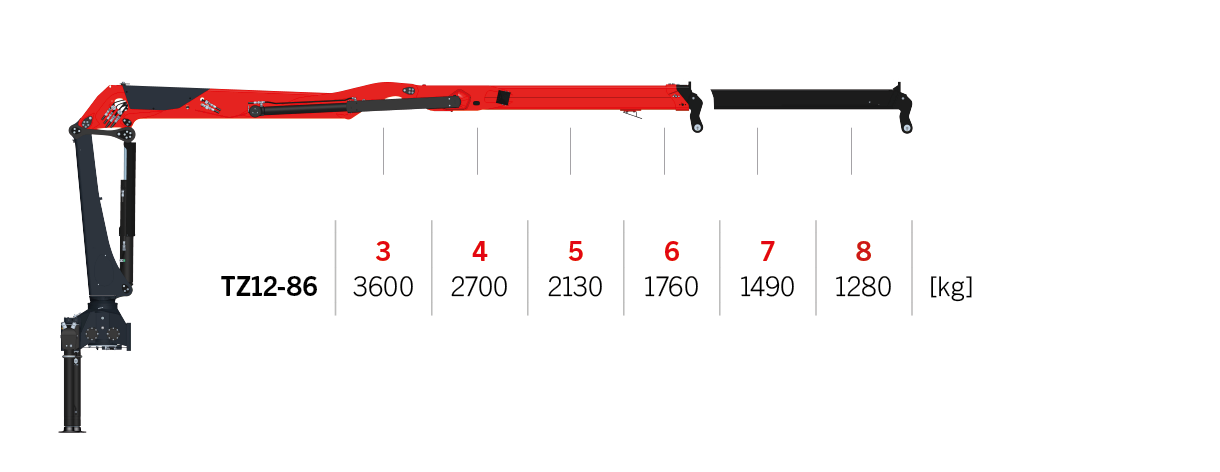

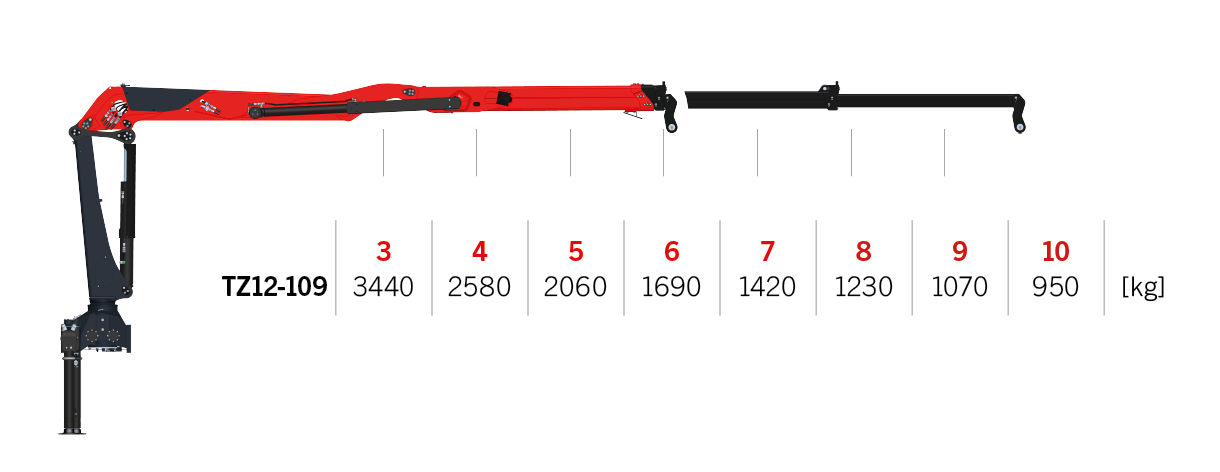

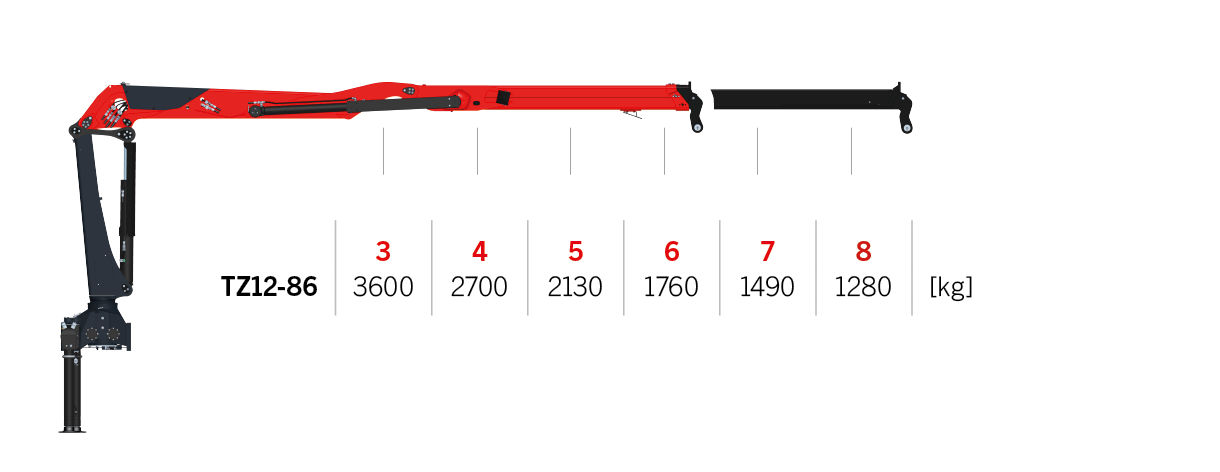

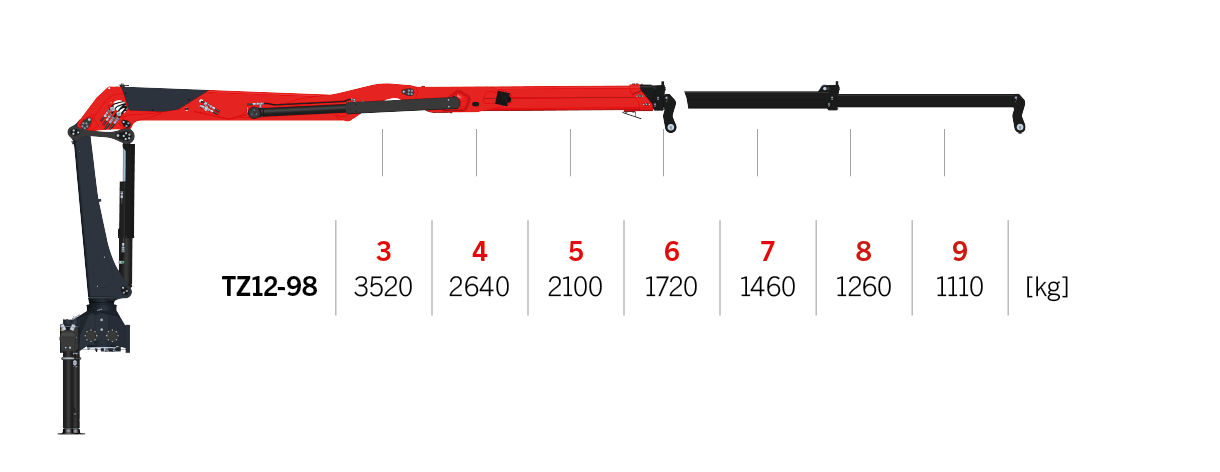

Diagrams

View
alt text

View
alt text

View
alt text

Intelligent, intuitive solutions

Smart Control – PALFINGER’S boom tip control system – makes crane operation easier, more intuitive, and faster than ever. Its integrated electronic end stop damper also significantly reduces wear on the main components.

Smart Control and integrated electronic end stop damper for the crane functions

Smart control

PALFINGER’S new boom tip control system, Smart Control, is available as an optional feature. It makes crane operation easier, more intuitive, and faster than ever.



Rather than controlling each cylinder individually, crane operators can now concentrate exclusively on the boom tip.

Smart Control also makes it possible to exploit the crane’s full mechanical capabilities in every situation by ensuring that key movement parameters are optimized and coordinated in every position.



This enhances efficiency and alleviates operator fatigue. Easing the physical burden on operators helps to prevent accidents and markedly reduce training times.



In addition, the integrated electronic end stop damper significantly reduces wear on the main components.



As always, PALFINGER EPSILON has paid close attention to creating products that are easy to service. The sensors, for example, can be maintained and replaced without removing the hydraulic cylinders.

alt text

Limit position damper

In addition, the integrated electronic limit position damper helps to significantly reduce wear on the main components.

With this latest product, too, PALFINGER EPSILON has once again given a lot of attention to service-friendliness. The sensors, for example, can be maintained and replaced without the hydraulic cylinders also having to be removed.

alt text
alt text

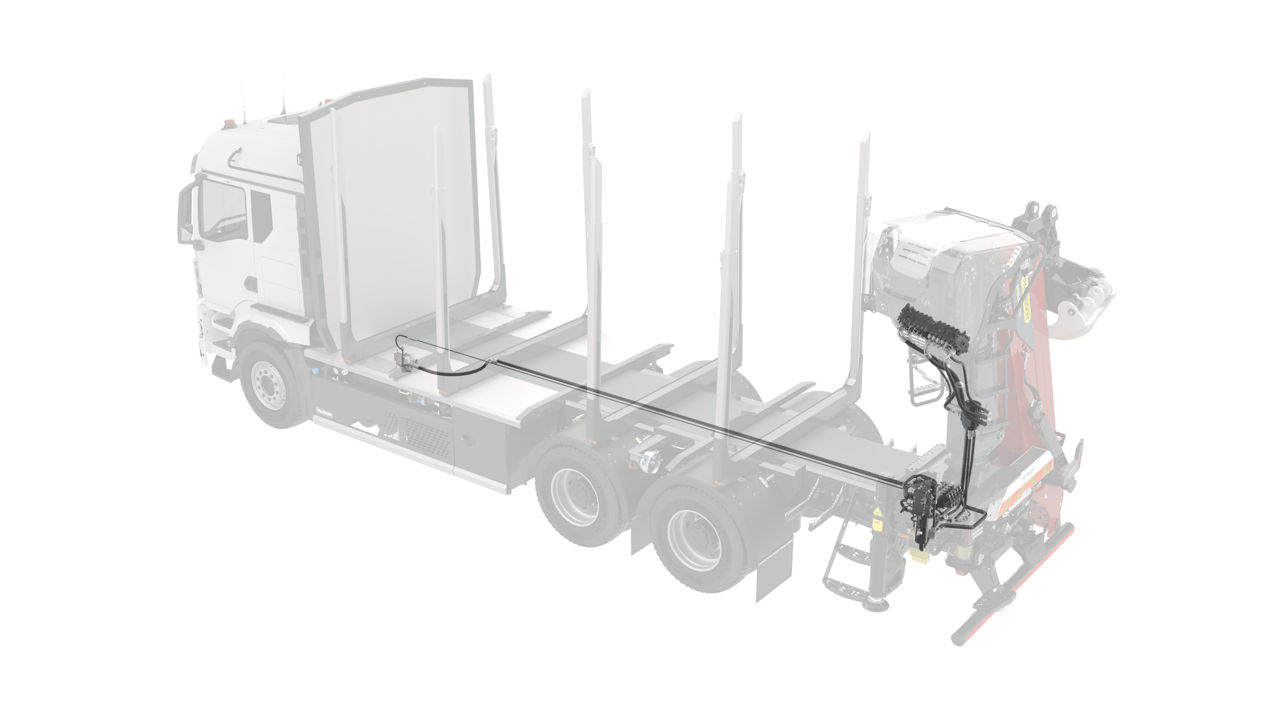

The fastest in their class

High performance: Load Sensing (LS) enables operators to work up to 12% faster and drives up efficiency.

GENERATION 3 models feature piping and hoses with larger cross-sections along with optimized hydraulic matching, newly

developed telescopic cylinders, and specifically adapted cylinder dimensions. The result? Fast and precise crane movements. In fact, GENERATION 3 models are up to 12% faster than their predecessors.



The Load Sensing (LS) system is available as an optional extra.
alt text

Protected hydraulic routing

Epslink, Epscope, internal hose routing (HPI), and outstanding stability represent an ideal combination.

EPSLINK

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

alt text

EPSCOPE

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

alt text

HPI

Our Hose Package Inside (HPI) design system provides optimal protection against external influences. It significantly reduces the risk of mechanical damage, such as when working in a dense, overgrown forest.

Flexible hoses connect the hydraulics to a slewing distributor, ensuring maximum performance with the highest possible flexibility.

The introduction of GENERATION 3 has already brought about numerous other improvements to the hose package, further cutting and compensating for wear caused by use and making maintenance as straightforward as possible.

alt text

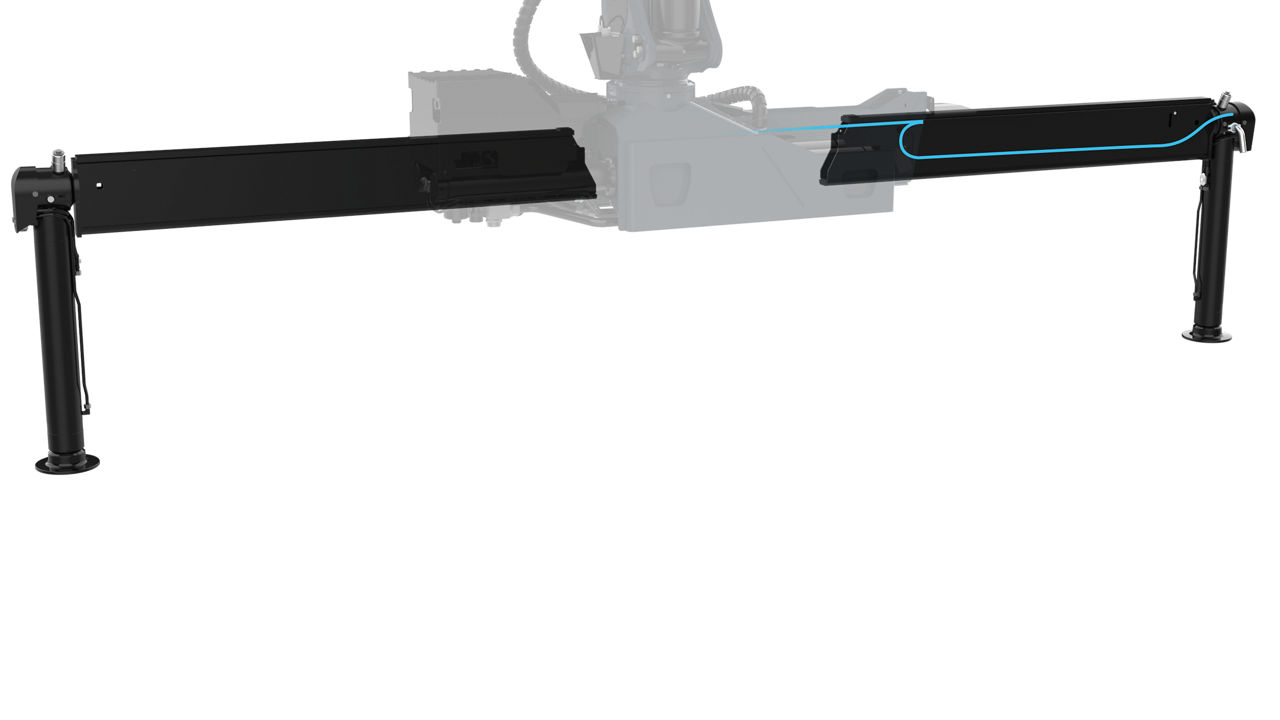

Outriggers

The new GENERATION 3 is available with support widths of 3.9 to 5.4 meters. This ensures excellent stability during use, making it possible to utilize the crane’s maximum lifting capacity. The full-length outriggers are now even more robust than on previous models – delivering an extended service life as standard.

alt text
alt text

The longest reach

New boom systems permit a previously impossible reach of up to 10.9 meters – making them the longest and strongest in their class.

alt text

Highlights

Central Greasing System

Grease volume reduced by up to 80%

Greasing has never been so easy

The Central Greasing System supplies all key systems, allowing the operator to focus on the task at hand. Automatic greasing eliminates the risk of lubrication points being overlooked, which significantly increases the service life of bronze bearings. The hoses and distributors in this optional feature are integrated into the crane’s structure to protect them against damage.

alt text

With automatic greasing, a central electric grease pump supplies the grease distribution system. It automatically inputs a defined quantity every 30 minutes to ensure smooth operation. This highly efficient system only uses grease where it is needed – meaning that, on average, 2 kg of grease is sufficient for one year of operation (based on 1,000 operating hours per year).
alt text

LED360

We offer the option of six floodlights – with an output of 3000 lumens each – mounted on the top seat for 360° illumination of the work area. This makes working in low-light conditions far more productive and much safer. These floodlights can also be switched on from the truck.

The LED360 system comprises six LED lights on the control stand and a further two LED lights on the knuckle boom, with an output of 3,000 lumen per light.

This provides 360° illumination of the work area for optimized visibility in low-light conditions and inclement weather. These durable, premium-quality LED lighting systems support safe access to the control stand and can be operated from the truck cabin.

alt text
alt text

Technical Specifications

Technical Data

Telescopic boom length

Number of extensions

Net load moment [kNm]

Net slewing torque [kNm]

Slewing angle [°]

Max. reach [m]

Operating pressure [bar]

Max. pump capacity. 1K [l/min]

Max. pump capacity. 2K [l/min]

Max. pump capacity. 1K-LS [l/min]
109 dm 2 104 kNm 28 kNm 425 ° 10.9 m 260 bar 1x80 2x70 1x150
86 dm 1 109 kNm 28 kNm 425 ° 8.6 m 260 bar 1x80 2x70 1x150
98 dm 2 105 kNm 28 kNm 425 ° 9.8 m 260 bar 1x80 2x70 1x150
Dead weight without joint/rotator

Telescopic boom length [dm]

Classic Drive

Comfort Drive

Comfort CAB

TEC CAB
109 dm 2,370 kg 2,460 kg 2,960 kg 2,960 kg
86 dm 2,270 kg 2,360 kg 2,860 kg 2,860 kg
98 dm 2,310 kg 2,400 kg 2,900 kg 2,900 kg

Control Methods

alt text

Comfort Drive (topseat)

The command center for professionals.

The Comfort Drive control system features ergonomic arm rests with fold-down joysticks, set in a spacious seat. The protective frame and cover supplement this comfort with enhanced safety.



Optional equipment for harsh environments is also available – such as a heated seat and backrest to optimize operator comfort.

alt text

The optional Epshood thermoplastic protector shields the operator from sun, wind, rain, and snow.
