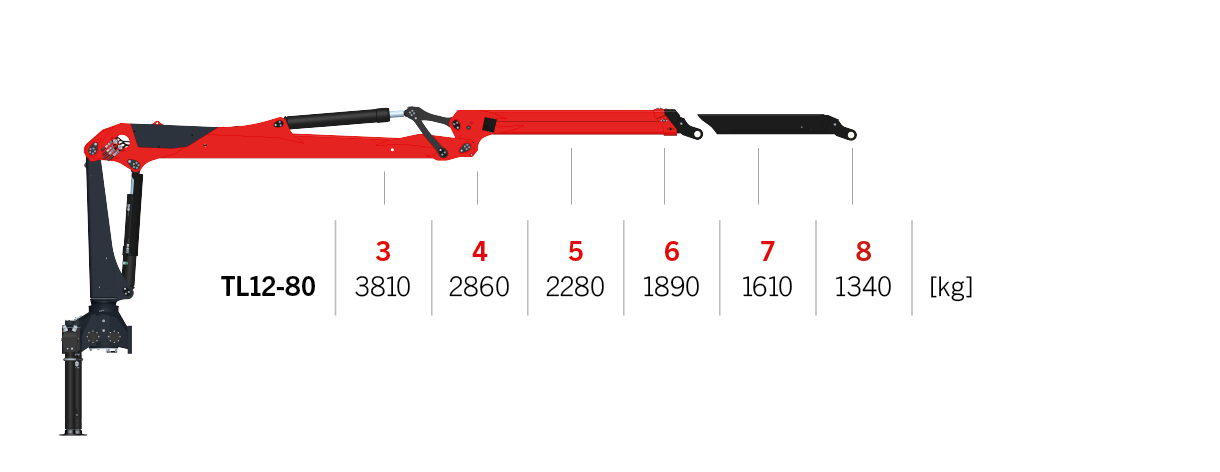

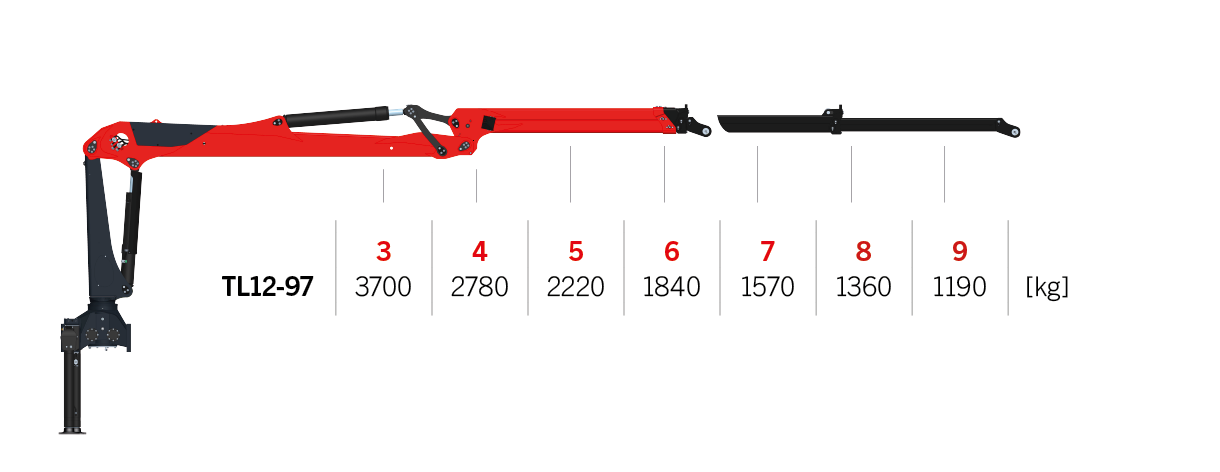

TL 12

PALFINGER’S new boom tip control system, Smart Control, is available as an optional feature. It makes crane operation easier, more intuitive, and faster than ever.

Rather than controlling each cylinder individually, crane operators can now concentrate exclusively on the boom tip.

Smart Control also makes it possible to exploit the crane’s full mechanical capabilities in every situation by ensuring that key movement parameters are optimized and coordinated in every position.

This enhances efficiency and alleviates operator fatigue. Easing the physical burden on operators helps to prevent accidents and markedly reduce training times.

In addition, the integrated electronic end stop damper significantly reduces wear on the main components.

As always, PALFINGER EPSILON has paid close attention to creating products that are easy to service. The sensors, for example, can be maintained and replaced without removing the hydraulic cylinders.

In addition, the integrated electronic limit position damper helps to significantly reduce wear on the main components.

With this latest product, too, PALFINGER EPSILON has once again given a lot of attention to service-friendliness. The sensors, for example, can be maintained and replaced without the hydraulic cylinders also having to be removed.

GENERATION 3 models feature piping and hoses with larger cross-sections along with optimized hydraulic matching, newly

developed telescopic cylinders, and specifically adapted cylinder dimensions. The result? Fast and precise crane movements. In fact, GENERATION 3 models are up to 12% faster than their predecessors.

The Load Sensing (LS) system is available as an optional extra.

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

Our Hose Package Inside (HPI) design system provides optimal protection against external influences. It significantly reduces the risk of mechanical damage, such as when working in a dense, overgrown forest.

Flexible hoses connect the hydraulics to a slewing distributor, ensuring maximum performance with the highest possible flexibility.

The introduction of GENERATION 3 has already brought about numerous other improvements to the hose package, further cutting and compensating for wear caused by use and making maintenance as straightforward as possible.

The new GENERATION 3 is available with support widths of 3.9 to 5.4 meters. This ensures excellent stability during use, making it possible to utilize the crane’s maximum lifting capacity. The full-length outriggers are now even more robust than on previous models – delivering an extended service life as standard.
