Epsolution

S110F

Heavy-Duty Offroad Timber Forwarder

alt text
Epsilon Timber and Recycling Crane
Key Specs
Max. outreach
10.5 m
Max. lifting moment
104 kNm
Dead Weight
1780 kg

This offroad forwarder crane from our Epsolution range has a lifting capacity of 11 metric tons and is available in four arm lengths: 8.0 m, 8.6 m, 10.1 m, and 10.3 m. The S110F features Epscope, Epslink, and Epslight technologies along with a double slewing system.

*Depending on the variant and equipment selected.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

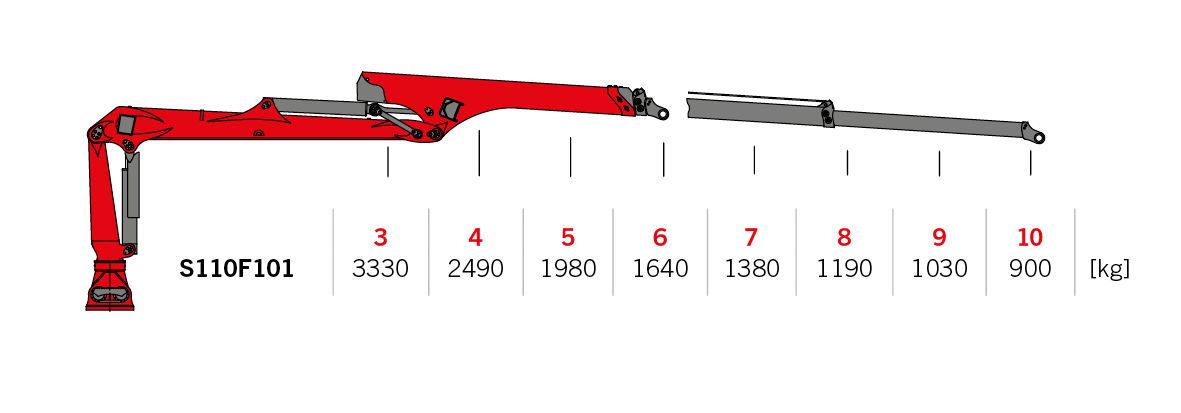

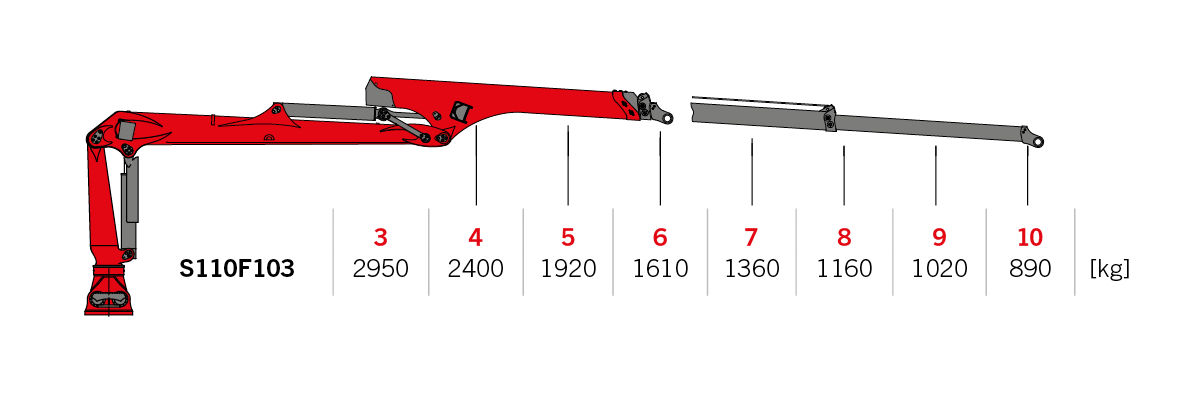

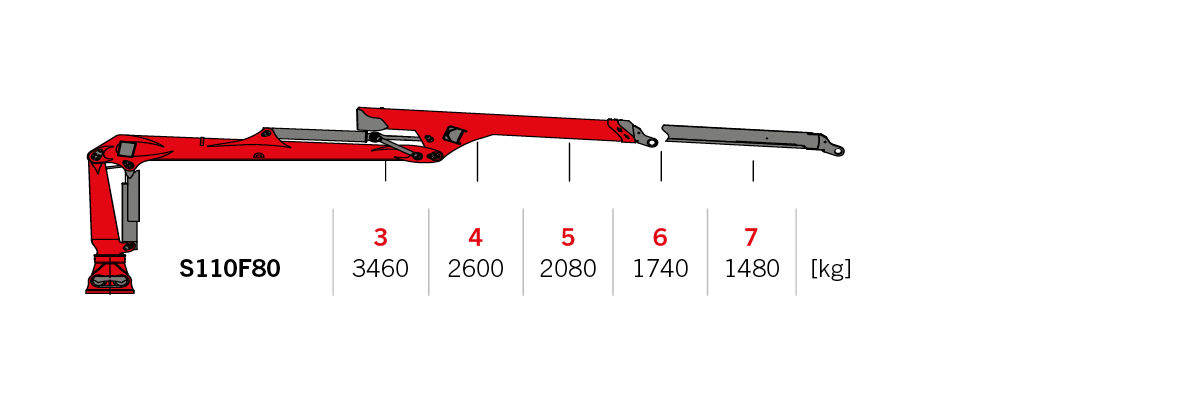

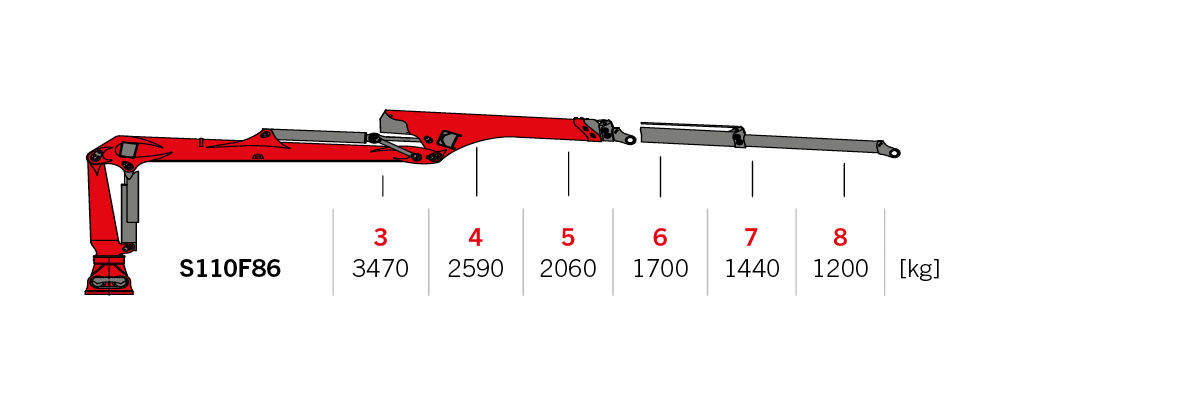

Diagrams

View
alt text

View
alt text

View
alt text

View
alt text

Protected hydraulic routing

Epslink and Epscope combine to deliver unmatched performance.

Protected hydraulic guide

EPSLINK

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

alt text

EPSCOPE

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

alt text
alt text

Highlights

Double slewing system

The double slewing system features a limit position damper and provides an outstanding torque rating. The high-precision toothed-rack slewing system delivers excellent slewing power, while the self-aligning roller bearing is sealed in an oil bath for reliable performance.

Protected hydraulic guide

EPSLINK

HPI

Outriggers
alt text

Epslight

The Epslight solution draws on the latest LED technology, comprising significantly smaller headlights protected by a cover. Forwarder cranes feature four lights, while skidder cranes feature two.

Protected hydraulic guide

EPSLINK

HPI

Outriggers
alt text

Technical Specifications

Technical Data

Telescopic boom length

Number of extensions

Net load moment [kNm]

Net slewing torque [kNm]

Slewing angle [°]

Max. reach [m]

Operating pressure [bar]

Max. pump capacity. 1K-LS [l/min]

Slewing angle [°]
101 dm 2 100 kNm 36 kNm 0 ° 10.1 m 240 bar 150 205 / 240 / 385
103 dm 2 96 kNm 36 kNm 0 ° 10.3 m 240 bar 150 205 / 240 / 385
80 dm 1 104 kNm 36 kNm 0 ° 8 m 240 bar 150 205 / 240 / 385
86 2 104 36 8.6 150 205 / 240 / 385
Dead weight without joint/rotator

Telescopic boom length [dm]

Incl. Standard top/side seat

Crane only
101 dm 1,890 kg 1,920 kg
103 dm 1,945 kg
80 dm 1,780 kg
86 1,830 kg

Control Methods

alt text
External Control

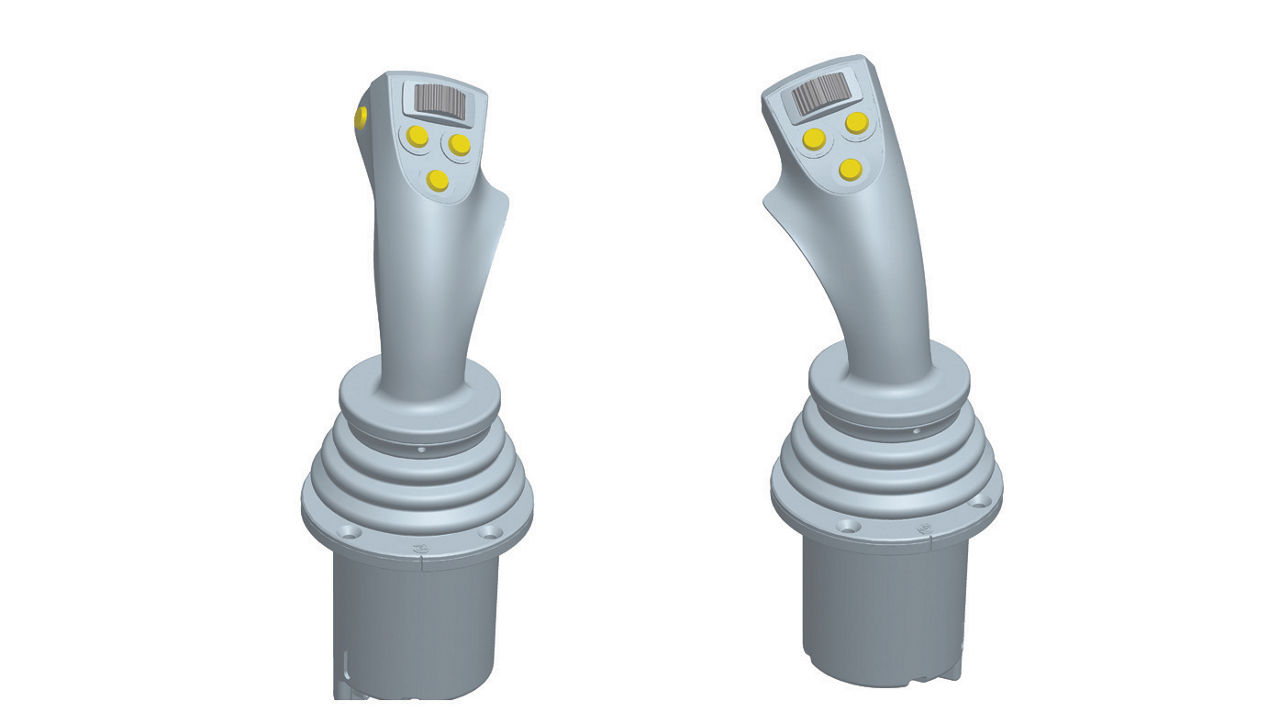

External Control with Joysticks

This optional hydraulic setup permits crane operation from the cabin of another vehicle – ideal for offroad applications.

External Control

Operate your crane from the cabin of another vehicle with our convenient External Control solution. It features a Danfoss control valve mounted on a slewing cylinder, along with two Danfoss joysticks, and a 10 m cable – suitable for DM8H, DM9F, and DM10F configurations.
