Epsolution

M100Z

Medium-Duty Z-Type Recycling Crane

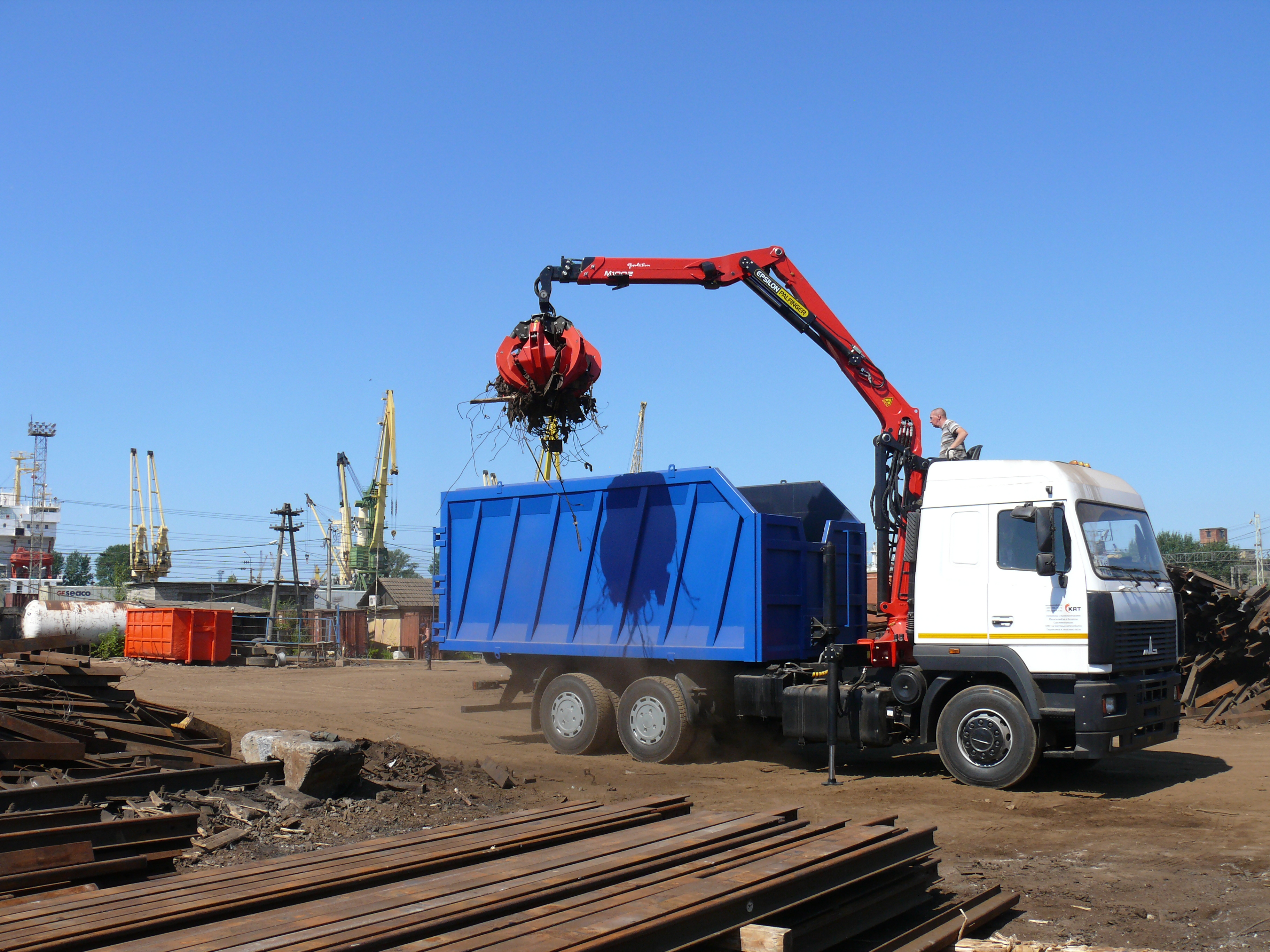

alt text
Epsilon Timber and Recycling Crane
Key Specs
Max. outreach
9.6 m
Max. lifting moment
94 kNm
Dead Weight
2100 kg

This Z-type recycling crane from our Epsolution range has a lifting capacity of 10 metric tons and is available in four arm lengths: 7.7 m, 7.9 m, 8.2 m, and 9.6 m. The M100Z features Epscope and Epslink, can be equipped with EasyFold, and offers six different control methods.

*Depending on the variant and equipment selected.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Diagrams

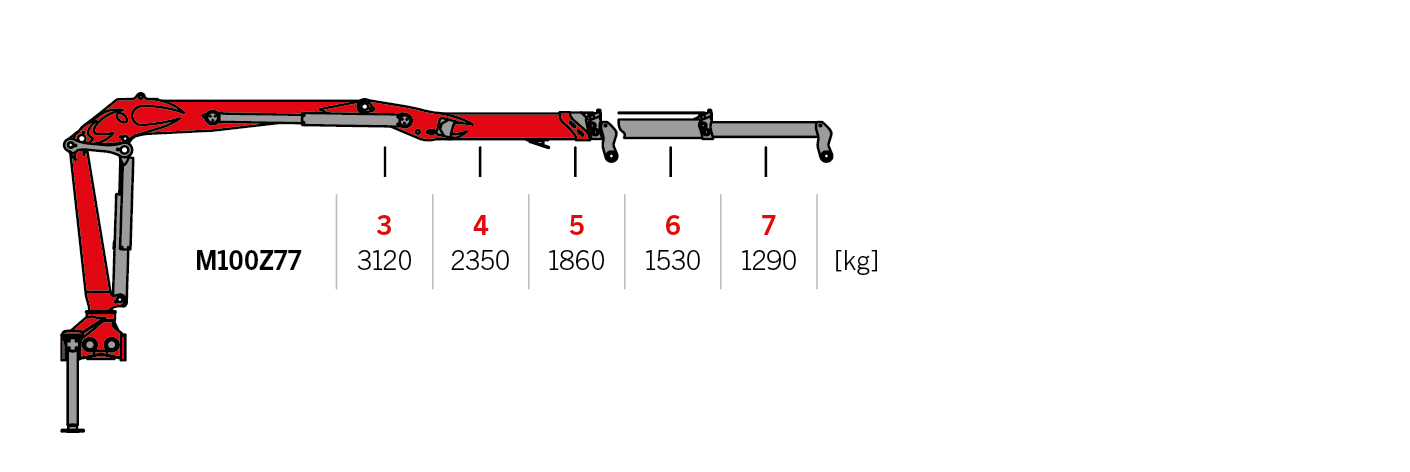

View
alt text

View
alt text

View
alt text

View
alt text

View

View

View

Protected hydraulic routing

Epslink and Epscope combine to deliver unmatched performance.

Protected hydraulic guide

EPSLINK

Epslink is EPSILON’s patented link-rotator combination. It features an extraordinarily robust four-eye-cast link with internal hose routing – and combines with Epscope to provide a practical, professional solution.

alt text

EPSCOPE

Epscope is EPSILON’s patented extension boom system, available in both single and double telescope variants. The extension cylinder and hose equipment are mounted internally, which allows operators to work safely without the risk of mechanical damage to key components.

alt text
alt text

KTL, finite element modeling, and functional design

Innovative technology for long-lasting surface protection, durability testing, and optimized functionality.

KTL + Finite Elemente + Functional Design

Cathodic dip coating (KTL)

This specialist surface treatment lays the foundations for long-lasting surface protection. PALFINGER’s Marburg and Lengau production facilities feature fully automated cathodic dip coating lines.

This treatment starts by degreasing and rinsing components before activating them, applying a zinc phosphate coating and then rinsing again. This is followed by passivation and a final rinsing step with ultra-pure water before the components undergo cathodic dip coating. Sophisticated robotic systems then finalize the process.

alt text

Finite element method

At EPSILON, we apply the finite element method to optimize our crane construction processes. We have deployed this state-of-the-art modeling technique for several years to refine all supporting elements made from fine-grain steel.

alt text

Functional Design

We develop every shape and detail based on function and practical application. Our designs follow a clear technical logic that ensures efficient, intuitive operation and high performance. This approach combines technical precision with a clean, functional aesthetic.
alt text

Easyfold

A Z-crane usually requires ground support during extension to bridge the dead center of the outer boom ram – but not with the Easyfold system. Instead, this patented PALFINGER EPSILON solution negotiates the dead center with the aid of an auxiliary cylinder.

alt text

Triple Z

Triple Z-type cranes feature a triple-folding boom that can be compactly stowed behind the truck cabin, offering maximum maneuverability and minimal setup time.



This optional telescopic main boom opens up the working geometry of an L-type crane.

alt text

Highlights

HPSC and HPSC-light

High-Performance Stability Control

Protected hydraulic guide

The High-Performance Stability Control (HPSC) system optimizes operator comfort and safety, even during deployments in confined spaces.



In dense urban areas or when surrounded by moving traffic, it may only be possible to stabilize the crane unilaterally – if at all. HPSC ensures that crane operations can be performed safely in such situations by removing the need to ensure that predefined stabilizer conditions are met.



Compared with conventional proportional systems, the optional HPSC system from PALFINGER EPSILON comes the closest to achieving true stability. The HPSC and HPSC-L systems offer real-time calculation of the lifting capacity, taking account of factors including the support situation and slewing angle.

The High-Performance Stability Control (HPSC) system continuously monitors the extension of each outrigger and adjusts the crane’s lifting capacity accordingly. This ensures safe crane operation, regardless of whether one or both outriggers are partially or fully extended.

alt text

The High-Performance Stability Control Light (HPSC-L) system relies on a simple two-step monitoring process, in which outriggers can either be fully retracted or fully extended. The crane’s full lifting capacity is only available when the corresponding outrigger is fully extended – for a straightforward safety solution.

alt text
alt text

Equipment & Accessories

SG256

With a volume of 250 l, a maximum load of 2,500 kg, and an operating pressure of 30 MPa, the SG256 combines strength and efficiency at a dead weight of 377 kg.
alt text

SG300

With a volume of 300 l, a maximum load of 2,500 kg, and an operating pressure of 30 MPa, the SG300 ensures consistent performance at a dead weight of 424 kg.
alt text

SG304

With a volume of 300 l, a maximum load of 2,500 kg, and an operating pressure of 32 MPa, the SG304 offers reliable handling at a dead weight of 320 kg.
alt text

Technical Specifications

Technical Data

Telescopic boom length

Number of extensions

Net load moment [kNm]

Net slewing torque [kNm]

Slewing angle [°]

Max. reach [m]

Operating pressure [bar]

Max. pump capacity. 1K [l/min]

Max. pump capacity. 2K [l/min]

Max. pump capacity. 1K-LS [l/min]
77 dm 2 94 kNm 24 kNm 425 ° 7.7 m 230 bar 1x80 2x70 1x130
79 dm 93 kNm 24 kNm 425 ° 7.9 m 230 bar 1x80 2x70 1x130
79 dm 2 91 kNm 24 kNm 425 ° 7.9 m 260 bar 1x80 2x70 1x130
82 dm 2 92 kNm 24 kNm 425 ° 8.2 m 230 bar 1x80 2x70 1x130
84 dm 2 93 kNm 24 kNm 425 ° 8.4 m 230 bar 1x80 2x70 1x130
95 dm 2 88 kNm 24 kNm 425 ° 9.5 m 260 bar 1x80 2x70 1x130
96 dm 2 90 kNm 24 kNm 425 ° 9.6 m 230 bar 1x80 2x70 1x130
Dead weight without joint/rotator

Telescopic boom length [dm]

Incl. Standard top/side seat

Incl. remote control (RCE)

Incl. standing platform (SCMD/SCRCD)

Classic Drive

Comfort Drive

Comfort CAB

TEC CAB
77 dm 2,140 kg 2,140 kg 2,140 kg
79 dm 2,100 kg 2,100 kg 2,100 kg
79 dm 2,360 kg 2,360 kg 2,360 kg
82 dm 2,150 kg 2,150 kg 2,150 kg
84 dm 0 kg 0 kg 0 kg 0 kg
95 dm 2,460 kg 2,460 kg 2,460 kg
96 dm 2,200 kg 2,200 kg 2,200 kg

Optional Features

alt text

Tipper Z-Type Cranes

Thanks to its short stowed length, the entire crane – including the grab – can be stowed within the width of the carrier vehicle. Only available for the 84TI variant.

Control Methods

alt text
Standing Platform, Manual & Remote Control

Standing Platform (SCRCD)

Perfect visibility over the tipper truck; also available with remote control.

Standing Platform, Manual & Remote Control

This Standing Platform with both Manual and Remote control features Danfoss PVG32 proportional valves mounted in six sections on platform, along with a separate four-section stabiliser valve. This secure control area features PALFINGER’s Paltronic 50 control electronics and a Scanreco transmitter for seamless communication.

alt text
alt text
Remote Control

Remote Control (RCE)

Simple, high-precision controls with a clear view of the load.

Remote Control

Our Remote Control solution features Danfoss PVG32 proportional control valves, installed in a Scanreco handset with feedback. This solution includes Paltronic 50 control electronics, with all crane functions and stabilization systems controllable via remote control.

alt text

Side seat HKR-HKL

Right-side/left-side top seat: - Two joysticks and two pedals - Single and dual circuits available

alt text

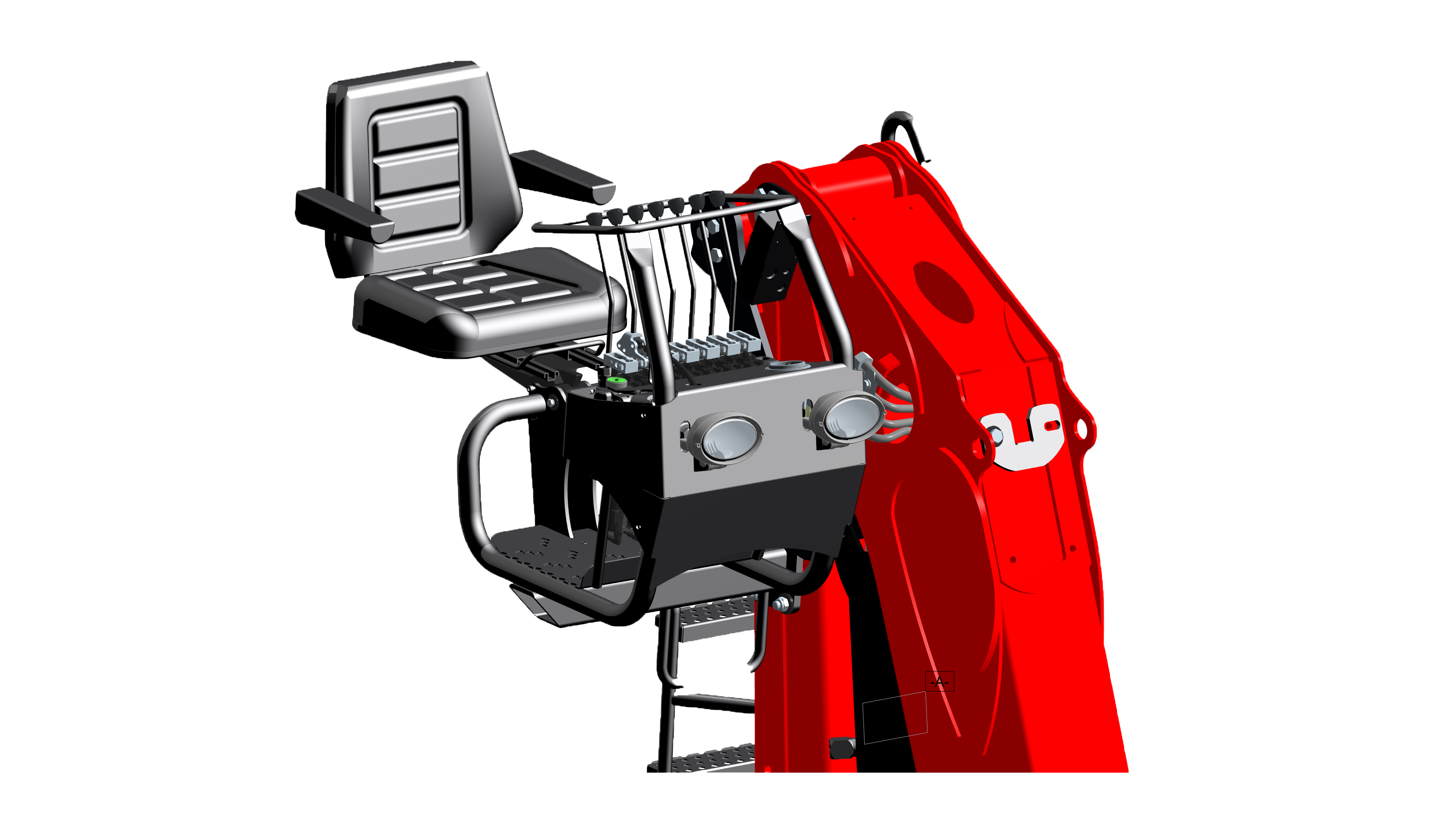

Side seat HLR/HLL

Right-side/left-side top seat: - four linear levers and two pedals or - five linear levers and one pedal - Hydraulic stabilisation from top seat - Single circuit as standard
