Hookloader

T 13 (A)

For 14 - 17 t GVW trucks

alt text
Hooklift
Key Specs
Max. loading capacity
13 t
Unit length
3800 - 5730 mm
Container length
2500 - 6600 mm

The T 13 hooklift delivers unmatched versatility for trucks with a sliding system and optional articulation that fit various container lengths, ensuring smooth handling and secure positioning. Designed for safety and flexibility, it offers multiple configuration options and reliable performance in demanding applications.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Versatility for a reliable partner

Unlock ultimate flexibility with our sliding arm system, designed to handle boxes of varying lengths effortlessly. This smart solution maximizes usage potential across all markets while ensuring smooth, intuitive operation. Easy to use, highly versatile, and built to adapt—your perfect partner for efficient, reliable performance.

alt text

Enjoy the V Drive versatility

At the cutting edge of controller technology, the V DRIVE offers intuitive day-to-day operations. The versatility of the screen allows to manage all your options, connected systems and accessories from a single controller.

V Drive

Versatility As a Keyword

The V Drive is the result of many years of experience and close attention to the customers uses and habits. Intuitiv with a good tactile answer and functionnal design, the cab control will be the new standard for the TEC line. The best part of it is ist flexibility with 5 different screens adapted to the handling phase, applications and the driver‘s habits.

Versatile Modes : Select the mode you want to operate, the relevant screen will be displayed and the functionalities of the side buttons will be adapted.

Functional Design : Tailor-made to allow intuitiv hookloader controls.

Visibility Of Information : Colored and large icons providing live status feedback. High degree of graphical customization for specific functions.

Ergonomic Control : One single lever to control precisely all container movements.

With 5 screens and dozen of possibilities to adapt the icons to the exact functions, the V Drive cab controller is the most complete and flexible tool of our offer. Its intelligent conception ensures its ability to remain up to date and ready for future changes in requirements and the addition of new functionalities.​
alt text

Add more freedom with a radio remote controller

Achieve high tipping precision—ideal for asphalt applications and seamless trailer transfers. Enjoy greater freedom with a clear, unobstructed view—free from electrical cables and limitations. Designed to fit comfortably in your hands, this solution is intuitive and ergonomic, making every operation effortless.


alt text

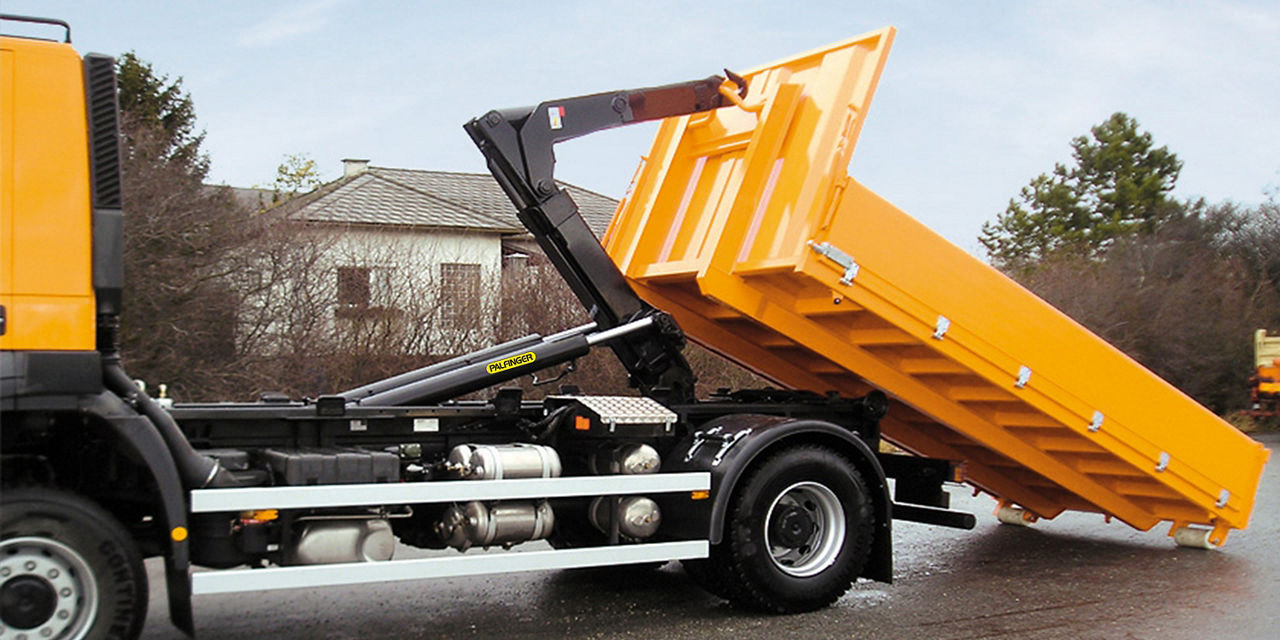

Articulated movement

The articulated arm of the “A” version reduces the loading angle, helping to minimize spillage. It also improves the positioning of both short and long containers on the truck, ensuring proper weight distribution and stable transport.

Greater flexibility with the articulated Jib

Thanks to its articulated design, the T 13 A hookloader provides excellent versatility and safety. By maintaining a low loading angle, it reduces the risk of spillage during loading and unloading. Equipment and materials can be positioned securely on the truck for safe, stable transport.

This smart design allows smooth operation in tight spaces, requiring minimal ground clearance to position containers. The articulated arm also improves handling of both short and long containers and provides the flexibility needed to transfer containers onto trailers.
alt text

Technical Specifications

alt text
Technical data
T 13

Container max. length (mm)

Container min. length (mm)

Tipping angle (°)

Transport height

Unit length (mm)

Weight (kg)
T 13 4,610 mm 3,000 mm 53 ° 220 mm 3,800 mm 1,470 kg
T 13 5,000 mm 3,000 mm 50 ° 220 mm 4,050 mm 1,470 kg
T 13 5,200 mm 3,200 mm 50 ° 220 mm 4,300 mm 1,500 kg
T 13 5,400 mm 3,250 mm 47 ° 220 mm 4,450 mm 1,500 kg
T 13 5,600 mm 3,500 mm 52 ° 220 mm 4,750 mm 1,590 kg
T 13 5,800 mm 3,750 mm 50 ° 220 mm 4,900 mm 1,590 kg
T 13 6,000 mm 3,750 mm 50 ° 220 mm 5,050 mm 1,620 kg
T 13 6,230 mm 4,000 mm 47 ° 220 mm 5,300 mm 1,620 kg
T 13 6,430 mm 4,000 mm 47 ° 220 mm 5,500 mm 1,650 kg
T 13 6,600 mm 4,000 mm 47 ° 220 mm 5,600 mm 1,650 kg
T 13 A

Container max. length (mm)

Container min. length (mm)

Tipping angle (°)

Transport height

Unit length (mm)

Weight (kg)
T 13 A 5,010 mm 2,500 mm 53 ° 220 mm 4,180 mm 1,750 kg
T 13 A 5,230 mm 2,750 mm 50 ° 220 mm 4,330 mm 1,750 kg
T 13 A 5,480 mm 3,000 mm 50 ° 220 mm 4,580 mm 1,780 kg
T 13 A 5,800 mm 3,000 mm 47 ° 220 mm 4,830 mm 1,780 kg
T 13 A 5,870 mm 3,250 mm 52 ° 220 mm 5,030 mm 1,830 kg
T 13 A 6,080 mm 3,250 mm 50 ° 220 mm 5,180 mm 1,830 kg
T 13 A 6,400 mm 3,500 mm 50 ° 220 mm 5,430 mm 1,860 kg
T 13 A 6,600 mm 3,750 mm 47 ° 220 mm 5,580 mm 1,860 kg
T 13 A 6,680 mm 3,750 mm 47 ° 220 mm 5,730 mm 1,900 kg

Discover Standard Features

Truck can Communication

A CANBUS connection between the truck and the hookloader streamlines wiring to just two wires, creating a safer and more efficient setup. Body builders benefit from reduced installation effort, fewer relays and junctions, and quicker configuration through PALDIAG. As a modern communication platform, it is ready to support future system upgrades and features.


alt text
Soft Stop

Soft stop ensures the container is smoothly set onto the truck deck after loading or tipping, preventing hard impacts and helping reduce noise exposure for operators and the surrounding area.


alt text

Optional Features

alt text

Automatic Cycle

Automatically performs all required hydraulic functions in a planned sequence using a single joystick.


alt text

Silent mode

Flashing lights replace the traditional buzzer to reduce noise without compromising safety. Perfect for night urban environments and e-truck applications.


alt text

Rapid Motion

The rapid motion option increases performance by accelerating cylinder extension during loading or tipping. By enabling high-speed extension—cutting extension time by up to 50%—it shortens the overall cycle and delivers a more efficient, time-saving container-handling process.


alt text

Coupler pressure release

Pressure can be released from the hydraulic couplers directly from the cabin, eliminating manual effort and helping reduce operating costs. With the pressure relieved, connecting and disconnecting trailers, container back doors, and other hydraulic equipment becomes faster, easier, and far more convenient.


alt text

Central lubrication

Save time with single-point central lubrication located in a safe, convenient position for the operator. Simplifies weekly maintenance and helps increase uptime and component life.


alt text

Customer Machine Information

Easy self-diagnostics and remote service access provide fast insights and support for efficient maintenance.
