7 - 17 t GVW

S10

S10

alt text
alt text
alt text
alt text
alt text
alt text
alt text
Hooklift
Key Specs
Max. loading capacity
10 t
Unit length
3500 - 4250 mmm
Container length
2800 - 5200 mm

The unique design of the S 10 simplifies container handling with only a single movement to control. Its low maintenance requirements keep ownership costs down, making it an ideal choice for rental fleets and operations with frequent driver changes.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Easy handling

The PALFINGER SYNCHRON hooklift is simple to operate, requiring only one movement to control and offering clear visibility throughout the entire handling process.

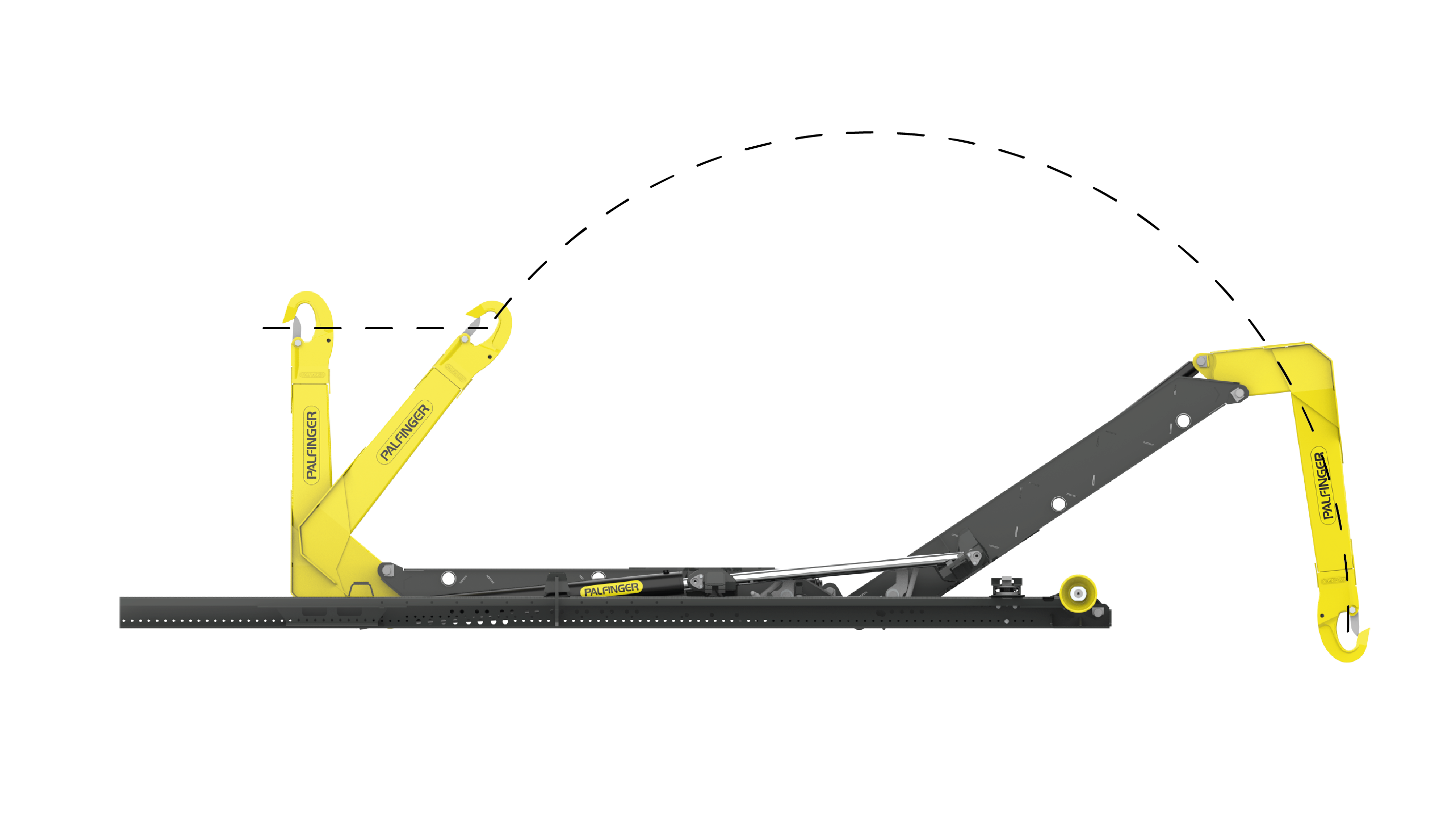

By synchronizing the arm angle with the rotation of the middle frame, the system allows containers to be picked up at a reduced loading angle. This minimizes load movement inside the container and helps preserve its contents. The articulated design of the SYNCHRON hooklift also makes transferring containers to trailers easier.

These features make the HC 21 well-suited for inexperienced operators, making it an excellent option for rental companies or fleets with frequent driver changes. Over time, operators benefit from intuitive, fast, and precise handling that supports consistent productivity.
alt text

Easy maintenance

Maintenance of the HC 21 is simple, helping extend the equipment’s lifespan with minimal effort.

All SYNCHRON components are easily accessible for service, reducing downtime and maintenance costs. With fewer wear parts, overall profitability increases. The unique design minimizes wear on main bearing components by allowing them to rotate during operation—no sliding movement, no friction, no problem.

Connected features come as standard, giving users digital access to all key information about their PALFINGER equipment at any time. Device overviews, service status, technical documents, and more are available from any location. With CONNECTED, PALFINGER provides valuable, free insights that help owners keep their equipment performing at its best and extend its service life.
alt text

High performance

Choosing a PALFINGER hookloader means selecting equipment engineered for optimal performance, ensuring every job is completed efficiently and reliably.

The hookloader is equipped with an SDS 180 distributor, delivering fast, responsive movements through a high nominal oil flow rate. The CANbus system maximizes performance by providing full flow on demand while optimizing energy use. Up to seven hydraulic functions can be added on the main distributor, offering extensive flexibility. Streamlined hydraulic routing simplifies maintenance and enhances overall reliability.
alt text

Add more freedom with a radio remote controller

Achieve high tipping precision—ideal for asphalt applications and seamless trailer transfers. Enjoy greater freedom with a clear, unobstructed view—free from electrical cables and limitations. Designed to fit comfortably in your hands, this solution is intuitive and ergonomic, making every operation effortless.


alt text

Technical Specifications

alt text

Optional Features

alt text

Automatic Cycle

Automatically performs all required hydraulic functions in a planned sequence using a single joystick.


alt text

Truck can Communication

A CANBUS connection between the truck and the hookloader streamlines wiring to just two wires, creating a safer and more efficient setup. Body builders benefit from reduced installation effort, fewer relays and junctions, and quicker configuration through PALDIAG. As a modern communication platform, it is ready to support future system upgrades and features.
