26 t GVW

HT 24 (A)

For 26 to 28 t GVW trucks

alt text
alt text
alt text
alt text
alt text
alt text
Hooklift
Key Specs
Max. loading capacity
24 t
Unit length
5100 - 5975 mm
Container length
3400 - 7000 mm

The telescopic hooklift delivers adaptable performance with a sliding system and optional articulation that fit a wide range of container lengths. This design ensures smooth operation and stable positioning throughout the loading or tipping cycle. Engineered for safety and flexibility, it can be configured in multiple ways to provide dependable performance in demanding work environments.

    Find Sales Partner

    Request a quote

    I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

    I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

    Request a quote

    I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

    I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

    Versatility for a reliable partner

    The sliding arm system easily accommodates containers of different lengths, providing flexibility across a wide range of applications. This smart design ensures smooth, intuitive operation and adapts quickly to varying needs—making it a dependable partner for efficient, reliable performance.

    Work smarter with telescopic arm and articulated jib

    Thanks to the telescopic jib, users can handle a wide range of container lengths and cover multiple applications with the same vehicle. Rental, transport, and waste management companies benefit from increased fleet flexibility, making it a smart and versatile choice for truck manufacturers as well.

    Simplify every job with our articulated jib (“A” version). It offers improved reach in tight spaces and handles varied tasks with ease. By lowering the loading angle, it supports gentle, secure unloading even in low-clearance areas. Designed for convenience, it delivers flexibility and reliable performance.
    alt text

    Adaptability is our strength

    Every region has its own regulations, and our hooklifts are designed to meet each local standard. This ensures greater safety, fewer administrative steps, and equipment that is ready to work in your specific environment. And when your application calls for a fully customized solution, you can rely on us as your trusted partner.

    NF ? DIN ? SCAN ? CHEM ? ACTS ? We deliver !

    Our versatile hookloaders can be adapted to meet a wide range of specific requirements—from rail-road container standards to Scandinavian safety rules or German locking systems. Whatever the constraint, our expertise ensures you get a solution that turns challenges into opportunities.

    With extensive experience and vertically integrated production, PALFINGER goes beyond standard lifting solutions. We tailor our products to meet precise customer needs or develop complete custom systems when required. We are ready to design the optimal solution for your application—contact us to discuss your requirements.
    alt text

    Engineered for Maximum Performance

    Experience innovation built for consistent, everyday performance. The hooklift’s advanced design delivers strength and precision while combining modern technology with proven reliability to keep your operations running smoothly without compromise.

    Efficiency and Reliability in Every Move

    The SDS 180 distributor enables fast, smooth operation with its high oil flow rate. The intelligent CANbus system delivers power only when needed, helping save energy and reduce operating costs. Up to seven hydraulic functions can be added for greater flexibility, while streamlined hose routing supports easy maintenance and long-term reliability.
    alt text

    TEC : The best as a standard

    The TEC line brings flexibility and state of the art features, opening up the possibility to add various options to improve equipment, in terms of comfort, performance and safety.

    TEC Line

    The best as a atandard

    The PALFINGER hookloaders are always designed for easy installation on the truck while keeping an optimized dead weight. With a TEC configuration, this choice allows to work with innovative, powerful, and optimized solutions. Connected equipment to maximize uptime, reduced energy consumption, high speed of movements, the standard is at its best.

    Choosing a TEC hooklift means choosing flexibility and state of the art features, opening up the possibility to add various options to improve equipment, in terms of comfort, performance and safety. The standard configuration benefits from the highest performance level, making our equipment always reliable in every situations that may occur in a daily work-shift, without pushing it to the limits.

    Thanks to the versatile display of the cab controller V Drive, the operator always have relevant and clear information about functions and system status. The new tailor-made and ergonomic design brings an intuitive daily tool to operate from inside the cab.
    alt text

    Highlights

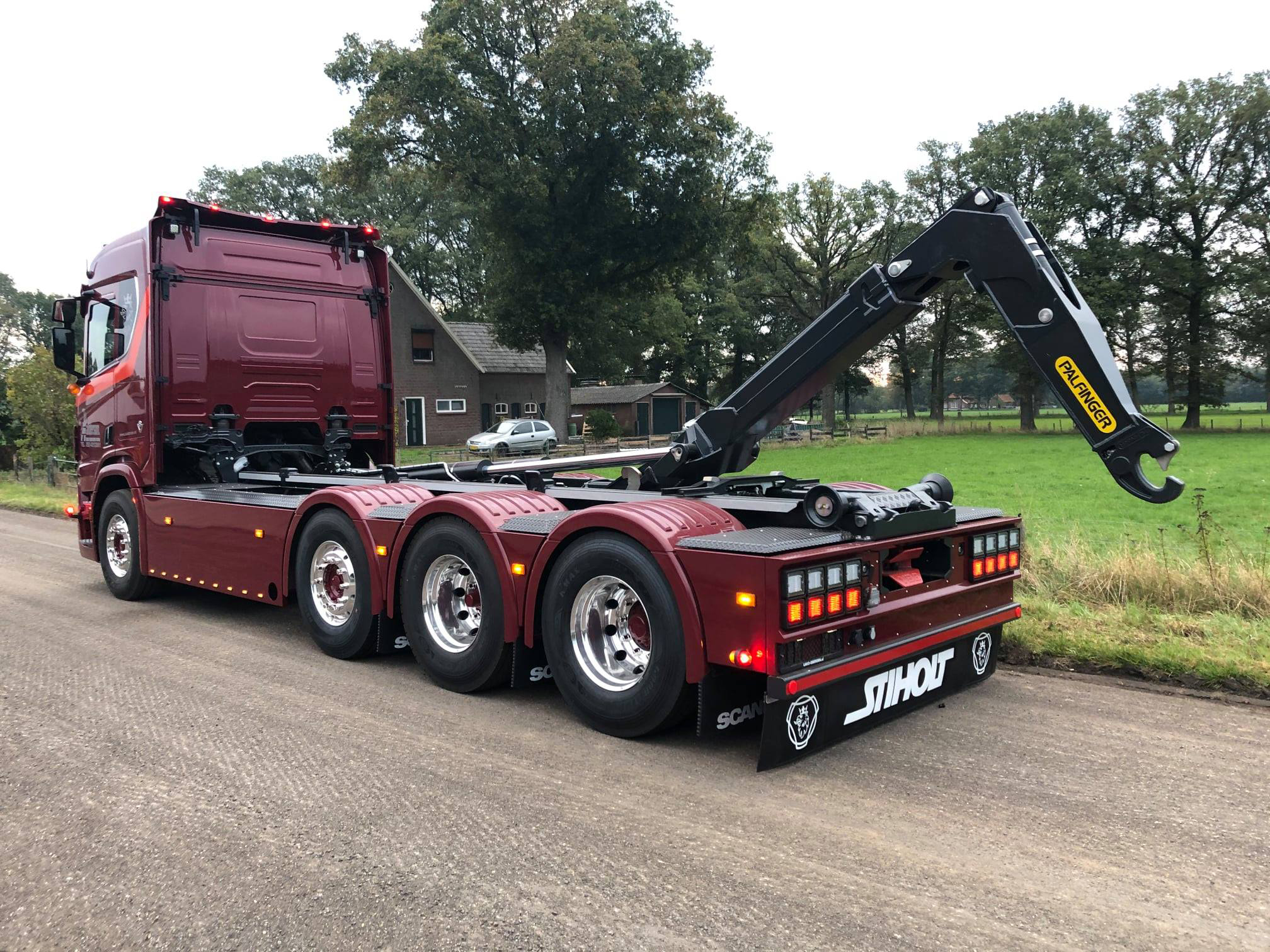

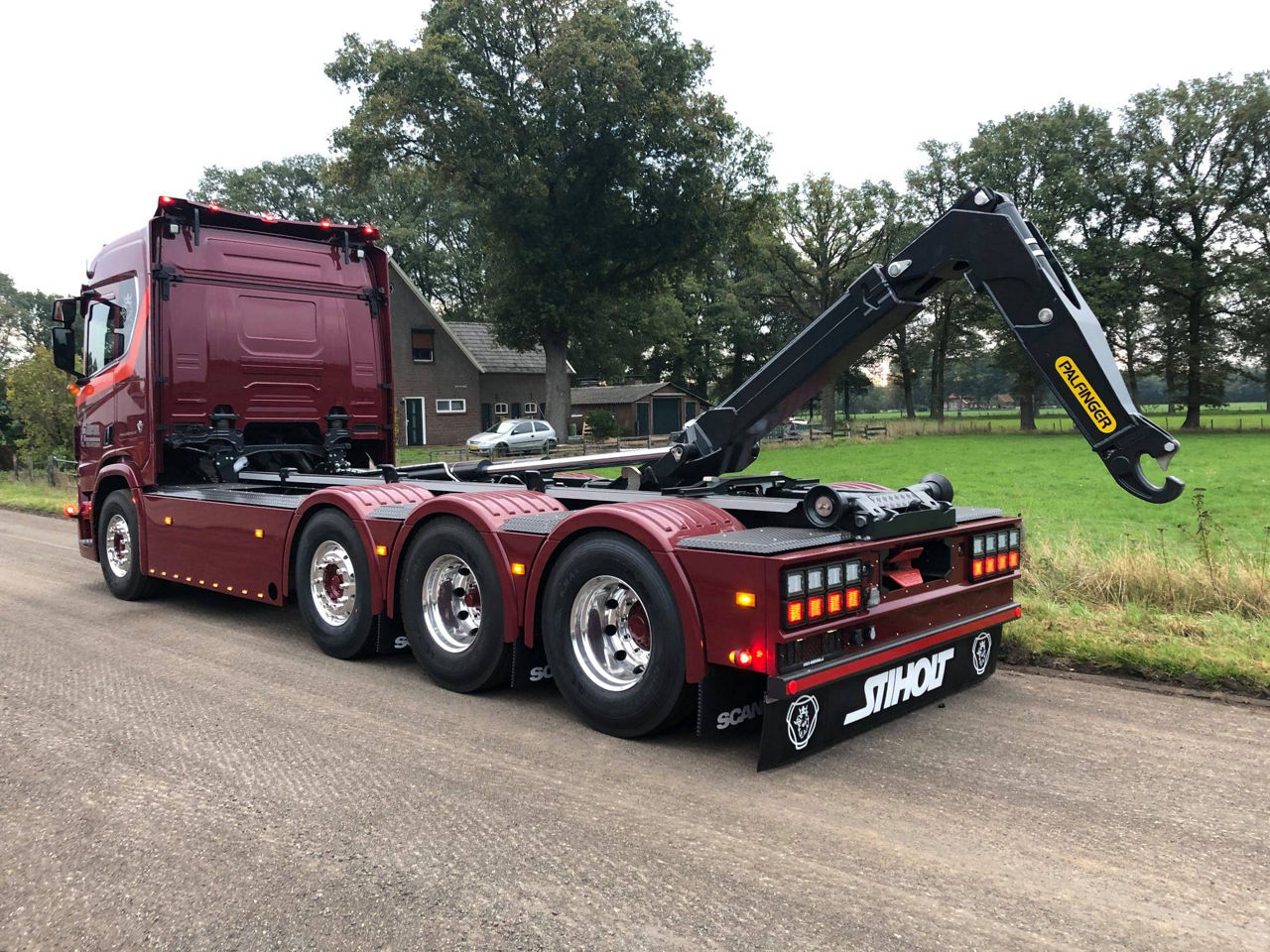

    Articulated movement

    The articulated arm of the "A" version reduces the loading angle and thus the risk of spillage.  It also optimizes the positioning of short or long containers on the truck, ensuring good weight distribution and load stability.


    Articulated jib for even more flexibility

    Thanks to its articulation, the hookloader offers maximum versatility and safety. It significantly reduces the risk of load spillage during loading and unloading by maintaining a low loading angle. Equipments and loads are safely loading on the truck.


    This smart design also ensures smooth operation in tight spaces, requiring minimal ground clearance to position containers. Additionally, the articulated arm optimizes the handling of both short and long containers, while providing flexibility for transferring containers onto trailers.

    alt text

    Enjoy the V Drive versatility

    At the cutting edge of controller technology, the V DRIVE offers intuitive day-to-day operations. The versatility of the screen allows to manage all your options, connected systems and accessories from a single controller.

    V Drive

    Versatility As a Keyword

    The V Drive is the result of many years of experience and close attention to the customers uses and habits. Intuitiv with a good tactile answer and functionnal design, the cab control will be the new standard for the TEC line. The best part of it is ist flexibility with 5 different screens adapted to the handling phase, applications and the driver‘s habits.

    Versatile Modes : Select the mode you want to operate, the relevant screen will be displayed and the functionalities of the side buttons will be adapted.

    Functional Design : Tailor-made to allow intuitiv hookloader controls.

    Visibility Of Information : Colored and large icons providing live status feedback. High degree of graphical customization for specific functions.

    Ergonomic Control : One single lever to control precisely all container movements.

    With 5 screens and dozen of possibilities to adapt the icons to the exact functions, the V Drive cab controller is the most complete and flexible tool of our offer. Its intelligent conception ensures its ability to remain up to date and ready for future changes in requirements and the addition of new functionalities.​
    alt text

    Open possibilities

    The TEC is the right choice when owners and users need to improve the configuration of their equipment. They can take advantage of the standard TEC features and add optional ones to improve the daily job depending on the needs.

    A large choice of features and options

    TEC configuration is offering a wide range of functions and solutions to meet the customers’ needs as closely as possible.

    Whether the priority is to make daily work easier and more efficient, to increase safety or to work as comfortably as possible, PALFINGER constantly seeks to provide state-of-the-art solutions by offering several options to upgrade equipment throughout the complete life cycle. Add a concentrate of PALFINGER’s hookloader expertise from the outset of ownership or later through retrofit.

    The hookloader can be configured for highly specific agricultural applications or for handling containers using a fully flexible product range—making it easy to adapt to different jobs, for example in rental fleets. With the TEC line, new possibilities open up and you can choose the options tailored to your needs.
    alt text

    Benefit from attractive packages

    Packages of options have been created to benefit from the equipment with performance and comfort in mind. Close to the customer needs, they simplify the configuration process gathering the options depending on the priorities.

    Performance Packages

    When speed and precision are required

    Performance Package: Increases unloading speed with precision automatic maneuvering.
    • Rapid Motion
    • Automatic Cycle
    • Proportional speed

    Performance Plus Package: Increases unloading and loading speed with precision automatic maneuvering.
    • Advanced Rapid Motion
    • Automatic Cycle
    • Proportional speed
    alt text

    Equipment & Accessories

    Under-Ride Protection

    The PALFINGER rear under-ride protection, compliant with R58-03, is engineered for easy installation and is fully compatible with N3 trucks.
    alt text

    Palcover

    Palcover provides a safe, easy way to cover containers, ensuring a secure and reliable load-securing solution. By keeping the container fully covered, it reduces the risk of material shifting or falling off during transport, improving overall safety.
    alt text

    Front Wall

    The front wall can be factory-mounted to simplify final installation and reduce both mounting and wiring time. The tank position is optimized, and accessories can be installed easily thanks to a plug-and-play setup.
    alt text

    Routing

    Pre-fitted pipes on the rear left of the equipment provide ready-to-use hydraulic lines for additional functions. These lines allow new hydraulic features to be connected directly to the couplings, making installation faster and easier.
    alt text

    Crane Interface

    The reinforced subframe makes it easy to install a crane while providing strong, reliable support for heavy lifting. Because no welding is needed on the hookloader, installation is simpler, and the overall setup is safer and more efficient for material handling.
    alt text

    Technical Specifications

    alt text
    Technical data
    HT 24

    Container max. length (mm)

    Container min. length (mm)

    Tipping angle (°)

    Transport height

    Unit length (mm)

    Weight (kg)
    HT 24 6,250 mm 3,500 mm 48 degrees 240 mm 5,375 mm 2,550 kg
    HT 24 6,400 mm 4,000 mm 48 degrees 240 mm 5,300 mm 2,300 kg
    HT 24 6,600 mm 4,200 mm 50 degrees 240 mm 5,500 mm 2,350 kg
    HT 24 6,800 mm 4,400 mm 48 degrees 240 mm 5,650 mm 2,350 kg
    HT 24 7,000 mm 4,400 mm 48 degrees 240 mm 5,850 mm 2,400 kg
    alt text
    HT 24 A

    Container max. length (mm)

    Container min. length (mm)

    Tipping angle (°)

    Transport height

    Unit length (mm)

    Weight (kg)
    HT 24 A 6,250 mm 3,500 mm 48 degrees 240 mm 5,375 mm 2,550 kg
    HT 24 A 6,500 mm 3,500 mm 48 degrees 240 mm 5,575 mm 2,550 kg
    HT 24 A 6,500 mm 3,750 mm 50 degrees 240 mm 5,725 mm 2,650 kg
    HT 24 A 6,750 mm 3,750 mm 48 degrees 240 mm 5,875 mm 2,650 kg
    HT 24 A 6,750 mm 3,750 mm 48 degrees 240 mm 5,975 mm 2,650 kg
    alt text

    Discover Standard Features

    Connected

    All key information—device overviews, service status, technical documents, and more—is available digitally at any moment. CONNECTED ensures users can access everything they need to manage and understand their PALFINGER solutions from anywhere.


    alt text
    Soft Stop

    Soft stop ensures the container is smoothly set onto the truck deck after loading or tipping, preventing hard impacts and helping reduce noise exposure for operators and the surrounding area.


    alt text
    Truck can Communication

    A CANBUS connection between the truck and the hookloader streamlines wiring to just two wires, creating a safer and more efficient setup. Body builders benefit from reduced installation effort, fewer relays and junctions, and quicker configuration through PALDIAG. As a modern communication platform, it is ready to support future system upgrades and features.


    alt text

    Optional Features

    alt text

    Automatic Cycle

    Automatically performs all required hydraulic functions in a planned sequence using a single joystick.


    alt text

    Central lubrication

    Save time with single-point central lubrication located in a safe, convenient position for the operator. Simplifies weekly maintenance and helps increase uptime and component life.


    alt text

    Proportional speed

    Precise control of arm speed to easily engage the container bar and ensure smooth container landing without losing time during the remaining handling phases.

    alt text

    Silent mode

    Flashing lights replace the traditional buzzer to reduce noise without compromising safety. Perfect for night urban environments and e-truck applications.


    alt text

    System monitoring

    Enhanced operational safety with an in-cab screen and three cameras that monitor the system and its surroundings, including a view-tracking function.


    alt text

    Advanced Rapid Motion

    This option shortens the cycle time by allowing high-speed operation of the tipping cylinders, increasing extension speed by up to 50% and retraction speed by up to 30%. The feature is patented and unique on the market.


    alt text

    Rapid Motion

    The rapid motion option boosts performance by speeding up cylinder extension during loading and tipping. With high-speed extension reducing extension time by up to 50%, overall cycle times are shorter, making container handling faster and more efficient.

    alt text

    E-pto control via canbus

    Reduced energy consumption through on-demand pump control and optimized oil flow for hookloaders installed on e-trucks.


    alt text

    Soft sliding

    The bolted anti-friction container rest in reinforced polyamide enables smooth, quiet loading, improving the working environment for the operator and the surrounding area. The bolted design also allows quick, easy replacement when required.
