7 - 17 t GVW

HT 08

For 8 - 12 t GVW trucks

alt text
alt text
alt text
alt text
alt text
alt text

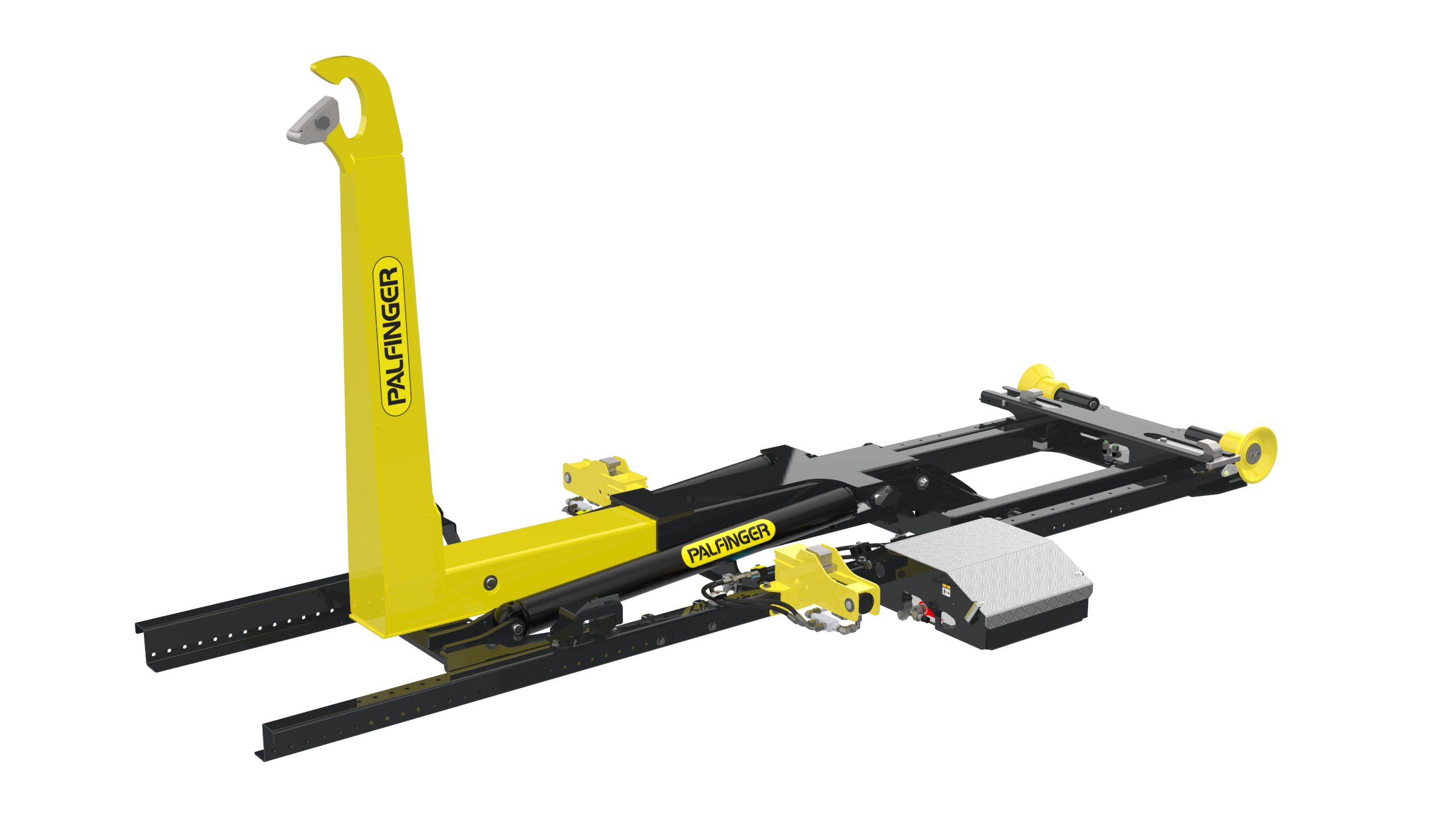

Hooklift
Key Specs
Max. loading capacity
8 t
Unit length
3350 - 4900 mm
Container length
2500 - 5800 mm

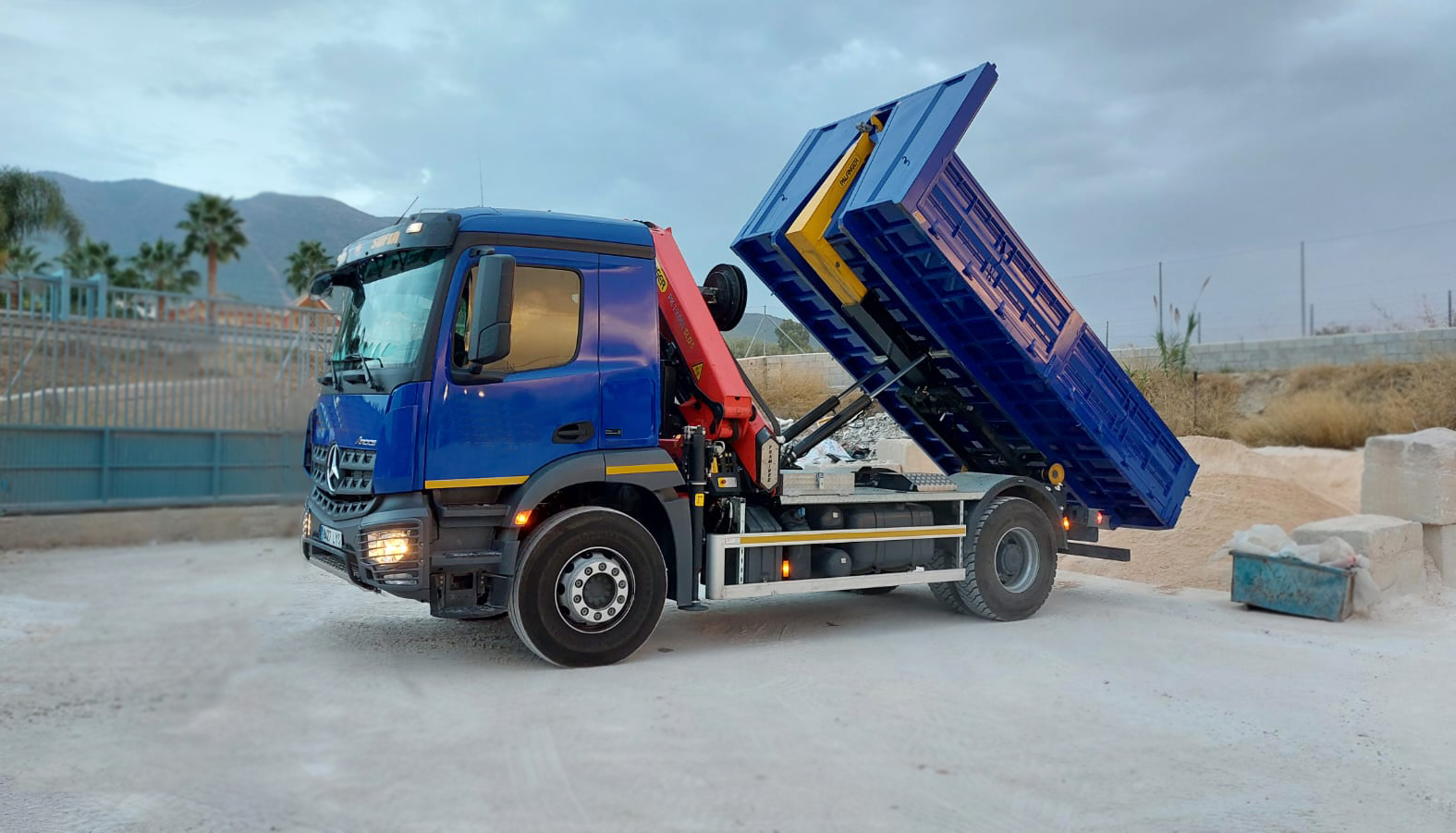

The HT 08 telescopic hooklifts offer versatile performance with a sliding system that fits multiple Class 1 container lengths and adapts easily to different applications. Their low transport height and lightweight design provide safe, flexible solutions with various comfort levels for diverse needs.

    Find Sales Partner

    Request a quote

    I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

    I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

    Request a quote

    I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

    I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

    Versatility for a reliable partner

    Unlock ultimate flexibility with our sliding arm system, designed to handle boxes of varying lengths effortlessly. This smart solution maximizes usage potential across all markets while ensuring smooth, intuitive operation. Easy to use, highly versatile, and built to adapt—your perfect partner for efficient, reliable performance.

    alt text

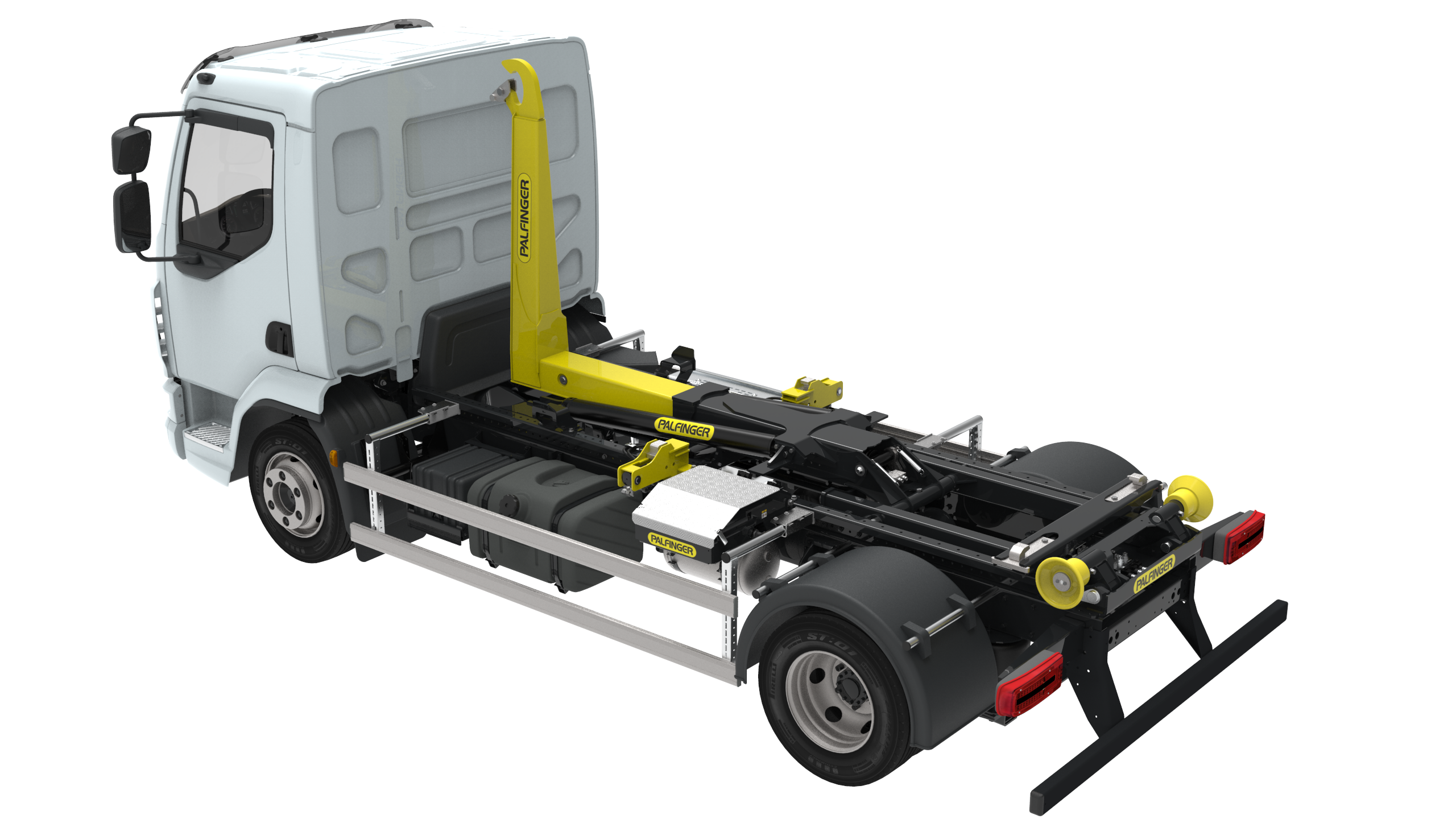

    TEC : The best as a standard

    The TEC line brings flexibility and state of the art features, opening up the possibility to add various options to improve equipment, in terms of comfort, performance and safety.

    TEC Line

    The best as a atandard

    The PALFINGER hookloaders are always designed for easy installation on the truck while keeping an optimized dead weight. With a TEC configuration, this choice allows to work with innovative, powerful, and optimized solutions. Connected equipment to maximize uptime, reduced energy consumption, high speed of movements, the standard is at its best.

    Choosing a TEC hooklift means choosing flexibility and state of the art features, opening up the possibility to add various options to improve equipment, in terms of comfort, performance and safety. The standard configuration benefits from the highest performance level, making our equipment always reliable in every situations that may occur in a daily work-shift, without pushing it to the limits.

    Thanks to the versatile display of the cab controller V Drive, the operator always have relevant and clear information about functions and system status. The new tailor-made and ergonomic design brings an intuitive daily tool to operate from inside the cab.
    alt text

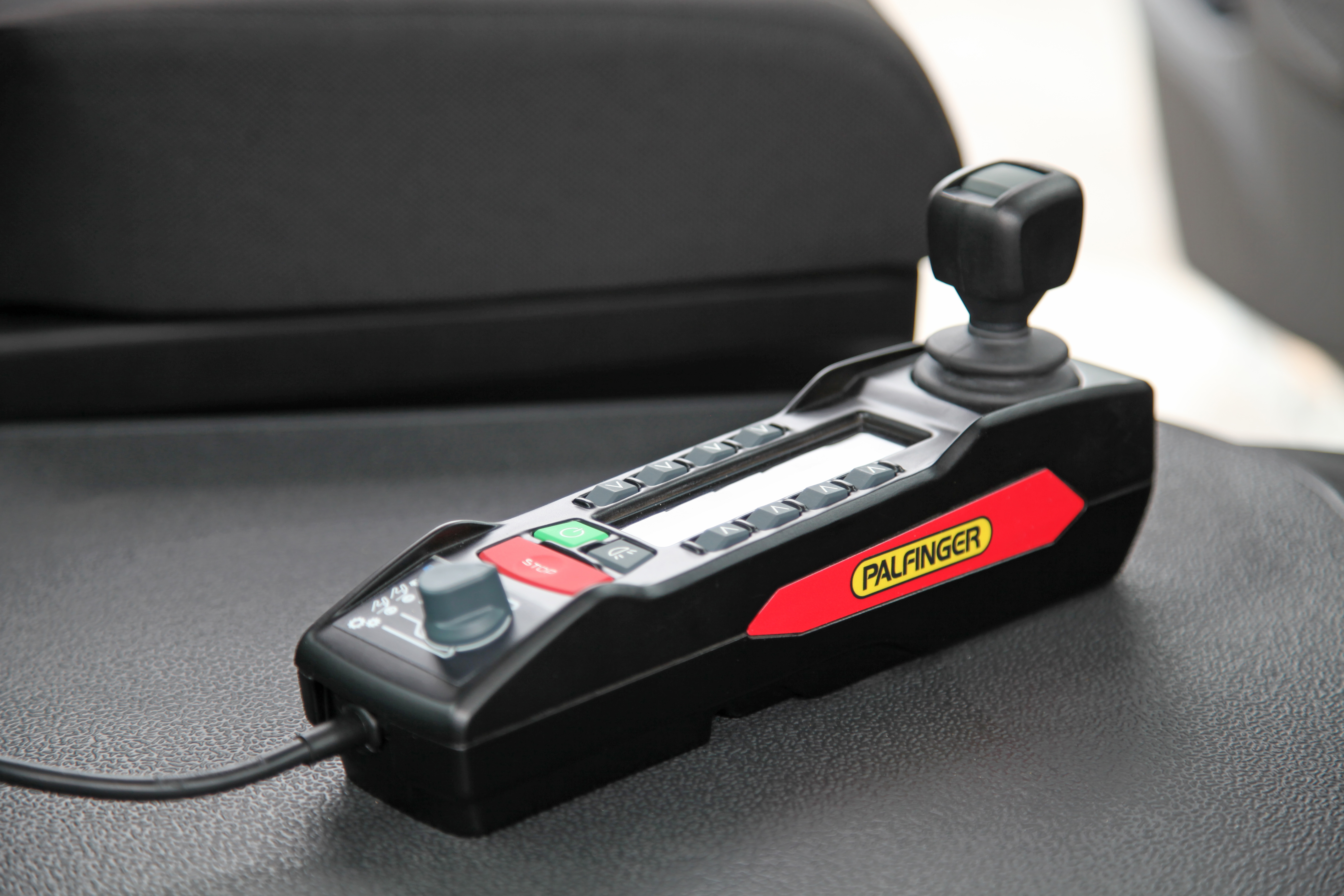

    Enjoy the V Drive versatility

    At the cutting edge of controller technology, the V DRIVE offers intuitive day-to-day operations. The versatility of the screen allows to manage all your options, connected systems and accessories from a single controller.

    V Drive

    Versatility As a Keyword

    The V Drive is the result of many years of experience and close attention to the customers uses and habits. Intuitiv with a good tactile answer and functionnal design, the cab control will be the new standard for the TEC line. The best part of it is ist flexibility with 5 different screens adapted to the handling phase, applications and the driver‘s habits.

    Versatile Modes : Select the mode you want to operate, the relevant screen will be displayed and the functionalities of the side buttons will be adapted.

    Functional Design : Tailor-made to allow intuitiv hookloader controls.

    Visibility Of Information : Colored and large icons providing live status feedback. High degree of graphical customization for specific functions.

    Ergonomic Control : One single lever to control precisely all container movements.

    With 5 screens and dozen of possibilities to adapt the icons to the exact functions, the V Drive cab controller is the most complete and flexible tool of our offer. Its intelligent conception ensures its ability to remain up to date and ready for future changes in requirements and the addition of new functionalities.​
    alt text

    Add more freedom with a radio remote controller

    Achieve high tipping precision—ideal for asphalt applications and seamless trailer transfers. Enjoy greater freedom with a clear, unobstructed view—free from electrical cables and limitations. Designed to fit comfortably in your hands, this solution is intuitive and ergonomic, making every operation effortless.


    alt text

    Technical Specifications

    alt text
    Technical data
    HT 08

    Container max. length (mm)

    Container min. length (mm)

    Tipping angle (°)

    Transport height

    Unit length (mm)

    Weight (kg)
    HT 08 4,250 mm 3,000 mm 52 ° 235 mm 3,550 mm 930 kg
    HT 08 4,500 mm 3,250 mm 54 ° 235 mm 3,800 mm 890 kg
    HT 08 4,750 mm 3,500 mm 51 ° 235 mm 3,950 mm 950 kg
    HT 08 4,750 mm 3,500 mm 51 ° 235 mm 4,200 mm 960 kg
    HT 08 5,500 mm 4,250 mm 48 ° 235 mm 4,750 mm 1,030 kg
    HT 08 5,250 mm 3,750 mm 52 ° 235 mm 4,350 mm 920 kg

    Optional Features

    alt text

    Soft sliding

    The bolted anti-friction container rest in reinforced polyamide enables smooth, quiet loading, improving the working environment for the operator and the surrounding area. The bolted design also allows quick, easy replacement when required.


    alt text

    Soft Stop

    Soft stop ensures the container is smoothly set onto the truck deck after loading or tipping, preventing hard impacts and helping reduce noise exposure for operators and the surrounding area.


    alt text

    Bi-speed

    To support precise handling when approaching the container hook, the operator can switch to slow speed when greater accuracy is required and return to normal speed when conditions allow. This increases operator confidence and reduces the risk of impact-related damage.


    alt text

    Automatic Cycle

    Automatically performs all required hydraulic functions in a planned sequence using a single joystick.


    alt text

    Connected

    All key information—device overviews, service status, technical documents, and more—is available digitally at any moment. CONNECTED ensures users can access everything they need to manage and understand their PALFINGER solutions from anywhere.


    alt text

    System monitoring

    Enhanced operational safety with an in-cab screen and three cameras that monitor the system and its surroundings, including a view-tracking function.


    alt text

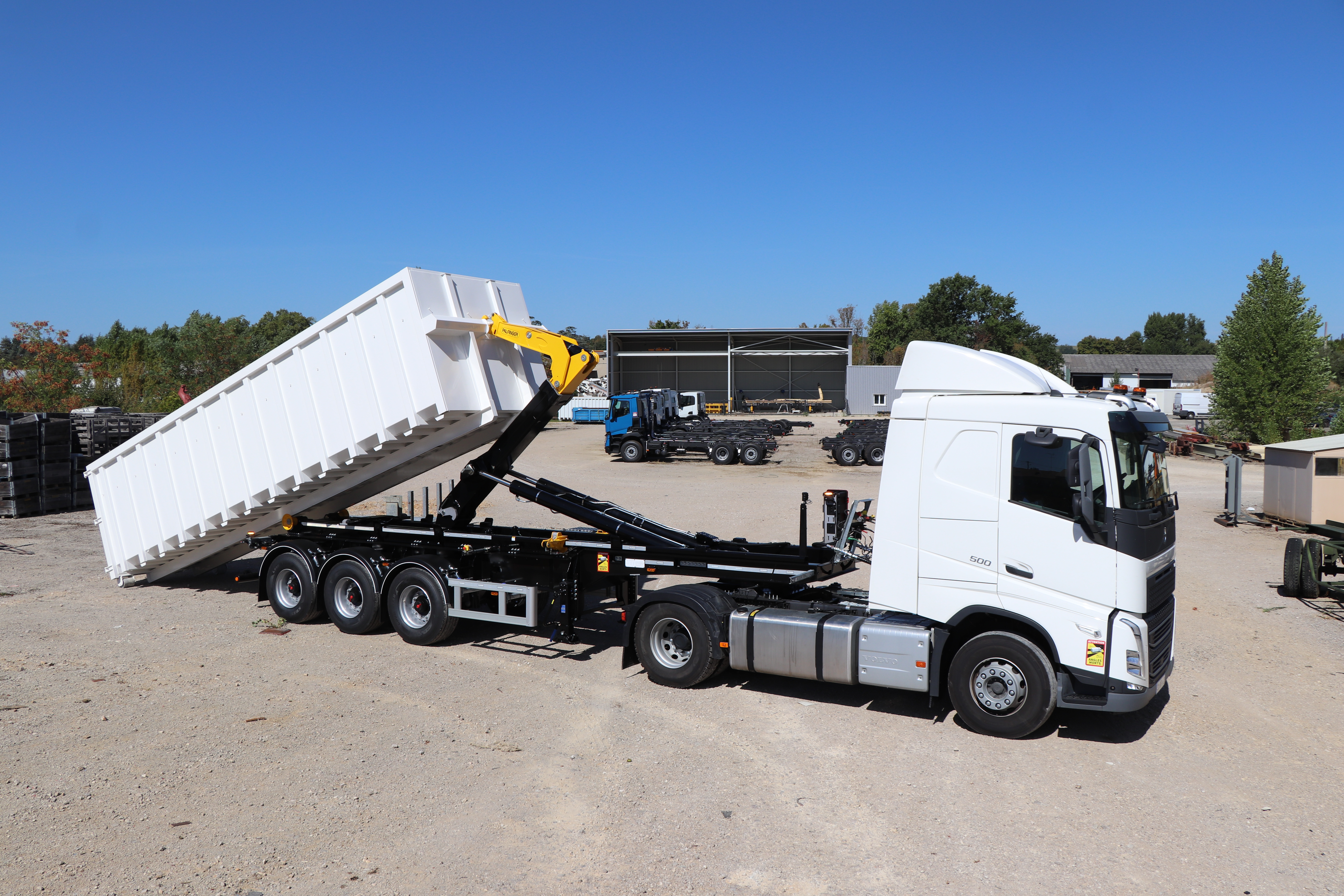

    Coupler pressure release

    Pressure can be released from the hydraulic couplers directly from the cabin, eliminating manual effort and helping reduce operating costs. With the pressure relieved, connecting and disconnecting trailers, container back doors, and other hydraulic equipment becomes faster, easier, and far more convenient.
