40-90m

P 900

Unmatched Working Height

alt text
alt text
Aerial Work Platform
Key Specs
Working Height
90 m
Basket Load
700 kg
Side Reach
32,3 m

This flagship aerial work platform is designed for great performance at great height, with a maximum working height of 90 m. Featuring a vertical boom, convenient dual‑side controls and generous storage, the P 900 ensures speed, safety and stability on every job.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

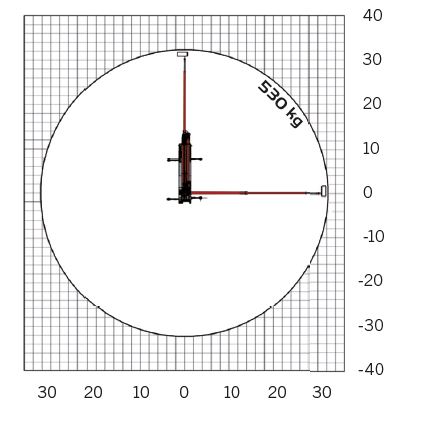

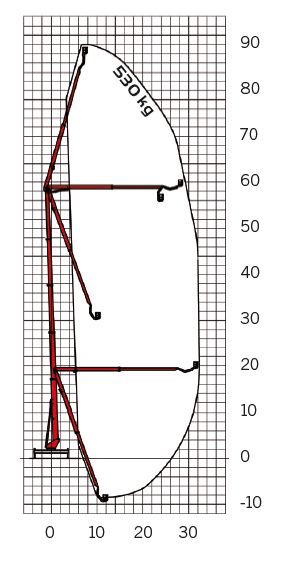

Diagrams

View
alt text

View
alt text

Highlights

A Well-Oiled Machine

The automatic telescope lubrication system keeps the lower arms of the telescopic boom sufficiently oiled during operation. This reduces downtime and increases the longevity of the respective parts.
alt text

Equipment & Accessories

Even Greater Basket Capacity

The optional Powerlift system boosts lifting capacity, allowing you to lift up to 300 kg of large, bulky materials.

Technical Specifications

alt text
Technical data
Max. height of work
90 m
Max. basket floor height
88 m
Max. horizontal outreach /with basket load
32,3 m
Slewing range of basket
2 x 84°
Hydraulic jib boom, working range
180°
Max. stabilizer spread
8 m
Max. basket load
700 kg
Workman basket - breadth / length / height
2.15/3.45 x 0.95 x 1.15 m
Telescopic basket (when jib boom is not extended)
530 kg
Heavy-duty basket (when jib boom is not extended)
700 kg

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Discover Standard Features

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

Convenient Stabilizer System

Achieve stability fast with just the touch of a button thanks to PALFINGER's automatic support leveling feature.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.
