40-90m

P 750

Unparalleled Working Height

alt text
alt text
alt text
alt text
Aerial Work Platform
Key Specs
Working Height
75 m
Basket Load
600 kg
Side Reach
39 m

This aerial work platform impresses with a working height of 75 metres – the greatest in its weight category. With a lateral reach of 39 m, the P 750 boasts exceptional maneuverability in its aerial platform, without needing to move the truck below.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

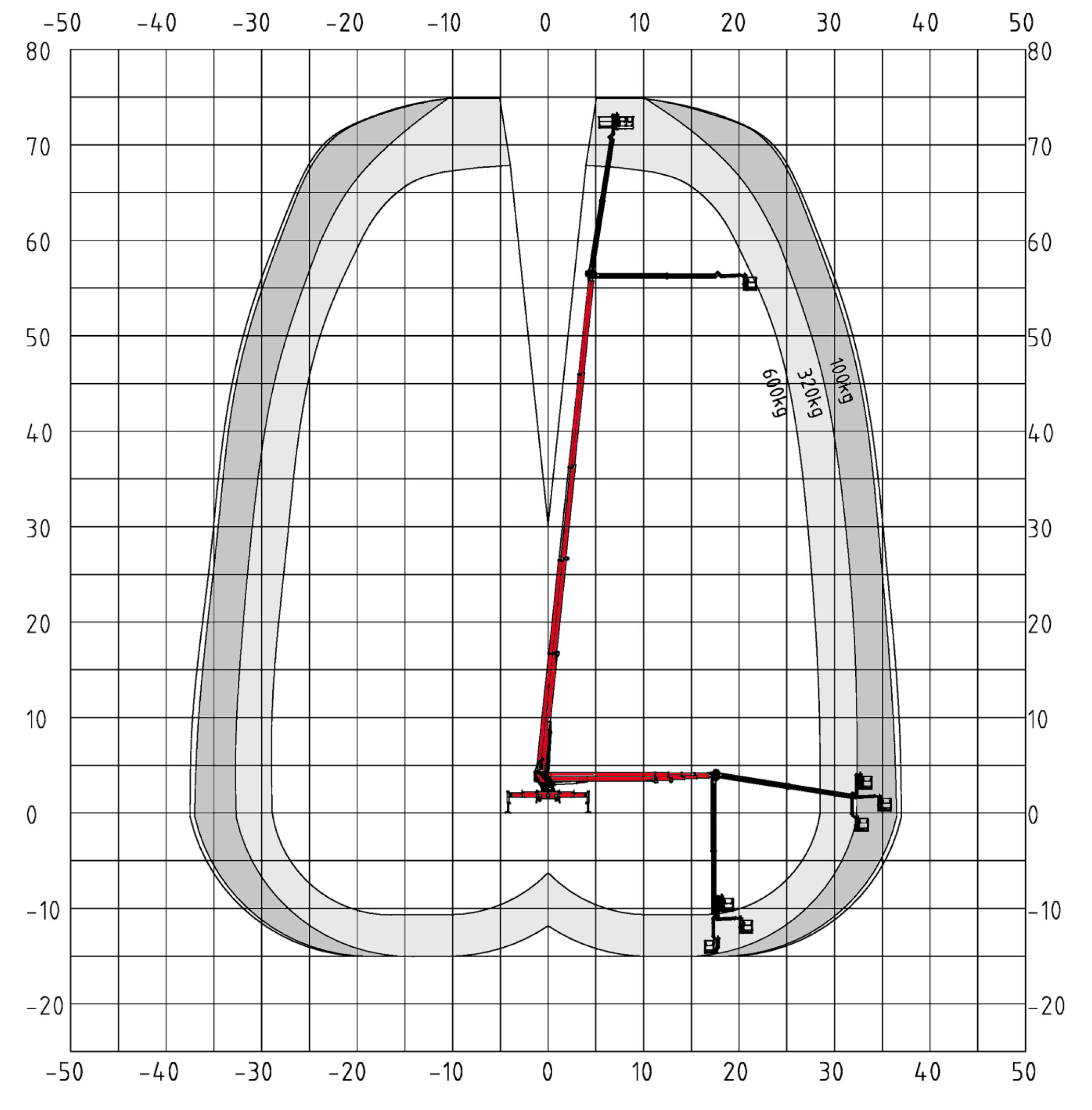

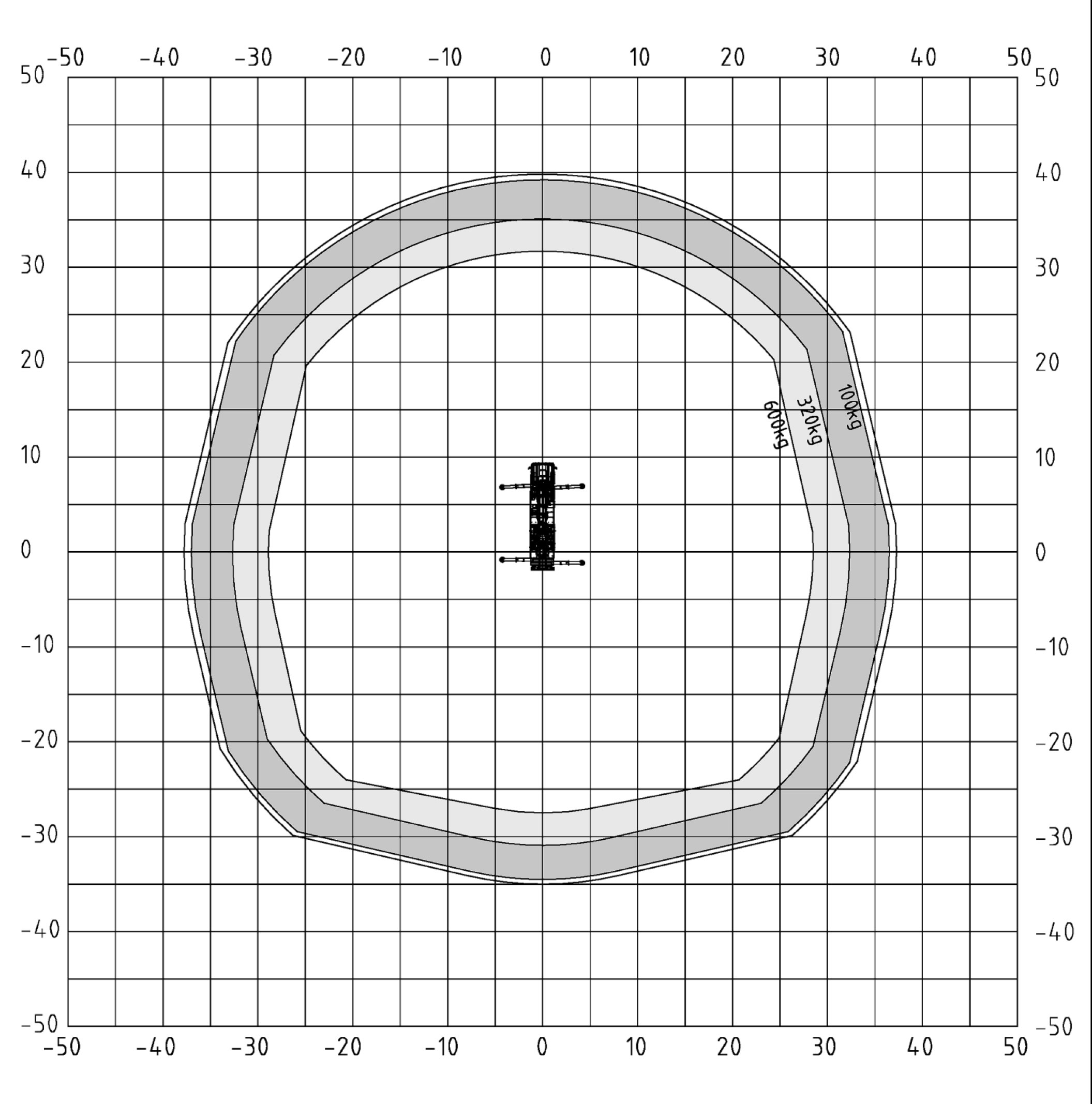

Diagrams

View
alt text

View
alt text

High flexibility and maximum performance

High flexibility and maximum performance characterize the aerial work platforms in this category. This series is designed with special profile structures and lightweight materials, ensuring a low dead weight. This allows the vehicle to transport more tools, work accessories, and materials. The signature X-Jib provides full flexibility, while the 2 x 200° work basket rotation utilizes the full basket width of 3.88 m – together, this makes even hard-to-reach work sites easily accessible.

High flexibility and maximum performance characterize the aerial work platforms in this category. This series is designed with special profile structures and lightweight materials, ensuring a low dead weight. This allows the vehicle to transport more tools, work accessories, and materials. The signature X-Jib provides full flexibility, while the 2 x 200° work basket rotation utilizes the full basket width of 3.88 m – together, this makes even hard-to-reach work sites easily accessible.

Highlights

Telescopic Upper Boom

The X-jib together with the telescopic upper boom extend maximum reach up to 19 metres.
alt text

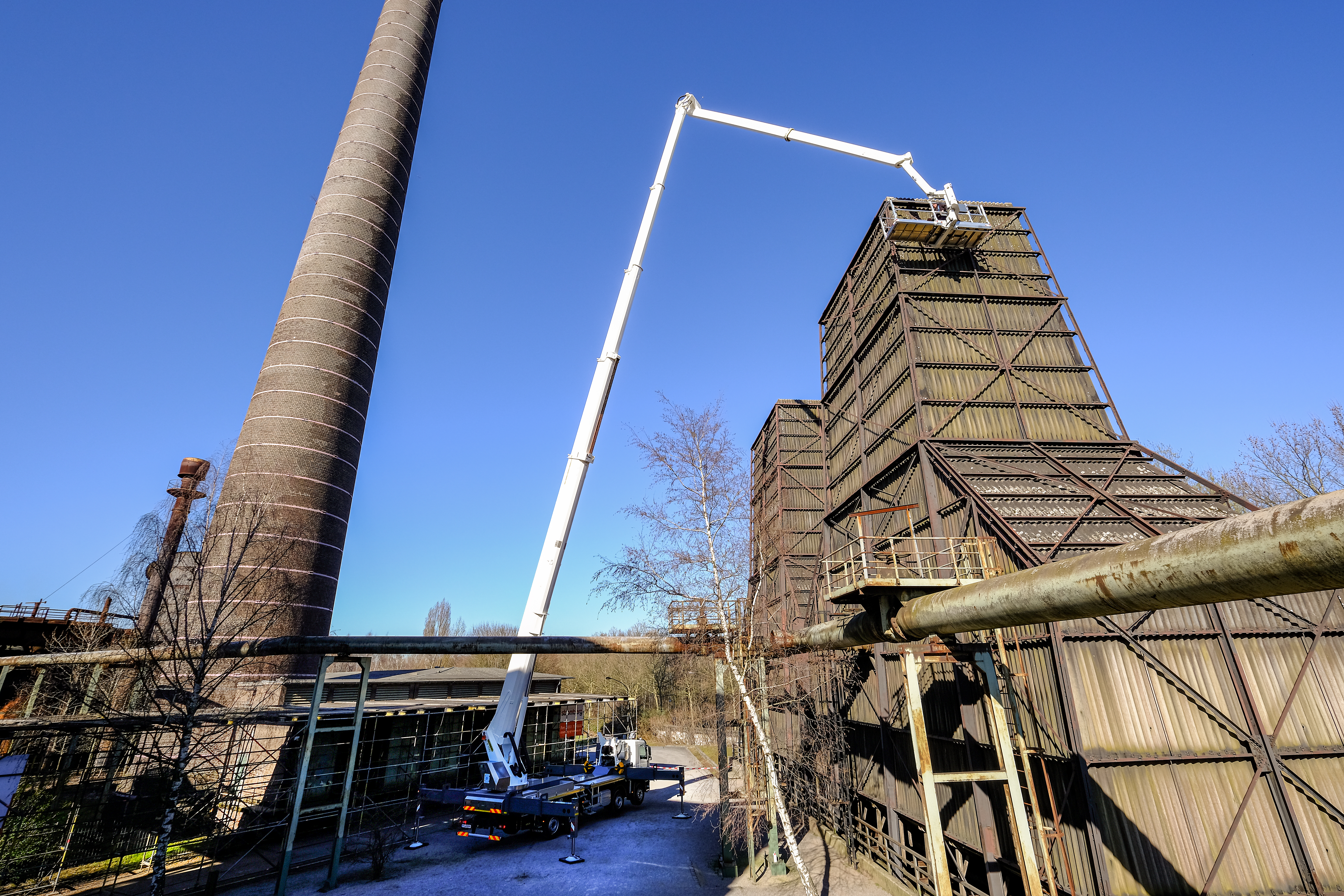

Go Up, Over And Back

Reach above and behind buildings with ease thanks to the 540° slewing angle.
alt text

Extended Work Area

The 240° X-jib and the hanging basket combine to provide greater flexibility and an extended working range.
alt text

A Well-Oiled Machine

The automatic telescope lubrication system keeps the lower arms of the telescopic boom sufficiently oiled during operation. This reduces downtime and increases the longevity of the respective parts.
alt text

Technical Specifications

alt text
Technical data
Max. height of work
75 m
Max. basket floor height
73 m
Max. horizontal outreach /with basket load
39 m
Slewing range of basket
2 x 200°
Max. basket load
600 kg
Workman basket - breadth / length / height
3.81 x 1.04 x 1.1 m
Rotation angle of turntable
540°

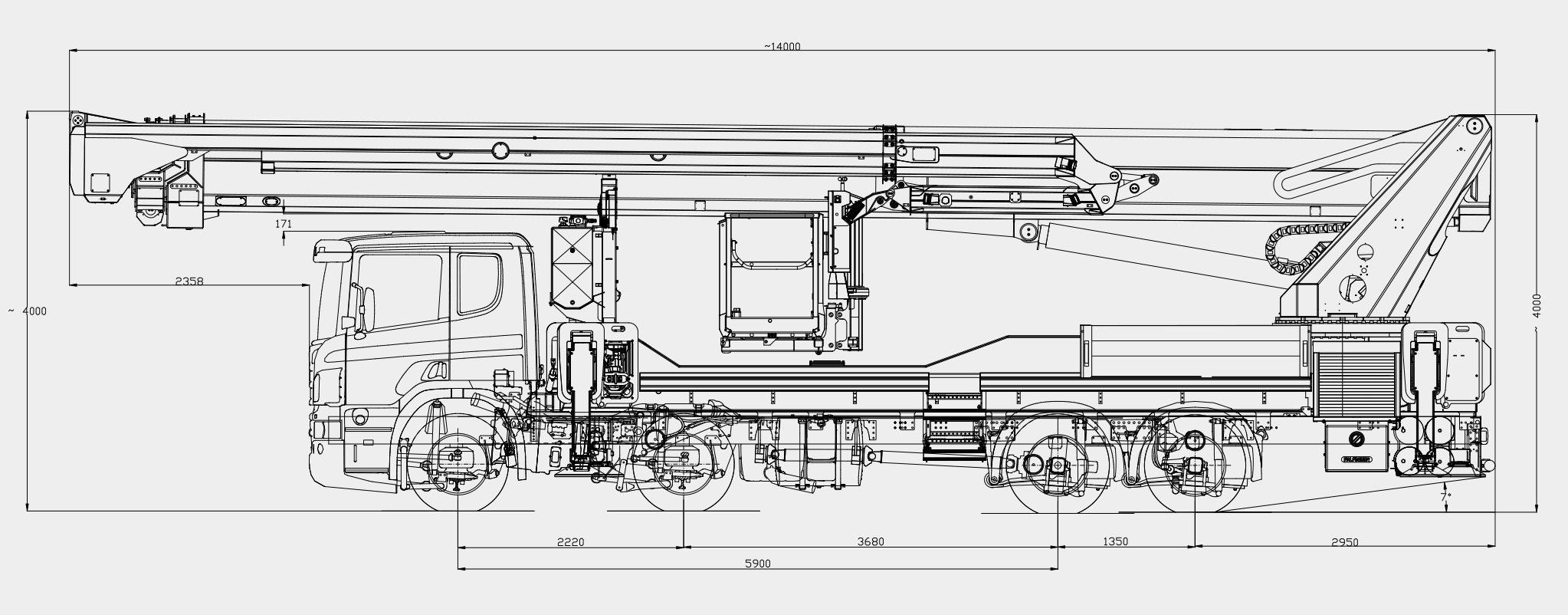

Height in transport position
3.93 m
Width in transport position
2.51 m
Length in transport position
14 m
Overall weight
31,800 kg

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Available standard chassis:

MAN TGS 35.440 8x4 BL L Fhs

Further chassis on request

Discover Standard Features

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

Convenient Stabilizer System

Achieve stability fast with just the touch of a button thanks to PALFINGER's automatic support leveling feature.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.
