30-39m

P 300 KS Facelift

Greatness, Improved

alt text
alt text
alt text
alt text
alt text
alt text
Aerial Work Platform
Key Specs
Working Height
30 m
Basket Load
400 kg
Side Reach
20,5 m

This aerial work platform has been redesigned with a strong focus on efficiency, usability, and comfort. The new P 300 KS Facelift impresses with a compact design, extensive working range, and easy maneuverability. Its new design is more ergonomic, offering greater comfort and easier maintenance.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Diagrams

View
alt text

View
alt text

Work smarter

Work smarter with the P 300 KS Facelift’s improved Minimal Mode, offering 10° movement to the left and right and full jib control without stabilizers, even at 8 m working height. The stabilizer can be operated conveniently from the base of the vehicle at both sides, enabling powerful and reliable results, even when space is tight.

alt text

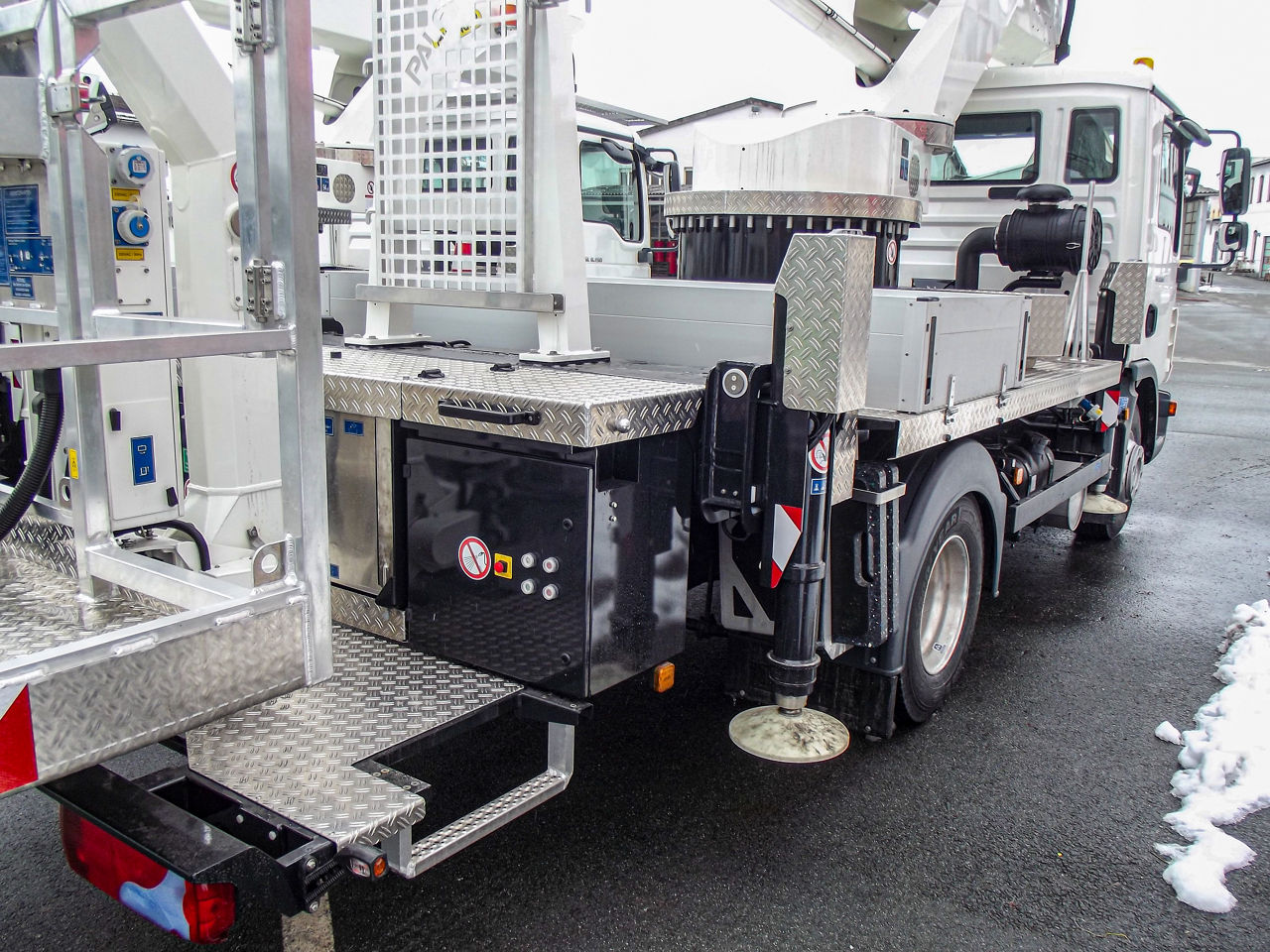

Fully adjustable stabilizer system

With the fully adjustable stabilizer system, operators can position the stabilizers precisely, even on uneven terrain, with 730 mm stroke and up to 5° of inclination.

Compact Design With Impressive Reach

With the shortest overall length and wheelbase in its class (3.05 m), this aerial work platform offers outstanding maneuverability, even in tight spaces. Combining a remarkable 30 m working height and 400 kg cage load, the P 300 KS Facelift delivers unmatched performance, capacity, and efficiency, wherever work demands more reach.

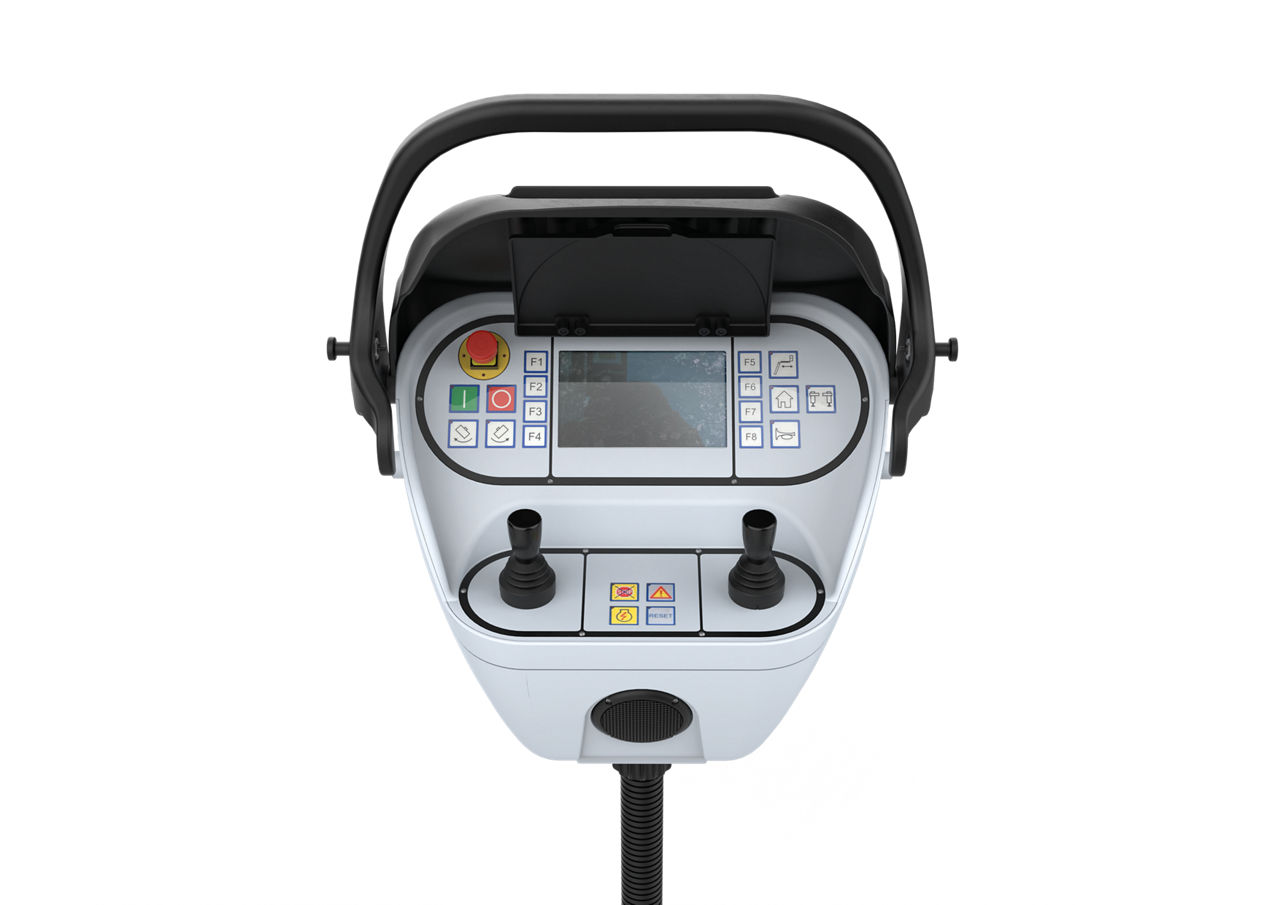

Premium Display And Control Panel

User-friendliness is at the core of our aerial work platform design. Specifically, the models with a counter slewing system feature ergonomic and intuitive basket controls, making them especially efficient for everyday use. The control panel's color display provides operators with key information and graphics in real time.

alt text

Highlights

Special Counter Slewing System

The counter slewing system improves maneuverability by making use of the space above the driver’s cabin. This maintains a narrow wheelbase and ensures that the aerial work platform can remain compact in size, allowing it to be used even in the tightest of spots.
alt text

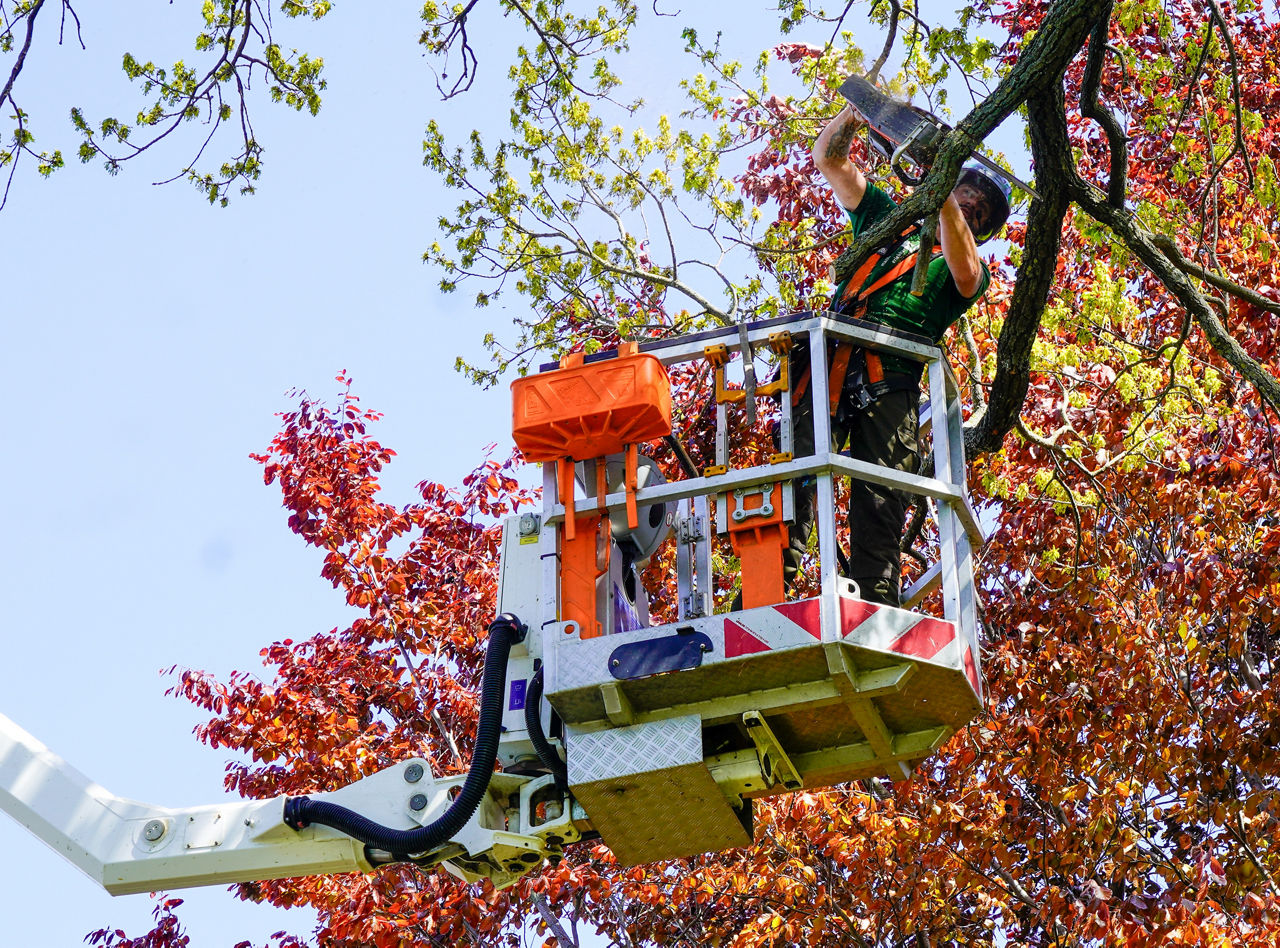

The Best Basket For The Job

Operators can quickly switch between different basket variants for different tasks – from tree trimming to heavier lifting. Large work baskets benefit from an additional 150 kg carrying capacity per boom thanks to the included Powerlift system.
alt text

Works In The City And Beyond

All variants can be mounted on 4x2 and 4x4 chassis with a total weight of 7.5–18 t. Whether working in the city or off-road, you can reach your worksite with ease.

Digital, Connected

PALFINGER'S Connected features enable you to receive real-time data from your devices. Benefit from simple remote diagnostics, optimized fleet management, and more.

Through our Connected features, you have the option of receiving real-time data from your PALFINGER devices. View the current status of your device at any time and use this data to optimize your fleet. If problems arise, you can utilize remote diagnostics to provide support without having to be on site. The standard Connected module keeps you on track with a constant overview of where your machines are, their service dates, and any maintenance due.



• Save time and additional costs with remote diagnostics

• Connect to fleet management systems via the data interface

• Keep a constant overview of all maintenance and service dates for your fleet
alt text

Equipment & Accessories

Even Greater Basket Capacity

The optional Powerlift system boosts lifting capacity, allowing you to lift up to 300 kg of large, bulky materials.

Technical Specifications

alt text
Technical data
Max. height of work
30 m
Max. basket floor height
28 m
Max. horizontal outreach /with basket load
20,5 m
Slewing range of basket
2 x 85°
Hydraulic jib boom, working range
195°
Max. stabilizer spread
5 m
Max. basket load
400 kg
Workman basket - breadth / length / height
1.80 x 0.80 x 1.10 m

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Available standard chassis:

MAN TGL 8.160 4x2 BB (7,49 t standard-equipment)

MAN TGL 8.190 4x2 BB (7,49 t deluxe-equipment)

MAN TGL 8.190 4x2 BB (8,8 t)

Further chassis on request

Discover Standard Features

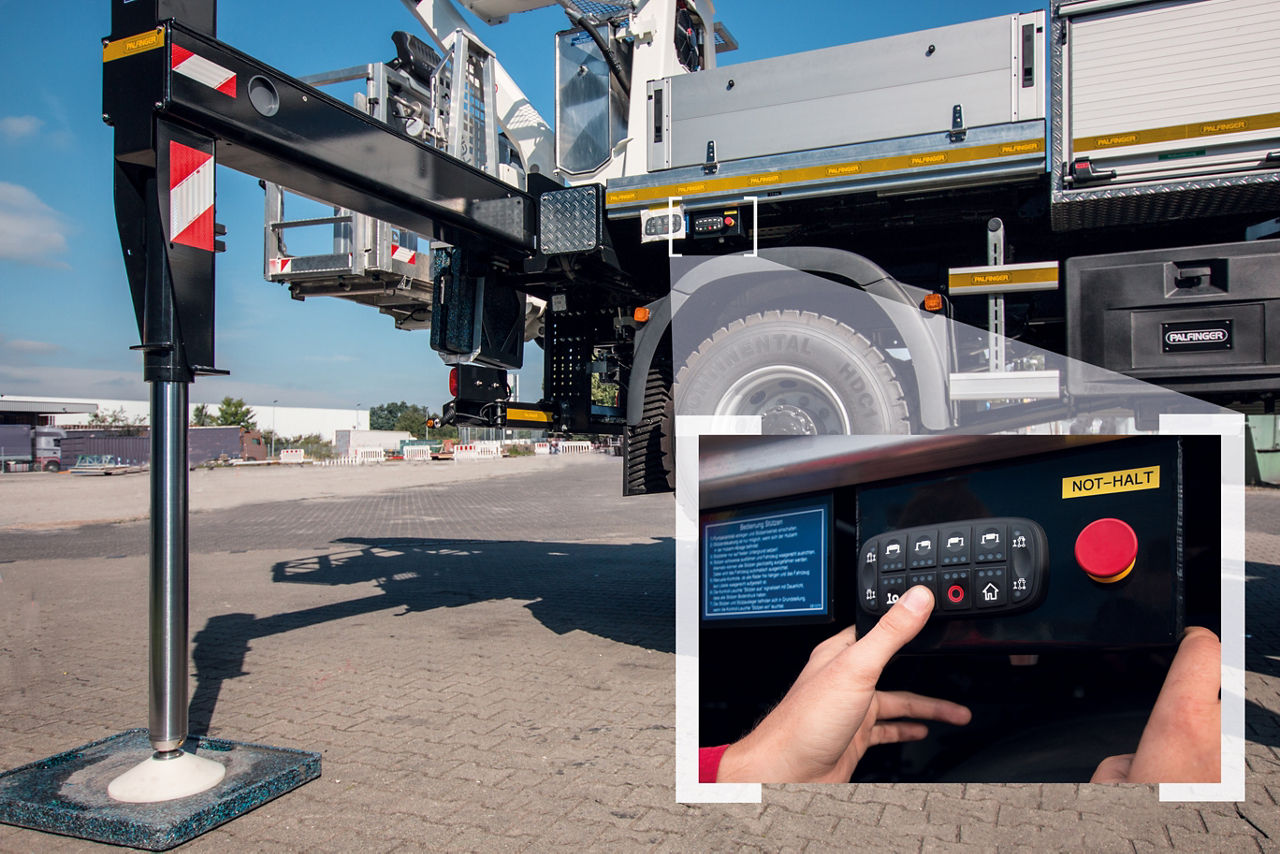

Convenient Stabilizer System

Achieve stability fast with just the touch of a button thanks to PALFINGER's automatic support leveling feature.

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.

Optional Features

Efficient Memory Function

Store preferred working positions with the PALFINGER Memory function. With efficient, one-button operation, operators can switch from transport position to working position with ease.
