P 170 TXE- E Smart Plus

alt text
alt text
Aerial Work Platform
Key Specs
Working Height
16.9 m
Basket Load
250 kg
Side Reach
11.80 m

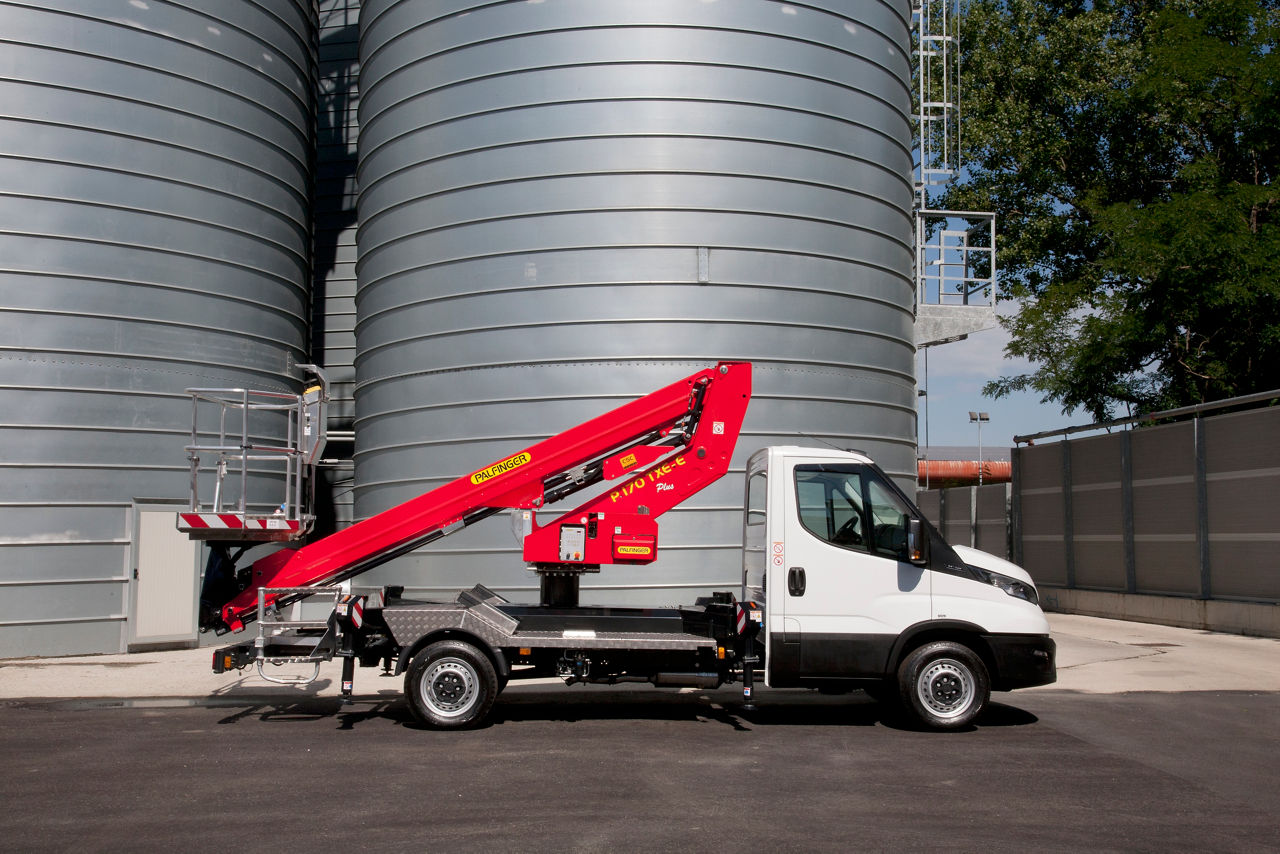

This aerial work platform epitomizes precision, speed, and comfort. Mounted on a 3.5 t truck, the P 170 TXE-E Smart Plus features electric controls and uses vertical stabilization to adapt to uneven ground. Operators can work flexibly with a choice of three operating modes – from maximum outreach to precision in tight spaces.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

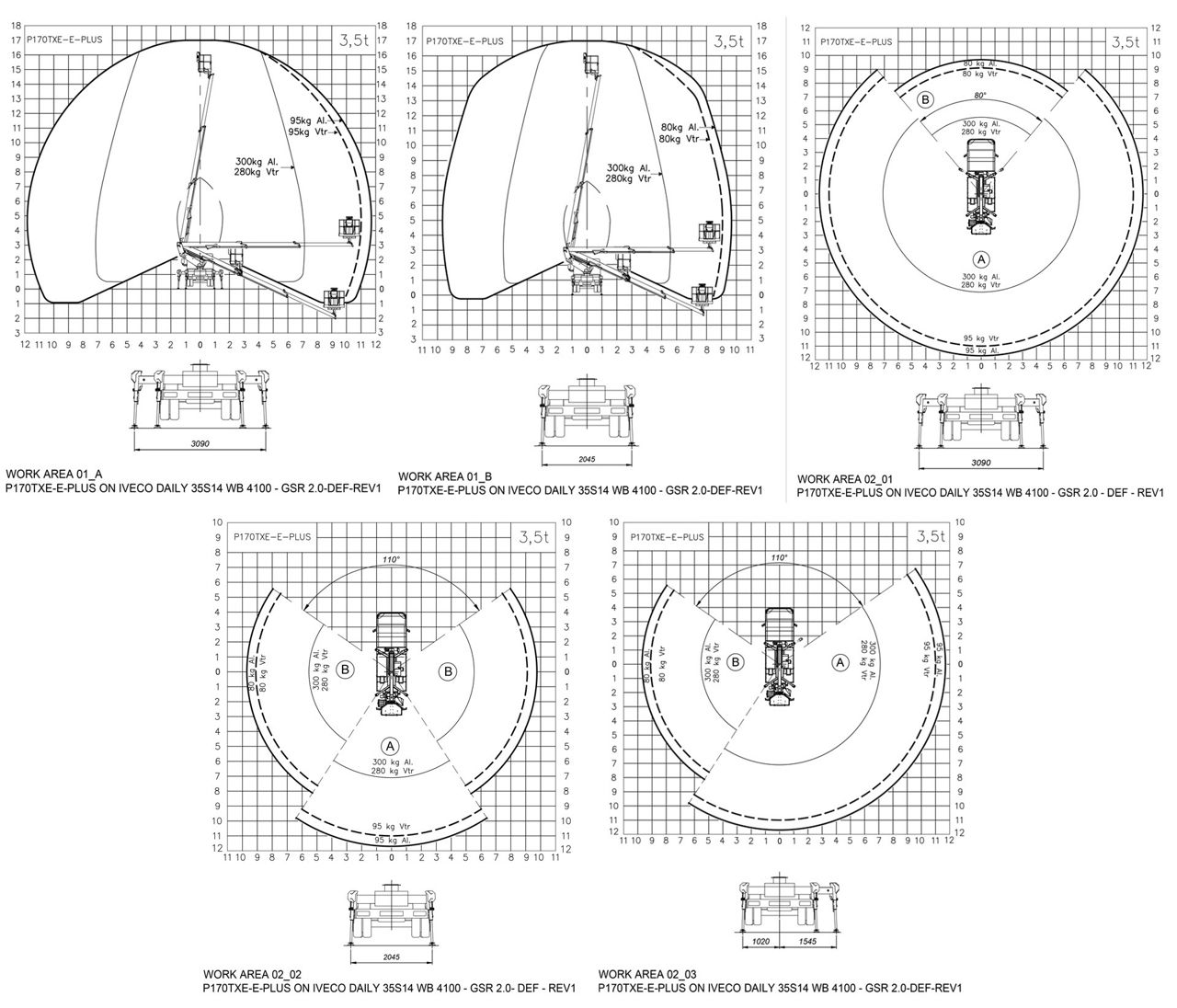

Diagrams

View
alt text

Precise Control And Clear Overview

The P 170 TXE-E Smart Plus features electric multifunction controls for unmatched precision, speed, and comfort when maneuvering. Operators can work more safely and efficiently at height, thanks to the complete, real-time status overview provided by the 28-inch color display in the basket.

alt text

Convenient Stabilizer System

Achieve stability fast with just the touch of a button thanks to PALFINGER's automatic support leveling feature.

Stabilize your vehicle quickly and easily with PALFINGER's automatic support leveling feature. The control elements mounted on both sides of the vehicle's rear create a safer working environment by providing maximum field of view into the support area.

Extend each side's support arms individually or all together using the control elements. Once the PALFINGER Safety Plates are in position, lower the supports to the ground with the touch of a button. When all supports are positioned, the automatic leveling system adjusts as needed so that the vehicle is balanced, horizontal, and ready for work.
alt text

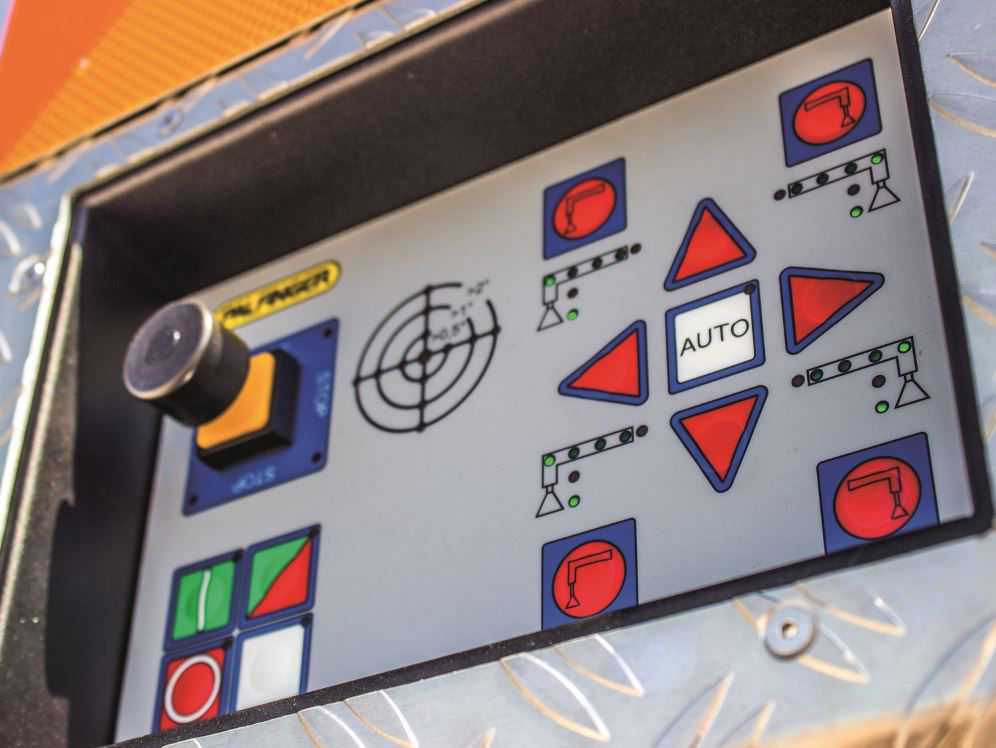

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

Stabilize your vehicle quickly and easily with PALFINGER's automatic support leveling feature. The control elements mounted on both sides of the vehicle's rear create a safer working environment by providing maximum field of view into the support area.

Operators extend both outrigger arms to their required position, as appropriate, before activating automatic stabilization. This process runs until the frame's inclination reaches the value defined on the inclinometer and both axes are no longer in contact with the ground. Once these criteria are fulfilled, the process stops automatically, and it is safe to start work.
alt text

Digital, Connected

PALFINGER'S Connected features enable you to receive real-time data from your devices. Benefit from simple remote diagnostics, optimized fleet management, and more.

Through our Connected features, you have the option of receiving real-time data from your PALFINGER devices. View the current status of your device at any time and use this data to optimize your fleet. If problems arise, you can utilize remote diagnostics to provide support without having to be on site. The standard Connected module keeps you on track with a constant overview of where your machines are, their service dates, and any maintenance due.



• Save time and additional costs with remote diagnostics

• Connect to fleet management systems via the data interface

• Keep a constant overview of all maintenance and service dates for your fleet
alt text

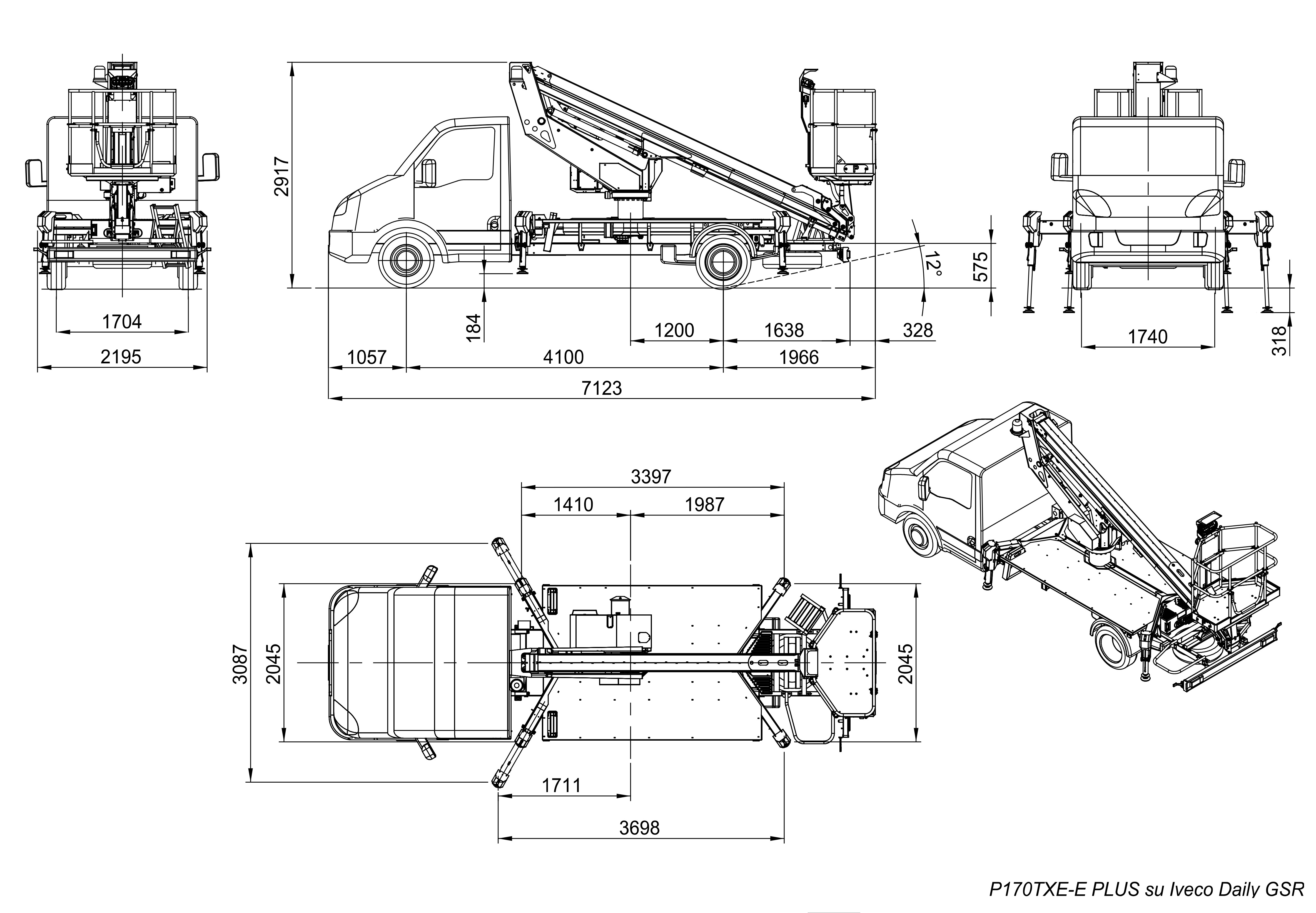

Technical Specifications

alt text
Technical data
Max. height of work
16.9 m
Max. basket floor height
14.9 m
Max. horizontal outreach /with basket load
11.80 m
Slewing range of basket
2 x 90°
Max. basket load
250 kg
Workman basket - breadth / length / height
14 x 085 x 11
Angle of main boom
-25° + 80°
Rotation angle of turntable
370°
Height in transport position
2.91 m
Width in transport position
2.19 m
Length in transport position
6.9 m

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Chassis

Available standard chassis:

Iveco Daily 35S14

Further chassis on request

Discover Standard Features

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.

Efficient Memory Function

Store preferred working positions with the PALFINGER Memory function. With efficient, one-button operation, operators can switch from transport position to working position with ease.
