P 130 A

UNMATCHED PERFORMANCE ON ALL TERRAIN

alt text
alt text
alt text
Aerial Work Platform
Key Specs
Working Height
13 m
Basket Load
250 kg
Side Reach
6.3 m fixed basket/7.0 m rotating basket

This popular aerial platform is available on two versions of Ford Ranger. The P 130 A impresses with ultra-precise control, excellent maneuverability, and a low center of gravity for maximum stability – on paved surfaces and offroad. Front and rear pantograph-type stabilization arms offer stable footing when working on slopes.

Find Sales Partner

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

Request a quote

I agree that PALFINGER may process and store my data submitted above and forward it to the responsible sales and service partner to respond to my inquiry.

I agree that PALFINGER may store my data beyond this inquiry and send me further information, highlights and offers for marketing purposes via newsletter.

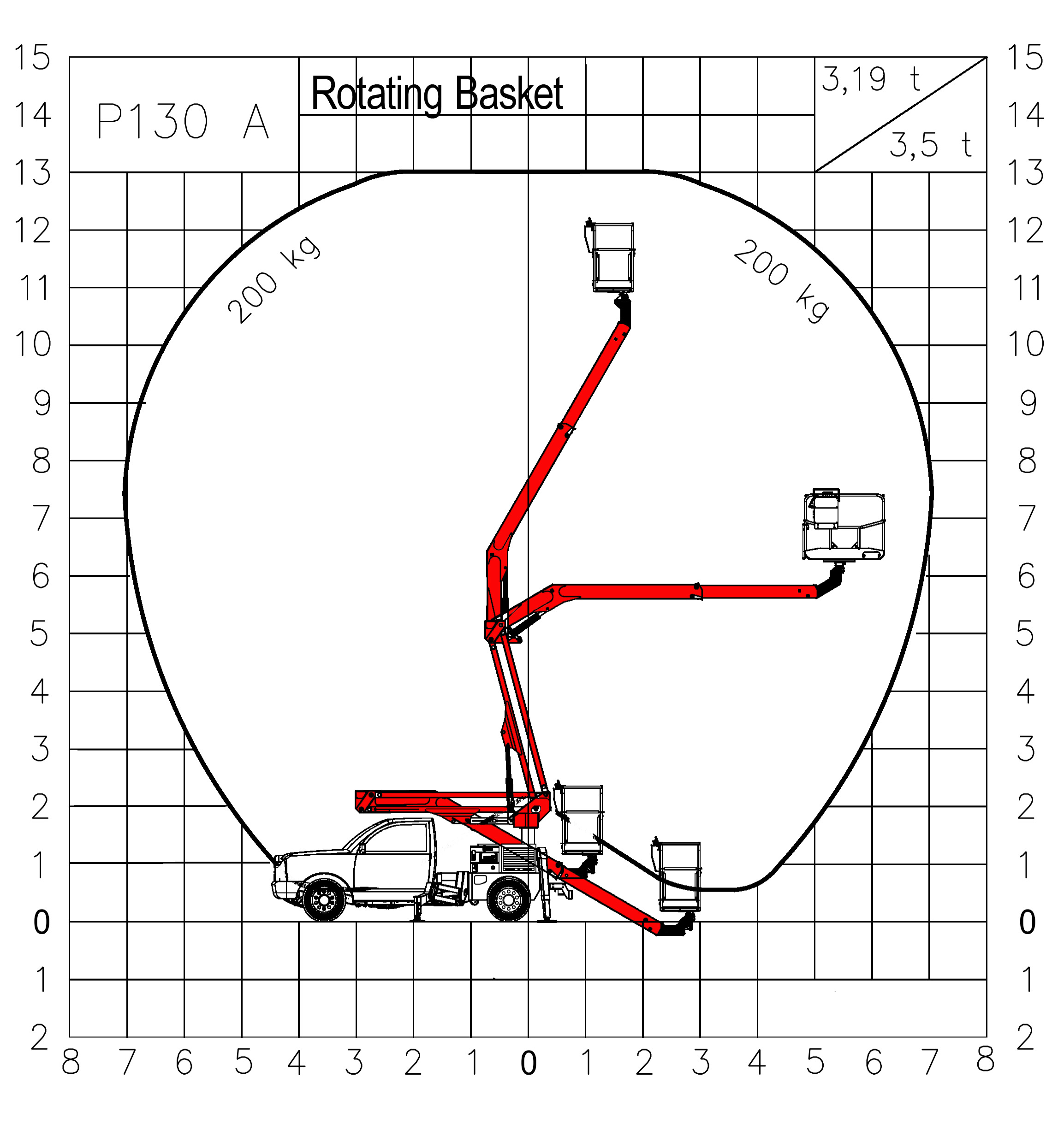

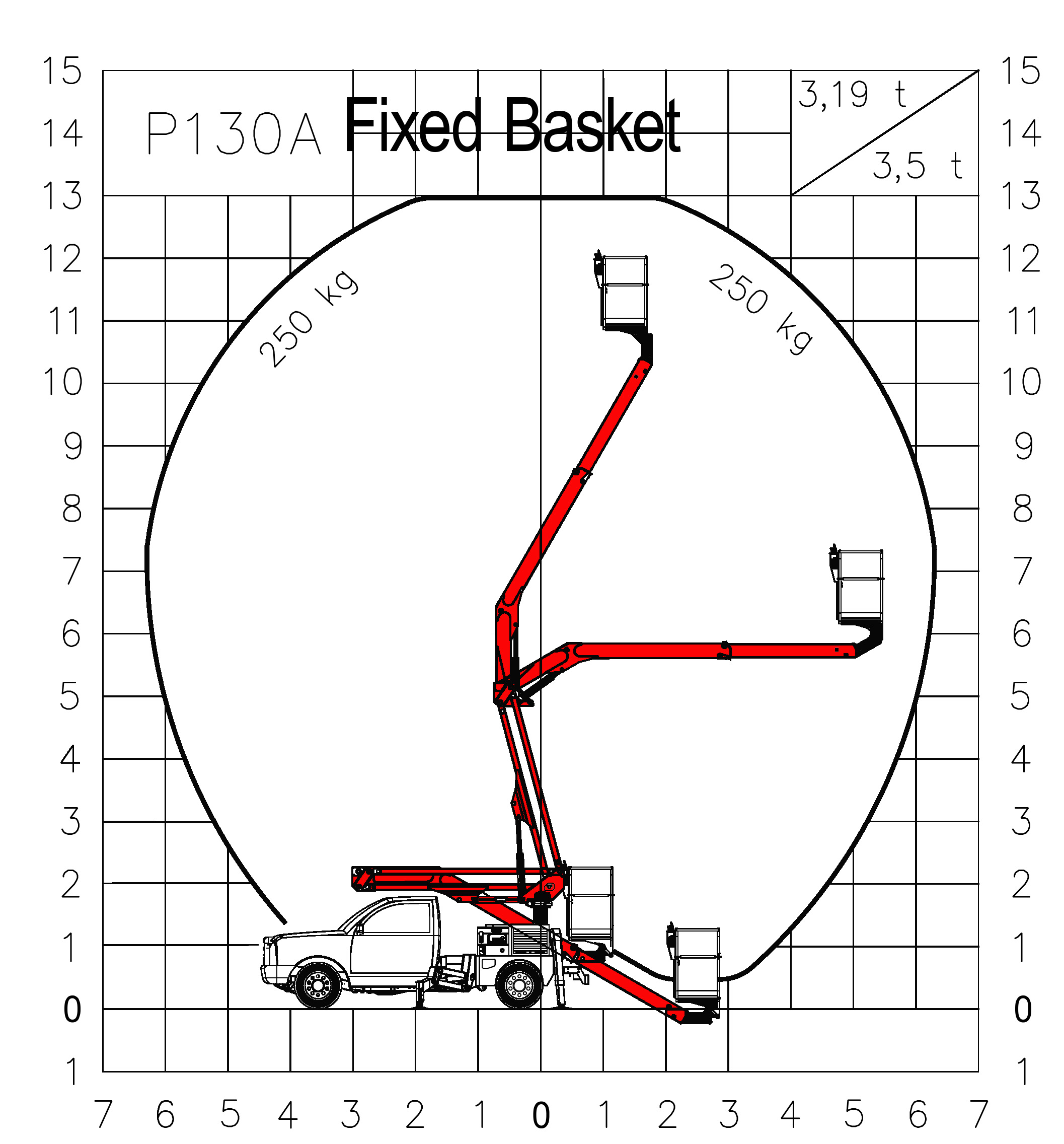

Diagrams

View
alt text

View
alt text

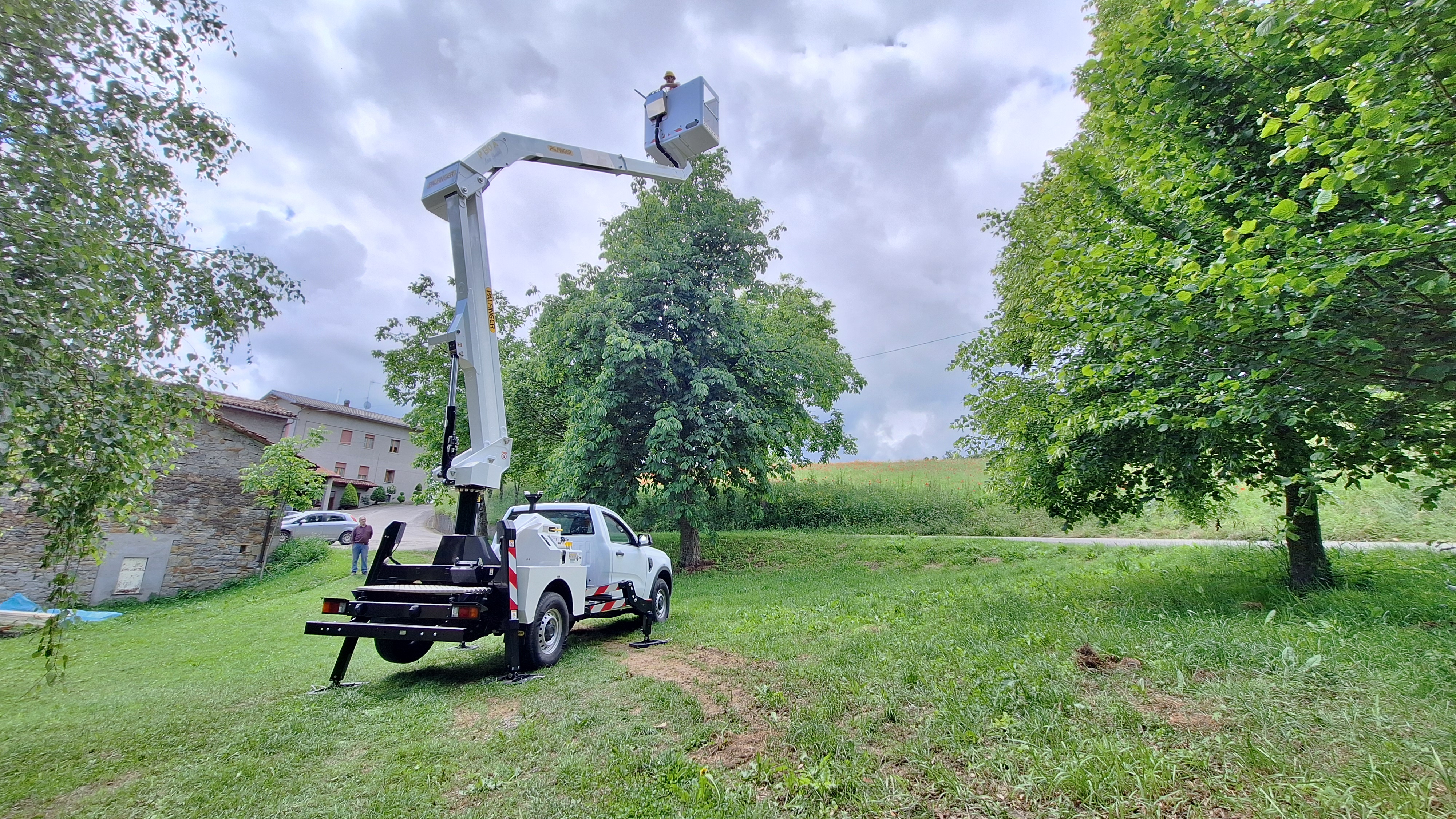

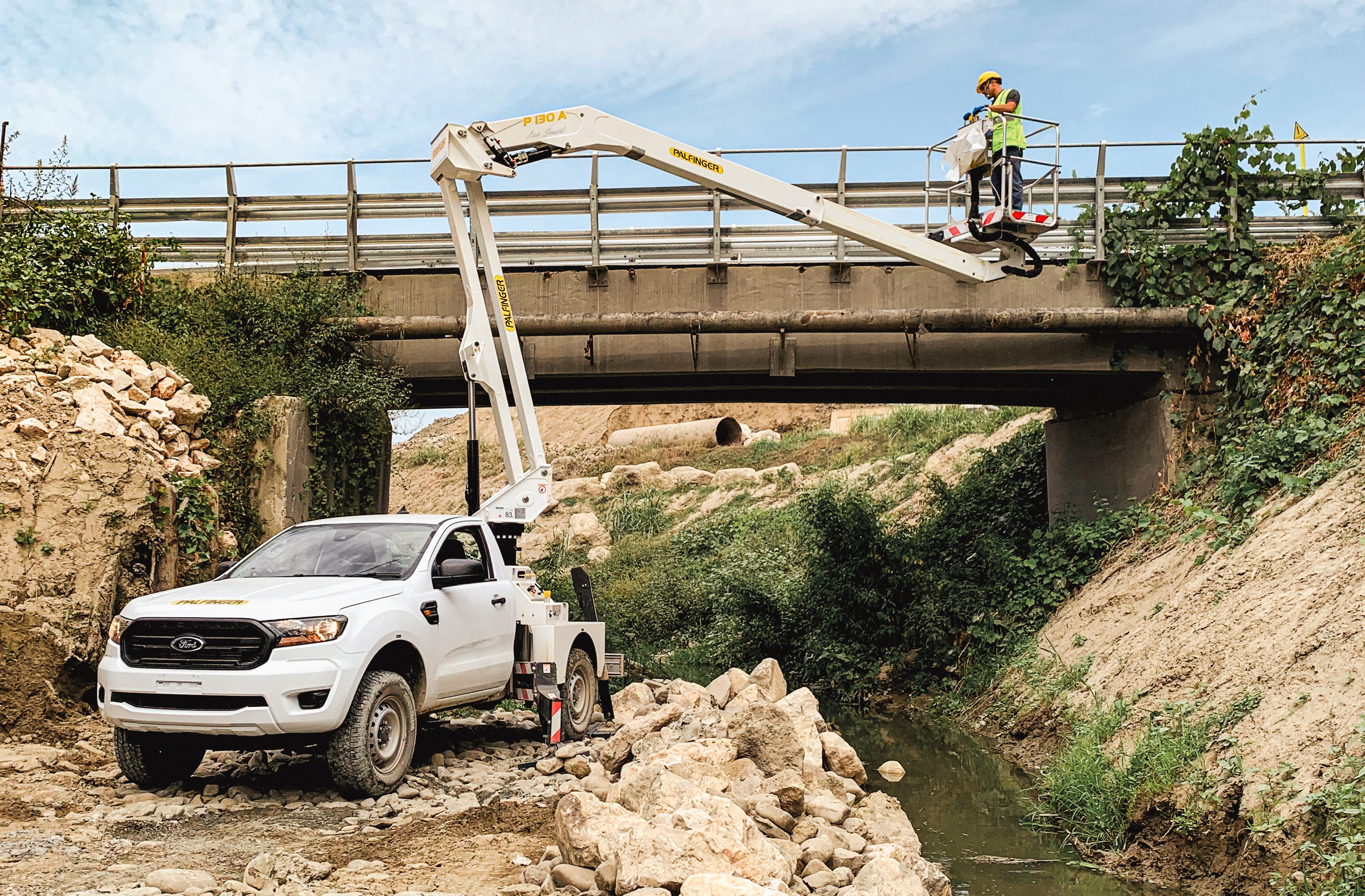

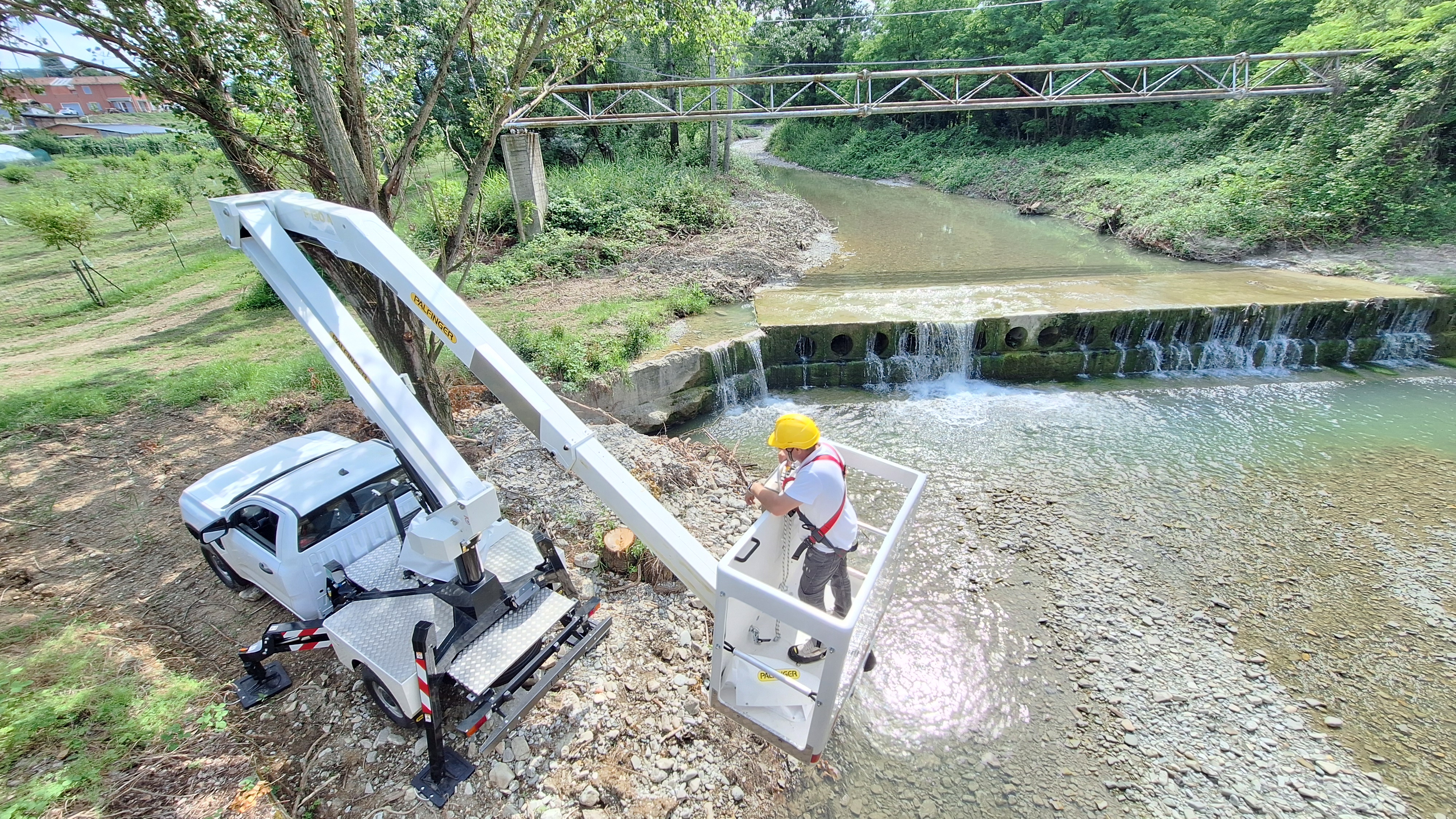

Agile handling, even on rough terrain

Whether it’s servicing a power line in the mountains, performing woodland management tasks, or working at height in an area only accessible by dirt roads, PALFINGER offers equipment suited to the task. The P 130 A is a prime example: installed on 4x4 pick-up trucks, it reaches tricky-to-access sites with ease.

alt text

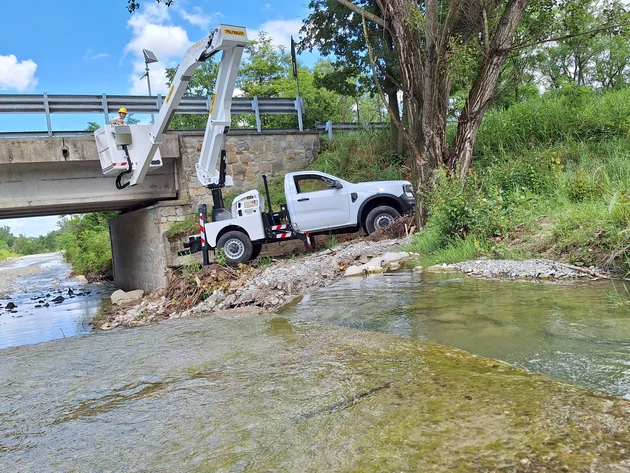

Stable On Rough Terrain

The pantograph design ensures maximum stability, even on rough, off-road terrain.

The pantograph design ensures maximum stability, even on rough, off-road terrain. The interlocking "X" mechanism provides a steady verticle descent and distributes weight evenly, guaranteeing stability even when working off-road. This also helps to reduce the load and wear on the front axle.
alt text

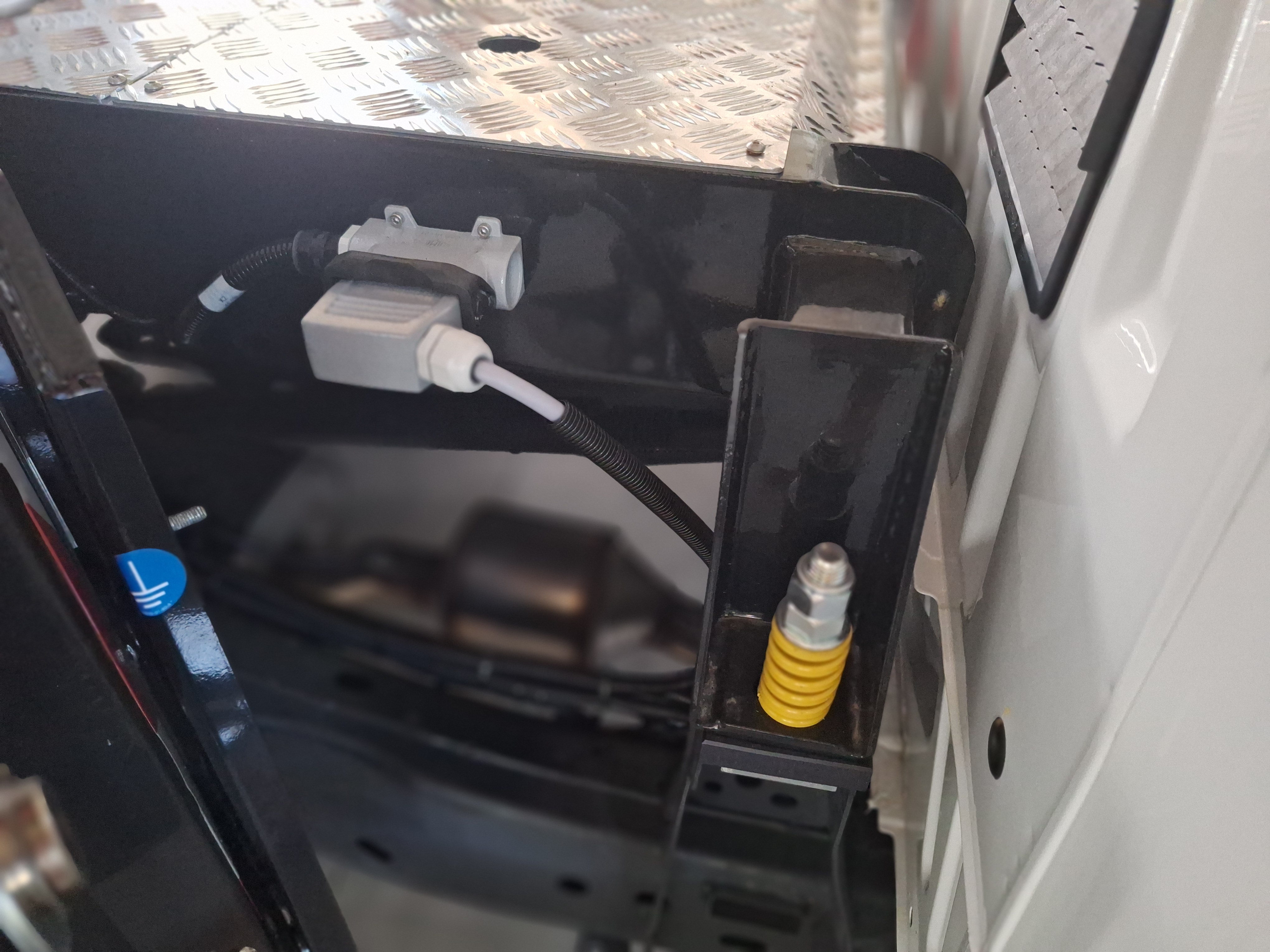

Frame Cushioning

All subframes are fitted with a spring system to protect the original truck frame from bending or warping. This method reduces damage and wear to the truck, making it more durable and extending its life.

alt text

High Load Capacity

The ability to install two large trunks on the truck bed enables the driver to transport invaluable tools for working at height – especially when selecting the Ford Ranger in the 3.5 t version.

alt text

Technical Specifications

alt text
Technical data
Max. height of work
13 m
Max. basket floor height
11 m
Max. horizontal outreach /with basket load
6.3 m fixed basket/7.0 m rotating basket
Max. stabilizer spread
0 m
Operating angle of working arm
-30°/+60°
Max. basket load
250 kg
Workman basket - breadth / length / height
1,4 x 0,7 x 1,1 m
Rotation angle of turntable
360°

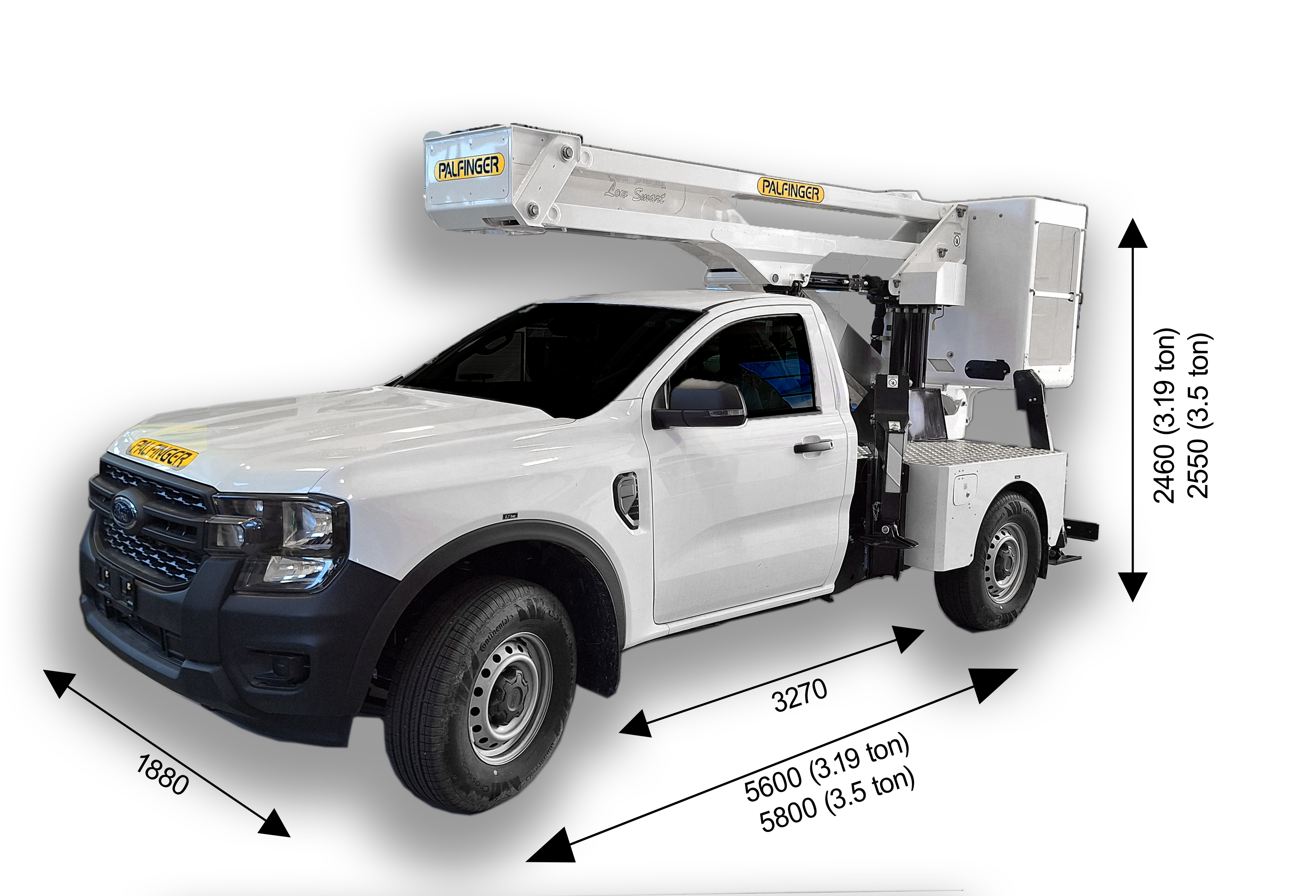

Height in transport position
2.55 m
Width in transport position
1.88 m
Overall length
5.8 m

* depending on the inclination

The devices shown are partially equipped with options and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. We reserve the right to make technical changes, errors and mistakes in translation.

Chassis

Standard chassis available:

Ford Ranger

Discover Standard Features

Leveling Made Simple

Save time and ensure peak performance on work platforms with automatic leveling.

Perfect Protection

The KTL coating provides optimal, long-lasting surface protection. This surface treatment process offers excellent corrosion protection for the whole life of a platform, maintaining performance and helping to retain value.

One Button Folding

Fold the aerial work platform quickly and easily with the PALFINGER Home function.
