Tail Lift

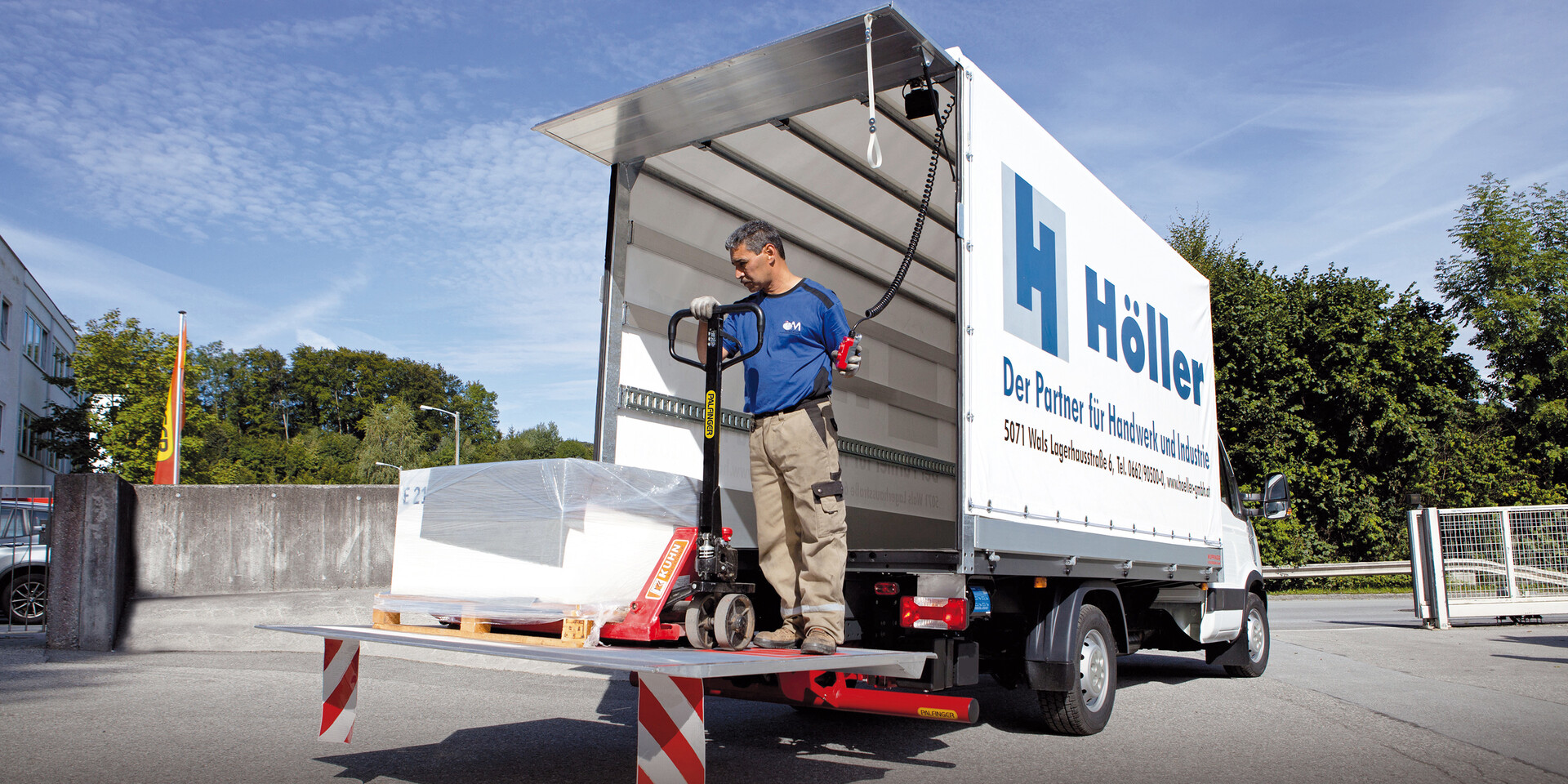

MBB C 750 L
MBB C 750 L
- The lightweight tail lift for small vans up to 6,5 t
- Lifting capacity 750 kg with 600 mm load distance
- Torsion-resistant two-cylinder lifting mechanism
- Even, parallel movement to loading floor
- Single-piece underride guard as standard
- Simple attachment thanks to boltable mounting plates
Available for
- Mercedes-Benz Sprinter 3/5
- Volkswagen Crafter 30/35/50
- Iveco Daily
- Renault Master
- Ford Transit
- Citroen Jumper / Fiat Ducato / Peugeot Boxer
- Further vehicle types on request
Cantilever
Experience the product features
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- Vehicle specific mounting brackets
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Lifting gear micro-galvanised 750er
- Hydr. Stabiliser, large, installed, pair (double-acting cylinders)
- Mechanical stabilisers, large, lose, pair
Operation standard
- Control box with self-closing cover and Z-bracket / EVERY ADDITIONAL CONTROL HAS TO BE SELECTED INDIVIDUALLY!
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- 4-button control panel, box format for external installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Slim control panel basic (instead control box)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
Electrics / Sensors standard
- 12V or 24V
- Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
- Sensors b13 (lifting gear) and b15L (platform)
- Surcharge for plug-in sensor b15S platform (instead sensor b15L)
- Surcharge for sensor b15L lifting gear (instead sensor b13) = "2x b15"
- Development of a customised program for MBB Control
- ETMA Code A + B (including plus and minus cable 3,8m)
- Cable for box body light
Lifting capacity | 750 kg |
Main beam | 120 x 80 mm |
Lifting gear hydraulics | 1 lifting cylinder / 1 tilting cylinder |
Platform overlap with floor | -57 mm |
Lift arm pitch /Lift arm length | 460 mm / 1120 mm / 1240 mm |
Load centre - lengthwise | 600 mm |
Load centre - across center | Central 50% of rated load on one side |
Inclination angle of the platform | 90° to -10 |
Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
---|---|---|---|---|---|
alu | 2100 | 1450 | 199 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
a (mm) | Q (kg) |
600 | 750 |
700 | 650 |
820 | 550 |
1120 | 400 |
Lift arms (in mm) | 600 |
H (max.) Loading height unloaded | 1080 |
H (min.) Loading height loaded | 680 |
F (max.) Middle of main beam to upper edge of loading floor | 580 |
K (min.) at dimension F (max.) | 443 |
D (min.) Installation space (min.) | 565 |
D (max.) Installation space (max.) | 700 |
F (min.) | 420 |
K (max.) at dimension F (min.) | 578 |
G (max.) Unloaded (middle of main beam to ground) | 500 |
G (min.) loaded | 260 |
