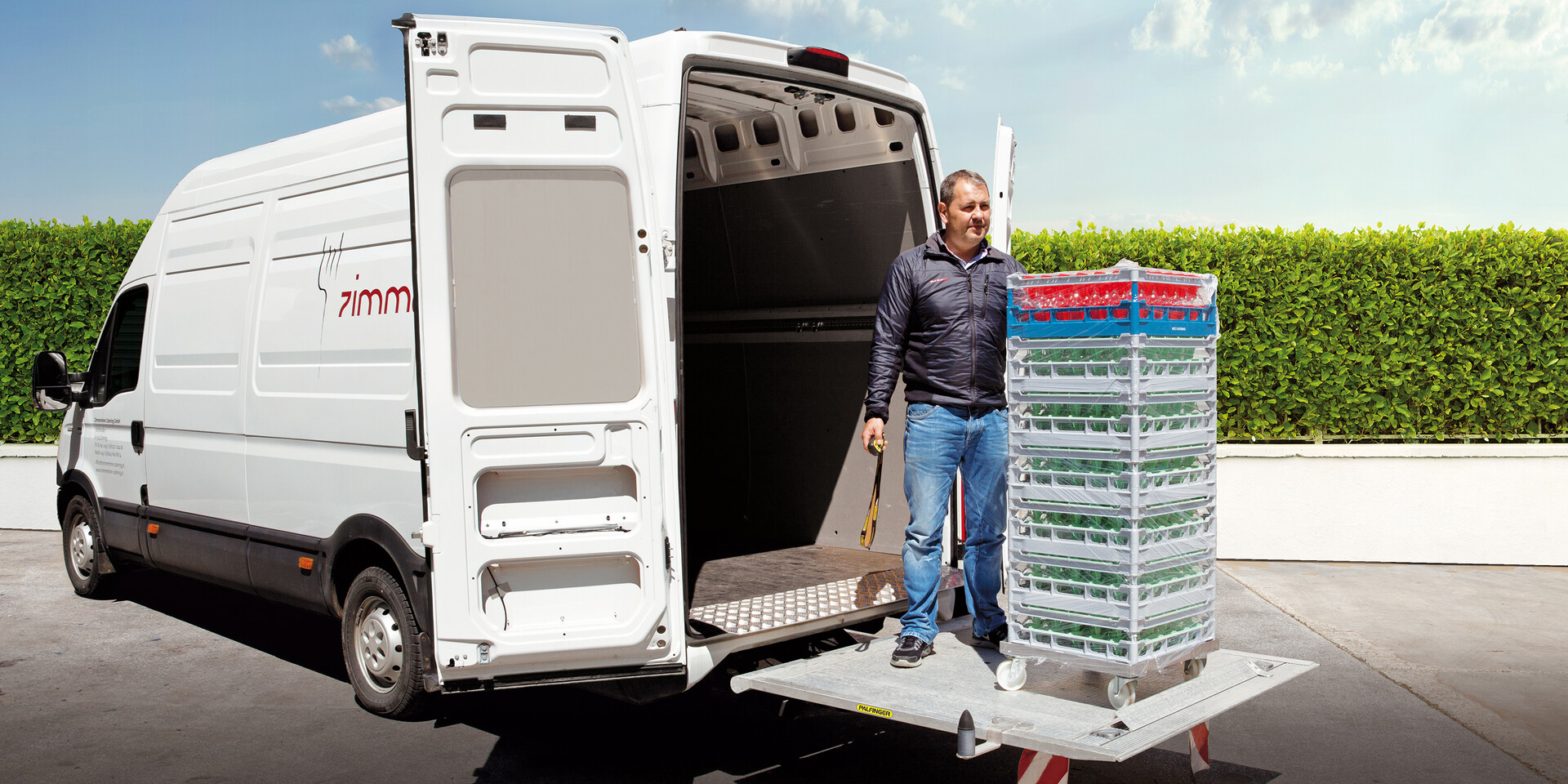

Cantilever
MBB C 500 VAN
Tail Lift
MBB C 500 VAN
Platform standard
- AluLite 30/40/40S - platform
- Ground rollers
- Warning flags red/white or black/yellow
- LED warning lights
- Protection bars for warning lights, pair
- Abrollsicherung
Innenseite
- AluLite - anti-slip surface (cross grooves)
- AluLite anti-slip surface (double cross-cutting)
- Increased anti-slip resistance R13 (for Aluminium platforms)
- Plastic coating for platforms (incl. coated roll-stops) per m²
Außenseite
- Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
- Aluminium platform anodised (up to 2000mm height)
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- Vehicle specific mounting brackets
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Provision for ball-head coupling installation MBB PTC 750 L / S & PTC 1000 LLW (incl. central support)
Operation standard
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
Electrics / Sensors standard
- 12V or 24V
- Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
- Sensors b13 (lifting gear) and b15L (platform)
- Surcharge for plug-in sensor b15S platform (instead sensor b15L)
- Surcharge for sensor b15L lifting gear (instead sensor b13) = "2x b15"
- Development of a customised program for MBB Control
- ETMA Code A + B (including plus and minus cable 3,8m)
| Lifting capacity | 500 kg (600 kg optional) |
| Main beam | 120 x 80 mm |
| Lifting gear hydraulics | 1 lifting cylinder / 1 tilting cylinder |
| Platform overlap with floor | - |
| Lift arm pitch /Lift arm length | 510 mm |
| Load centre - lengthwise | 600 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | +90° to -10° |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alu | 1400 | 1575 | 154 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 600 | 500 |
| 700 | 430 |
| 820 | 360 |
| 1120 | 260 |
| Lifting arm lengths (mm) | 500 |
| H (max.) Loading height unloaded | 780 |
| H (min.) Loading height loaded | 450 |
| F (max.) Middle of main beam to upper edge of loading floor | 340 |
| K (min.) at dimension F (max.) | 546 |
| D (min.) Installation space (min.) | 814 (926) |
| F (min.) | - |
| K (max.) at dimension F (min.) | - |
| D (max.) installation dimension, maximum | - |
