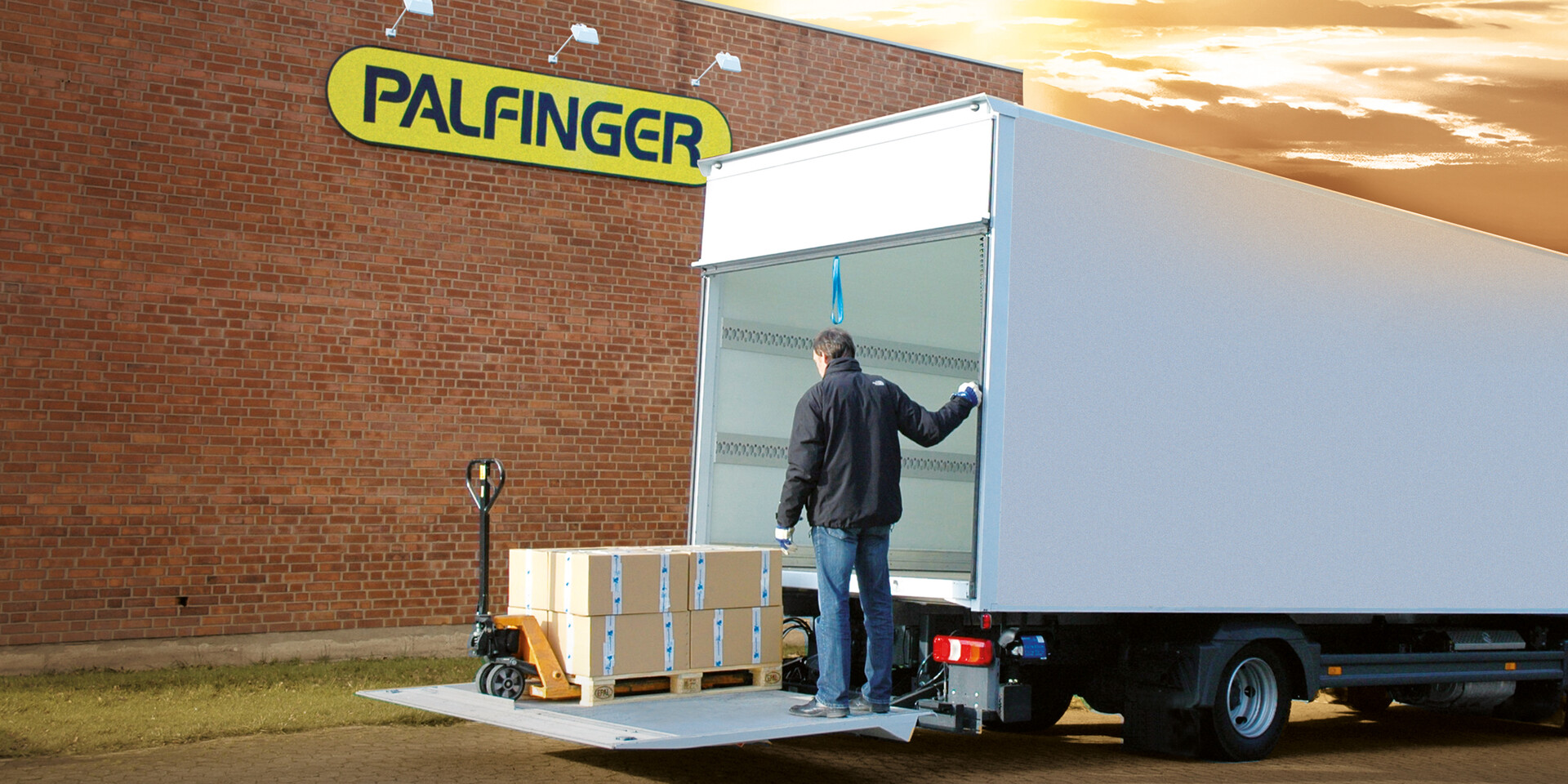

Cantilever
MBB C 1000 L
Tail Lift
MBB C 1000 L
Platform standard
- AluLite 30/40/40S - platform
- FerroStar - platform
- Ground rollers
- Warning flags red/white or black/yellow
- LED warning lights
- Protection bars for warning lights, pair
- Abrollsicherung
- Troughs, square, pair
Außenseite
- Steel platform with powder-coated rearside (in a RAL colour)
- Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
- Aluminium platform anodised (up to 2000mm height)
- Horizontal folding Aluminium platform for cantilever lifts (max. width 2520mm)
- Mounted advertisement panel for steel platform (not for FerroTop)
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- Mounting brackets
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Lifting gear micro-galvanised 750er
- Bolt-on mounting brackets (not LZ/SZ models and MBB C 500 VAN to MBB PTC 750 S)
- Welded mounting brackets (please provide chassis dimensions)
- Hydr. Stabiliser, large, installed, pair (double-acting cylinders)
- Mechanical stabilisers, large, lose, pair
Other options and accessories
- Seal kit system L with MBB profile, 4 sides
- Safety gate, A-shape A1100, in RAL-color e.g. 1023, piece (not for AluLite)
- Safety gate, P-shape, in RAL-color e.g. 1023, piece, left or right (not for AluLite)
| Lifting capacity | 1000 kg |
| Main beam | 180 x 180 mm |
| Lifting gear hydraulics | 2 lifting cylinder / 2 tilting cylinder |
| Platform overlap with floor | -44 mm |
| Lift arm pitch /Lift arm length | 1,100 / 1,320 mm |
| Load centre - lengthwise | 600 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | +90° to -10° |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alu | 2400 | 1600 | 282 | - | |
| alu | 2400 | 1700 | 289 | - | |
| alu | 2400 | 1825 | 295 | - | |
| steel | 2400 | 1509 | 357 | - | |
| steel | 2400 | 1209 | 312 | - | |
| steel | 2400 | 1809 | 402 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 600 | 1000 |
| 750 | 800 |
| 950 | 600 |
| 1400 | 400 |
Feasibility study
Webtool for automatic feasibility study for C- Type Lifts
Here you can create your feasibility study drawing online. For an extensive range of vehicles, quickly and without obligation
Dimensions
| Lift arms (in mm) | 600 | 700 |
| H (max.) Loading height unloaded | 1100 | 1210 |
| H (min.) Loading height loaded | 750 | 830 |
| F (max.) Middle of main beam to upper edge of loading floor | 620 | 650 |
| K (min.) at dimension F (max.) | 467 | 592 |
| D (min.) Installation space (min.) | 617 | 742 |
| D (max.) Installation space (max.) | 802 | 871 |
| F (min.) | 420 | 500 |
| K (max.) at dimension F (min.) | 652 | 721 |
