Medium

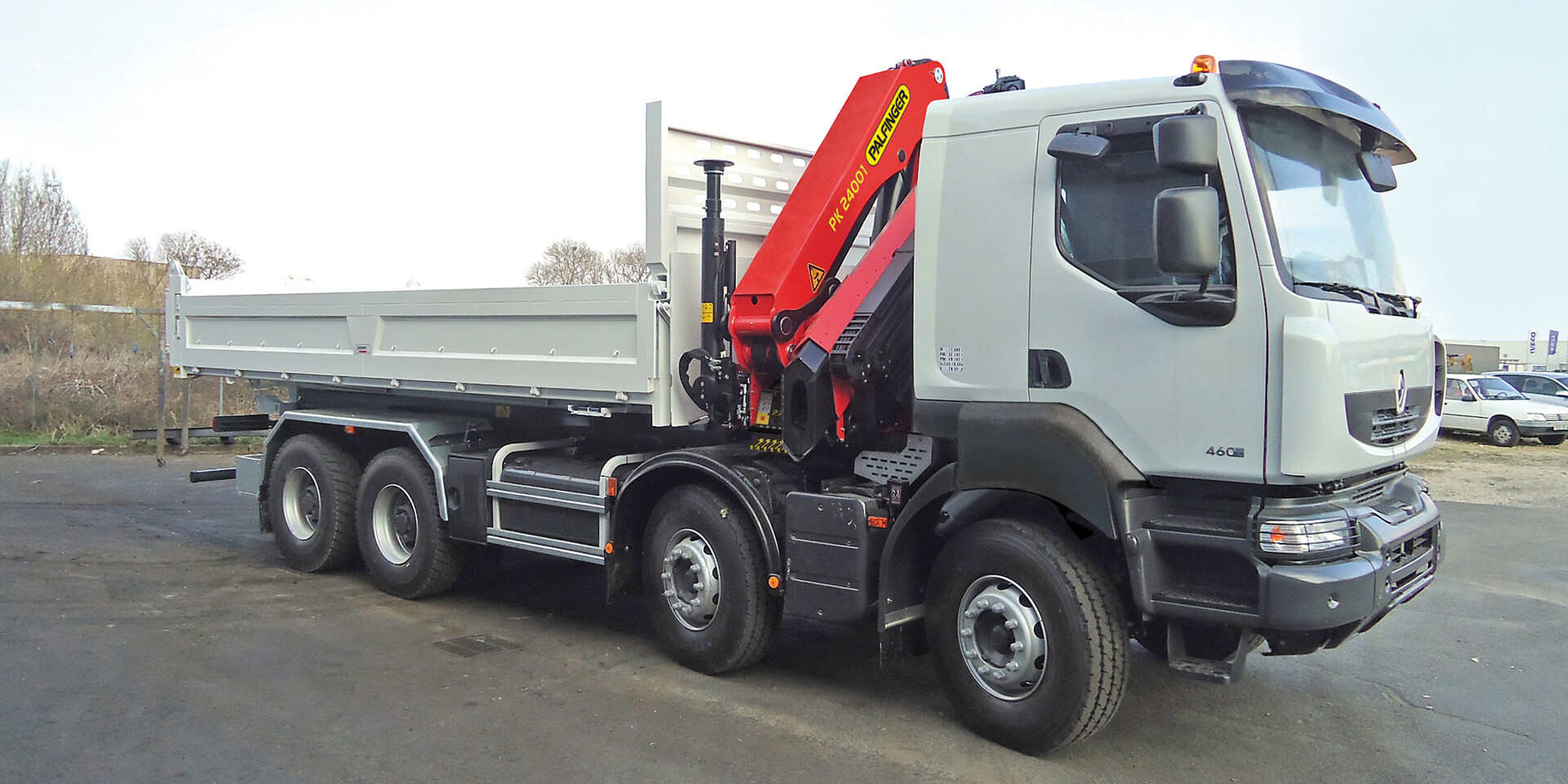

PK 24001 High Performance

Loader Crane

PK 24001 High Performance

Single Link Plus - High variety of uses even under difficult conditions

  • High value retention thanks to coating technology
  • High value retention due to coating technology
  • Maximum utilisation of the working range due to HPSC
  • Increased operating times due to low-maintenance extension system
  • High degree of user-friendliness thanks to optional radio remote control

Single Link Plus

The knuckle joint on the crane's knuckle boom improves the crane's lifting power significantly in typical working positions. This knuckle boom, which has been specially developed by PALFINGER and can be angled upwards, also stands out by virtue of excellent movement geometry. Difficult crane jobs can be performed with precision even in the tightest spaces.

Low-maintenance extension system

With sliding elements made of synthetic material and the high-quality KTL coating, this boom system significantly simplifies service performed by the operator. This saves time and money – and protects the environment.

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Downloads

Brochures

PK 24001 / PK 27001 EH

4,86 MB Download
