Special

PK 19500T-EH High Performance

Loader Crane

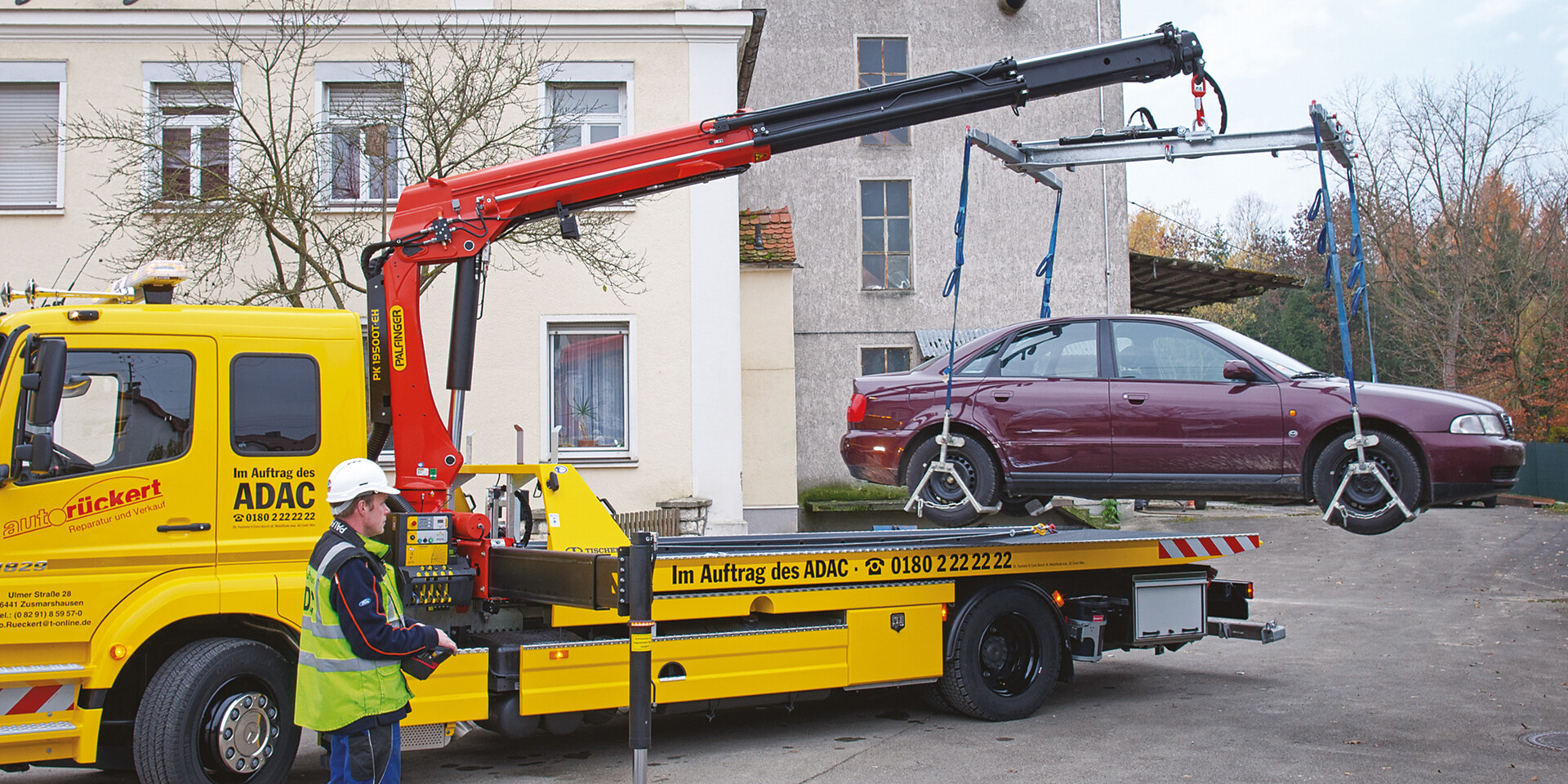

PK 19500T-EH High Performance
The T models have been developed specifically for the varied requirements of breakdown and recovery services. They are impressive by virtue of detailed solutions such as the laterally arranged extension cylinders which guarantee a low overall height of the vehicle when the main boom is extended. A second control panel enables a perfect view of the platform. The radio remote control and electronic HPLS fitted as standard on the PK 15500T EH/PK 19500T EH also make day-to-day assignments easier.

E-HPLS

The PALFINGER HIGH POWER LIFTING SYSTEM (HPLS) increases the capacity of a crane up to around 10% with reduced operating speed.The new electronic version (E- HPLS) is controlled by the PALTRONIC safety system.

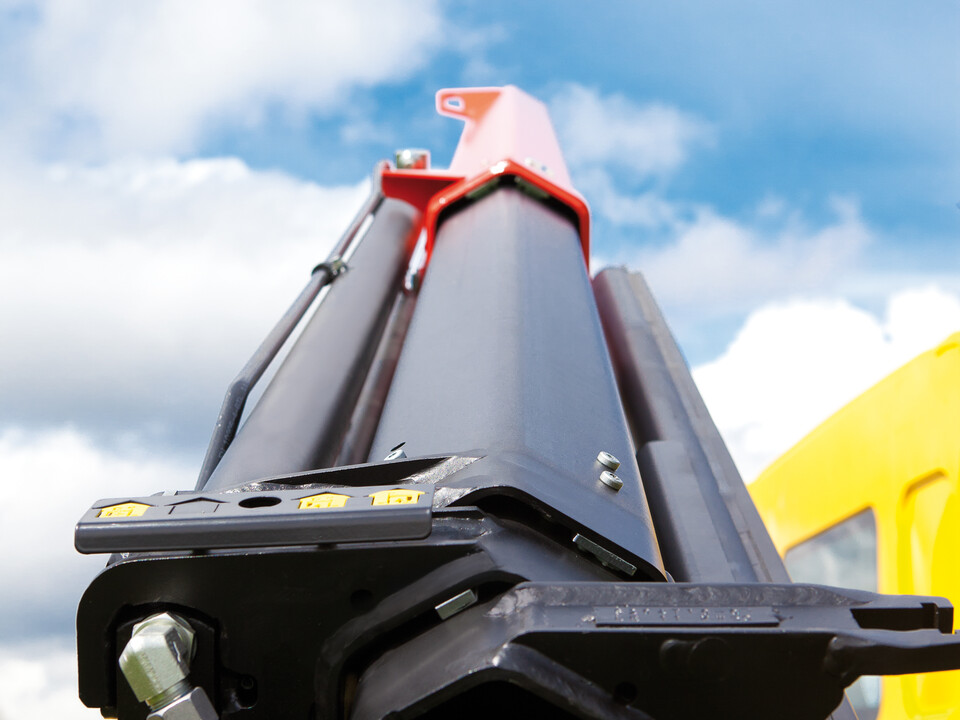

Low-maintenance extension system

With sliding elements made of synthetic material and the high-quality KTL coating, this boom system significantly simplifies service performed by the operator. This saves time and money – and protects the environment.

Laterally arranged cylinders

The laterally arranged cylinders enable a low overall height when the extension system is extended.

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Downloads

Brochures

PK 13500T / PK 15500T EH / PK 17500T / PK 19500T EH

1,6 MB Download
