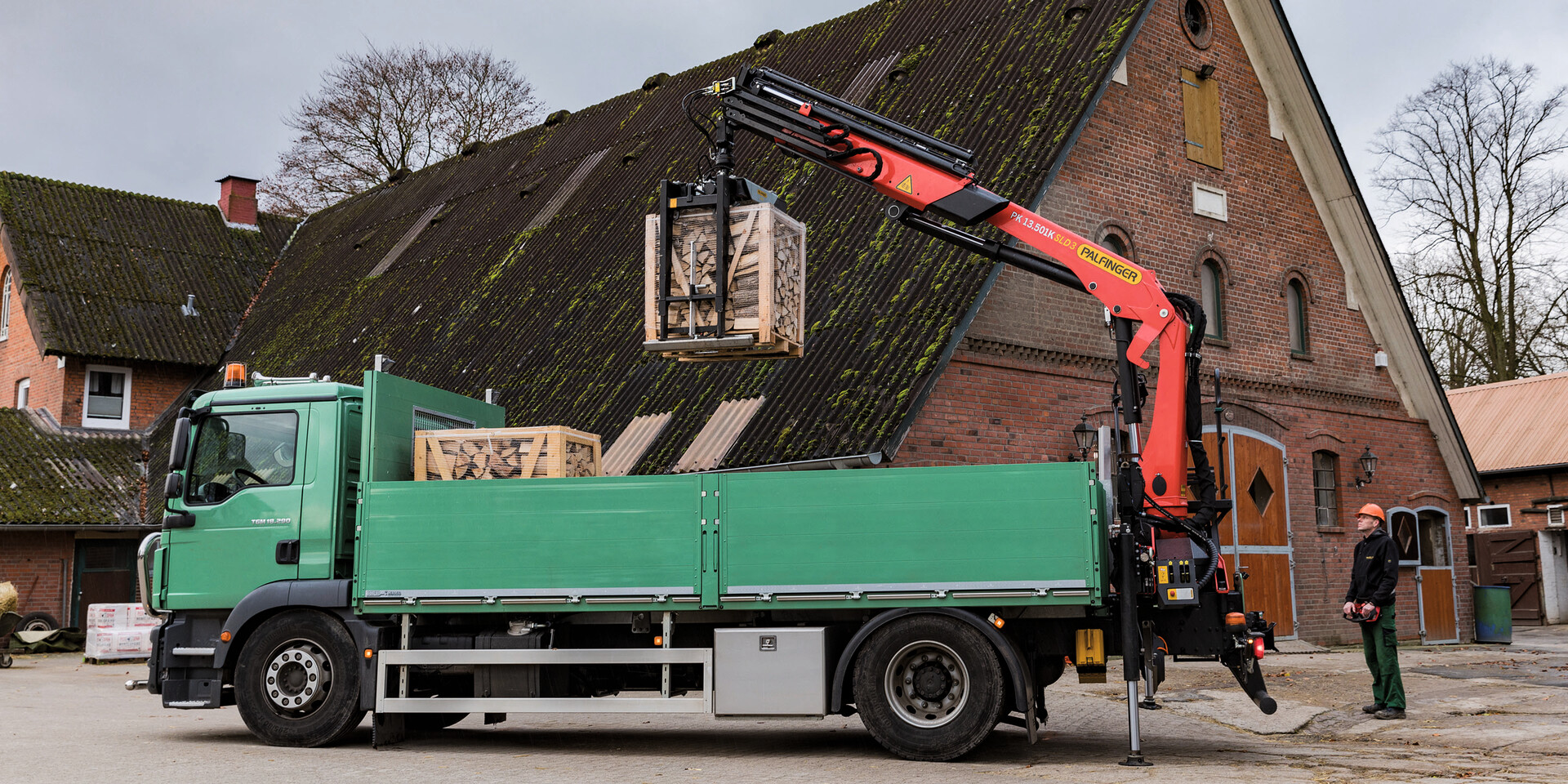

PK 13.501K SLD 3

Loader Crane

MORE PAYLOAD THANKS TO INTELLIGENT LEIGHTWEIGHT DESIGN

  • Shorter load cycle times due to High Speed Extention
  • Maximum utilisation of the working range due to HPSC
  • Higher payloads due to intelligent lightweight design
Downloads Technical Data

Paltronic

With the PALTRONIC, PALFINGER offers the latest control electronics for the series production crane. Different systems are available depending on the series and the range of functions. The most important safety and comfort functions include such as overload protection and different variations of the stability control system HPSC and High Power Lifting System HPLS.

Details

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Single Link Plus

The knuckle joint on the crane's knuckle boom improves the crane's lifting power significantly in typical working positions. This knuckle boom, which has been specially developed by PALFINGER and can be angled upwards, also stands out by virtue of excellent movement geometry. Difficult crane jobs can be performed with precision even in the tightest spaces.

Max. lifting moment 13.2 mt
Max. lifting capacity 6200 kg
Max. hydraulic outreach 11.7 m
Slewing angle 420°
Slewing torque 1.6 mt
Stabilizer spread (std) 5.0 m
Fitting space required (std) 0.74 m
Width folded 2.55 m
Max. operating pressure 330 bar
Pump capacity 35 - 50 l/min
Dead weight (std) 1480 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

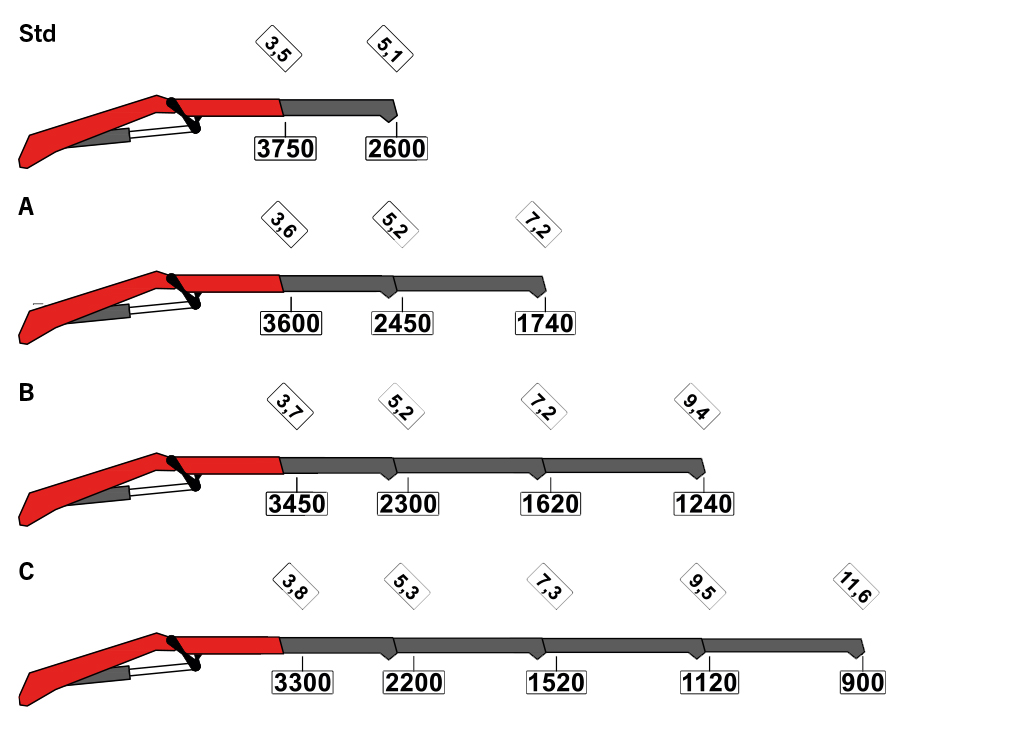

Lifting moment
(mt) 		Outreach
(m) 		Slewing angle
(°) 		Slewing torque
(mt) 		Pressure
(MPa) 		Pump capacity
(l/min) 		Crane Weight
(kg) 		Crane Height
(mm) 		Crane Width
(mm) 		Installation Width
(mm)
Std 13.2 5.2 420 1.6 33.0 35-50 1480 2215 2550 740
A 13.2 7.3 420 1.6 33.0 35-50 1630 2215 2550 740
B 12.6 9.5 420 1.6 33.0 35-50 1750 2215 2550 740
C 12.3 11.7 420 1.6 33.0 35-50 1860 2215 2550 740

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
