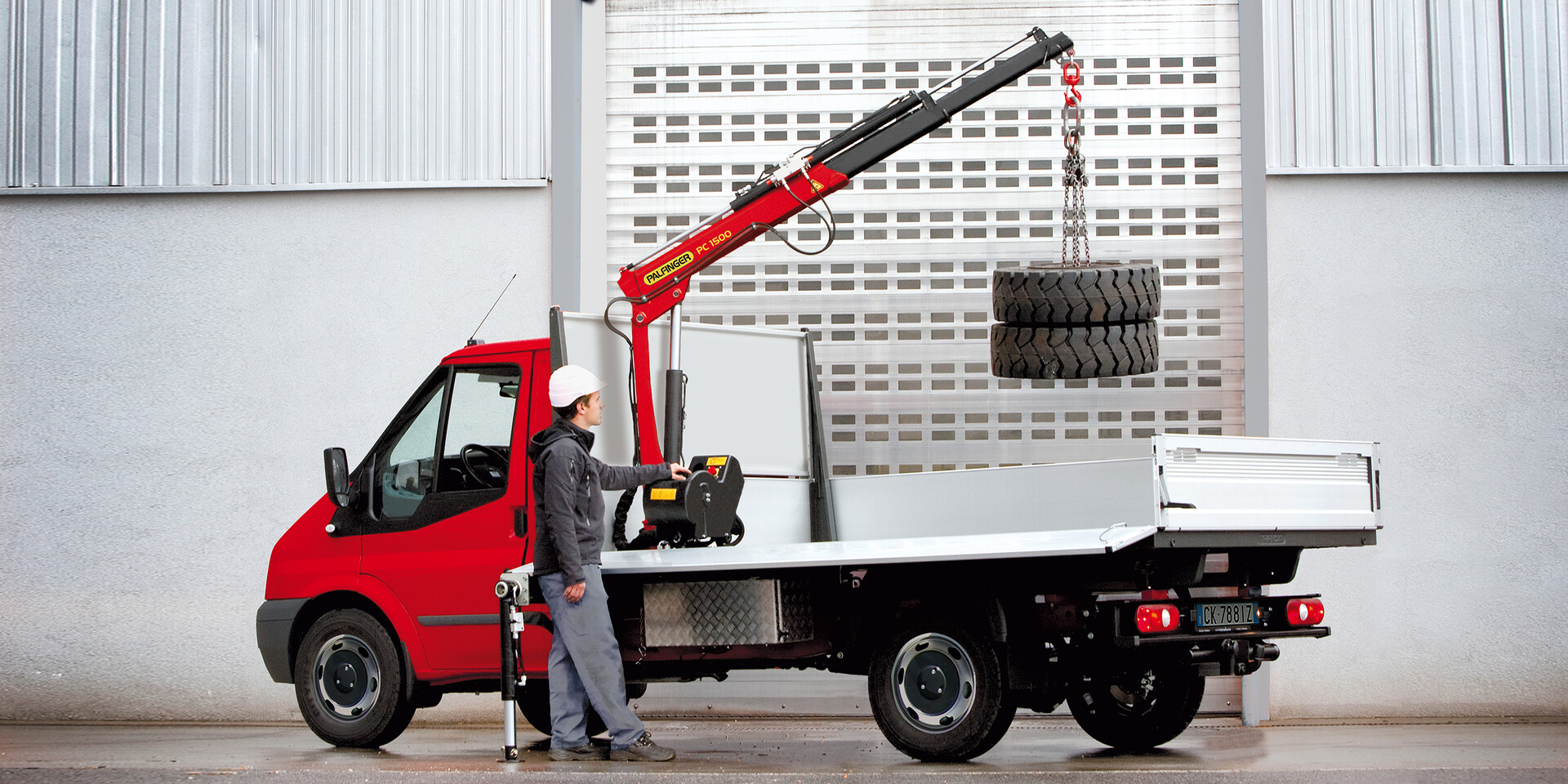

PC 1500 Compact
PC 1500 Compact
The right surface treatment is the foundation for durable and long-lasting surface protection. The components pass through the priming and painting process stages fully automatically. Through this innovative technology for surface coating, PALFINGER creates a quality standard that is usually only found in the automobile industry.
HOW IT WORKS
1. The crane components are cleaned of all impurities by means of cut steel shot blasting.
2. The components are degreased, rinsed, activated and coated with zinc phosphating in the individual immersion tanks.
3. After two additional rinsing processes, the surfaces are passivated as well as rinsed with ultra-pure water.
4. The electrostatic cathodic dip painting follows by immersing the crane components completely in the paint.
5. Excess paint is washed off in two additional operations with an ultra-filtration rinse.
6. Afterwards, the paint is cured at a temperature of 115 degrees for 1.5 hours.
7. At the end, the crane components are given a water-soluble, environmentally friendly two-component finish coat of paint by a painting robot.
Today, radio remote controls are often considered to be standard equipment when it comes to modern loader cranes. PALFINGER radio remote controls are equipped with a choice of a linear lever or cross lever and provide the greatest possible comfort of the operator. For cranes with PALTRONIC an LCD graphic display or 4.1 inch TFT- colour display informs the crane operator of the different operating conditions.
HOW IT WORKS
The remote control console (transmitter) is responsible for transmitting the commands made on the levers to the receiver. The receiver forwards the signals to the electronics, which convert them into crane movements by means of hydraulic control valves.
|Max. lifting moment||1.4 mt|
|Max. lifting capacity||990 kg|
|Max. hydraulic outreach||3.1 m|
|Max. manual outreach||4.2 m|
|Slewing torque with 1 gear||0.2 mt|
|Max. operating pressure||200 bar|
|Pump capacity||6 l/min|
|Dead weight (std)||164 kg|
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
|Lifting moment (mt)||Outreach (m)||Slewing angle (°)||Slewing torque (mt)||Pressure (MPa)||Pump capacity (l/min)||Crane Weight (kg)||Crane Height (mm)||Crane Width (mm)||Installation With (mm)|
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
