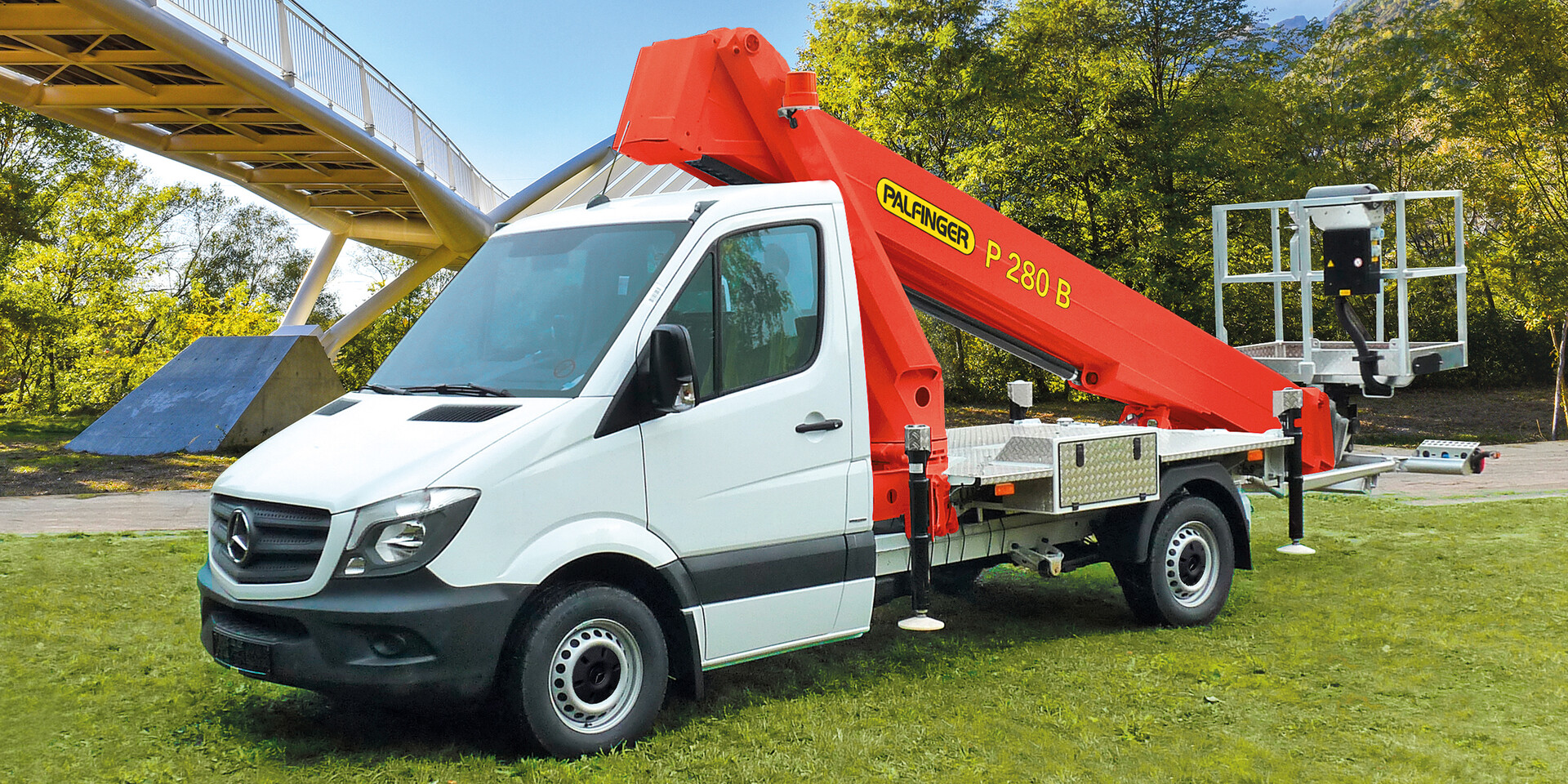

P 280 B
P 280 B

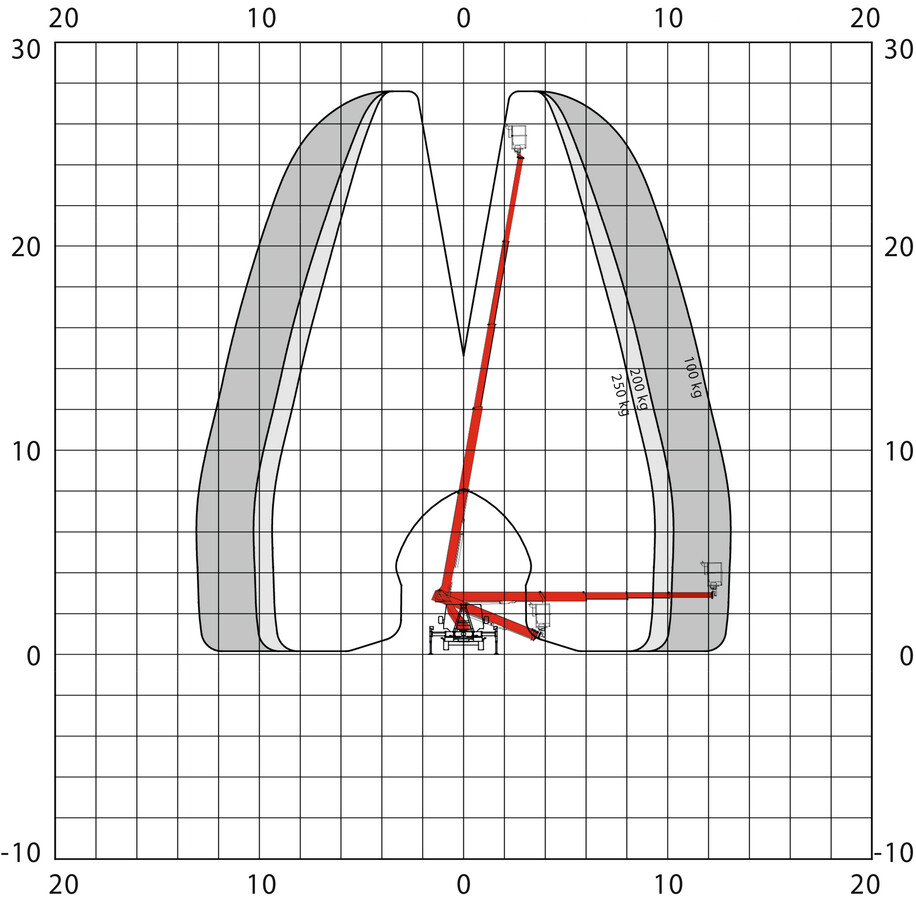

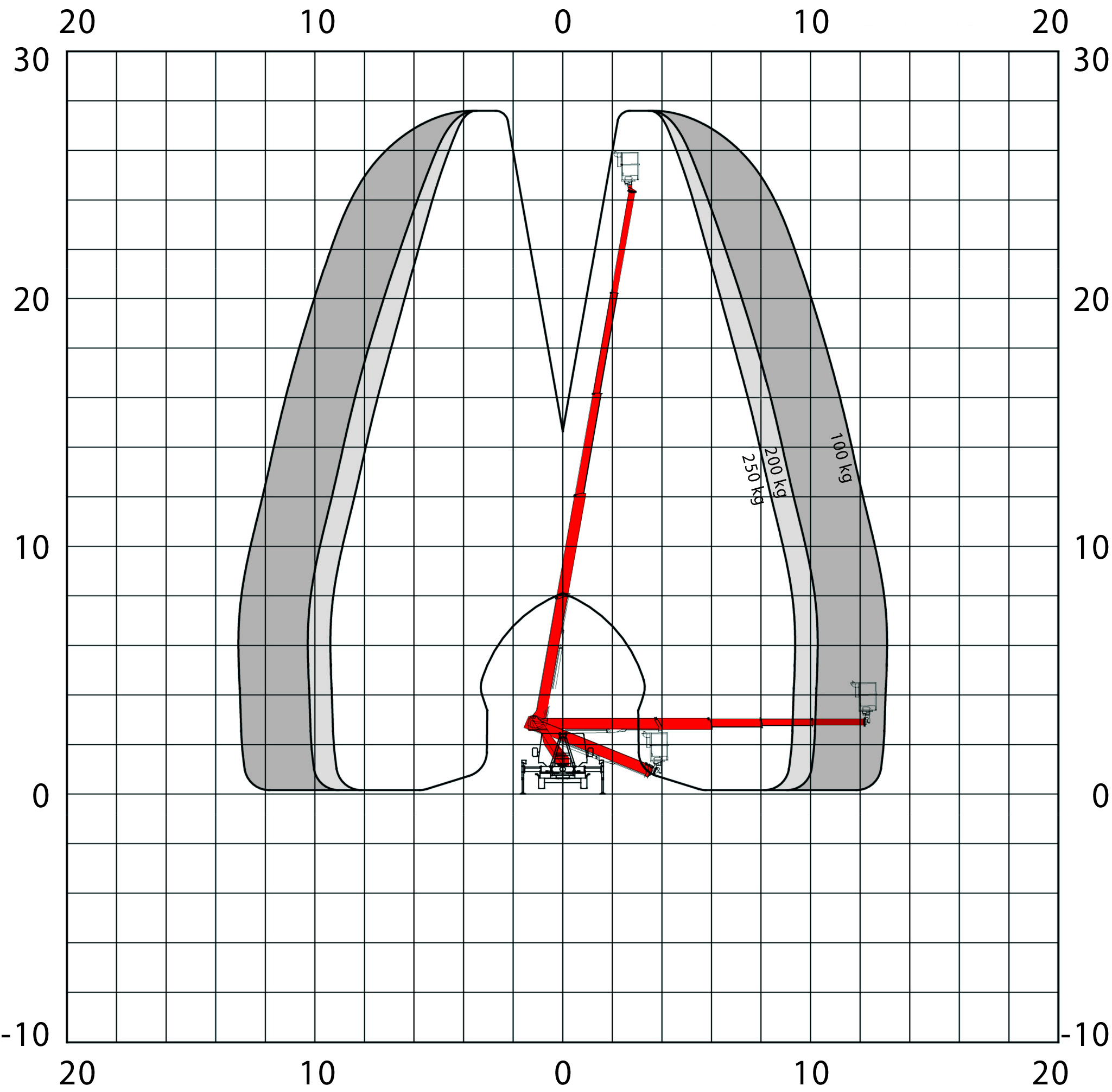

Working Height 27.6 M
Basket Load 250 KG

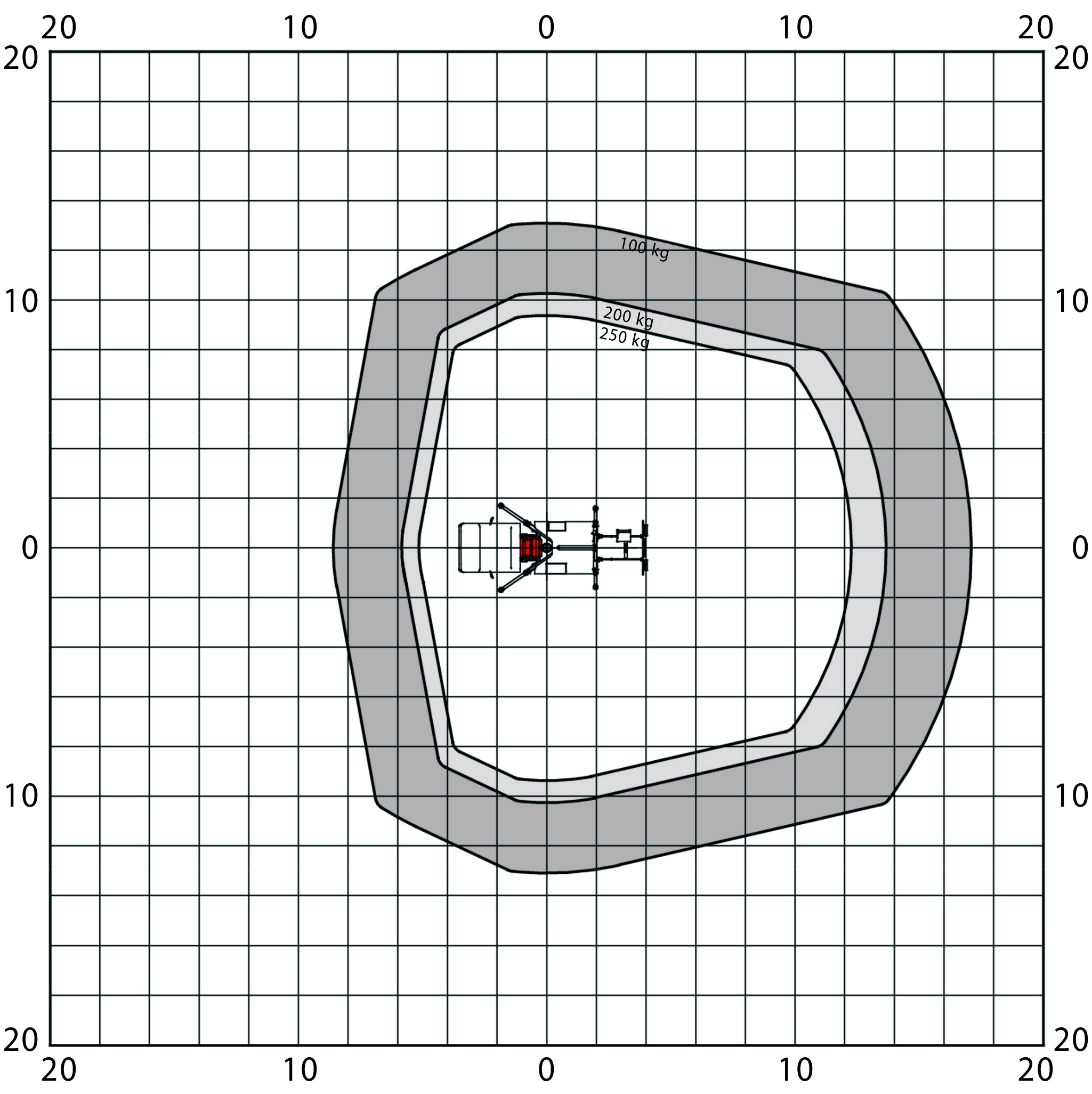

Side Reach 17 m
|Max. height of work||27.6 m|
|Max. basket floor height||25.6 m|
|Max. horizontal outreach /with basket load||17 m|
|Slewing range of basket||+/- 90°|
|Max. stabilizer spread||3.6 m|
|max. basket load||250 kg|
|Workman basket - breadth / length / height||1.4 x 0.7 x 1.1 m|
|Rotation angle of turntable||500°|
|Maximum stabilisation gradient||5°|

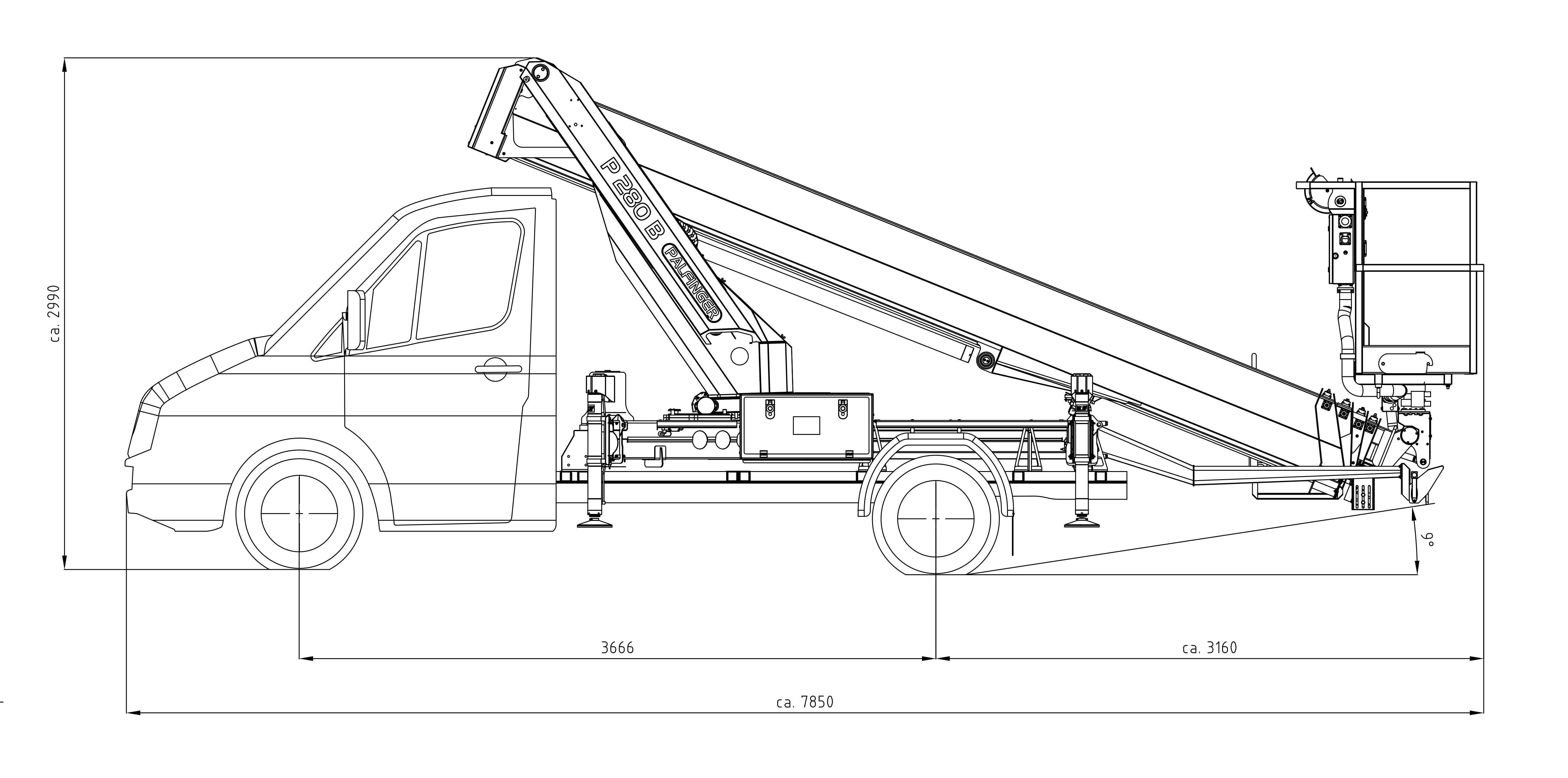

|Height in transport position||2.90 m|
|Width in transport position||2.22 m|
|Overall length||7.85 m|
|Overall weight||3500 kg|
* depending on inclination
**above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
