Low Smart Class

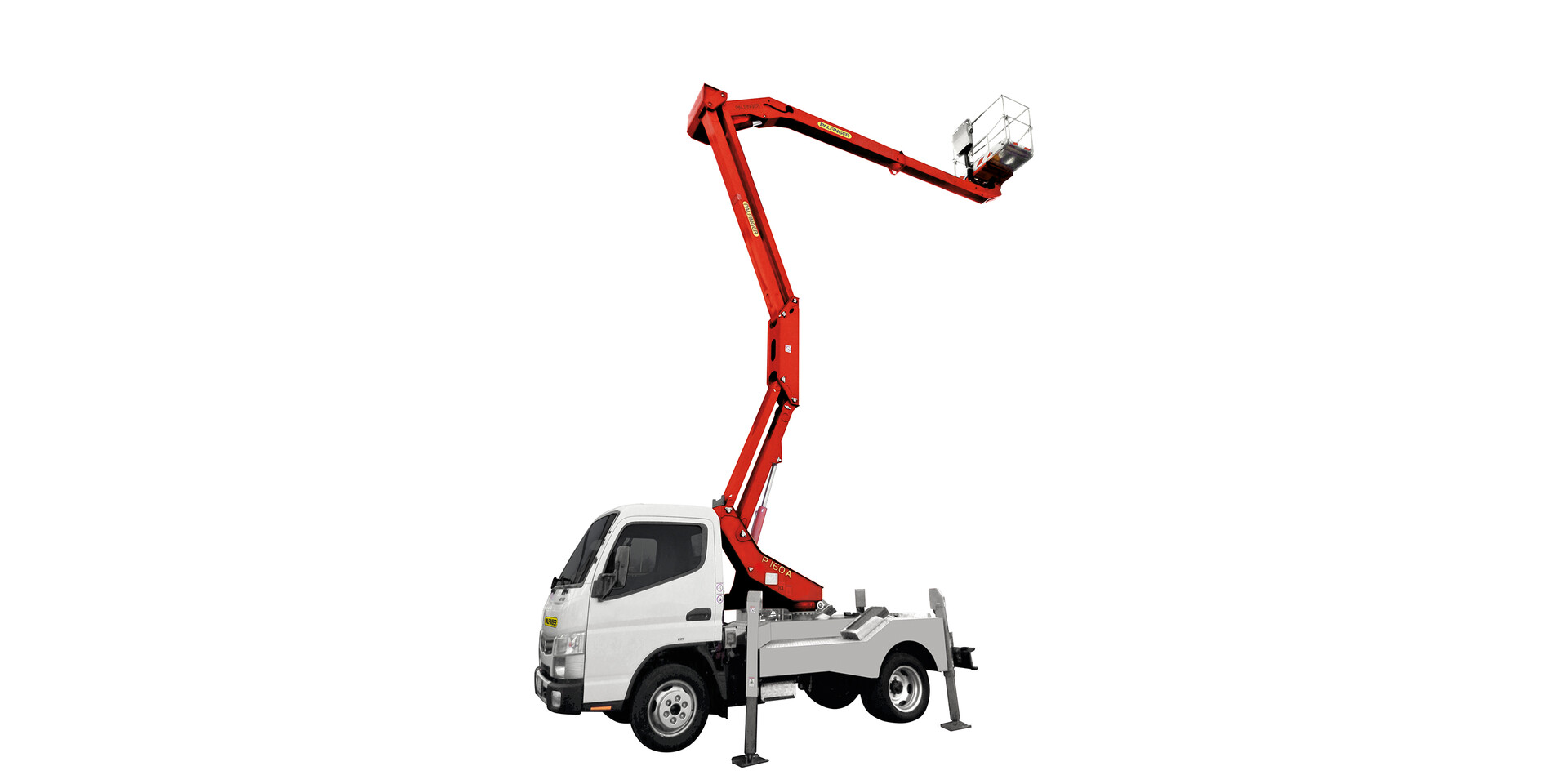

P 160 A
P 160 A
Working Height 16 M
Basket Load 200 KG
Side Reach 6,3 m
|Max. height of work||16 m|
|Max. basket floor height||14 m|
|Max. horizontal outreach /with basket load||6,3 m|
|max. basket load||200 kg|
|Workman basket - breadth / length / height||1,4 x 0,7 x 1,1 m|
|Angle of main boom||-30° + 60°|
|Rotation angle of turntable||260°|
|Height in transport position||2.65 m|
|Width in transport position||1.82 m|
|Length in transport position||4.62 m|
*above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
