up to 72,000 ft lbs

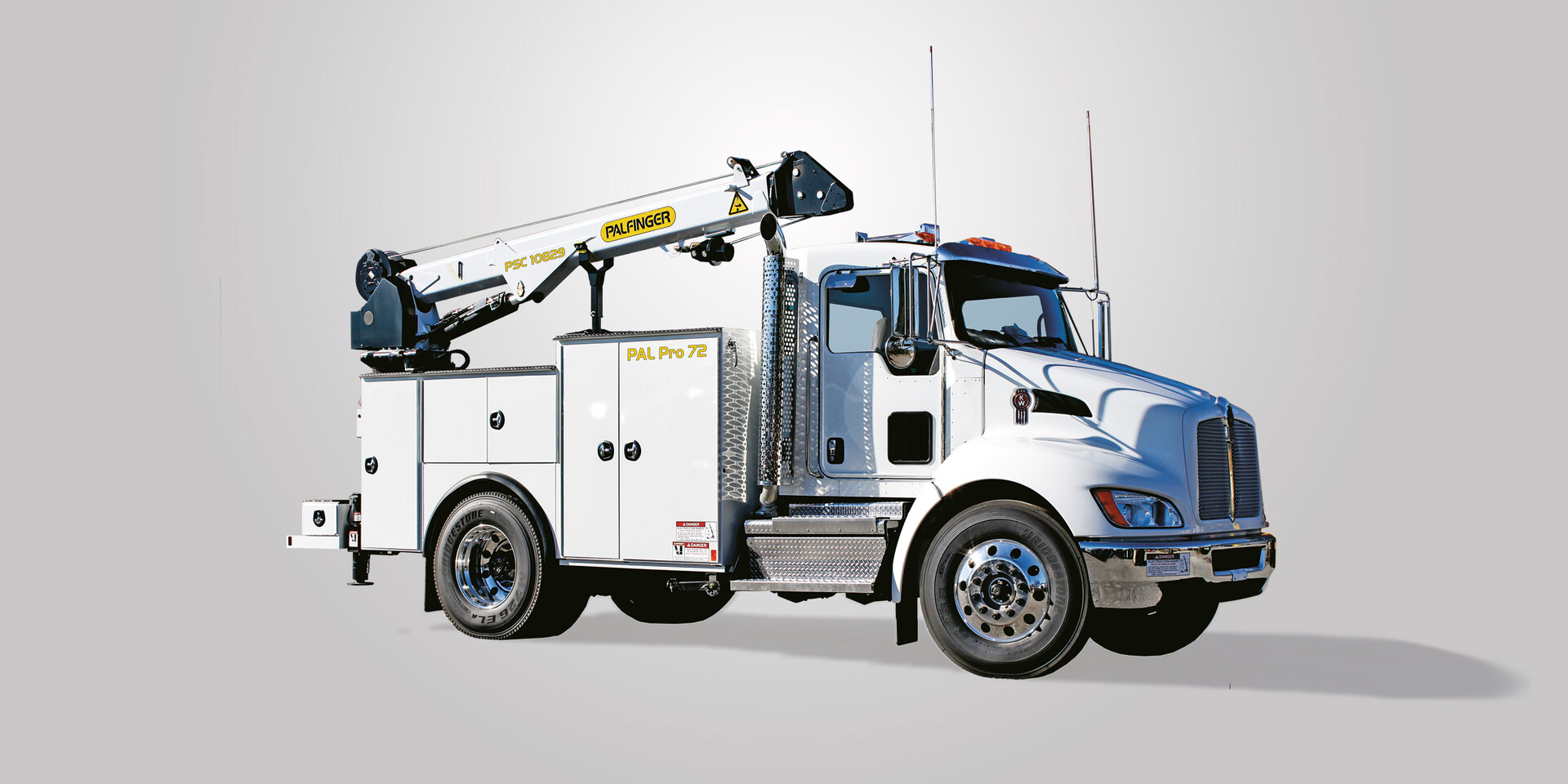

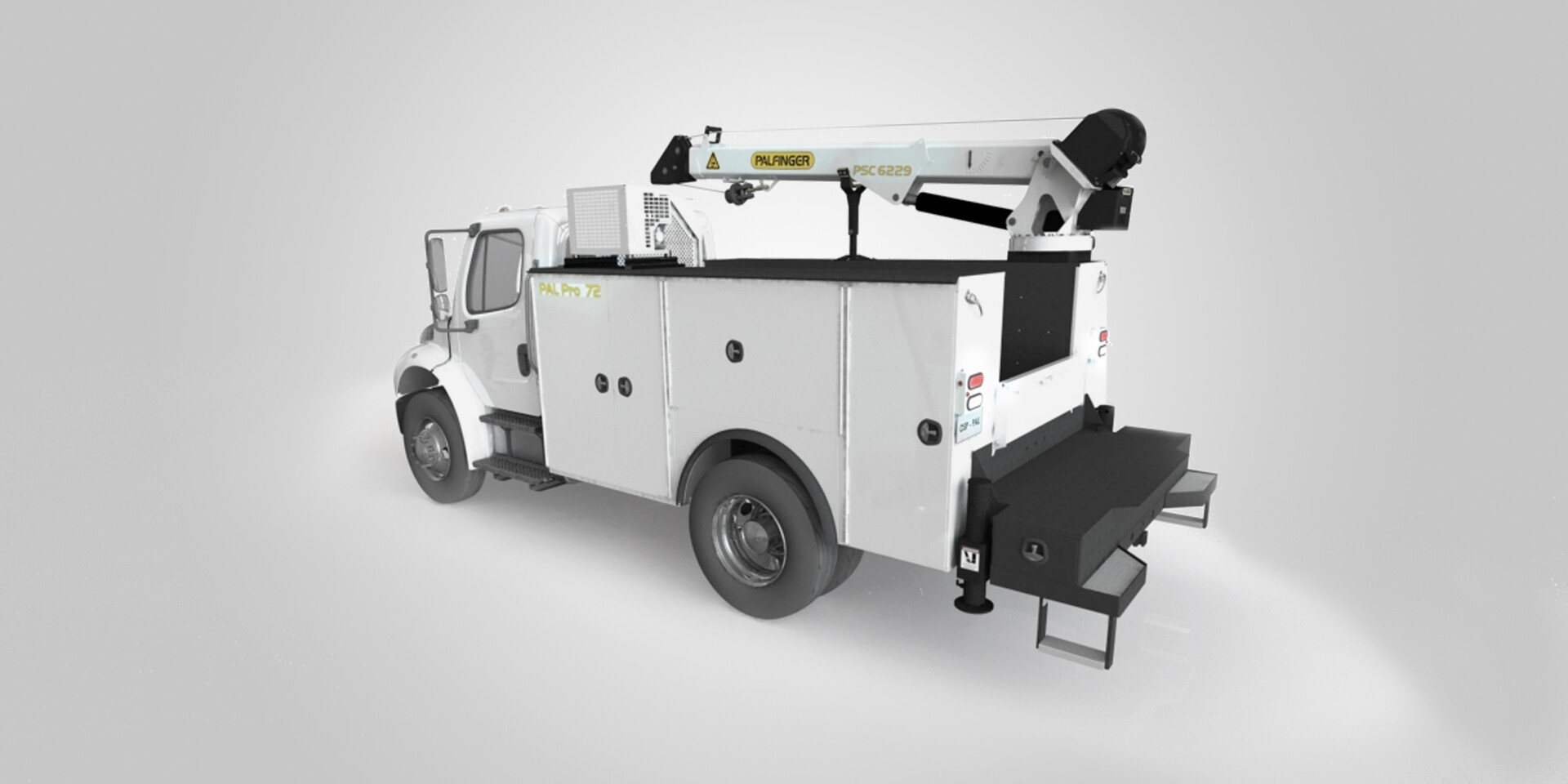

PAL Pro 72
Mechanics Trucks
Built for powerful cranes

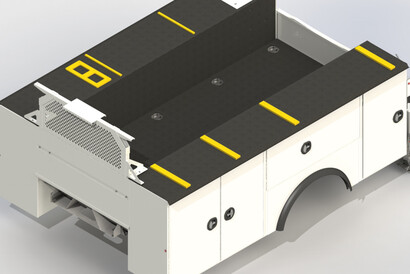

PAL Pro 72 is manufactured using 12-gauge A-60 galvanneal steel and features a full-length hybrid torsion box understructure that eliminates frame and side pack deflection. Combined with integrated outrigger housings that transfer crane load directly to the ground and single or dual extending hydraulic outriggers, PAL Pro 72 effectively manages crane forces while maximizing stability.

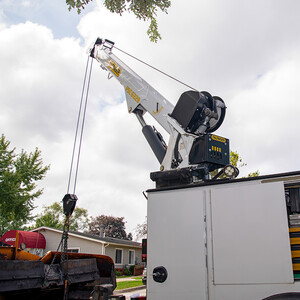

PAL Pro 72 features a 72,000 ft. lbs. crane reinforcement engineered to support our 10,800 lb. capacity and 12,500 lb. capacity (requires 72XL body) service cranes.
Optimized for compartment loads

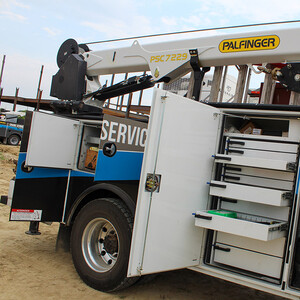

PAL Pro 72 is designed to provide maximum support for compartment loads and more usable storage capacity. Tubular 3”x 5” structural steel crossmembers interlaced into the body's understructure and internal gussets on every raised compartment provide a rigid body for storage of equipment, tools, and accessories.
Ready for top mounted accessories
Threaded weldment options available from the factory make installing top mounted accessories easy. Boom rest, welder, compressor, EnPak, Air-n-Arc and AirPak mounts eliminate the need to drill holes in the body.
Compartment doors built to last
PAL Pro 72 features double panel doors that provide rigid performance with internal C-channel stiffeners adhered with structural adhesive. Compartment doors are equipped with corrosion resistant full length 316 marine grade stainless steel hinges, whale tail handles, and 3-point locking latches standard.
Zolatone interior compartment coating
Interior compartments on the PAL Pro 72 are coated with Zolatone to resist damage commonly caused by tools, chains, and parts. Zolatone provides an additional layer of rust protection and as an added bonus, the coating is white in color and helps to brighten up the interior.
A true mechanics work bench
PAL Pro 72 features a standard 30" deep work bench bumper designed to provide technicians with a useable work surface for field repairs, welding, and more. Each bumper features a 5/16" steel top plate and thru compartment for internal storage of long tools and chains.
Integrated Hitch Receiver
PAL Pro 72 bumpers come standard with a 2" class 5 receiver tube hitch rated for 16,000 lbs. of towing capacity. 15-ton pintle reinforcement plate included.
- 52" standard compartment heights with raised compartment options

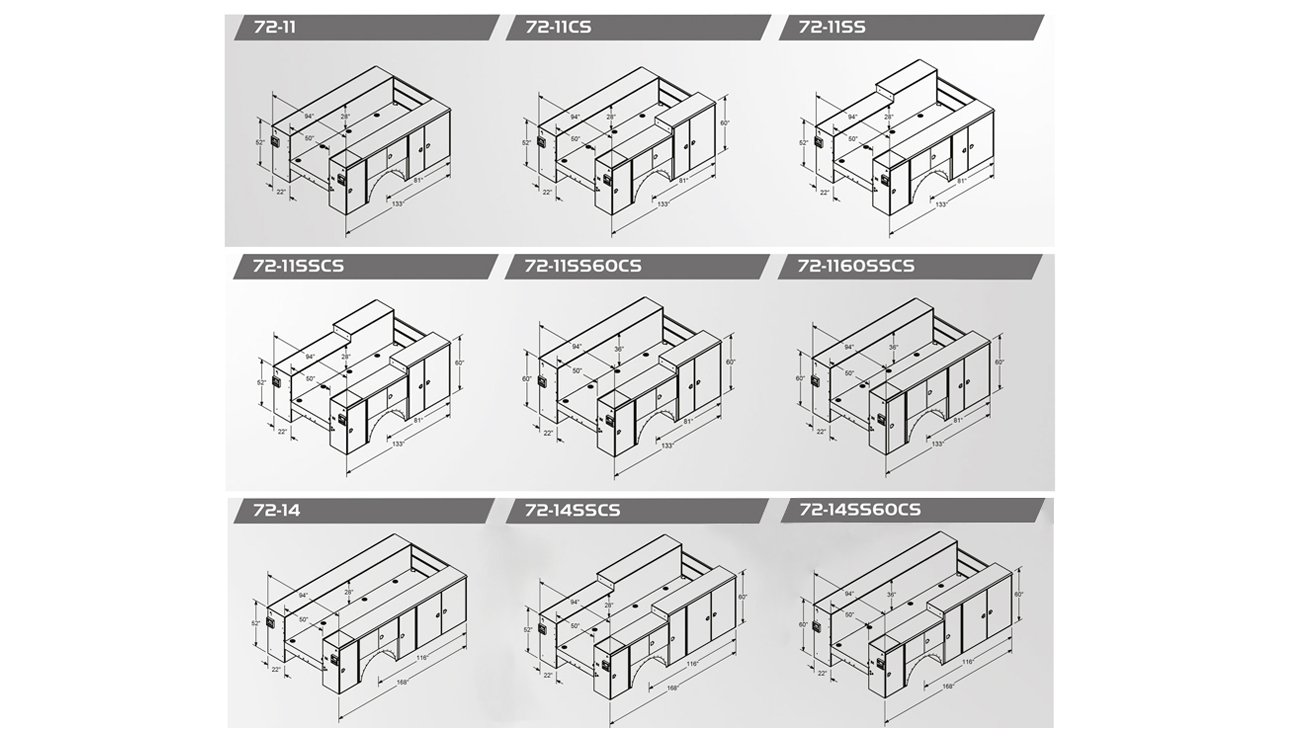

- 11' and 14' standard configurations
- Treadplate cargo floor, load space walls and compartment tops
- Hybrid torsion box and ladder frame
- PALFINGER engineered internal gussets prevents body cracking
- Full length channel drip rails
- Double panel doors with internal C-channel stiffeners, adhered with structural adhesive
- Non-marring boom rest
- Work bench featuring 30" work surface with 5/16" steel top plate, full width through compartment with hitch receiver tube and reinforced for 15 ton pintle plate
- Linear adjustable front mounts
- Full length stainless steel hinges
- 316 marine grade stainless steel hinges
- A-60 galvanealed zinc coated steel
- Rubber mounted LED lights
- E-coat primer
- Fixed or adjustable non-marring boom support (E-Coated)
- Threaded weldment options for installing boom rest, welders, compressors, etc.
- Stabilizer options include power or manual extend configurations.
- Steel shelves or divider trays
- Aluminum roll-out drawers
- Bolt on handrail for added safety
- Master lock system
- Low sliding roof
- Headache rack with light bar mount
- Aluminum rock guards
- LED compartment lighting
- LED work lighting
- Air compressor hose reel and FLR
- Standard and metallic top coat paint
- And much more.....
