PTF Heavy Duty

Liftgates
Imperial Metric
Weight Capacity Up to 5,500 lbs.
Platform Size Up to 62" x 86"
Bed Height Up to 56"
Technical Data

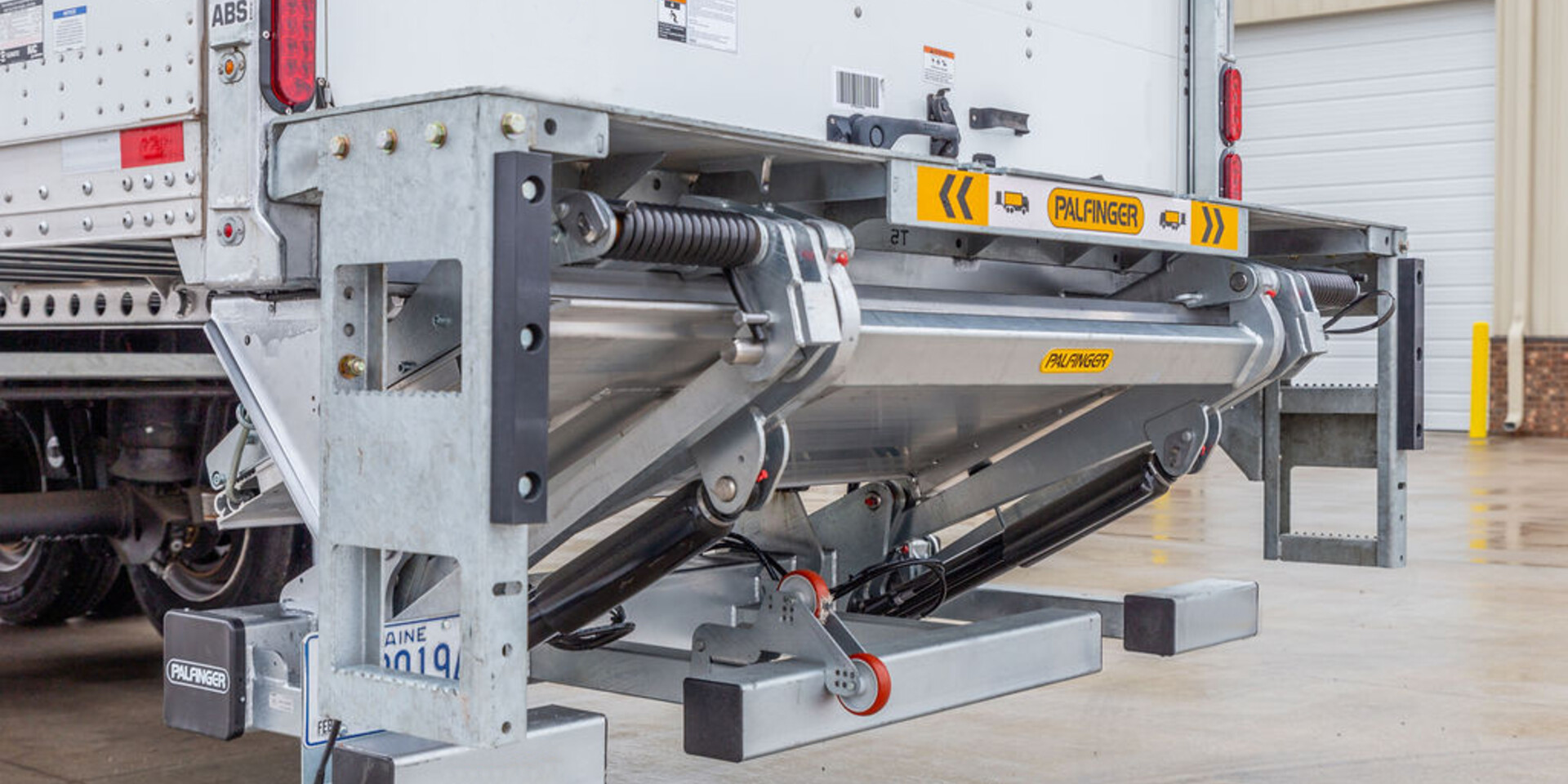

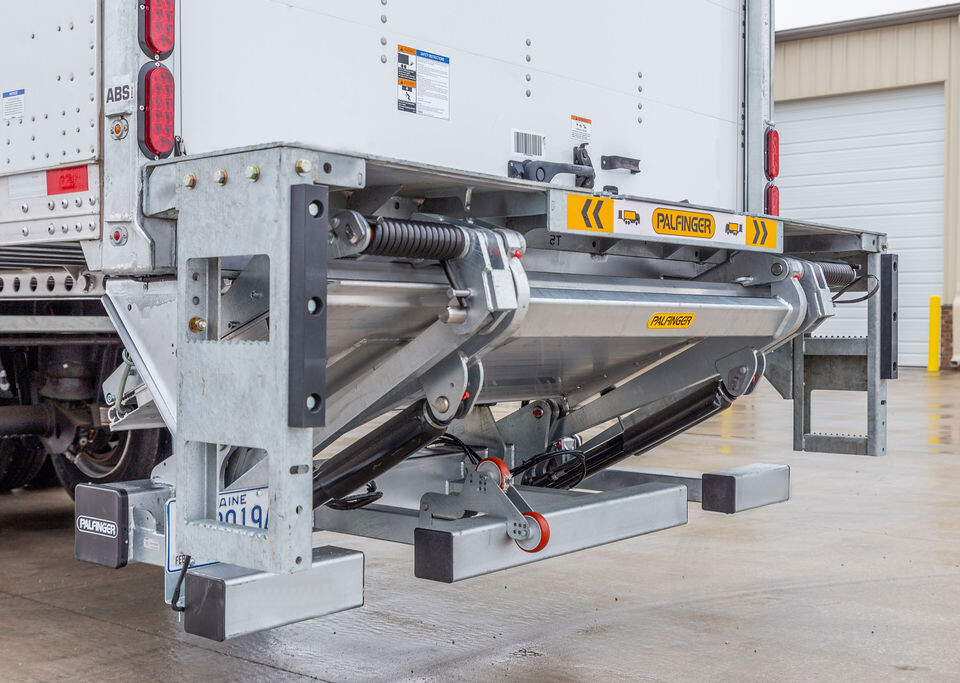

The new PALFINGER PTF liftgate helps fleet operators in every market segment transport goods and safely reach their destinations on time. Featuring a 62" x 86" heavy-duty aluminum platform, the PTF fits most trucks and trailers with bed heights ranging from 48" to 56" – making it ideal for almost every application.

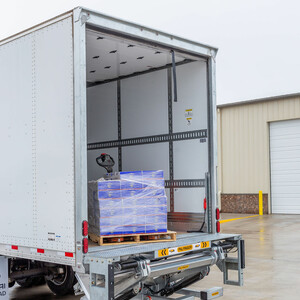

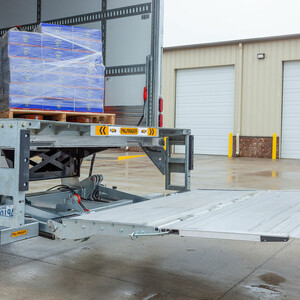

Self-leveling and power-down functions simplify machine operation and help operators focus on the job – regardless of terrain. With torsion assist folding and electro-hydraulic stowage, the operation is effortless. Plus, with the platform stowed under the truck, you are forklift and dock-ready for maximum efficiency.


As the industry innovator in operations and safety, our guiding principle is to make you more successful with the help of advanced technologies, market experience, technical skills, nationwide service support and committed employees.

Downloads

You Asked For It—So We Delivered

The new PTF liftgate takes PALFINGER's already proven design into the heavy-duty application. Offering both 50 and 55 models, the PTF is the perfect complement to a truck or trailer for your heavy-duty needs.

See the Product

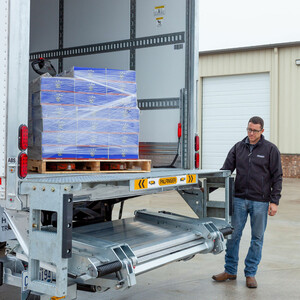

Designed for Ease of Use

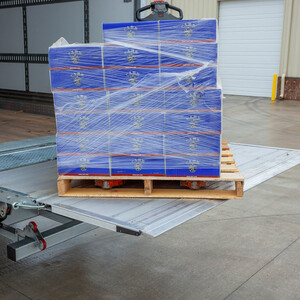

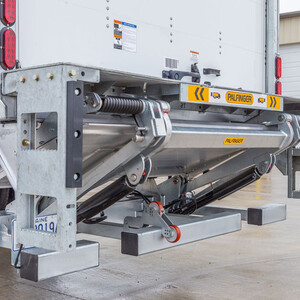

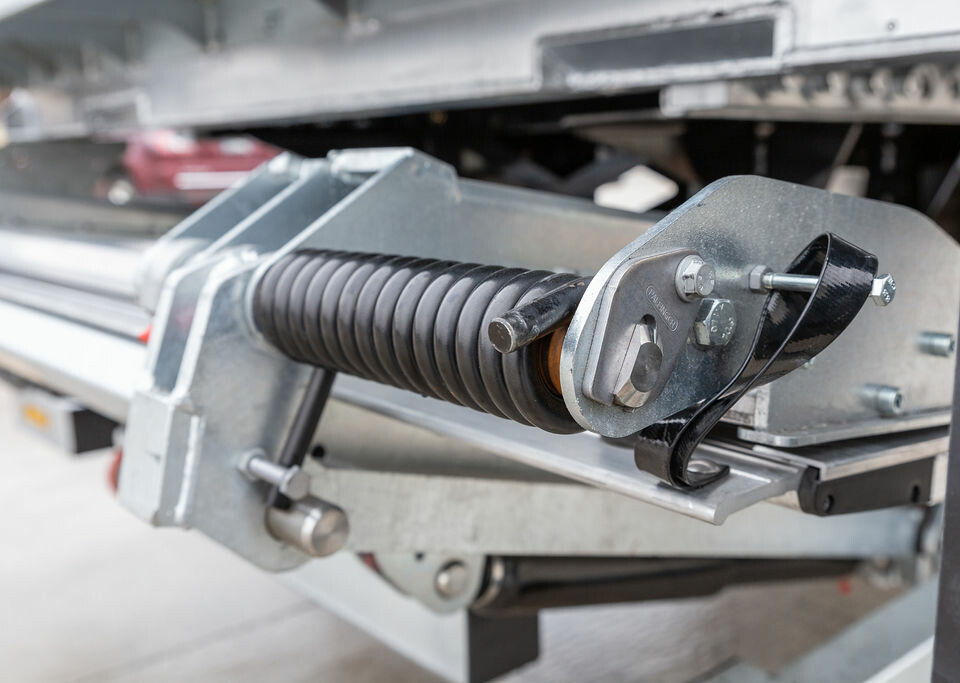

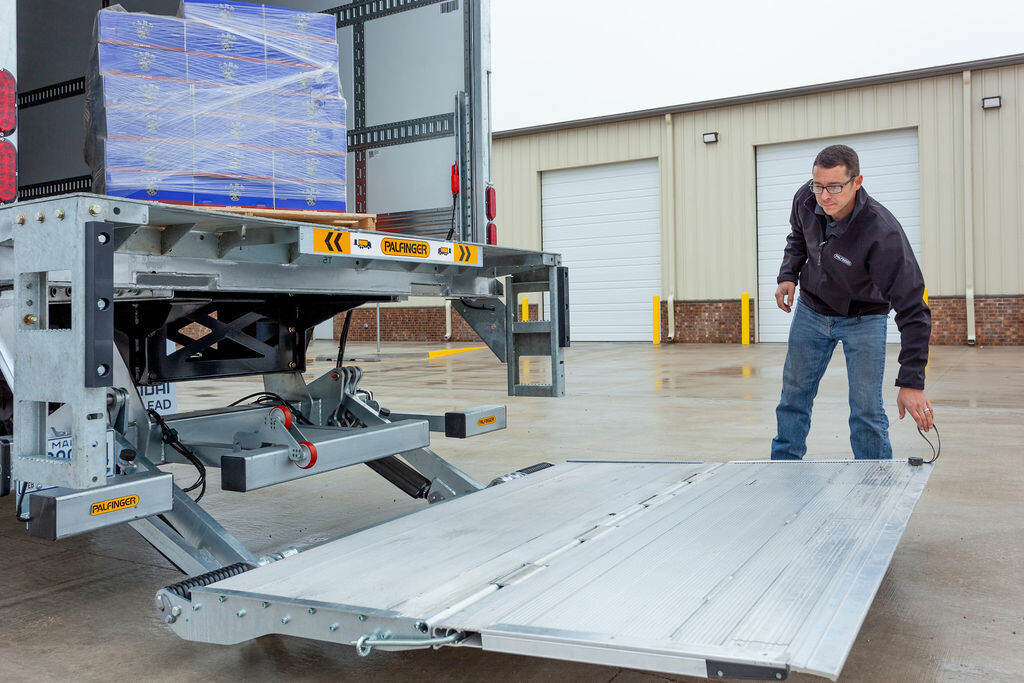

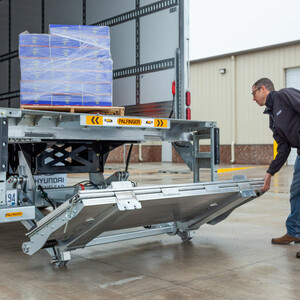

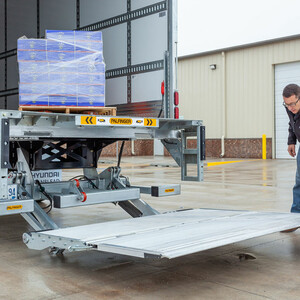

Heavy-duty torsion assist on both the main and tip sections helps your drivers operate the liftgate with little effort.  The large 62x86 aluminum platform folds and unfolds with ease.

Loaded With Standard Features

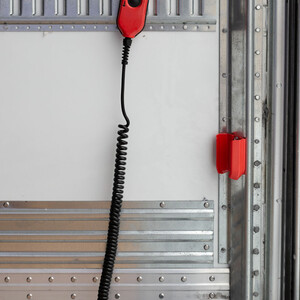

The PTF comes loaded with features for the heavy-duty application. Hydraulic power down, three-piece DOT rear impact guard, dual spring-loaded cart stops, toggle switch with complimentary two-button hand-held controls, and dual hydraulic cylinder locks, to name a few.

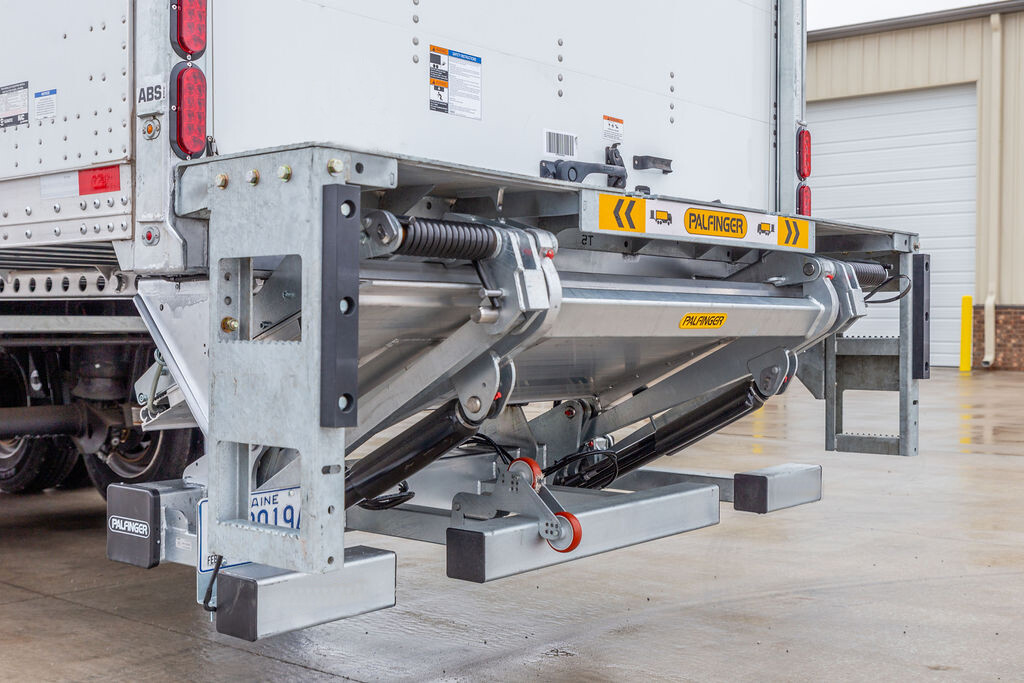

Galvanized Steel Protection

All steel components undergo an 8-step hot dip galvanizing process to protect your liftgate for years of hard use.

Serviceability

Standardized dimensions and shared parts design between models means that your shop and our nationwide parts distribution can quickly assist you if you’re down.

3 year warranty

When you choose PALFINGER, you get more than advanced technology. You partner with a trusted brand that’s committed to building your business. Our PTF liftgates offer a 3-Year Warranty on the pump and motor, cylinders, hardware, control system and hydraulics—giving you the peace of mind you need to focus on the job ahead.

Highlights

Corrosion Protection

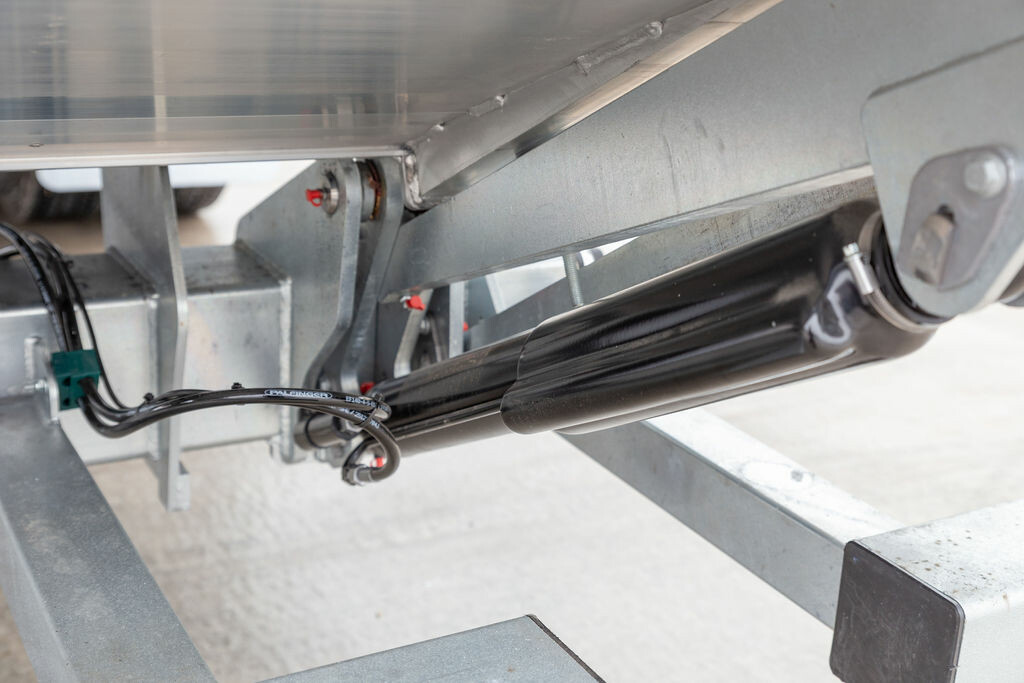

Rubber boots on the cylinders, zinc-coated hardware and galvanized finish on the PTF all come standard.  The rubber boots help protect cylinder shafts from damage caused by road debris. The zinc hardware and galvanized coating protect your liftgate even in the most harsh climates.

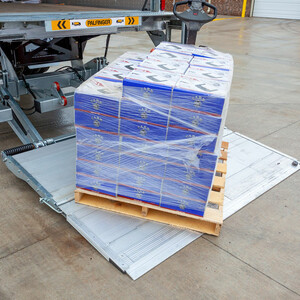

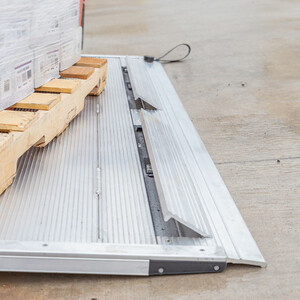

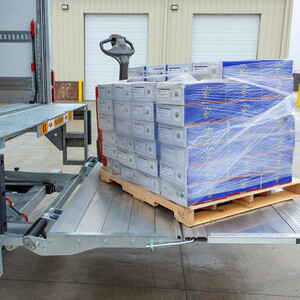

Large Aluminum Platform

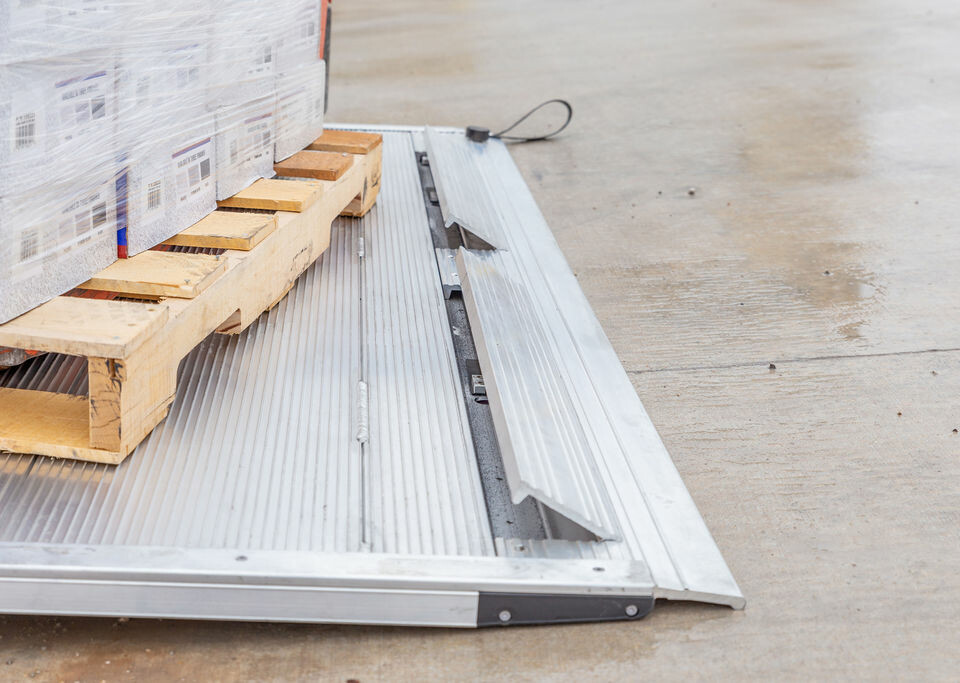

The 62x86 aluminum platform is one of the largest in the market.  Plus with our standard feature of dual spring-loaded cart stops you’ll find comfort in a safer lifting operation.

Lifting capacity (lbs) Platform size length (inch) Platform size width (inch) Bed height range (inch) Approx. weight (lbs)
PTF 50 5000 62" 86" 48" – 56" 1,480 lbs.
PTF 50 WR 5000 62" 86" 52" – 56" 1,668 lbs.
PTF 55 5500 62" 86" 48" – 56" 1,520 lbs.
PTF 55 WR 5500 62" 86" 52" – 56" 1,708 lbs.

Bed height ranges: min = loaded / max = unloaded

Lifting capacity Platform size length Platform size width Bed height range Approx. weight
PTF 50 2268 1574.8 mm 2184.4 mm 1219.2 mm – 1422.4 mm 671.3 kg
PTF 50 WR 2268 1574.8 mm 2184.4 mm 1320.8 mm – 1422.4 mm 671.3 kg
PTF 55 2494.8 1574.8 mm 2184.4 mm 1219.2 mm – 1422.4 mm 689.5 kg
PTF 55 WR 2494.8 1574.8 mm 2184.4 mm 1320.8 mm – 1422.4 mm 774.7 kg

Bed height ranges: min = loaded / max = unloaded

  • Cartstop
  • Galvanized finish coating

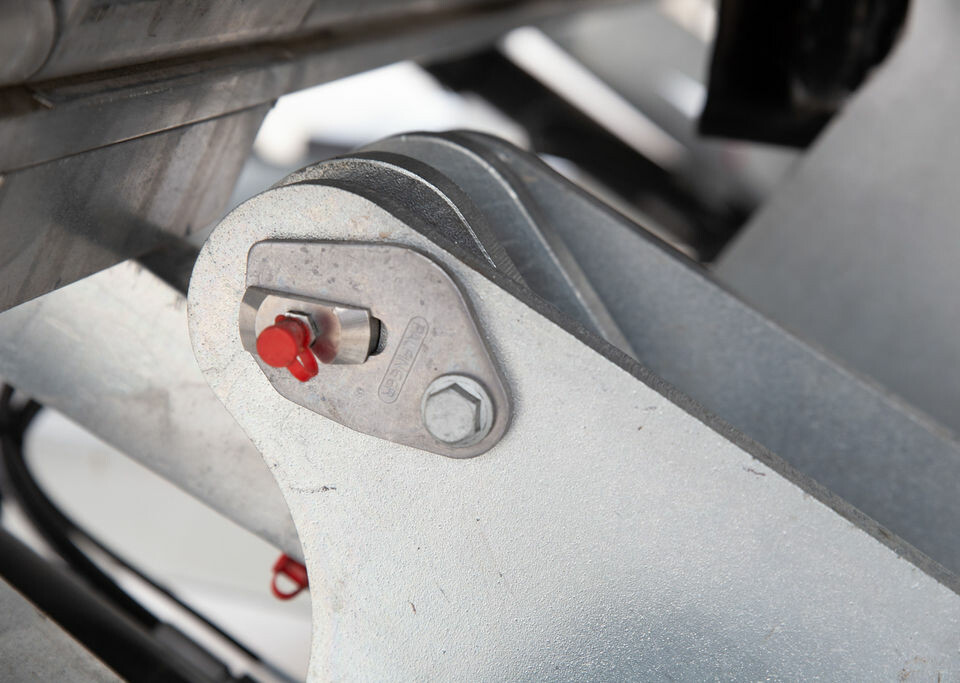

  • Hydraulic cylinder locks

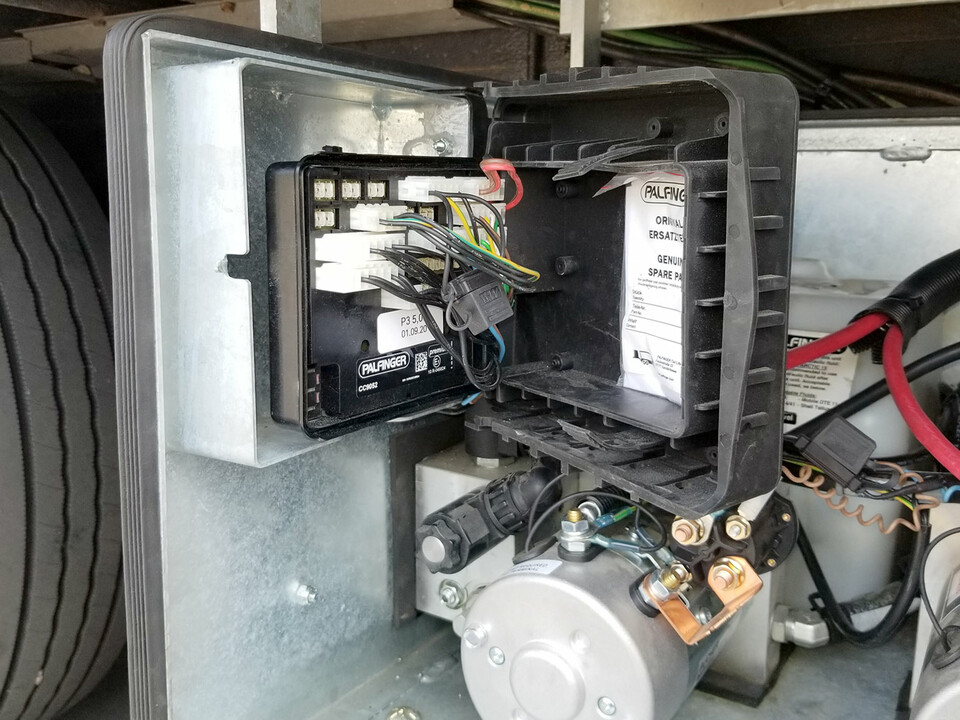

  • Pre-mounted, pre-filled thermo thermo-protected power pack
  • Toggle switch
  • Pre-assembled frame and platform
  • 2-button hand control CC hard mount
  • Pre-assembled three pieces DOT rear impact guard for truck and trailer
  • Cab shut-off switch
  • Level ride platform with automatic ground tilt
  • 150 Amp resettable circuit breaker
  • Platform torsion assist-main and tip
  • 2 Ga. x 40’ power and ground cables
  • Pre-welded mount plates for chassis frame width: 34”
  • 96" wide bed extension w/bolt kit, galvanized
  • Power down
  • Dock bumpers with bolt kit
  • Double acting dual cylinder stability
  • Bushing and grease fitting at all pivot points
  • 102" wide bed extension w/bolt kit, galvanized
  • Walk ramp
  • Trailer shut-off kit
  • Trailer subframe, kit, weld and bolt-on, 102" wide
  • Auxiliary battery box (2 battery)
  • Trailer subframe, kit, weld and bolt-on, 96" wide
  • Trailer kit, nose box, single/dual
